Briggs & Stratton 61G477-0005-J1 Engine

Model: 61G477-0005-J1

Back To Assemblies

Save Part Not Listed?
product name

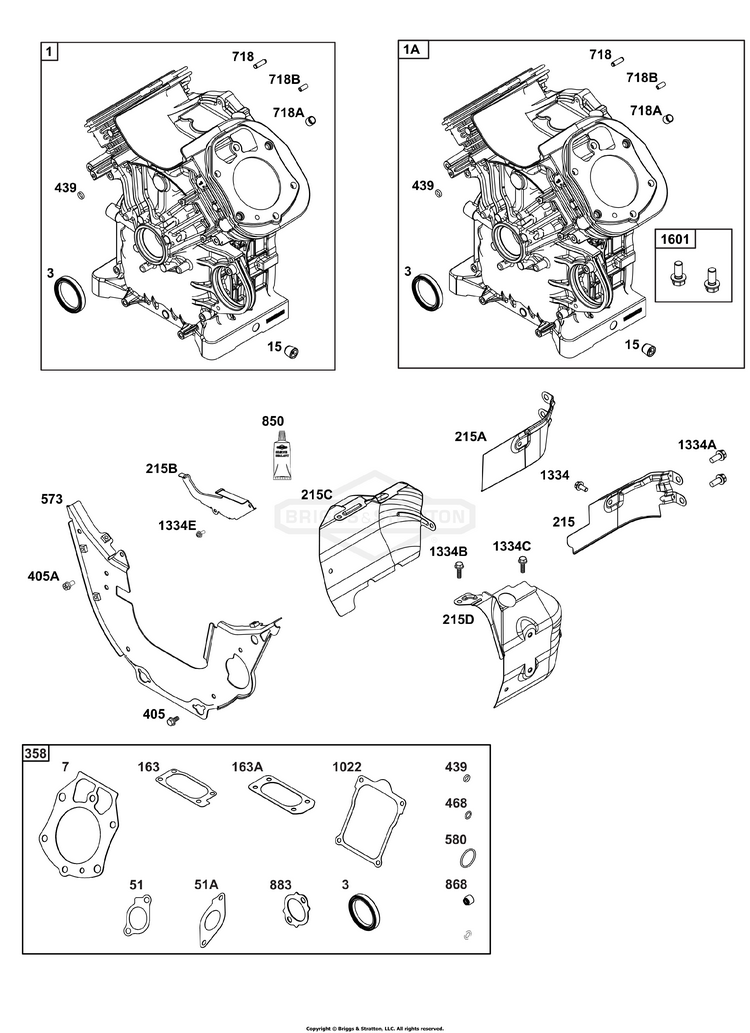

Cylinder Group

...
...
1
CYLINDER ASSEMBLY BS-84013611
...
1A
CYLINDER ASSEMBLY BS-84013611
...
3
SEAL, Oil (Magneto Side) BS-841596
...
15
PLUG, Oil Drain BS-691680
...
215
GUIDE, Air BS-846455
...
215A
GUIDE, Air BS-846456
...
215B
GUIDE, Air BS-846458
...
215C
SHIELD, Cylinder BS-84013677
...
215D
SHIELD, Cylinder BS-84013676
...
358
GASKET SET, Engine (Service Kits may include extra parts not specific to this engine.) BS-846671
...
405
SCREW (Back Plate) (M6x10mm) BS-841233
...
405A
SCREW (Back Plate) (M6x14mm) BS-841735
...
573
PLATE, Back BS-846840
...
718
PIN, Locating BS-690959
...
718A
PIN, Locating BS-809508
...
718B
PIN, Locating BS-845925
...
1334
SCREW (Air Guide) (M6x20mm) BS-807435
...
1334A
SCREW (Air Guide) (M6x10mm) BS-841233
...
1334B
SCREW (Air Guide) (M6x14mm) BS-807084
...
1334C
SCREW (Air Guide) (M4x12mm) BS-690677
...
1334D
SCREW (Air Guide) (M8x14mm) BS-692062
...
1334E
SCREW (Air Guide) (M8x14mm) BS-692056
...
1601
KIT, Hardware "Only For Use<BR/> With Reference 1A" BS-84013604
