Briggs & Stratton 61G477-0005-J1 Engine

Model: 61G477-0005-J1

Back To Assemblies

Save Part Not Listed?
product name

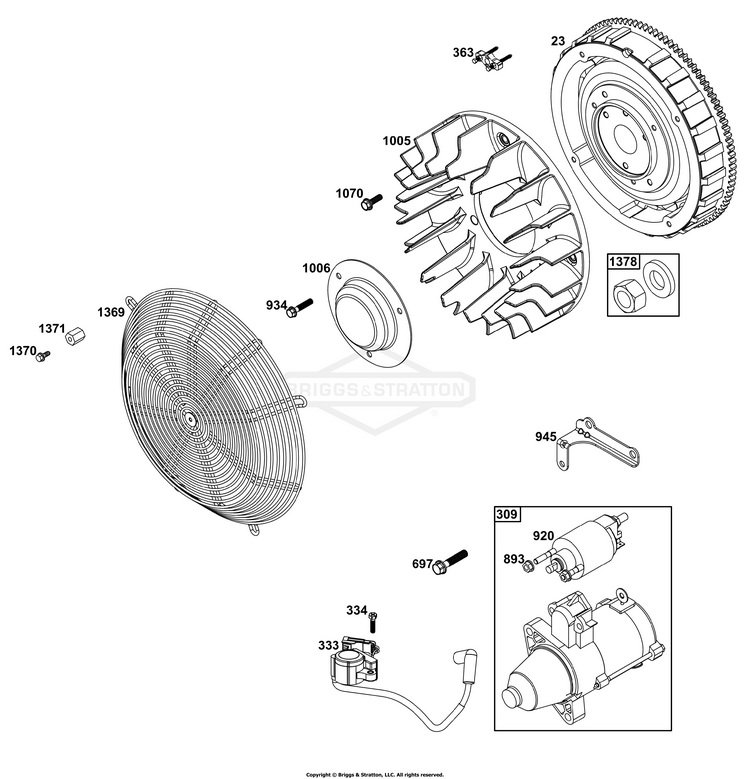

Flywheel, Ignition, and Starter Group

...
...
363
PULLER, Flywheel BS-19203
...
1378
SET, Washer/Nut BS-844795
...
1378
SET, Washer/Nut BS-844795
...
1006
RETAINER, Fan BS-846495
...
934
SCREW (Fan Retainer) BS-807421
...
1370
SCREW (Flywheel Fan Guard) (M6x10mm) BS-841233
...
1371
NUT (Flywheel Fan Guard) BS-841537
...
1369
GUARD, Flywheel Fan BS-842858
...
697
SCREW (Starter Motor) (Drive Cap) (M8x38mm) BS-690711
...
893
NUT (Starter Solenoid) BS-845758
...
334
SCREW (Magneto Armature) (M5x20mm) BS-841552
...
1005
FAN, Flywheel BS-846995
...
1070
SCREW (Flywheel Fan) BS-807435
...
333
ARMATURE, MAGNETO BS-84013948
...
309
MOTOR, Starter BS-84013103
...
920
SOLENOID, Starter BS-84008635
...
23
FLYWHEEL BS-84006162
...
945
BRACKET, Starter Motor BS-84007081
