Briggs & Stratton 61G477-0005-J1 Engine

Model: 61G477-0005-J1

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

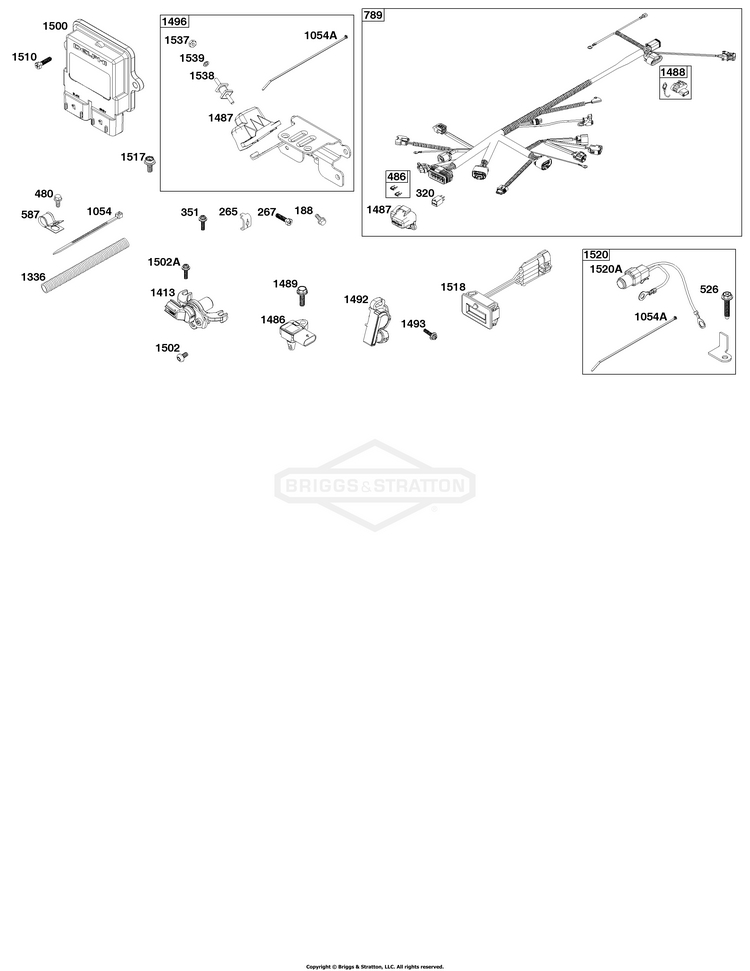

Controls Group

...
...
188
SCREW (Control Bracket) (M8x18mm) BS-692062
...
265
CLAMP, Casing BS-691024
...
267
SCREW (Casing Clamp) (M5x20mm) BS-841552
...
320
RELAY(S) BS-593902
...
351
SCREW (Ground Terminal) (M4x12mm) BS-690677
...
480
SCREW (Tube Clamp) (M6x10mm) BS-841233
...
486
FUSE BS-593901
...
587
CLAMP, Tube BS-807116
...
789
HARNESS, Wiring BS-847409
...
1054
TIE, Cable BS-280275
...
1054A
TIE, Cable BS-861206
...
1336
SLEEVE, Fuel Line BS-846822
...
1413
SENSOR, Speed BS-84006668
...
1486
SENSOR, TEMPERATURE/PRESSURE BS-84013424
...
1487
COVER, Fuse BS-847334
...
1488
COVER, Diagnostic BS-593899
...
1489
SCREW (TEMP/MAP Sensor) (M6x20mm) BS-807435
...
1492
SENSOR, Throttle BS-846478
...
1493
SCREW (Throttle Sensor) BS-847169
...
1496
COVER, Fuse Kit BS-847337
...
1500
MODULE, Electronic Control (Not Programmed) BS-846484
...
1502
SCREW (Speed Sensor) (M5x10mm) BS-846459
...
1502A
SCREW (Speed Sensor) (M4x18mm) BS-846868
...
1510
SCREW (Electronic Control Module) (M5x20mm) BS-841552
...
1517
SCREW (ECU Bracket) (M6x14mm) BS-807084
...
1518
TACHOMETER BS-847016
...
1520
CAPACITOR BS-847148
...
1520A
CAPACITOR BS-847147
...
1537
NUT, Hex #8-32 (Fuse Cover) BS-703460
...
1538
STUD (Fuse Cover) BS-847332
...
1539
WASHER (Fuse Cover) BS-847333
