Briggs & Stratton 61G477-0005-J1 Engine

Model: 61G477-0005-J1

Back To Assemblies

Save Part Not Listed?
product name

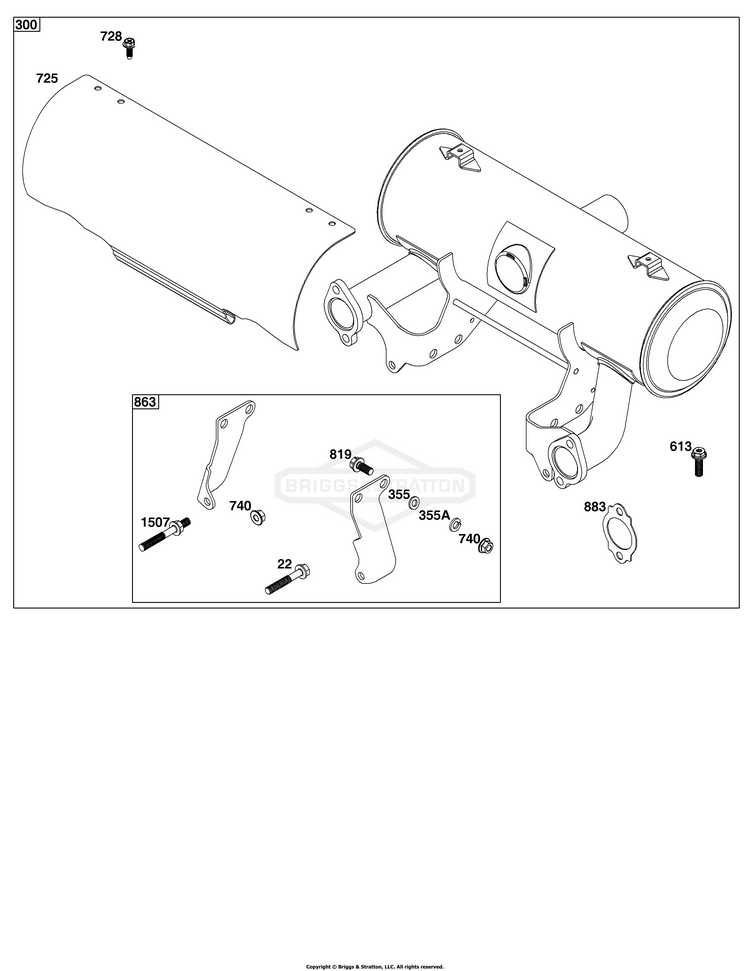

Exhaust Group

...
...
300
MUFFLER BS-847922
...
355
WASHER (Muffler Bracket) BS-844035
...
355A
WASHER, 5/16" LOCK (Muffler Bracket) BS-5025170SM
...
613
SCREW (Muffler) (M8x25mm) BS-846149
...
725
SHIELD, Heat BS-841132
...
728
SCREW (Heat Shield) (M6x12mm) BS-692067
...
740
NUT (Muffler Bracket) BS-690941
...
819
SCREW (Muffler Bracket) (M8x18mm) BS-692062
...
863
BRACKET, Muffler BS-84002127
...
883
GASKET, Exhaust BS-809872
...
1507
STUD (Muffler Bracket) BS-846324
