Briggs & Stratton 40U777-0007-G1 Engine

Model: 40U777-0007-G1

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

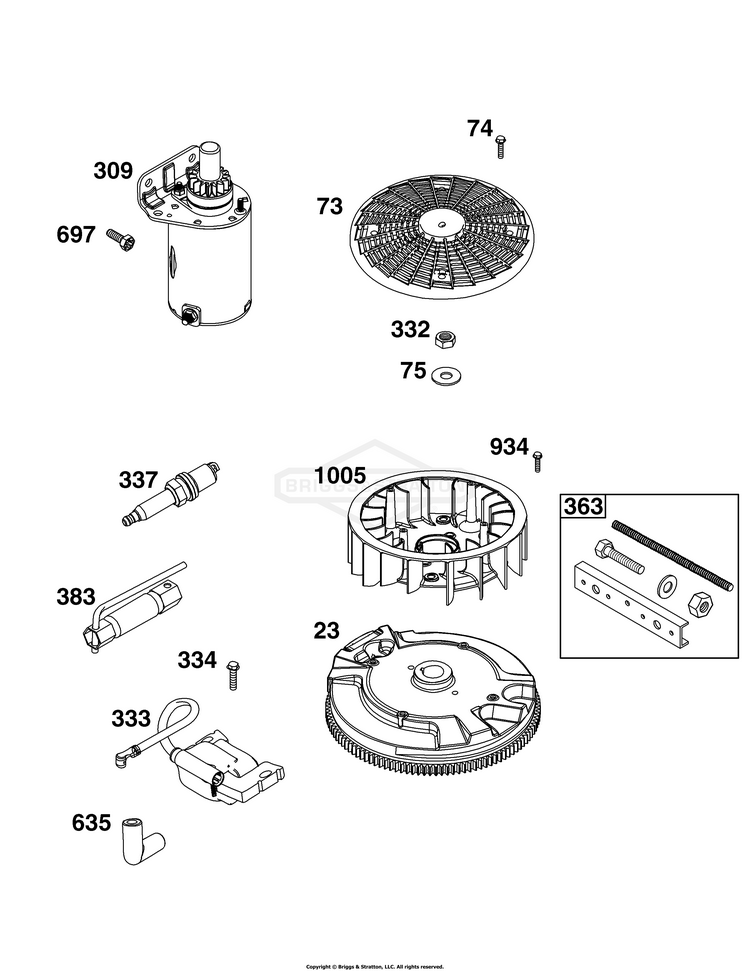

Flywheel, Ignition, and Starter Group

...
...
23
FLYWHEEL BS-594169
...
73
SCREEN, Rotating BS-494439
...
74
SCREW (Rotating Screen) BS-698425
...
75
WASHER (Flywheel) BS-691056
...
309
MOTOR, Starter BS-590476
...
332
NUT (Flywheel) BS-691059
...
333
ARMATURE, Magneto BS-84012885
...
334
SCREW (Magneto Armature) BS-691061
...
363
PULLER, Flywheel BS-19621
...
383
WRENCH, Spark Plug (Part information located in Cylinder Head Group.) BS-19576S
...
697
SCREW (Starter Motor) BS-591909
...
934
SCREW (Fan Retainer) BS-593638
...
1005
FAN, Flywheel BS-593640
