Briggs & Stratton 305447-0175-B5 Engine

Model: 305447-0175-B5

Back To Assemblies

Save Part Not Listed?
product name

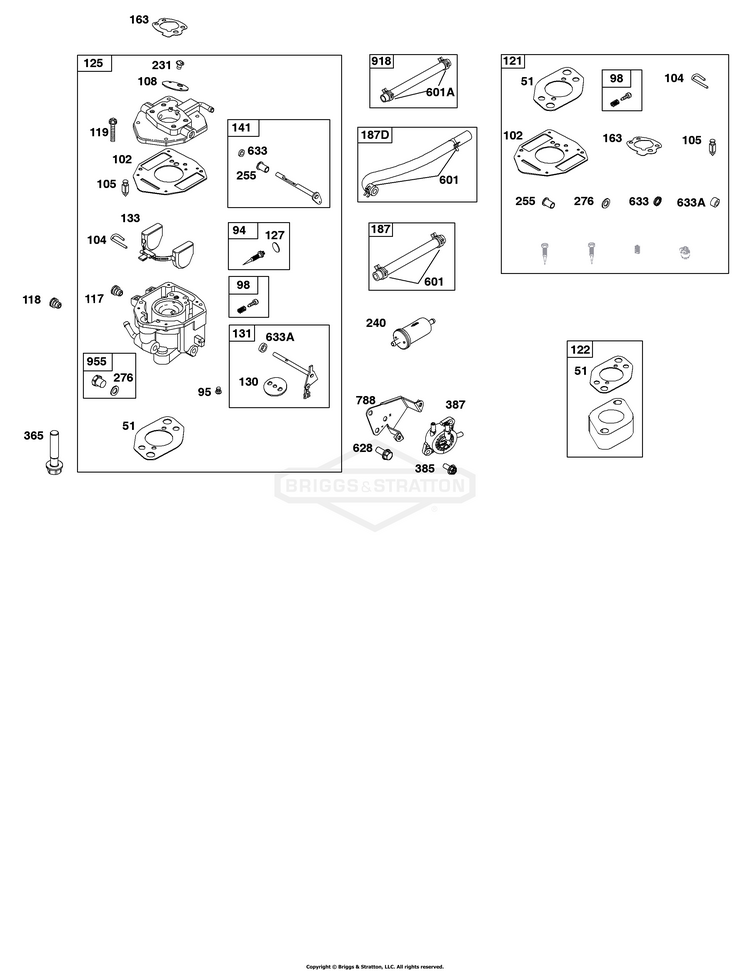

Carburetor and Fuel Supply Group

...
...
51
GASKET, Intake BS-691694
...
94
KIT, Idle Mixture BS-847026
...
95
SCREW (Throttle Valve) BS-690718
...
98
KIT, Idle Speed BS-808177
...
102
GASKET, Carburetor Body BS-692077
...
104
PIN, Float Hinge BS-690723
...
105
VALVE, Float Needle BS-797410
...
108
VALVE, Choke BS-844989
...
117
JET, Main (Standard) BS-690881
...
118
JET, Main (High Altitude) (5000 Feet) BS-844990
...
119
SCREW (Upper Carburetor Body to Lower Carburetor Body) BS-690720
...
121
KIT, Carburetor Overhaul (Service Kits may include extra parts not specific to this engine.) BS-845146
...
122
SPACER, Carburetor BS-690691
...
125
CARBURETOR BS-844988
...
127
PLUG, Welch BS-847028
...
130
VALVE, Throttle BS-690726
...
131
KIT, Throttle Shaft BS-809007
...
133
FLOAT, Carburetor BS-844546
...
141
KIT, Choke Shaft BS-808398
...
163
GASKET, Air Cleaner BS-844931
...
187
LINE, Fuel (Straight) (15 Inches Long)(Cut to Required Length) BS-791766
...
187D
LINE, Fuel (Formed)(Cut To Required Length) BS-791744
...
231
SCREW (Choke Valve) BS-690718
...
240
FILTER, Fuel BS-845125
...
255
BUSHING, Choke Shaft BS-690721
...
276
WASHER, Sealing BS-690724
...
365
SCREW (Carburetor/Throttle Body) BS-690711
...
385
SCREW (Fuel Pump) (M6x14mm) BS-807084
...
387
PUMP, Fuel BS-597338
...
601
CLAMP, Hose BS-691038
...
601A
CLAMP, Hose BS-791850
...
628
SCREW (Fuel Pump Bracket) (M8x18mm) BS-692062
...
633
SEAL, Choke/Throttle Shaft BS-690722
...
633A
SEAL, Choke/Throttle Shaft BS-806131
...
788
BRACKET, Fuel Pump BS-691559
...
918
GASKET, Breather Passage (6.35mm(0.25) ID x 60mm(2.36") Lg) (Straight) BS-791760
...
955
PLUG, Carburetor BS-807723
