Briggs & Stratton 1973-0 - 580.672200, 2,000 PSI Craftsman

Model: 1973-0 - 580.672200, 2,000 PSI

Save Part Not Listed?
product name

Popular Parts

Popular Parts

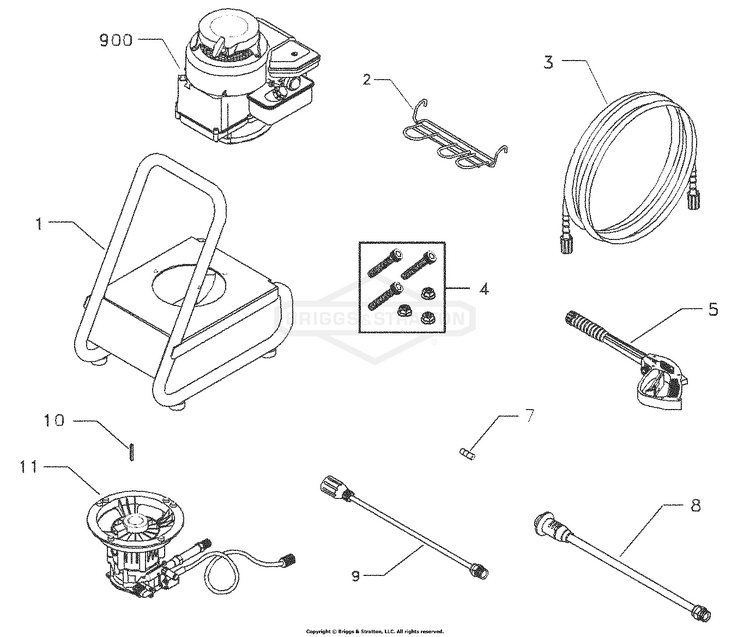

Main Unit

...
...
1
ASSY, BASE, 01898, SRV BS-193489GS
...
2
WIREFORM BS-192162GS
...
3
HOSE BS-190249GS
...
4
KIT, Pump/Engine Mounting Hardware BS-192649GS
...
5
GUN BS-190132GS
...
7
ORIFICE BS-21760GS
...
8
WAND-ADJUSTABLE BS-205015CGS
...
9
WAND, Turbo BS-B2335GS
...
10
KEY BS-23139GS
...
11
Assy, Pump BS-206383GS
...
900
ENGINE (see pages 20-22) BS-~NSP
...
MANUAL, Owner's Not Illustrated BS-193499GS
...
KIT, Decals Not Illustrated BS-193608GS
...
OIL, Bottle Not Illustrated BS-AB3061BGS
...
OIL, Pump Not Illustrated BS-190586GS
...
KIT, Maintenance, O-Ring Optional Accessory Not Illustrated BS-191922GS
...
House Wash Concentrate (makes 4 gallons) Optional Accessory Not Illustrated BS-7167300GS
...
Deck Wash Concentrate (makes 2 gallons) Optional Accessory Not Illustrated BS-7167301GS
...
Vehicle/Boat Wash Concentrate (makes 4 gallons) Optional Accessory Not Illustrated BS-7167302GS
...
Degreaser Concentrate (makes 4 gallons) Optional Accessory Not Illustrated BS-7167303GS

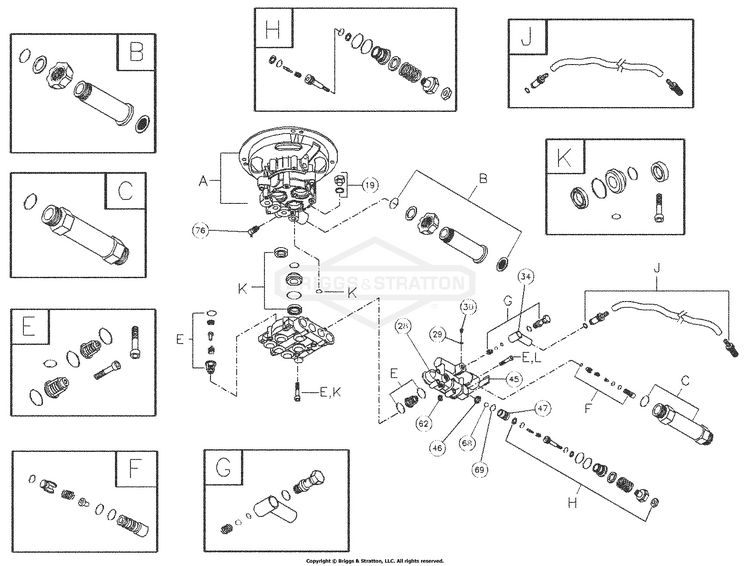

Pump

...
...
19
CAP, Oil BS-190571GS
...
28
MANIFOLD BS-190627GS
...
29
KIT, PIPE FITTING BS-193971GS
...
30
KIT, PIPE FITTING BS-193971GS
...
34
CONNECTION, Chemical Inlet BS-190577GS
...
45
PIN BS-190578GS
...
46
VALVE, Seat Plate, Plastic BS-190629GS
...
47
VALVE, Seat, Plastic BS-190630GS
...
62
CAP BS-190581GS
...
68
KIT, UNLOADER SEAT BS-193972GS
...
69
KIT, UNLOADER SEAT BS-193972GS
...
76
VALVE, Thermal Relief BS-208673GS
...
A
ASSY, CASE, PISTON (order complete pump assy, 191693GS) BS-~NSP
...
B
KIT, WATER INLET, ALUM Service kit and include all parts shown within the box. BS-190632GS
...
C
FITTING Service kit and include all parts shown within the box. BS-201497GS
...
E
KIT,CHECK VALVES Service kit and include all parts shown within the box. BS-190591GS
...
F
KIT, INLET CHECK Service kit and include all parts shown within the box. BS-190592GS
...
G
KIT, CHEMICAL INJECTION Service kit and include all parts shown within the box. BS-190593GS
...
H
KIT, UNLOADER STEM Service kit and include all parts shown within the box. BS-190628GS
...
J
KIT, CHEMICAL HOSE Service kit and include all parts shown within the box. BS-189971GS
...
K
KIT, SEAL SET Service kit and include all parts shown within the box. BS-190636GS
...
Assy, Pump BS-206383GS
