Briggs & Stratton 1925-1 - 7,750 Watt Troy-Bilt

Model: 1925-1 - 7,750 Watt Troy-Bilt

Save Part Not Listed?
product name

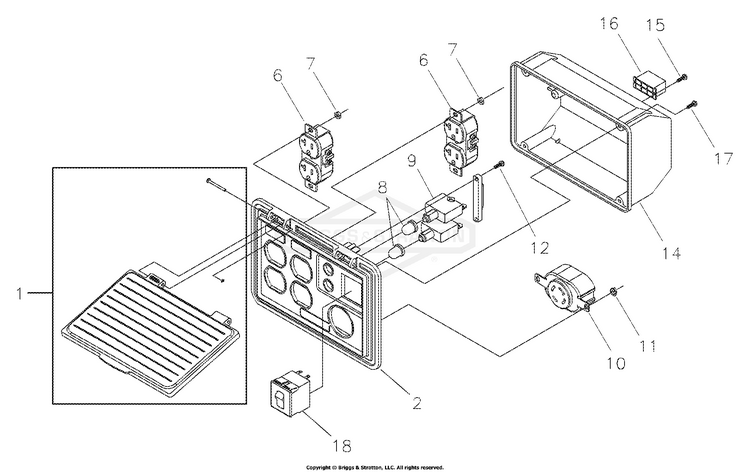

AC Control Panel

...
...
1
ASSY, Control Lid Panel BS-195112GS
...
2
CONTROL PANEL, Compact BS-192273BGS
...
6
OUTLET, 120V, 20A, Duplex BS-68759GS
...
8
CAP, Breaker, Circuit BS-84198GS
...
9
BREAKER-CIRCUIT 20A BS-209872GS
...
10
OUTLET, 120/240V Locking, 30A BS-43437GS
...
13
BAR, Retaining BS-93857GS
...
14
BOX, Rear Cover BS-192274GS
...
15
SCREW,Tapping, STC 3 x 18 BS-82308GS
...
16
HOUSING, Receptacle BS-22694GS
...
17
SCREW,Tapping, 3.5 x 14 BS-192241GS
...
18
BREAKER, Circuit, 30A BS-192785GS

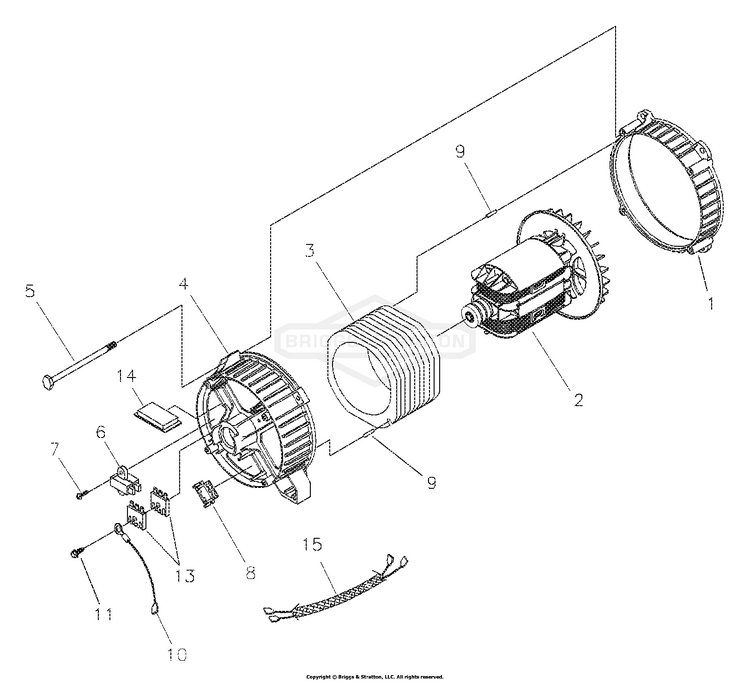

Alternator

...
...
1
ADAPTER, Alternator BS-209599GS
...
2
ROTOR BS-192171GS
...
3
STATOR BS-192186AGS
...
4
RBC, (with O-Ring p/n 189197GS) BS-193336GS
...
5
HHCS, M6 - 1.0 x 140 SEMS BS-86308KGS
...
6
ASSY, Holder, Brush BS-66386GS
...
7
HHCS, M5-0.8 X 16 BS-49815GS
...
8
RECEPTACLE, 6 pin BS-22694GS
...
9
PIN, Roll, 4mm x 10 BS-81917GS
...
10
ASSY,Wire, Ground BS-193428AGS
...
11
TAPTITE, M5 x 0.8 x 3.0 BS-66849CGS
...
13
RECTIFIER BS-65795GS
...
14
BOARD, Circuit, System Control BS-205858GS
...
15
HARNESS,Wire DC Charge BS-193074GS

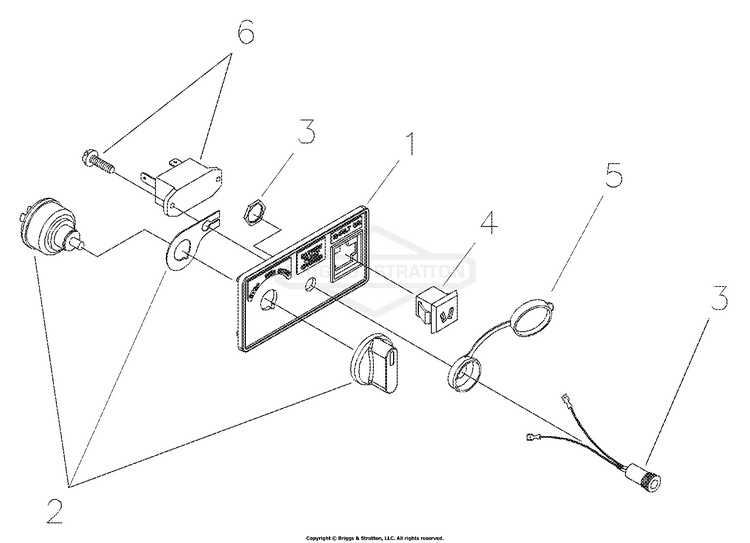

DC Control Panel

...
...
1
PANEL, DC Control BS-192367GS
...
2
KIT, SRS, Switch with Knob BS-195635GS
...
3
JACK, Coaxial BS-209393GS
...
4
OUTLET, 12VDC, Snap BS-90418GS
...
5
CAP, Battery Charge BS-186133GS
...
6
KIT, Circuit Breaker BS-194839GS

Main Unit

...
...
1
CRADLE BS-P191821GS
...
2
CRADLE,Top BS-P193086GS
...
3
ASSY, DC Control Panel (see "DC Control Panel") BS-~NSP
...
4
ADAPTER, Engine BS-191793GS
...
5
ASSY,Alternator (see "Alternator") BS-~NSP
...
8
WASHER, 8.4 x 22.2 x 3 BS-96796GS
...
9
KIT, Mounting Rod w/Hardware BS-194726GS
...
10
SCREW-HEX WSHR HD TAP BS-2828635SM
...
11
HHCS, 5/16-24 x 9.84 BS-187365HGS
...
12
KIT,Wheel BS-194509GS
...
13
AXLE BS-191267GGS
...
14
KIT,Vibration Mount Hrdwre (2 sets) BS-192553GS
...
15
STRIP, Foam 1/4 x 74 x 230 BS-193320GS
...
16
BUSHING, Snap BS-186173GS
...
17
E-RING BS-703977
...
18
CLIP, Retainer, Fuel Hose BS-192940GS
...
19
COVER, Billboard with Hardware BS-194722GS
...
20
DECAL, Ground BS-B4986GS
...
21
KIT,Vibration Mount BS-194727GS
...
22
CAP, Bolt, Rotor BS-191190GS
...
23
KIT, Grounding Hardware BS-194533GS
...
24
HARNESS, DC BS-195558GS
...
25
KIT, PLT, Skid, SRV BS-193344GS
...
26
TAPTITE, M5 - 0.8 x 10 BS-74908GS
...
27
KIT, Handle Hardware BS-194065GS
...
30
SHIELD, Fuel Fill BS-192921GS
...
31
DECAL, Caution Hot Muffler BS-191436GS
...
32
DECAL, Battery Instructions BS-193504GS
...
33
KIT, Retaining Brckt with Hardware BS-194721GS
...
34
COVER, RBC, Plastic BS-191029GS
...
35
LINE, Fuel BS-791745
...
36
GUARD, Recoil BS-192251GS
...
38
BUMPER, Recess BS-186569GS
...
43
SOLENOID, Starter BS-691656
...
44
ASSY,Tank, Fuel w/Decals BS-193345GS
...
45
CAP, Fuel Gauge BS-191826GS
...
46
PIN, Handle Release BS-B4135GS
...
48
HARNESS, Ground BS-192810GS
...
53
KIT, Folddown Handle Hardware BS-194724GS
...
58
ASSY, Control Panel (see "AC Control Panel") BS-192277GS
...
60
KIT, Overflow Fuel Hose w/Clamp BS-194730GS
...
61
DEFLECTOR, Muffler BS-396903
...
62
ARRESTOR, Spark BS-794945
...
67
HARNESS,AC BS-192809GS
...
69
BATTERY, 12V with Hardware BS-193463GS
...
76
CABLE, Blk, Battery to Engine BS-185939LGS
...
78
CABLE, Red, Battery to Solenoid BS-189302EGS
...
90
GRIP, Handle BS-192477GS
...
91
ASSY, Handle (Includes Item 90) BS-P193316GS
...
900
ENGINE BS-~NSP
...
CABLE, Battery Charge Not Illustrated BS-65787GS
...
CHARGER, Battery Not Illustrated BS-84002790
...
TRAY, Oil Drain Not Illustrated BS-191824GS
...
MANUAL, Owner's Not Illustrated BS-195594GS
...
MANUAL, Engine Not Illustrated BS-MS5936
...
OIL, Bottle Not Illustrated BS-BB3061GS
...
Set, Cord, 30A Not Illustrated BS-191895DGS
...
CABLE, Red, Solenoid to Starter Not Illustrated BS-189302FGS
...
ASSY, Holder Fuse Not Illustrated BS-A3746GS
...
KIT, Battery Term, Hardware Not Illustrated BS-193347GS
...
KIT, Decals Not Illustrated BS-193346GS
...
DECAL,Warning Not Illustrated BS-195247GS
...
DECAL, Instructions Fuel Level Not Illustrated BS-192808GS

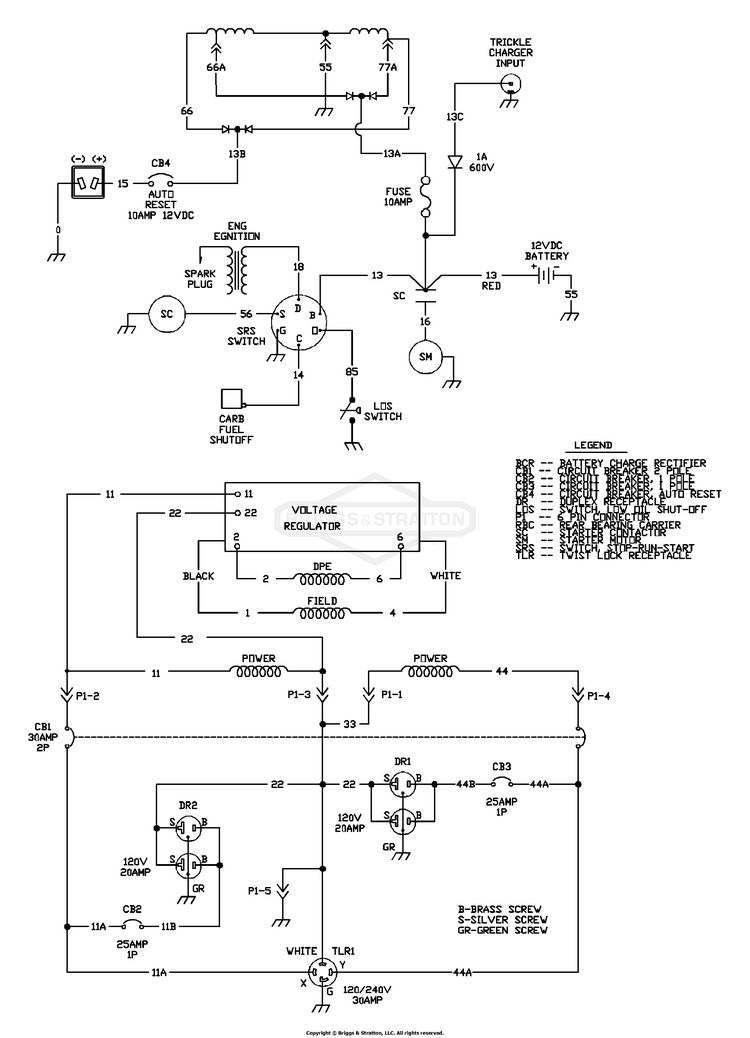

Wiring Diagram

...

No Parts Available for this Schematic

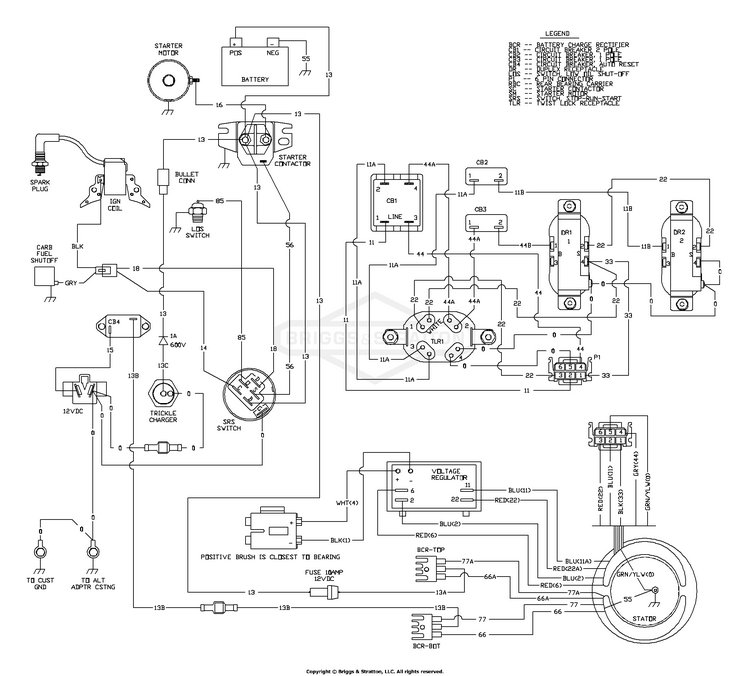

Wiring Schematic

...
