Briggs & Stratton 1925-0 - 7,750 Watt Troy-Bilt

Model: 1925-0 - 7,750 Watt Troy-Bilt


product name

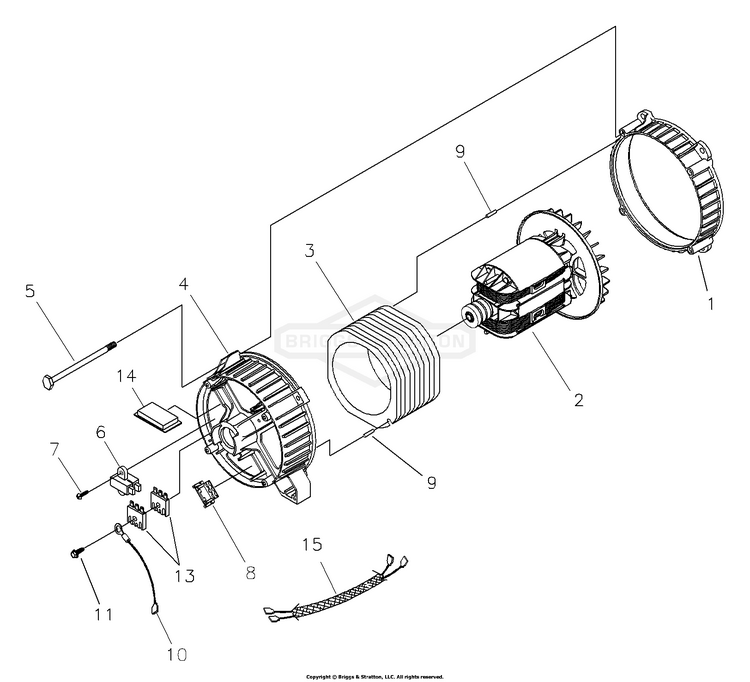

Alternator

...
...
1
ADAPTER, Alternator BS-209599GS

...
2

...
3

...
4
RBC, (with O-Ring p/n 189197GS) BS-193336GS

...
5

...
6
ASSY, Holder, Brush BS-66386GS

...
7
HHCS, M5-0.8 X 16 BS-49815GS

...
8
RECEPTACLE, 6 pin BS-22694GS

...
9
PIN, Roll BS-81917GS

...
10
ASSY,Wire, Ground BS-193428AGS

...
11

...
13
RECTIFIER BS-65795GS

...
14
BOARD, Circuit, System Control BS-205858GS

...
15
HARNESS,Wire DC Charge BS-193074GS

...

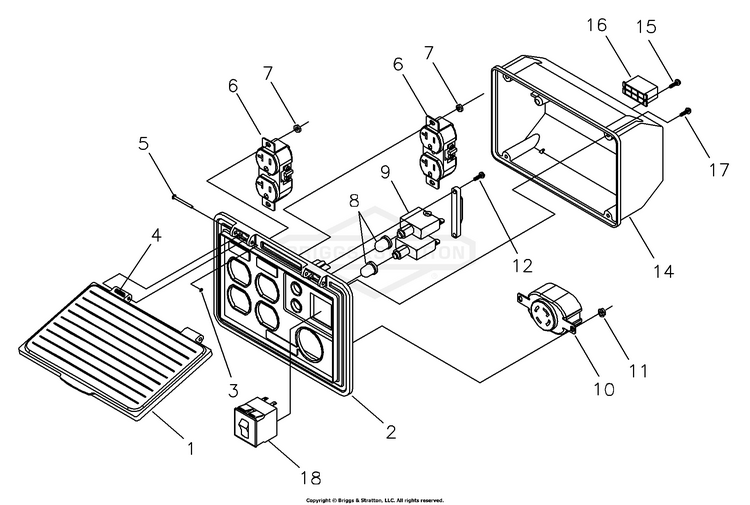

Control Panel AC

...
...
1
COVER, Lid, Control Panel BS-188914GS

...
2
CONTROL PANEL, Compact BS-192273BGS

...
3
CLIP, Hinge Pin Retainer BS-189167GS

...
4
SPRING, Hinge, Pin BS-189182GS

...
5
PIN, Hinge, Cover, Compact BS-189166GS

...
6
OUTLET, 120V, 20A, Duplex BS-68759GS


...
8
CAP, Circuit Breaker BS-84198GS

...
9
BREAKER-CIRCUIT 20A BS-209872GS

...
10
OUTLET, 120/240V Locking, 30A BS-43437GS

...

...
12

...
13
BAR, Retaining BS-93857GS

...
14
BOX, Rear Cover BS-192274GS

...
15

...
16
HOUSING, Receptacle BS-22694GS

...
17

...
18
BREAKER, Circuit BS-192785GS

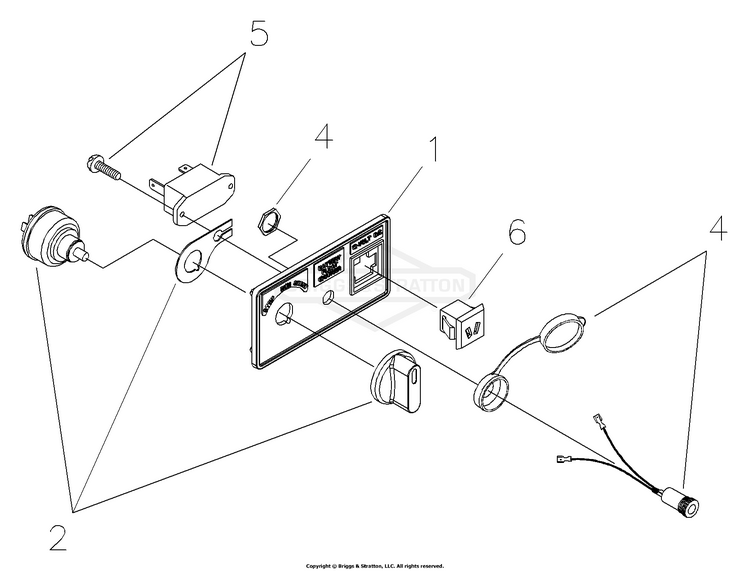

Control Panel DC

...
...
1
PANEL, DC Control BS-192367GS

...
2
KIT, SRS, Switch with Knob BS-194838GS

...
4
JACK, Coaxial BS-209393GS

...
5
KIT, Circuit Breaker BS-194839GS

...
6
OUTLET, 12VDC, Snap BS-90418GS

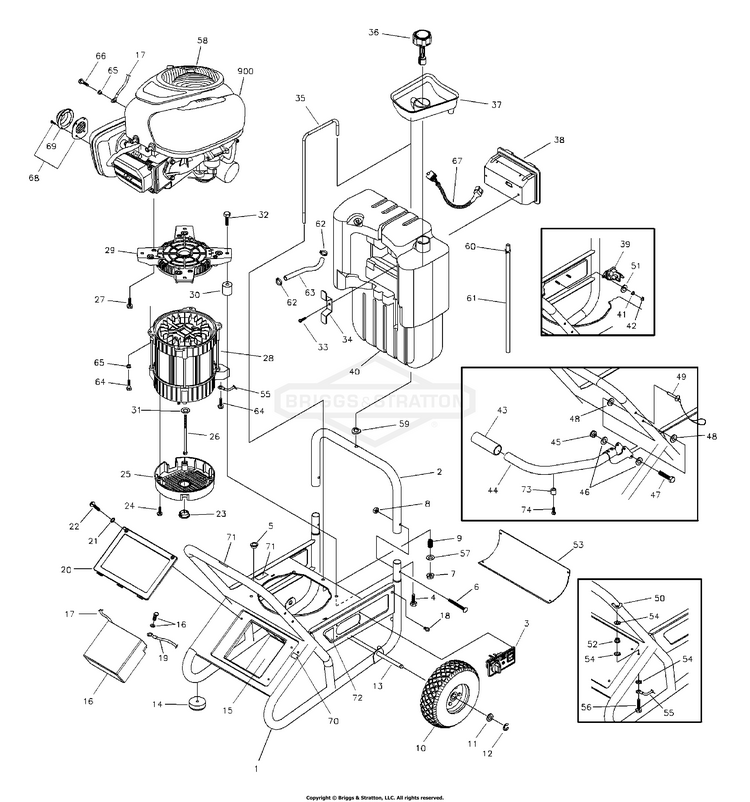

Main Unit

...
...
1

...
2
CRADLE,Top BS-P193086GS

...
3
ASSY, DC Control Panel (see "DC Control Panel") BS-~NSP

...
4
BOLT, 3/8-16X0.75 BS-703955

...
5
BUSHING, Snap BS-186173GS

...
6
BOLT, Carriage BS-31669GS

...
7
NUT, Nylock BS-26911GS


...
9
SPRING, Loading,Tank BS-192470GS

...
10

...
11
WASHER, 5/8" SAE BS-5025281SM

...
12
E-RING BS-703977

...

...
14
KIT, Vibration Mount Hardware (2 sets) BS-192553GS

...
15
STRIP, Foam BS-193320GS

...
16
BATTERY, 12V w/Hardware BS-193463GS

...
17
CABLE, Blk, Battery to Engine BS-185939LGS

...
18
CLIP, Retainer, Fuel Hose BS-192940GS

...
19
CABLE, Red, Battery to Solenoid BS-189302EGS

...
20
COVER, Battery, Billboard BS-191815GS

...
21

...
22
SCREW, 10-32 X 1/2, PPHMS BS-36701GS

...
23
CAP, Bolt, Rotor BS-191190GS

...
24

...
25
COVER, RBC, Plastic BS-191029GS

...
26

...
27
SCREW-HEX WSHR HD TAP BS-2828635SM

...
28
ASSY, Alternator (see "Alternator") BS-~NSP

...
29
ADAPTER, Engine BS-191793GS

...
30
MOUNT, Engine BS-193249GS

...
31

...
32

...
33
BOLT, Plastite BS-191991GS

...
34
BRACKET, Retaining, Panel BS-191990GS

...
35
ROD, Mounting Tank BS-191989GS

...
36
CAP, Fuel Gauge BS-191826GS

...
37
SHIELD, Fuel Fill BS-192921GS

...
38
ASSY, Control Panel (see "AC Control Panel") BS-192277GS

...
39
SOLENOID, Starter BS-691656

...
40
ASSY, Tank, 7-Gallon BS-193345GS

...
41

...
42
NUT, Hex, 1/4-20 BS-22127GS

...
43
GRIP, Handle BS-192477GS

...
44
WLDMNT, HNDL PWDR CT, TRY RED (Includes Item 43) BS-P191822GS

...
45
NUT, Nylok BS-49820GS

...
46
WASHER BS-703350

...
47

...
48
WASHER, Nylon BS-193288GS

...
49
PIN, Handle Release BS-B4135GS

...
50
NUT, Wing BS-87680GS

...
51
WASHER BS-703332

...
52
NUT-M6 FLANGE BS-52857GS

...
53
KIT, PLT, Skid, SRV BS-193344GS

...
54
WASHER, Ext. M6 - 1/4" Shakeproof BS-26850GS

...
55
HARNESS, Ground BS-192810GS

...
56

...
57
WASHER, FLAT .406X.81 BS-71072MA

...
58
GUARD, Recoil BS-192251GS

...
59
GROMMET, Rod,Tank BS-192520GS

...
60
CLAMP, Hose BS-193055GS

...
61
HOSE, Fuel Overflow BS-192997GS

...
62
CLAMP, Hose BS-691038

...
63
HOSE, Fuel BS-189867DGS

...
64

...
65
WASHER, Lock BS-22129GS

...
66
BOLT, 5/16-18 X 3/4" BS-5025011X6SM

...
67
HARNESS,AC BS-192809GS

...
68
ARRESTOR, Spark BS-794945

...
69
DEFLECTOR, Muffler BS-396903

...
70
DECAL, Ground BS-B4986GS

...
71
DECAL, Caution Hot Muffler BS-191436GS

...
72
DECAL, Battery Instructions BS-193504GS

...
73
BUMPER, Recess BS-186569GS

...
74

...
900
ENGINE BS-~NSP

...
HARNESS, DC Not Illustrated BS-192508GS

...
TRAY, Oil Drain Not Illustrated BS-191824GS

...
MANUAL, Owners Not Illustrated BS-192472GS

...
OIL, Bottle Not Illustrated BS-BB3061GS

...
Set, Cord, 30A Not Illustrated BS-191895DGS

...
CABLE, Red, Solenoid to Starter Not Illustrated BS-189302FGS

...
ASSY, Holder Fuse Not Illustrated BS-A3746GS

...
CABLE, Battery Charge Not Illustrated BS-65787GS

...
CHARGER, Battery Not Illustrated BS-84002790

...
KIT, Battery Term, Hardware Not Illustrated BS-193347GS

...
KIT, Decals Not Illustrated BS-193346GS

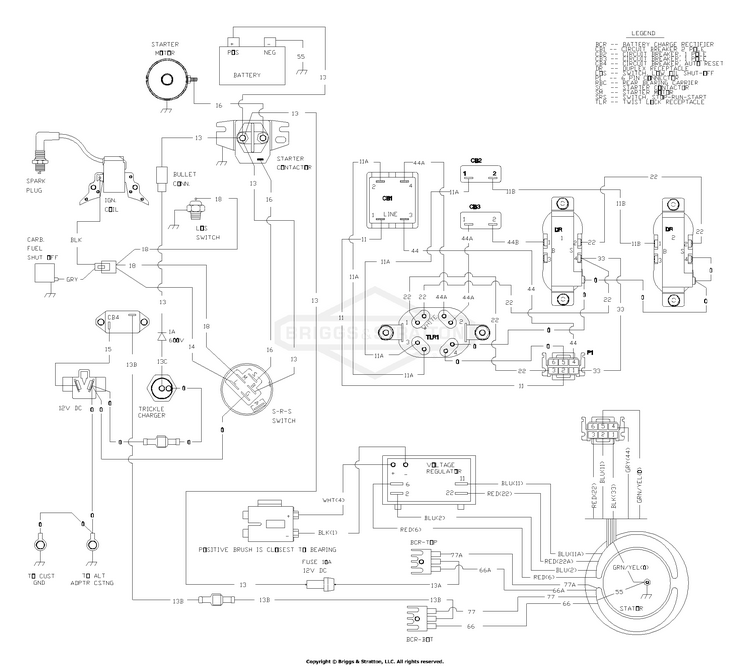

Wiring Diagram

...

No Parts Available for this Schematic

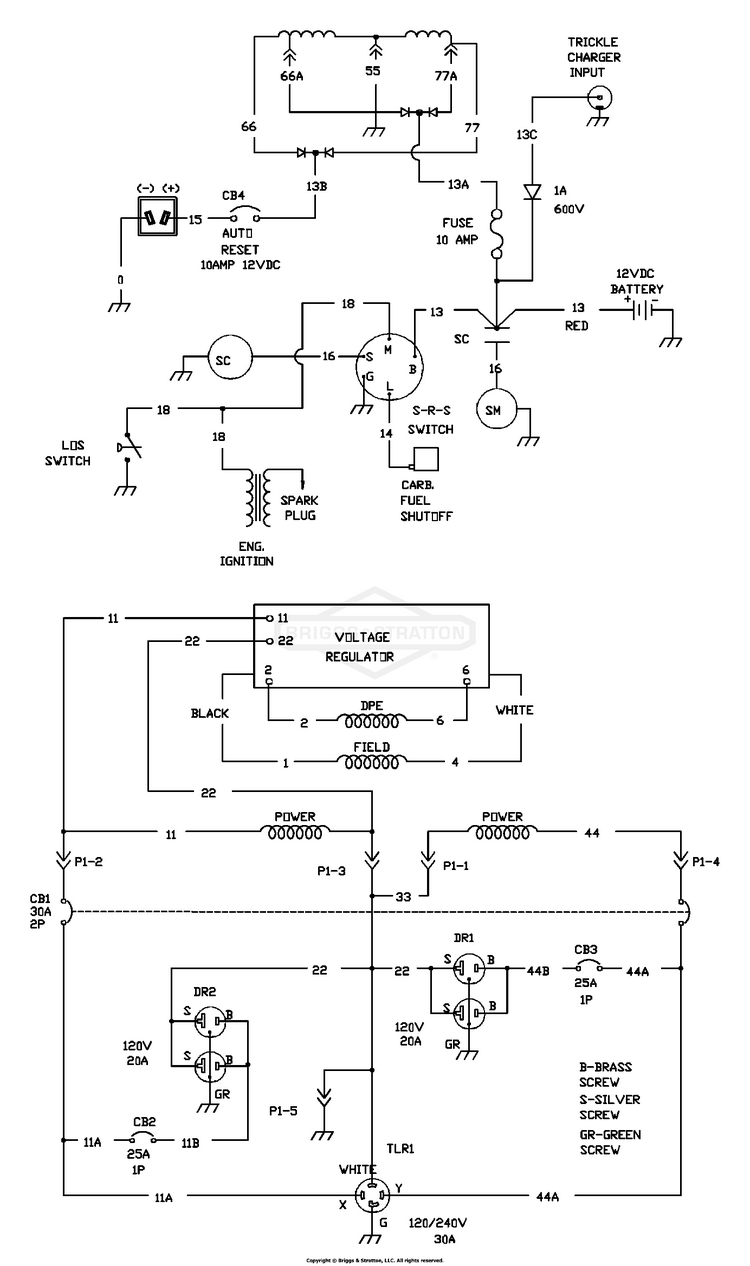

Wiring Schematic

...
