Briggs & Stratton 1924-2 - 3,550 Watt Troy-Bilt

Model: 1924-2 - 3,550 Watt Troy-Bilt

Save Part Not Listed?
product name

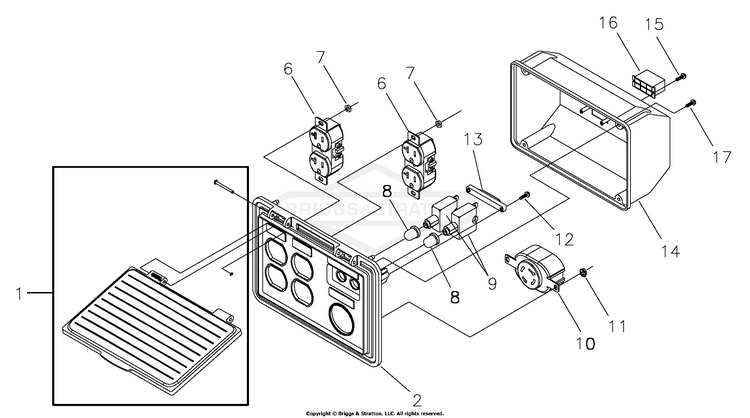

AC Control Panel

...
...
1
KIT, Cover Control Panel BS-195112GS
...
2
CONTROL PANEL, Compact BS-188889AGS
...
6
OUTLET, 120V, 20Amp, Duplex BS-68759GS
...
8
CAP, Circuit Breaker BS-84198GS
...
9
BREAKER, Circuit BS-75207DGS
...
10
OUTLET, 120/240V Locking, 20A BS-68867GS
...
13
BAR, Retaining BS-93857GS
...
14
COVER, Back, Control Panel BS-188890GS
...
16
HOUSING, Receptacle BS-22694GS

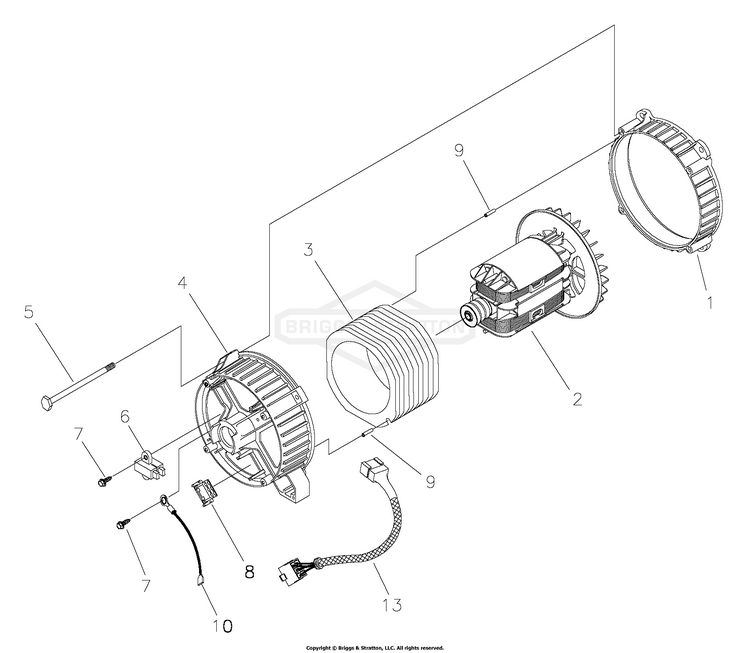

Alternator

...
...
1
ADAPTER, Alternator BS-209599GS
...
2
ROTOR BS-191685GS
...
3
STATOR BS-191686AGS
...
4
RBC, (with O-Ring p/n 189197GS) BS-193336GS
...
5
SCREW BS-86308GS
...
6
ASSY, Holder, Rectifier/Brush BS-91825GS
...
7
HHCS, M5-0.8 X 16 BS-49815GS
...
8
RECEPTACLE, 6 pin BS-22694GS
...
9
PIN, Roll BS-81917GS
...
10
ASSY,Wire, Ground BS-193428AGS
...
13
HARNESS,Wire, Power BS-194274GS
...
O-RING, 1.375 N I.D. X .093 IN BS-189197GS

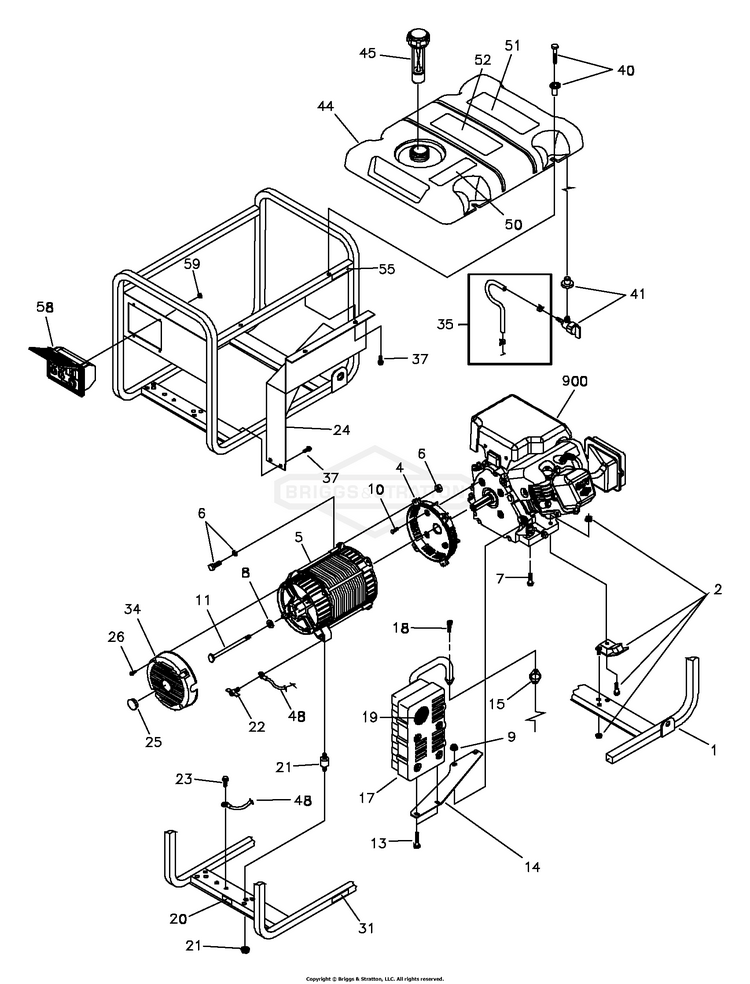

Main Unit

...
...
1
CRADLE BS-P194779GS
...
2
KIT,Vibration Mount BS-197564GS
...
4
HOUSING, Engine Adapter BS-186058AGS
...
5
ASSY,Alternator (see "Alternator") BS-~NSP
...
6
KIT, Hardware Mounting Adapter BS-194151GS
...
8
WASHER BS-96796GS
...
9
NUT, M8 Flange Serrated BS-67989GS
...
11
HHCS, 5/16-24 x 7-7/8" Lg BS-24823GS
...
14
BRACKET, Muffler BS-191785GS
...
15
GASKET-EXHAUST BS-692237
...
17
MUFFLER BS-188301GS
...
19
SCREEN, Spark Arrest BS-83083GS
...
20
DECAL, Ground BS-B4986GS
...
21
MOUNT-VIBRATION BS-194153GS
...
22
SCREW,Wing M6 - 1.0 x 16 BS-86494GS
...
23
SCREW BS-313085GS
...
24
SHIELD, Heat BS-191790GS
...
25
CAP BS-191190GS
...
26
TAPTITE, M5-0.8 x 10 Lg. BS-74908GS
...
31
DECAL, Caution Hot Muffler BS-191436GS
...
34
COVER, Rear Bearing Carrier (Includes Item 25) BS-195422GS
...
35
KIT, Fuel Hose w/ Clips BS-195207GS
...
37
HHCS, 12 - 14 x 7/8" Self Driller BS-B2153GS
...
40
KIT, Fuel Tank Hardware BS-194398GS
...
41
KIT,Valve,Tank Fuel Service BS-192980GS
...
44
ASSY,Tank, Fuel (Includes Items 41, 50, 51 & 52) BS-193645GS
...
45
GAUGE, Fuel BS-B4363GS
...
48
WIRE, Ground BS-195373GS
...
50
DECAL, Fuel Level BS-188333GS
...
51
DECAL, Danger BS-194799GS
...
52
DECAL, Operating Instructions BS-189235GS
...
55
DECAL, Fuel Shut Off BS-191435GS
...
58
ASSY, Control Panel (see "AC Control Panel") BS-191743AGS
...
MANUAL, Owners Not Illustrated BS-193354GS
...
PLUG-120/240V TL20A Not Illustrated BS-100522GS
...
MANUAL, Engine Not Illustrated BS-MS5242
...
BOTTLE OIL Not Illustrated BS-BB3061GS
...
KIT, Decals Service Not Illustrated BS-193644GS

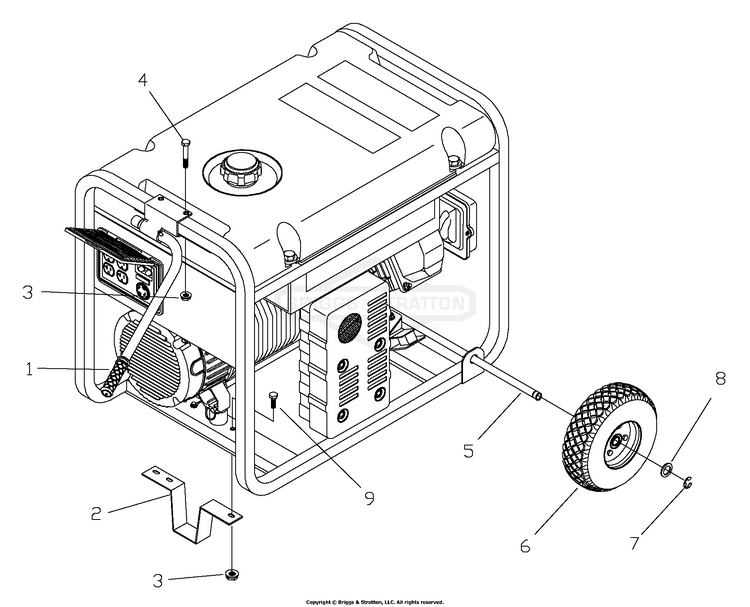

Wheel Kit

...
...
1
ASSY, Handle BS-189715GS
...
2
LEG, Mounting BS-B1764GS
...
3
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
5
AXLE BS-191267NGS
...
6
WHEEL BS-209636GS
...
7
E-RING BS-703977

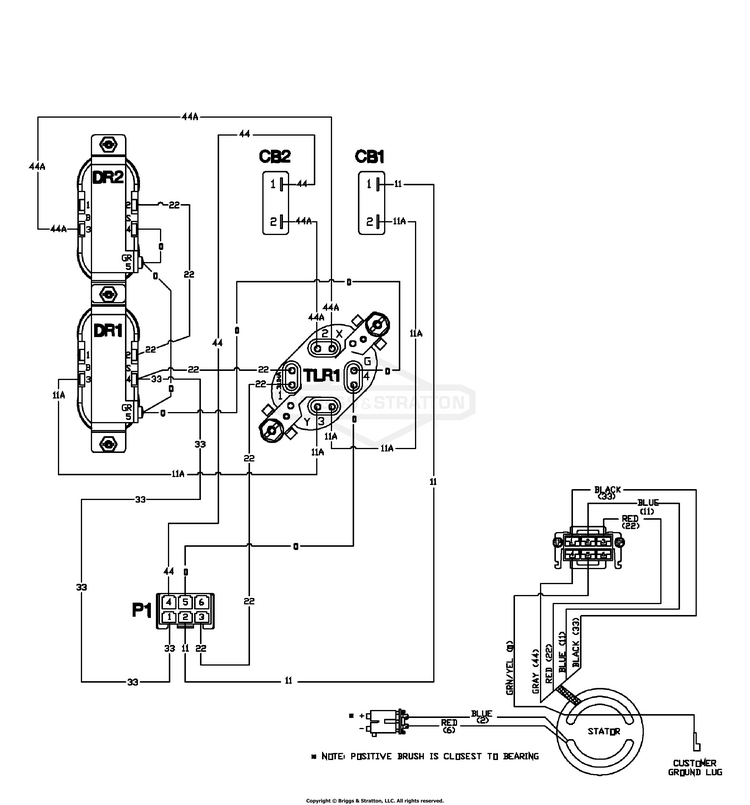

Wiring Diagram

...

No Parts Available for this Schematic

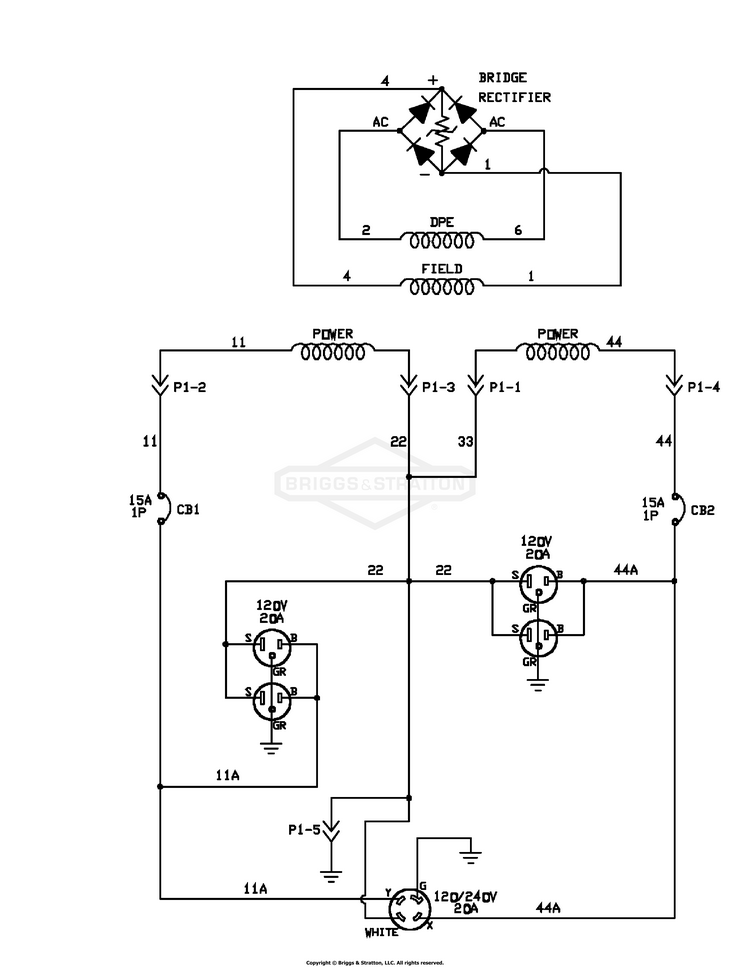

Wiring Schematic

...

No Parts Available for this Schematic

Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
