Briggs & Stratton 1906-0 - 3,700 PSI Husqvarna

Model: 1906-0 - 3,700 PSI

Save Part Not Listed?
product name

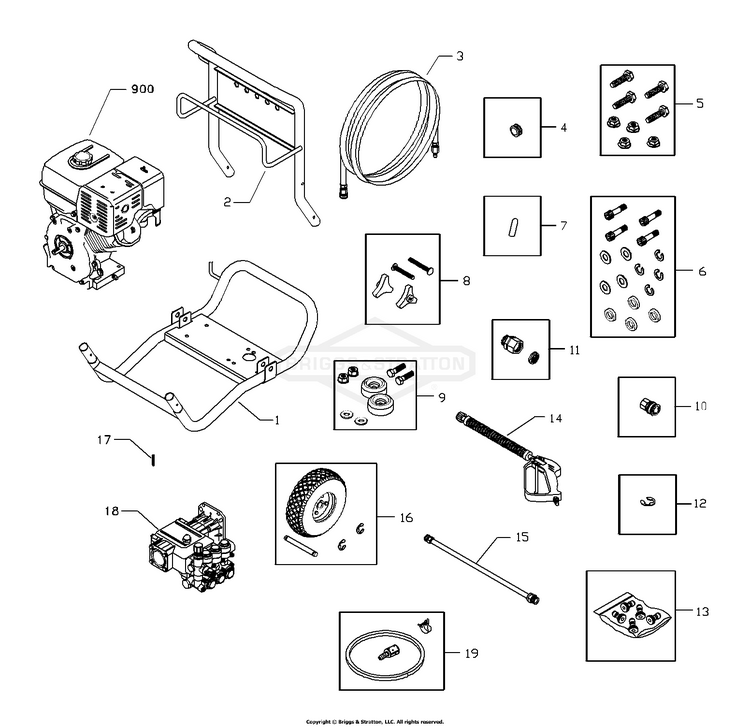

Main Unit

...
...
1
BASE BS-B193075GS
...
2
HANDLE BS-B196133GS
...
3
Hose BS-205734GS
...
4
GROMMET BS-30809GS
...
5
KIT, Engine Mounting Hardware BS-192886GS
...
6
KIT, Pump Mounting Hardware BS-192893GS
...
7
VINYL CAP BS-B2516GS
...
8
KIT, Handle Fastening BS-B2203GS
...
9
KIT, Vibration Mount BS-192310GS
...
10
FITTING BS-703824
...
11
KIT, Garden Hose Inlet BS-192135GS
...
12
E-RING BS-703977
...
13
KIT, Spray Tips BS-B4847GS
...
14
GUN BS-704311
...
15
EXTENSION BS-190779GS
...
16
KIT, Wheel BS-192317GS
...
17
KEY BS-188054GS
...
18
ASSY, Pump (Includes Item 6) (see "Pump" & "Unloader"); Complete Pump available from Cat Pumps only. BS-187660GS
...
19
KIT, Chemical Hose/Filter BS-192796GS
...
900
ENGINE BS-~NSP
...
MANUAL, Owner's Items Not Illustrated: BS-192103GS
...
KIT, Decals Items Not Illustrated: BS-192894GS
...
BOTTLE, Oil Items Not Illustrated: BS-100005

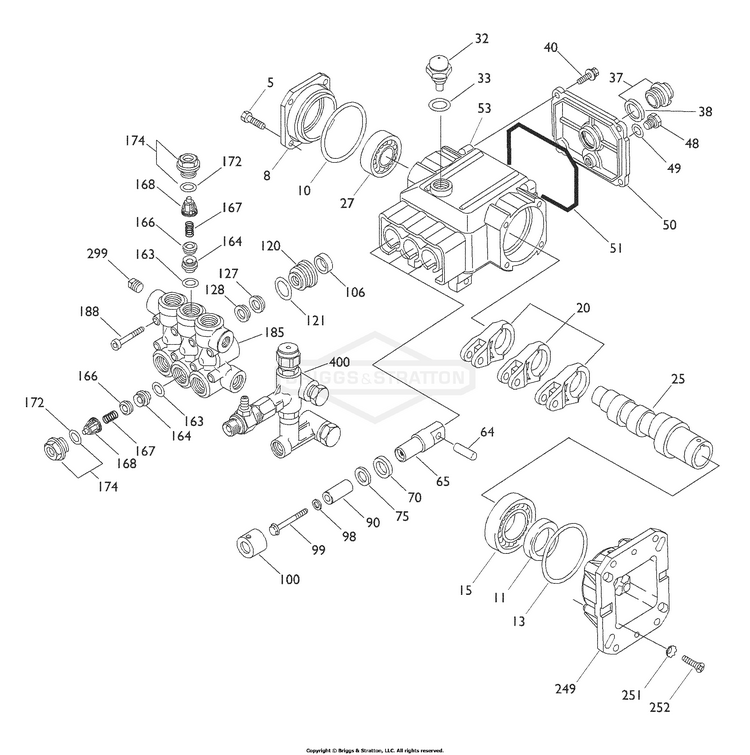

Pump

...
...
5
Screw BS-188106GS
...
8
Cover, Bearing BS-188109GS
...
10
O-Ring, Bearing Cover BS-188110GS
...
11
Seal, Oil, Crankshaft BS-188111GS
...
13
O-Ring, Bearing Cover BS-188112GS
...
15
Bearing, Ball - Inner BS-188113GS
...
20
Rod, Connecting BS-188114GS
...
25
Crankshaft BS-188115GS
...
27
Bearing, Ball - Outer BS-188116GS
...
32
Domed, Oil Filler BS-188117GS
...
33
O-Ring, Filler Cap BS-188118GS
...
37
Gauge, Oil Sight w/Gasket BS-188119GS
...
38
Gasket, Flat, Oil Gauge BS-188120GS
...
40
Screw BS-188121GS
...
48
Plug, Drain BS-188122GS
...
49
O-Ring, Drain Plug BS-188123GS
...
50
Cover, Crankcase BS-188124GS
...
51
O-Ring, Crankcase Cover BS-188126GS
...
53
Crankcase BS-188125GS
...
64
Pin, Crosshead BS-188127GS
...
65
Rod, Plunger BS-188129GS
...
70
Seal, Oil, Crankcase BS-188132GS
...
75
Slinger, Barrier BS-188131GS
...
90
Plunger BS-188133GS
...
98
Washer Seal, Plunger Retainer BS-188138GS
...
99
Retainer, Plunger BS-188139GS
...
100
Retainer, Seal BS-188140GS
...
106
Seal, LPS w/S-Spg BS-188141GS
...
120
Case, Seal BS-188142GS
...
121
O-Ring, Seal Case BS-188144GS
...
127
V-Packing BS-188146GS
...
128
Adapter, Male BS-188147GS
...
163
O-Ring, Seat BS-188149GS
...
164
Seat BS-188150GS
...
166
Valve BS-188152GS
...
167
Spring BS-188153GS
...
168
Retainer, Spring BS-188154GS
...
172
O-Ring, Valve Plug BS-188155GS
...
174
Plug, Valve w/O-Ring BS-188156GS
...
185
Manifold BS-188157GS
...
188
Screw BS-188158GS
...
249
Flange Mount BS-188159GS
...
251
Lockwasher, Conical BS-188160GS
...
252
Screw BS-188161GS
...
299
PLUG, Pipe, NPT, 3/8" BS-26925GS
...
400
Unloader Assembly Complete w/Chemical Injector BS-187953GS

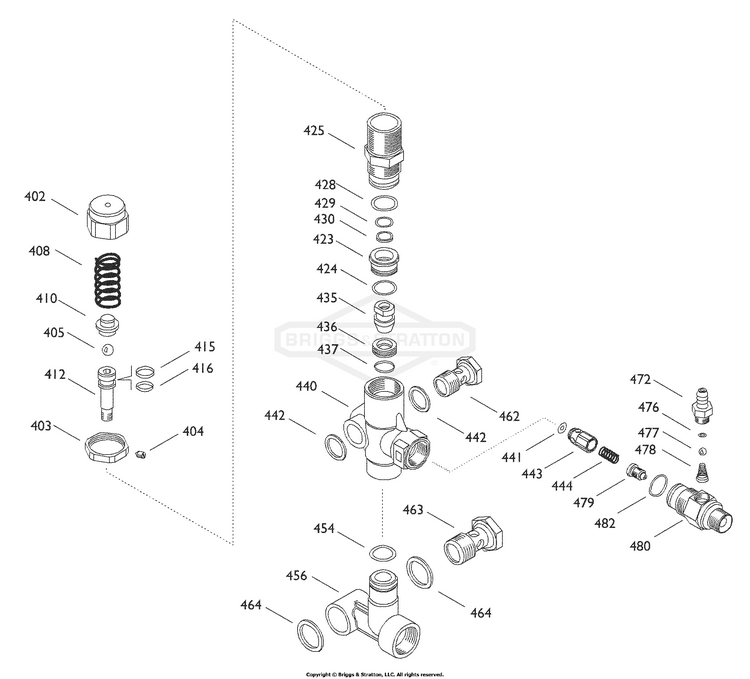

Unloader

...
...
402
Cap, Adjusting BS-188162GS
...
403
Nut, Locking BS-188163GS
...
404
Screw BS-188164GS
...
405
Ball BS-188165GS
...
408
Spring BS-188166GS
...
410
Retainer, Spring BS-188167GS
...
412
Stem, Piston BS-188168GS
...
415
Back-up-Ring, Piston Stem BS-188169GS
...
416
O-Ring, Piston Stem BS-188170GS
...
423
Spacer BS-188171GS
...
424
O-Ring, Spacer BS-188172GS
...
428
O-Ring, Retainer BS-188174GS
...
429
O-Ring, Piston Stem BS-188175GS
...
430
Back-up-Ring, Piston Stem BS-188176GS
...
435
Valve/Ball Assembly BS-188177GS
...
436
Seat BS-188178GS
...
437
O-Ring, Seat BS-188179GS
...
441
O-Ring, Check Valve BS-188181GS
...
442
Washer, Seal BS-188182GS
...
443
Valve, Check BS-188183GS
...
444
Spring BS-188184GS
...
454
O-Ring, Manifold BS-188185GS
...
462
Screw BS-188187GS
...
463
Screw BS-188188GS
...
464
Washer, Seal BS-188189GS
...
472
Barb, Fixed BS-188190GS
...
476
O-Ring, Retainer BS-188191GS
...
477
Ball BS-188192GS
...
478
Spring BS-188193GS
...
479
Injector Orifice BS-188195GS
...
482
O-Ring BS-188197GS
...
Oil, Bottle, CAT, 21 oz Oil, Service Kits: BS-188212GS
...
Kit, Seal (Includes: 98,106,121,127,128) BS-188198GS
...
Kit, Valve (Includes: 163,164,166,167,168,172) BS-188199GS
...
Assembly, Fixed Barb (Includes: 472,476,477,478) BS-188200GS
...
Unloader Assembly Complete w/Chemical Injector (Includes: 415,416,424,428,429,430,437,441,454) BS-187953GS
