Briggs & Stratton 1800-0 - 580.323300, 3,000 Watt Craftsman

Model: 1800-0 - 580.323300, 3,000 Watt

Save Part Not Listed?
product name

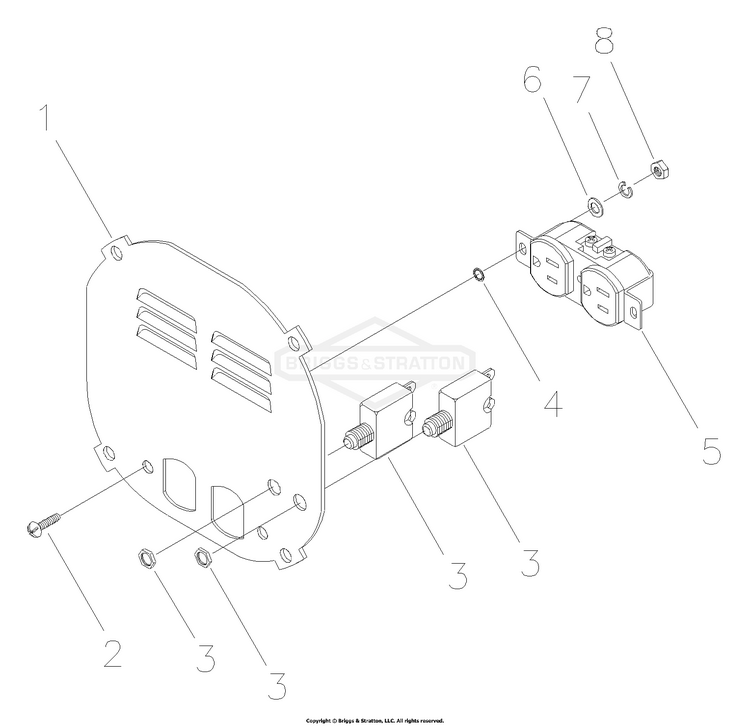

Control Panel

...
...
1
COVER, Control Panel BS-96386GS
...
3
CIRCUIT BREAKER BS-94396AGS
...
5
OUTLET, 120V, 15A Duplex BS-63025GS

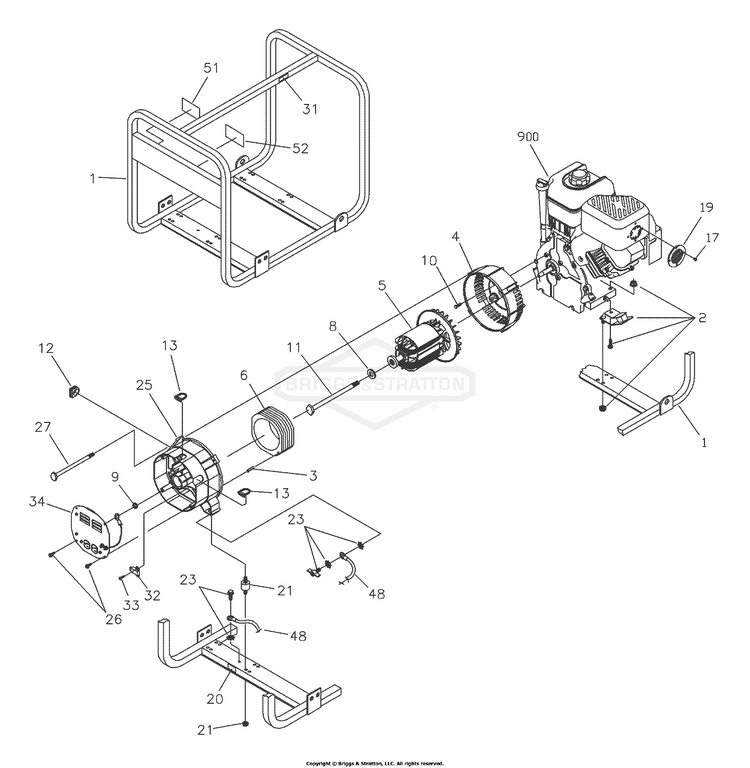

Main Unit

...
...
1
ASSY, Cradle BS-E190341AGS
...
2
KIT, Vibration Mount BS-194150GS
...
3
PIN, Roll, 4mm x 10 BS-81917GS
...
4
HOUSING, Engine Adaptor BS-66365GS
...
5
ASSY, Rotor BS-B2816JGS
...
6
ASSY, Stator BS-B2817AGS
...
8
WASHER, M8 Flat BS-96796GS
...
11
HHCS, 5/16" - 24 x 7" BS-47480GS
...
12
GROMMET, Rubber BS-67022GS
...
13
GROMMET, Plastic RBC BS-84242GS
...
17
SCREW BS-690661
...
19
ARRESTOR, Spark BS-399541
...
20
DECAL, Ground BS-B4986GS
...
21
MOUNT-VIBRATION BS-194153GS
...
23
KIT, Grounding Hardware BS-193646GS
...
25
CARRIER, Rear Bearing BS-SRV66825DGS
...
26
TAPTITE, M5 .08 x 10mm BS-74908GS
...
27
HHCS, M6 - 1.0 x 100, SEMS BS-86308GGS
...
31
DECAL, Caution Hot Muffler BS-77816GS
...
32
RECTIFIER, Brush & Bridge BS-91825GS
...
33
HHCS, M5-0.8 X 16 BS-49815GS
...
34
ASSY, Control Panel (see "Control Panel") BS-96188AGS
...
48
WIRE, Ground BS-195373GS
...
51
DECAL, Danger BS-93639GS
...
52
DECAL, Start Instructions BS-191775GS
...
900
ENGINE BS-~NSP
...
BOTTLE, Oil Not Illustrated BS-AB3061BGS
...
MANUAL, Owner's Not Illustrated BS-191575GS
...
KIT, Decal Not Illustrated BS-195309GS

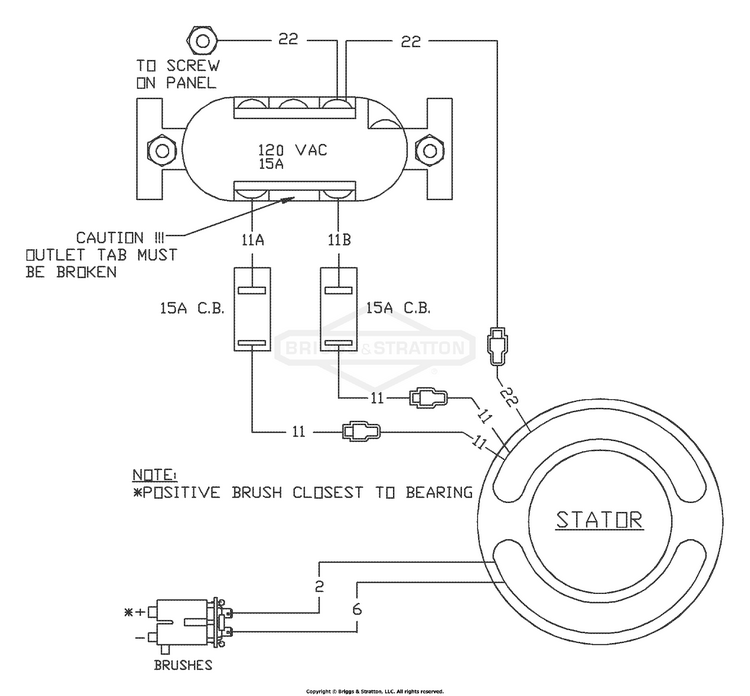

Wiring Diagram

...

No Parts Available for this Schematic

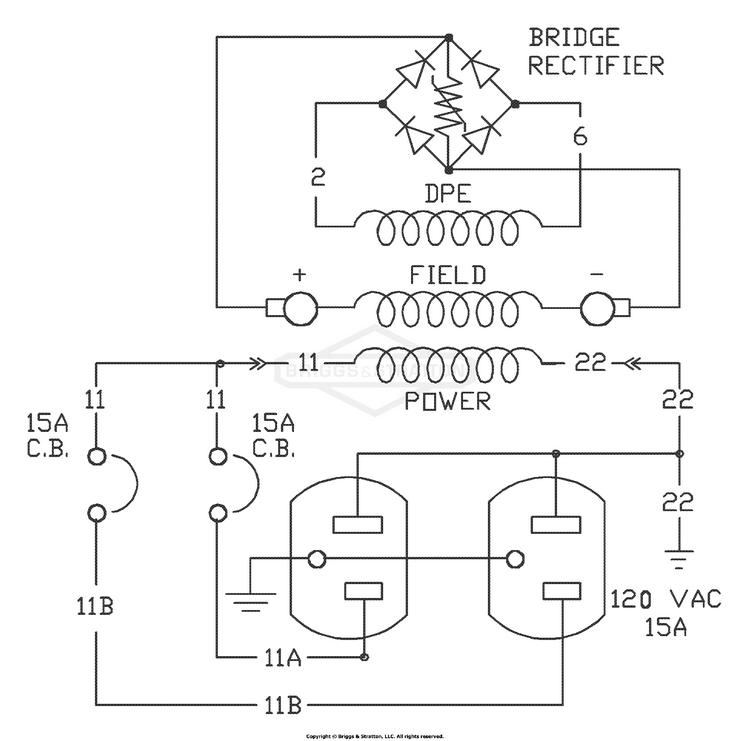

Wiring Schematic

...

No Parts Available for this Schematic
