Briggs & Stratton 1668-0 - 5,500 Watt Snapper

Model: 1668-0 - 5,500 Watt Snapper

Save Part Not Listed?
product name

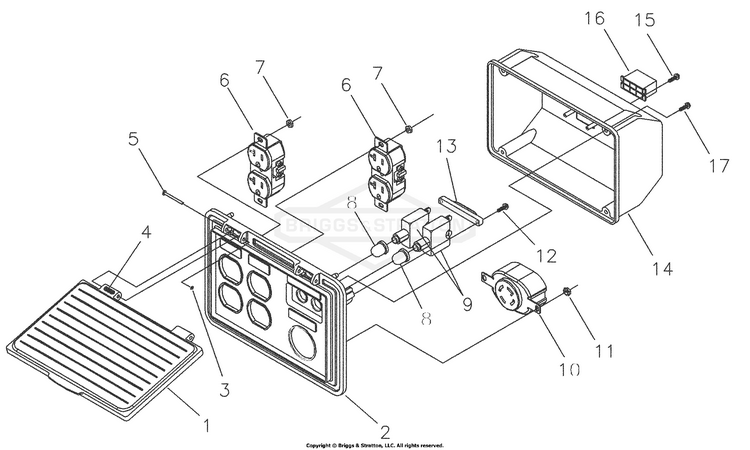

Control Panel

...
...
1
COVER, Lid, Control Panel BS-188914GS
...
2
CONTROL PANEL, Compact BS-188889GS
...
3
CLIP, Hinge Pin Retainer BS-189167GS
...
4
SPRING, Hinge, Pin BS-189182GS
...
5
PIN, Hinge, Cover, Compact BS-189166GS
...
6
OUTLET, 120V, 20A, Duplex BS-68759GS
...
7
NUT, Palnut, Pushnut BS-189165GS
...
8
CAP, Circuit Breaker BS-84198GS
...
9
BREAKER-CIRCUIT 20A BS-209872GS
...
10
OUTLET, 120/240V Locking, 30A BS-43437GS
...
11
NUT, Palnut, Pushnut BS-189164GS
...
12
SCREW BS-84543CGS
...
13
BAR, Retaining BS-93857GS
...
14
COVER, Back, Control Panel BS-188890GS
...
15
SCREW BS-82308GS
...
16
HOUSING, Receptacle BS-22694GS
...
17
SCREW BS-192241GS

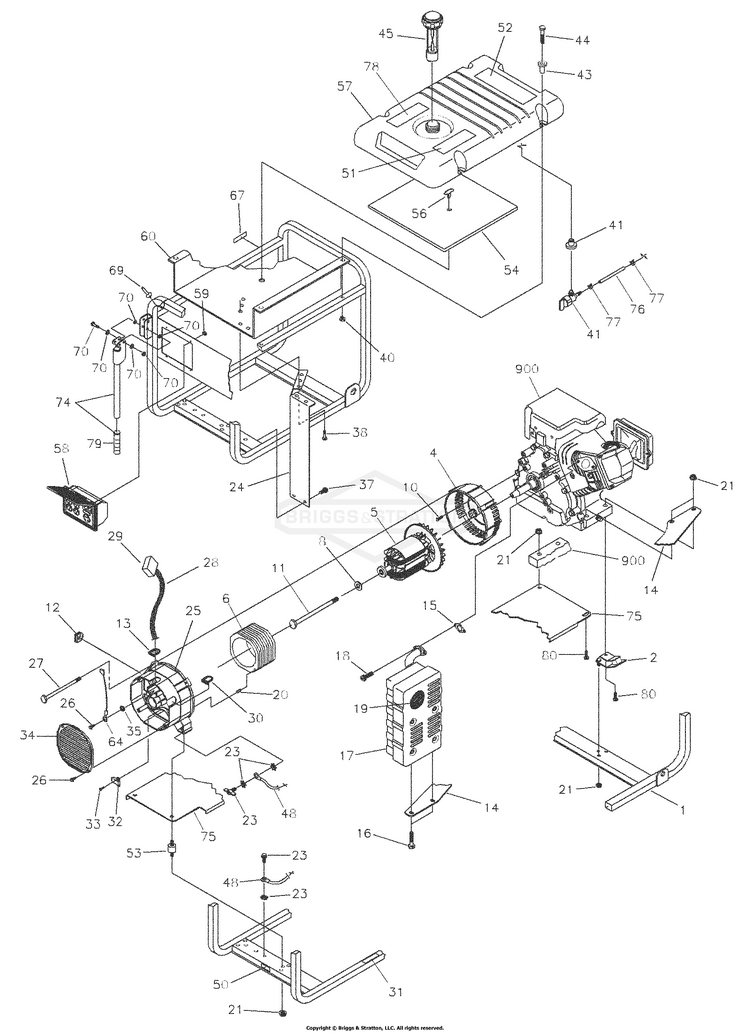

Main Unit

...
...
1
CRADLE BS-197464BNGS
...
2
MOUNT,Vibration BS-70642GS
...
4
HOUSING, Engine Adapter BS-66365GGS
...
5
ASSY, Rotor BS-187746GS
...
6
ASSY, Stator BS-187745GS
...
8
WASHER BS-96796GS
...
10
SCREW BS-86307GS
...
11
SCREW BS-99383GS
...
12
GROMMET, Rubber BS-67022GS
...
13
GROMMET, Rubber BS-189127GS
...
14
BRACKET, Muffler BS-189009GS
...
15
GASKET, Exhaust BS-695398
...
16
SCREW, w/Lock Washer BS-66476GS
...
17
MUFFLER BS-189008GS
...
18
SCREW BS-60706GS
...
19
SCREEN, Spark Arrest BS-83083GS
...
20
PIN, Roll BS-81917GS
...
21
NUT BS-67989GS
...
23
KIT, Grounding Hardware BS-193646GS
...
24
SHIELD, Heat BS-194390GS
...
25
CARRIER, Rear Bearing BS-SRV66825DGS
...
26
SCREW BS-74908GS
...
27
BOLT BS-86308AGS
...
28
SLEEVING, Flexo BS-84409GS
...
29
FASTEN, On Tab Housing 6P BS-22695GS
...
30
GROMMET, Plastic BS-84242GS
...
31
DECAL, Hot Muffler BS-77816GS
...
32
ASSY, Brush Holder BS-91825GS
...
33
HHCS, M5-0.8 X 16 BS-49815GS
...
34
COVER, Bearing Carrier BS-B4871GS
...
35
WASHER BS-23762GS
...
37
SCREW BS-B2153GS
...
38
SCREW BS-56893GS
...
40
NUT, Lock BS-77395GS
...
41
KIT,Valve, Fuel Tank BS-192980GS
...
43
GROMMET,Tank BS-83465GS
...
44
SCREW BS-78831BGS
...
45
CAP, Fuel Gauge BS-B4363GS
...
48
WIRE, Ground BS-195373GS
...
50
DECAL, Ground, Green BS-B4986GS
...
51
DECAL, Danger BS-194799GS
...
52
DECAL, Start Instructions BS-189235GS
...
53
MOUNT-VIBRATION BS-194153GS
...
54
INSULATION BS-92665GS
...
56
CLIP, Insulation BS-85000GS
...
57
ASSY,Tank, Fuel 7-Gallon (Includes Items 41, 51, 52 & 78) BS-193500GS
...
58
ASSY, Control Panel (see "Control Panel") BS-189157GS
...
59
NUT, Palnut BS-189164GS
...
60
SHIELD, Heat BS-J92039GS
...
64
WIRE, Ground, Panel BS-189521AGS
...
67
DECAL, Fuel Shut-off BS-73054GS
...
69
PIN, with Lanyard BS-B4135GS
...
70
KIT, Fold Down Handle Hardware BS-194034GS
...
74
ASSY, Handle (Includes Item 79) BS-B193200GS
...
75
PLATE, Stiffener BS-M190018GS
...
76
HOSE, Fuel BS-30340GS
...
77
CLAMP, Hose BS-691038
...
78
DECAL, Instruction, Fuel Level BS-188333GS
...
79
GRIP BS-198669GS
...
80
TPHMS, M8 - 1.25 x 35 BS-195398GS
...
900
ENGINE BS-~NSP
...
MANUAL, Owner's Not Illustrated BS-190313GS
...
BOTTLE, Oil Not Illustrated BS-BB3061GS
...
PLUG, 250V, 30A Not Illustrated BS-43438GS
...
MANUAL OPERATING & MAINT INSTRUCTIONS Not Illustrated BS-276355
...
CHARGER, Battery Not Illustrated BS-84002790
...
KIT, Decals Not Illustrated BS-193669GS

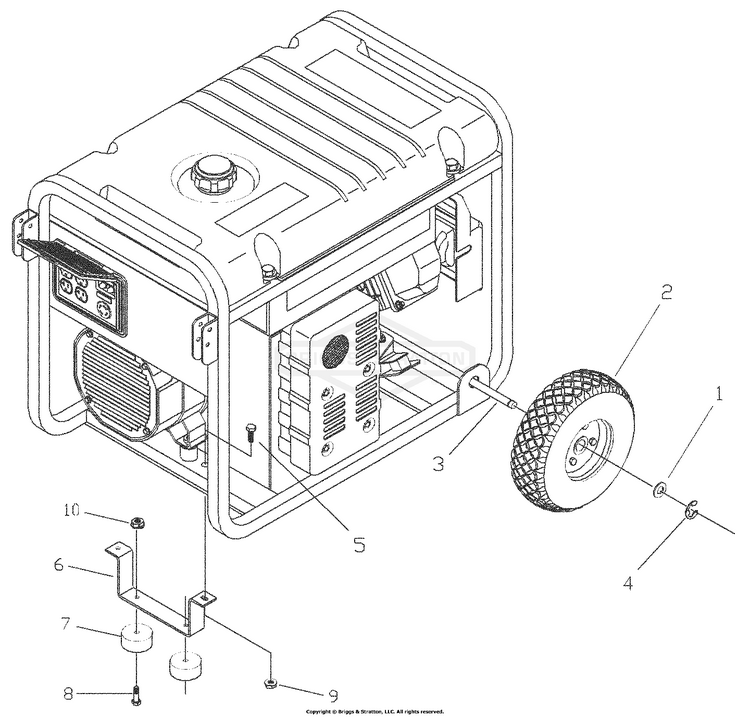

Wheel Kit

...
...
1
WASHER, 5/8" SAE BS-5025281SM
...
2
WHEEL BS-209636GS
...
3
AXLE BS-191267GGS
...
4
E-RING BS-703977
...
5
CAPSCREW M8-1.25X16 BS-703988
...
6
LEG, Support BS-B187101GS
...
7
VIBE MOUNT, with Washer BS-191413GS
...
8
BOLT, 1/4-20 X 1", GD BS-5025010X8SM
...
9
NUT, Lock BS-52858GS
...
10
NUT, 1/4-20, GR5 BS-703233

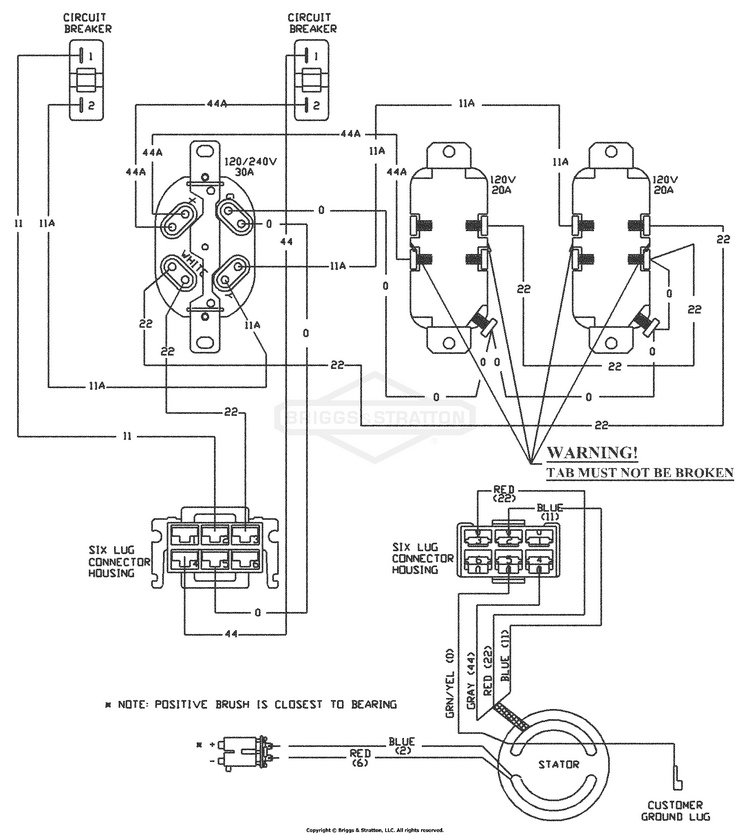

Wiring Diagram

...

No Parts Available for this Schematic

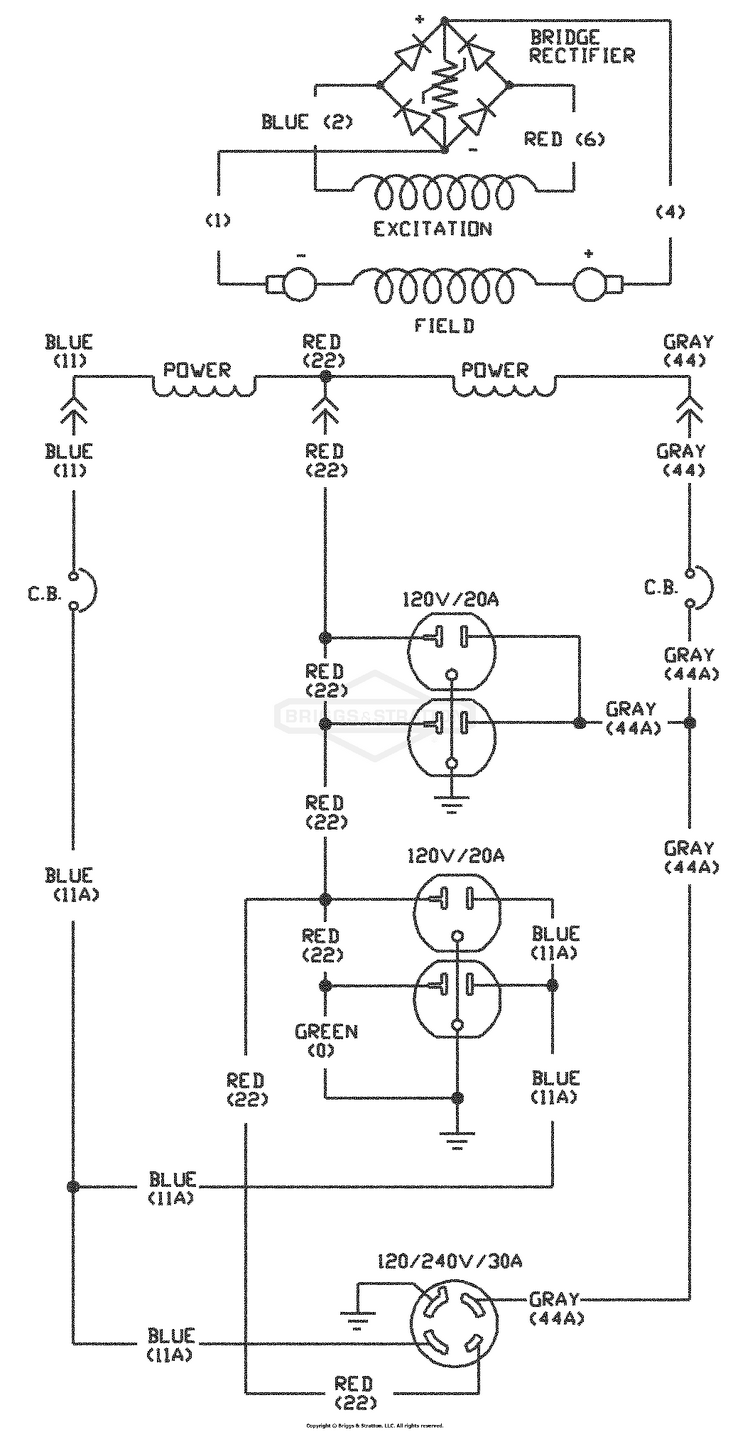

Wiring Schematic

...

No Parts Available for this Schematic
