Briggs & Stratton 1667-0 - 3,250 Watt Snapper

Model: 1667-0 - 3,250 Watt Snapper

Save Part Not Listed?
product name

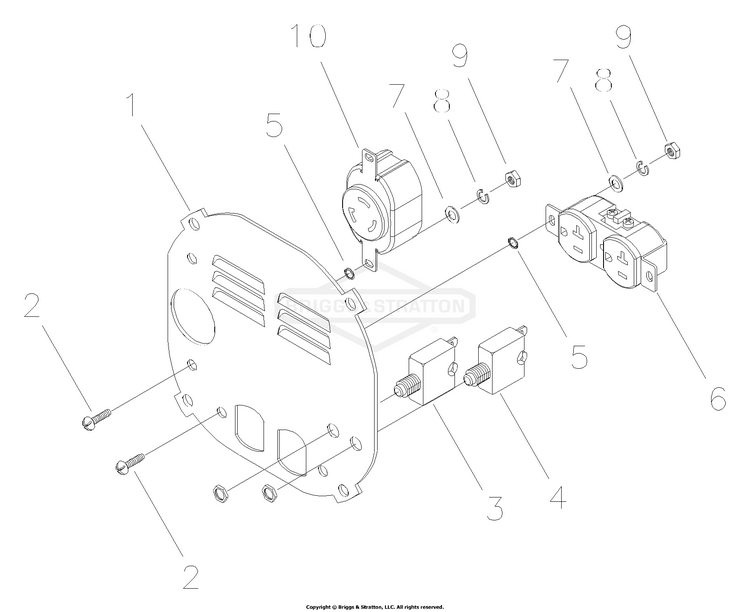

Control Panel

...
...
1
COVER, Control Panel BS-95600GS
...
2
SCREW BS-75475GS
...
3
BREAKER, Circuit BS-94396BGS
...
4
BREAKER, Circuit BS-94396FGS
...
5
WASHER BS-23365GS
...
6
OUTLET, 120V, 20A Duplex BS-68759GS
...
7
WASHER BS-38150GS
...
8
WASHER BS-847333
...
9
NUT BS-51715GS
...
10
OUTLET-120V TL30A BS-705932

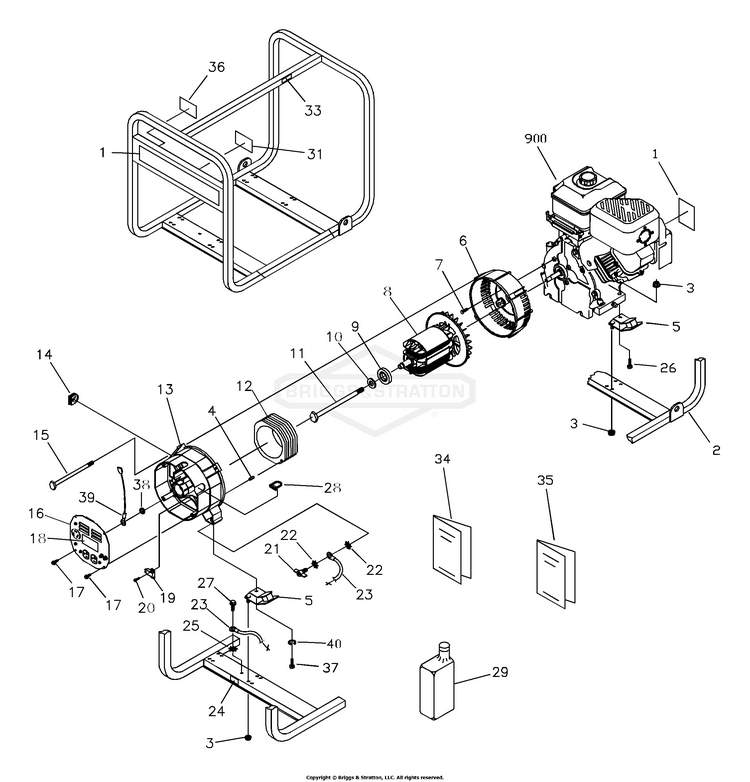

Main Unit

...
...
1
SET, Decal, Unit & Air Cover BS-190103GS
...
2
ASSY, Cradle BS-M190341GS
...
3
NUT BS-67989GS
...
4
PIN, Roll BS-81917GS
...
5
MOUNT, Vibe BS-70642GS
...
6
HOUSING, Engine Adapter BS-66365GS
...
7
SCREW BS-86307GS
...
8
ASSY, Rotor (Includes Item 9) BS-B2816JGS
...
9
BEARING, Ball BS-65791GS
...
10
WASHER BS-96796GS
...
11
SCREW BS-24823GS
...
12
ASSY, Stator BS-190488AGS
...
13
CARRIER, Rear Bearing BS-SRV66825DGS
...
14
GROMMET, Rubber BS-67022GS
...
15
SCREW BS-86308GS
...
16
ASSY, Control Panel (See "Control Panel") BS-189645GS
...
17
SCREW BS-74908GS
...
18
DECAL, Control Panel BS-189999GS
...
19
RECTIFIER, Brush & Bridge BS-91825GS
...
20
HHCS, M5-0.8 X 16 BS-49815GS
...
21
SCREW, Wing BS-86494GS
...
22
WASHER, Ext. M6 - 1/4" Shakeproof BS-26850GS
...
23
WIRE, Ground BS-195373GS
...
24
DECAL, Ground BS-B4986GS
...
25
WASHER BS-23762GS
...
26
TPHMS, M8 - 1.25 x 35 BS-195398GS
...
27
SCREW BS-313085GS
...
28
GROMMET, Plastic RBC BS-84242GS
...
29
BOTTLE, Oil BS-BB3061GS
...
31
DECAL, Start Instructions BS-191775GS
...
33
DECAL, Caution Hot Muffler BS-77816GS
...
34
MANUAL, Owners BS-190675GS
...
35
MANUAL, Engine BS-275092
...
36
DECAL, Danger BS-93639GS
...
37
SCREW BS-70644GS
...
38
WASHER BS-23762GS
...
39
WIRE, Ground, Panel BS-55199JGS
...
40
WASHER, Lock BS-22129GS
...
900
ENGINE BS-~NSP

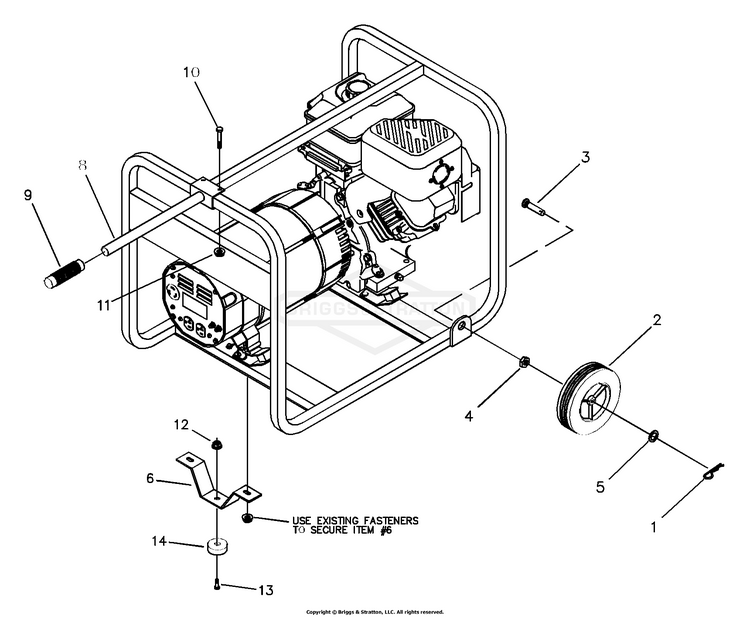

Wheel Kit

...
...
1
PIN, 3/32 X 1.6 BS-703300
...
2
WHEEL BS-197061GS
...
3
STUD, Axle BS-93728GS
...
4
JAM NUT, Lock BS-94222QGS
...
5
WASHER BS-49808GS
...
6
LEG, Mounting BS-190505GS
...
8
HANDLE, Lifting (Includes Item 9) BS-B84910GS
...
9
GRIP, Handle BS-75928GS
...
10
SCREW BS-39287GS
...
11
NUT, Lock BS-52858GS
...
12
NUT, Lock BS-77395GS
...
13
HANDLE BS-84010594
...
14
MOUNT, Rubber Donut BS-87841GS

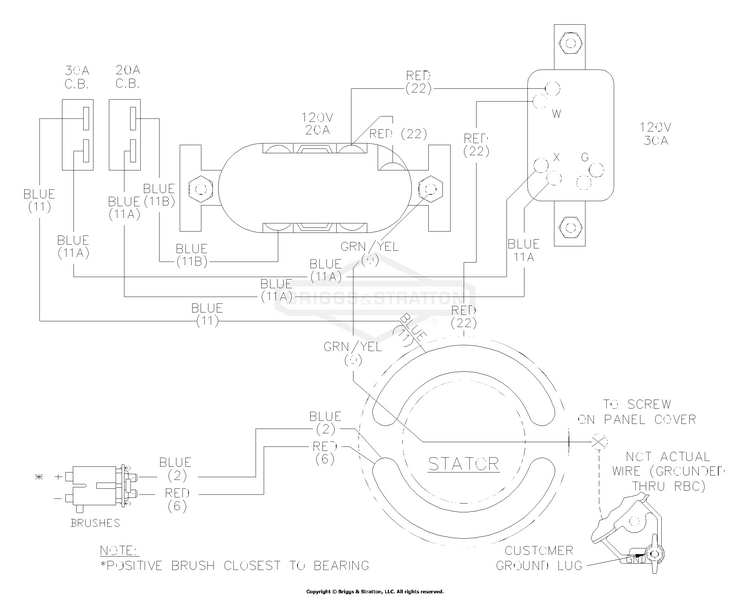

Wiring Diagram

...

No Parts Available for this Schematic

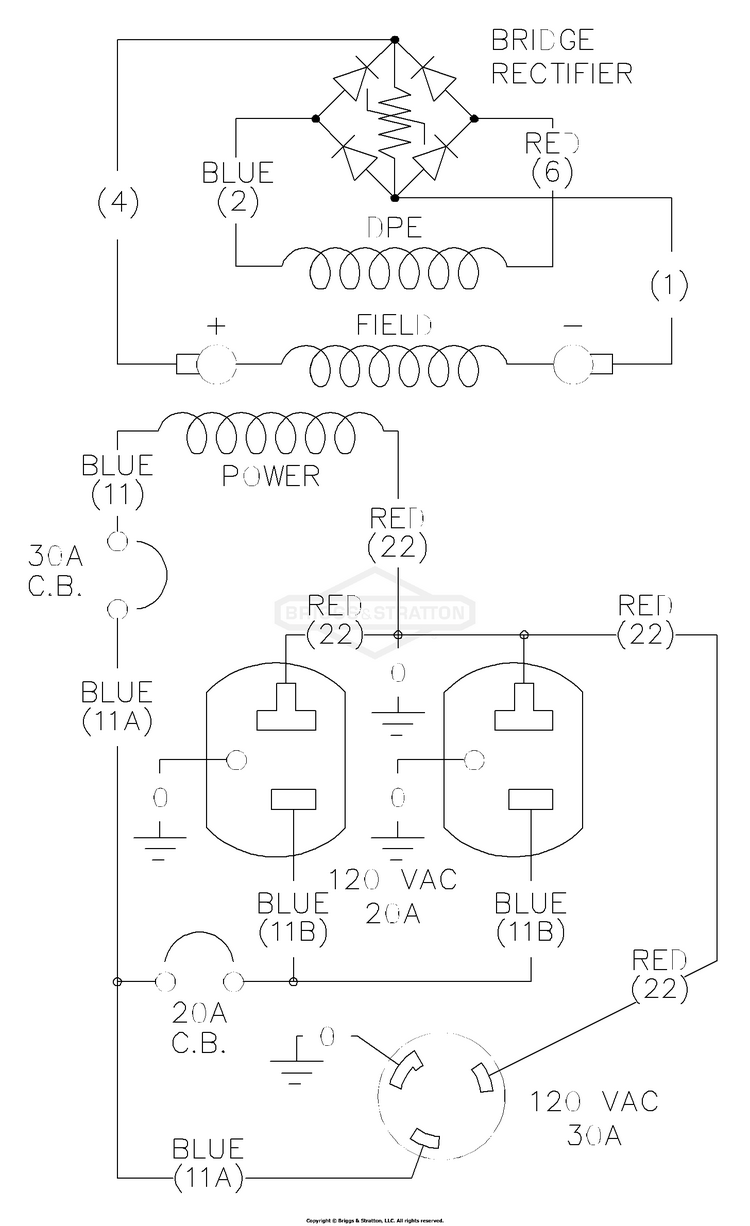

Wiring Schematic

...

No Parts Available for this Schematic
