Briggs & Stratton 1666-1 - 1,000 Watt Snapper

Model: 1666-1 - 1,000 Watt Snapper

Back To Assemblies

Save Part Not Listed?
product name

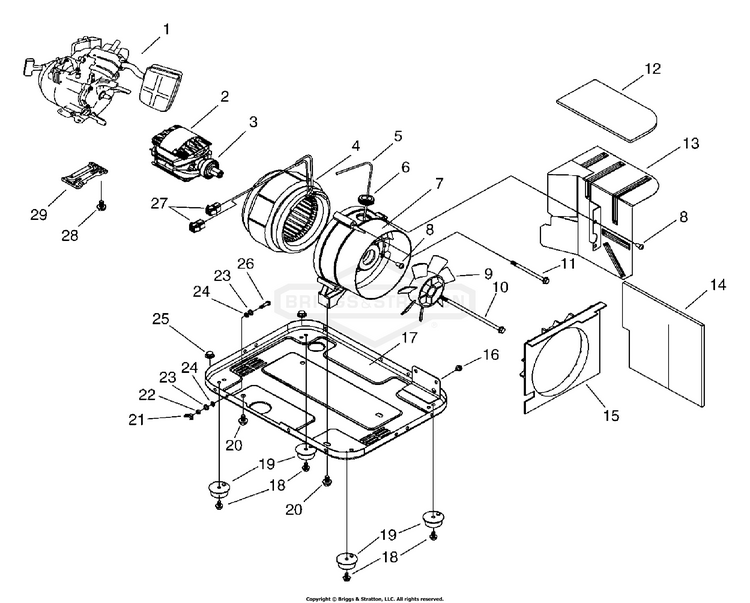

Main Unit (Part 1)

...
...
2
ROTOR BS-187378GS
...
3
BRG BS-187411GS
...
4
STATOR BS-187379GS
...
5
LEAD, GREEN BS-187430GS
...
6
BUSHING, LEAD WIRE, G790B BS-187409GS
...
7
RBC, 1K BS-187381GS
...
8
SCREW, SELF TAP, M6-12 BS-187399GS
...
9
FAN, COOLING BS-187382GS
...
10
BOLT, RTR BS-187388GS
...
11
BOLT, STATOR BS-187389GS
...
12
INSLTN, HEAT SEALED, #1 BS-187405GS
...
13
MFFLR, SEALED BS-187384GS
...
14
INSLTN, HEAT SEALED, #2 BS-187407GS
...
15
DUCT,AIR BS-187403GS
...
16
PHMS, M6-1.0,W/L/FW BS-187392GS
...
17
BASE, GEN BS-187383GS
...
18
BOLT, FLNG, M6-1.0 X 10 BS-187390GS
...
19
MNT,VIBR BS-187385GS
...
20
HHCS, FLNG, M8-1.25 X 12 BS-187427GS
...
21
NUT,WING, M5 X 0.8 BS-187424GS
...
22
NUT, M5 X 0.8 BS-187423GS
...
23
WSHR, LOCK BS-187419GS
...
24
WSHR, FLAT BS-187420GS
...
25
NUT, M8-1.25, FLANGE BS-187401GS
...
26
PHMS, M5-0.8 X 20 BS-187415GS
...
27
CNNCTR BS-187413GS
...
28
SCREW (ENGINE MOUNT) BS-711487
...
29
STND, ENG BS-187431GS
