Briggs & Stratton 1660-0 - 2,400 PSI Snapper

Model: 1660-0 - 2,400 PSI Snapper

Save Part Not Listed?
product name

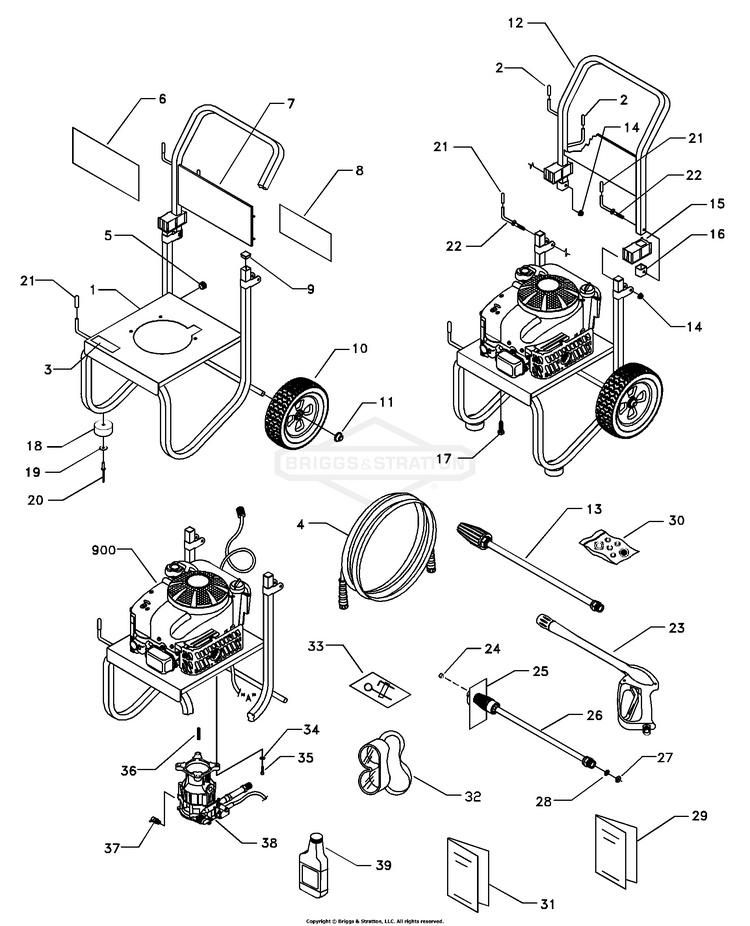

Main Unit

...
...
1
BASE, VSPW, PWDR CT, RED BS-M190283GS
...
2
CAP, Vinyl Black BS-B2516GS
...
3
DECAL, Cool Down BS-187952GS
...
4
HOSE, 1/4" X 25' BS-190249GS
...
5
GROMMET BS-30809GS
...
6
DECAL, Logo 2400 PSI BS-190613GS
...
7
BILLBOARD, Plastic BS-B1631BGS
...
8
DECAL, Instructions BS-B1932GS
...
9
PLUG, Plastic BS-46476GS
...
10
WHEEL, Plastic, 3" X 10" BS-190100GS
...
11
PUSHNUT, 1/2" BS-190146GS
...
12
HANDLE, Snapper Red BS-LB5653GS
...
13
ASSY, WAND, TURBO, 1.25 NZZL BS-193308CGS
...
14
NUT BS-194005GS
...
15
HINGE, Cover BS-B1779GS
...
16
CAP, Tube End BS-B2347GS
...
17
SCREW-HEX WSHR HD TAP BS-2828635SM
...
18
VIBE MOUNT, with Washer BS-191413GS
...
19
WASHER, Fender BS-71693GS
...
20
RIVET, Blind BS-188194GS
...
21
CAP, Vinyl, Black BS-B1460GS
...
22
HOOK, Chemical Bottle BS-B2759GS
...
23
GUN, High Pressure BS-B3263GS
...
24
NOZZLE, 1.10 White Rplcemt BS-94804GS
...
25
HANG TAG, Nozzle BS-97566GS
...
26
WAND, Adjustable Nozzle BS-188792AGS
...
27
O-RING, Hi-Pressure BS-97837GS
...
28
SCREEN, Gun Inlet BS-B4224GS
...
29
MANUAL, Owners BS-190109GS
...
30
KIT, O-Ring Maintenance BS-B5830GS
...
31
MANUAL, B & S Engine BS-B5765GS
...
32
GLASSES, Safety BS-87815GS
...
33
KIT, Maintenance, O-Ring BS-191922GS
...
34
LOCK WASHER, M8 Ribbed BS-92479GS
...
35
SHCS, 5/16" - 24 x 1" BS-23707GS
...
36
KEY, 3/16" sq. x 1.50" BS-23139DGS
...
37
VALVE, Thermal Relief BS-208673GS
...
38
PUMP, Assembly (See "Pump" illustration and parts list) BS-189942GS
...
39
BOTTLE, Oil BS-100005
...
900
ENGINE BS-~NSP

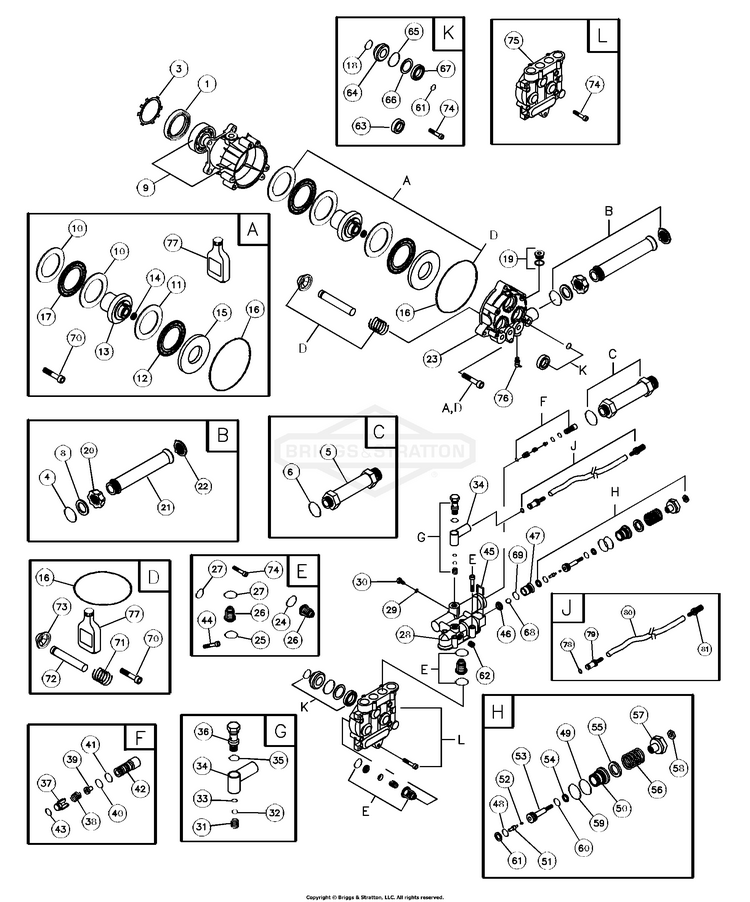

Pump

...
...
1
SEAL, 40 x 52 x 7 BS-190568GS
...
3
RETAINER RING BS-190569GS
...
9
ENGINE ADAPTER & BEARING BS-190570GS
...
16
O-RING, 80.60 x 2.62 BS-190572GS
...
19
CAP, Oil BS-190571GS
...
23
PISTON HOUSING BS-190573GS
...
28
MANIFOLD BS-190627GS
...
29
KIT, PIPE FITTING BS-193971GS
...
30
KIT, PIPE FITTING BS-193971GS
...
34
CONNECTION, Chemical Inlet BS-190577GS
...
45
PIN BS-190578GS
...
46
KIT, UNLOADER SEAT BS-193972GS
...
47
KIT, UNLOADER SEAT BS-193972GS
...
62
CAP, 1/8 BS-190581GS
...
68
KIT, UNLOADER SEAT BS-193972GS
...
69
KIT, UNLOADER SEAT BS-193972GS
...
76
VALVE, Thermal Relief BS-208673GS
...
77
OIL BOTTLE BS-190585GS
...
A
KIT, WOBBLE PLATE BEARING Service kit includes all parts shown within the box. BS-190587GS
...
B
KIT, WATER INLET, ANODIZED Service kit includes all parts shown within the box. BS-190588GS
...
C
KIT, OUTLET, ANODIZED Service kit includes all parts shown within the box. BS-190589GS
...
D
KIT, PISTON Service kit includes all parts shown within the box. BS-190590GS
...
E
KIT, CHECK VALVES Service kit includes all parts shown within the box. BS-190591GS
...
F
KIT, INLET CHECK Service kit includes all parts shown within the box. BS-190592GS
...
G
KIT, CHEMICAL INJECTION Service kit includes all parts shown within the box. BS-190593GS
...
H
KIT, UNLOADER Service kit includes all parts shown within the box. BS-190594GS
...
J
KIT, CHEMICAL HOSE Service kit includes all parts shown within the box. BS-189971GS
...
K
KIT, SEAL SET Service kit includes all parts shown within the box. BS-190595GS
...
L
KIT, HEAD BRASS Service kit includes all parts shown within the box. BS-190596GS
