Briggs & Stratton 1648-1 - 4,500 Watt PowerBoss

Model: 1648-1 - 4,500 Watt PowerBoss

Back To Assemblies

Save Part Not Listed?
product name

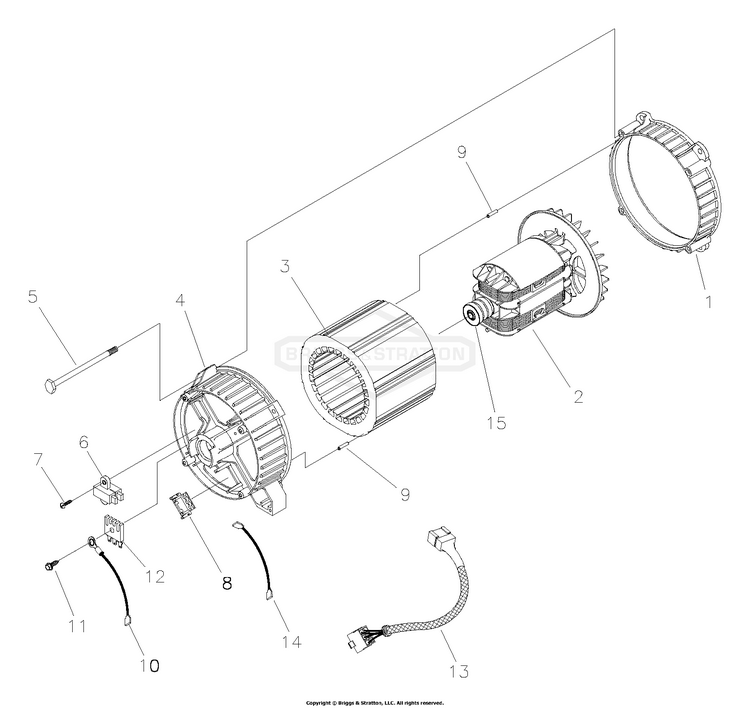

Alternator

...
...
1
ADAPTER, Alternator BS-209599GS
...
2
ROTOR (Includes Item 15) BS-193623GS
...
3
STATOR BS-200416AGS
...
4
RBC, (with O-Ring p/n 189197GS) BS-193336GS
...
5
HHCS, M6 - 1.0 x 130 SEMS BS-86308CGS
...
6
ASSY, Holder, Rectifier/Brush BS-91825GS
...
7
HHCS, M5-0.8 X 16 BS-49815GS
...
8
RECEPTACLE, 6 pin BS-22694GS
...
9
PIN, Roll, 4mm x 10 BS-81917GS
...
10
ASSY, Wire, Ground BS-193428AGS
...
11
TAPTITE, M5 - 0.8 x 20 BS-66849AGS
...
12
RECTIFIER, Battery Charge BS-65795GS
...
13
HARNESS, Wire, Power BS-200425GS
...
14
ASSY, Wire BS-195180ZGS
...
15
BEARING BS-65791GS
