Briggs & Stratton 1648-1 - 4,500 Watt PowerBoss

Model: 1648-1 - 4,500 Watt PowerBoss

Back To Assemblies

Save Part Not Listed?
product name

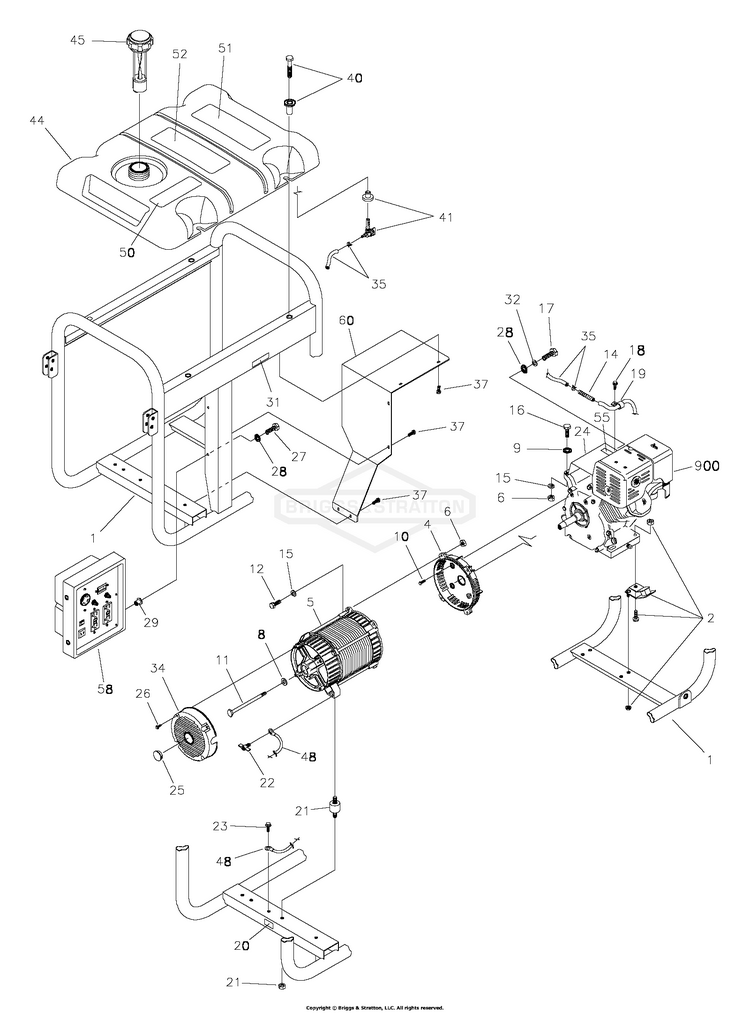

Main Unit

...
...
1
KIT, Cradle BS-B189252GS
...
2
KIT, Vibration Mount BS-194150GS
...
4
ADAPTER, Engine BS-190220GS
...
5
ASSY, Alternator (see "Alternator") BS-~NSP
...
8
WASHER, 8.4 x 22.2 x 3 BS-96796GS
...
10
SBHCS, 3/8 - 16 x 7/8 BS-190274DGS
...
11
HHCS, 5/16 - 24 x 7.13 BS-187365AGS
...
14
CONNECTOR BS-200082GS
...
18
CRIMPTITE, 10-24 x 1/2" BS-56893GS
...
19
CLAMP, Hose BS-55934GGS
...
20
DECAL, Ground BS-B4986GS
...
21
MOUNT-VIBRATION BS-194153GS
...
22
SCREW, Wing M6 - 1.0 x 16 BS-86494GS
...
23
SCREW BS-313085GS
...
24
COVER, Engine BS-B189434GS
...
25
CAP BS-191190GS
...
26
SCREW, M5-0.8 x 10, Taptite BS-74908GS
...
29
WELLNUT, 1/4 - 20 BS-189377GS
...
31
DECAL, Exhaust Warning BS-196830GS
...
34
COVER, RBC, Plastic w/Cap BS-195422GS
...
35
LINE, Fuel BS-791745
...
37
SCREW, Self Drill, 12 - 14 x 7/8 BS-B2153GS
...
40
KIT, Fuel Tank Hardware (Includes Qty of 4) BS-194398GS
...
41
KIT, Fuel Valve BS-192980GS
...
44
ASSY, Fuel Tank (Includes Items 41, 50, 51 & 52) BS-197443GS
...
45
CAP, Fuel Gauge BS-B4363GS
...
48
WIRE, Ground BS-195373GS
...
50
DECAL, Instructions, Fuel Level BS-188333GS
...
51
DECAL, Danger BS-194799GS
...
52
DECAL, Start Instructions BS-93826GS
...
55
DECAL, Fuel Shut-Off BS-197798GS
...
58
ASSY, Control Panel (see "Control Panel") BS-189249GS
...
60
HEAT SHIELD, Muffler BS-J189384GS
...
BOTTLE, Oil Not Illustrated BS-100005
...
MANUAL, Engine Not Illustrated BS-B1464GS
...
MANUAL, Operator's Not Illustrated BS-200167GS
...
CABLE, Battery Charge Not Illustrated BS-65787GS
...
KIT, Decals Srv Not Illustrated BS-200719GS
...
Front Draw Bar w/Spindles-RH Side Optional Accessories BS-100126
