Briggs & Stratton 1642-0 - 5,500 Watt PowerBoss

Model: 1642-0 - 5,500 Watt PowerBoss

Back To Assemblies

Save Part Not Listed?
product name

Main Unit

...
...
1
CRADLE BS-B189010
...
2
SUPPORT, Engine BS-B92531GS
...
3
SUPPORT, Engine & Muffler BS-B92731GS
...
4
HOUSING, Engine Adapter BS-66365GGS
...
5
ASSEMBLY, Rotor (Inclds Item 7) BS-187746GS
...
6
ASSEMBLY, Stator BS-187745GS
...
7
BEARING BS-65791GS
...
8
WASHER, M8 Flat BS-96796GS
...
9
WASHER, Lock BS-22129GS
...
10
HHMS, 5/16-24 x 3/4 LG. SEMS BS-86307GS
...
11
SCREW, 5/16-24 x 7-3/8 BS-99383
...
12
MOUNTS,Vibration BS-92609GS
...
13
GROMMET, Rubber BS-189127
...
14
BRACKET, Muffler BS-92532GS
...
15
GASKET, Exhaust BS-188551
...
16
SCREW, M6-1 x 12 w/Lock Washer BS-66476GS
...
17
MUFFLER BS-312711GS
...
18
SCREW, 5/16 - 18 x 3/4" BS-60706
...
19
SCREEN, Spark Arrest BS-83083GS
...
20
PIN, ROLL 4MM x 10 BS-81917GS
...
21
NUT, Hex Locking Flange M8 BS-67989GS
...
22
MANUAL, Owners BS-189027
...
23
NUT, 5/16-18, Flanged Serrated BS-189160GS
...
24
SHIELD, Heat BS-J189011
...
25
CARRIER, Rear Bearing BS-66825B
...
26
TAPTITE, M5-0.8 x 10 LG. BS-74908GS
...
27
BOLT, M6-1 x 145mm Stator BS-86308AGS
...
28
SLEEVING, Flexo, 1/2" X 15" BS-84409
...
29
FASTEN, On Tab Housing 6P BS-22695GS
...
30
GROMMET, Plastic RBC BS-84242GS
...
31
MANUAL, Engine BS-188826
...
32
ASSEMBLY, Brush Holder BS-91825
...
33
HHCS, M5-0.8 X 16 BS-49815GS
...
34
COVER, Bearing Carrier BS-B4871GS
...
35
WASHER, SHAKE PROOF INT.# 10 BS-22769GS
...
36
SCREW, M6-1.0 x 16 LG. WING BS-86494GS
...
37
SCREW, 12-14 x 7/8 Self Drilling BS-B2153GS
...
38
WASHER, Flat, 6.6 x 21.6 x1.9 BS-189155
...
39
GROMMET, Tank BS-188973
...
40
HHCS, M6-1.0 x 25 BS-189156
...
41
Kit, Valve BS-192980GS
...
42
Kit, Valve BS-192980GS
...
43
CAP, Fuel Gauge BS-B4363GS
...
44
ASSY, Tank, Fuel (Includes Items 41 & 42) BS-193668GS
...
45
DECAL, Start Instructions BS-189235
...
46
CAP BS-5022097SM
...
47
NUT, 1/4-20 BS-22127
...
48
WIRE, Ground BS-195373GS
...
50
DECAL, Ground BS-B4986GS
...
51
DECAL, Danger BS-194799GS
...
52
DECAL, Heat Shield BS-189153
...
53
MOUNT,Vibration BS-B5072GS
...
54
BOTTLE, Oil BS-BB3061GS
...
55
HOOD, Rocker Arm Cover BS-187330
...
56
DECAL, Panel, Side BS-189025
...
57
DECAL, Control Panel BS-189024
...
58
ASSEMBLY, Control Panel BS-189018
...
59
ENGINE BS-~NSP
...
60
HHCS, M8 - 1.25 x 35 BS-39414GS
...
61
MODULE BS-84009650
...
62
GROMMET, RUBBER BS-67022GS
...
63
DECAL, Cover,Air Cleaner BS-189186
...
64
DECAL, Hot Muffler BS-77816GS
...
65
PLUG, 250V, 30A BS-43438GS
...
66
DECAL, Shut-Off, Fuel BS-73054
...
67
DECAL, 1-800 Number BS-20566GS
...
68
HOSE, 1/4" x 7.5" BS-30340
...
69
CLAMP BS-48031C
...
70
STRAP, Tank, Fuel BS-J189297
...
71
SCREW BS-313085GS

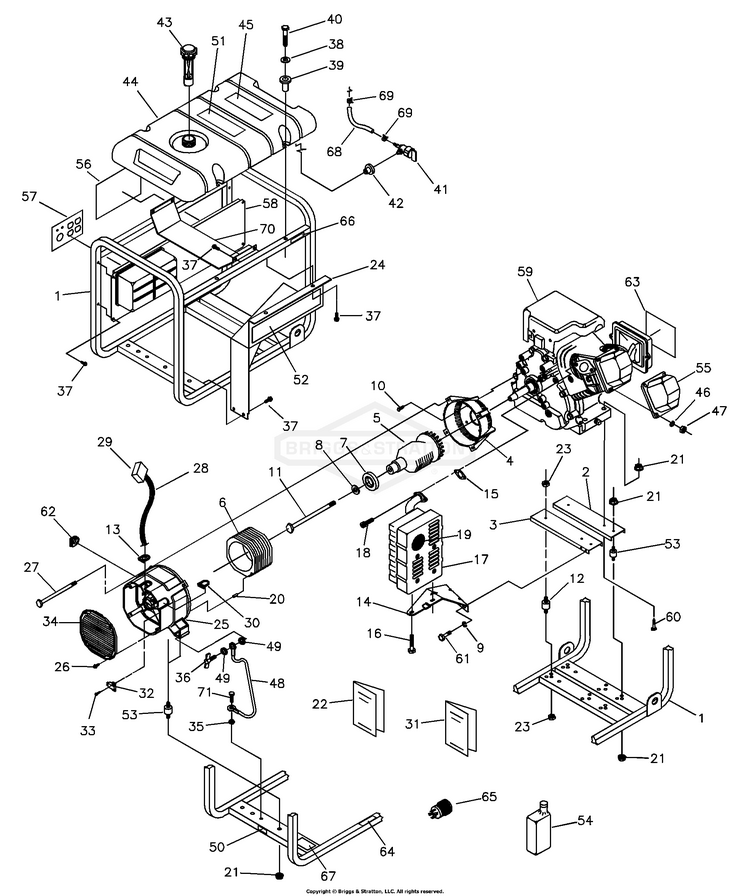

Schematic Image Zoomed
