Briggs & Stratton 1642-0 - 5,500 Watt PowerBoss

Model: 1642-0 - 5,500 Watt PowerBoss

Back To Assemblies

Save Part Not Listed?
product name

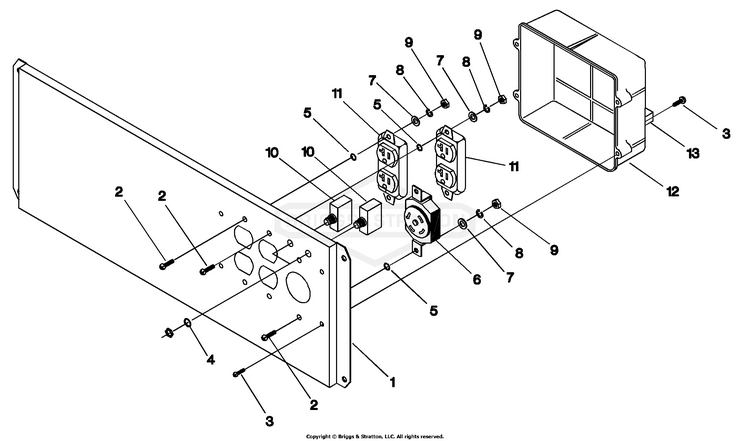

Control Panel

...
...
1
PANEL, Control BS-B189015
...
2
SCREW, M4 - 0.7 x 10mm BS-75475
...
3
SCREW, Self Tapping, STC 3 x 18 BS-82308GS
...
4
WASHER, 7/16" Int Lock BS-82881GS
...
5
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
6
OUTLET, 120/240 Locking, 30 Amp BS-43437
...
7
WASHER BS-38150GS
...
8
WASHER, No. 8 Lock BS-22264
...
9
NUT, M4-0.7 Hex BS-51715GS
...
10
BREAKER-CIRCUIT 20A BS-209872GS
...
11
OUTLET, 20A,120V BS-68759GS
...
12
PANEL, Control, Back, Plastic BS-81919GS
...
13
HOUSING, Receptacle 6-Pin BS-22694GS
