Briggs & Stratton 1430-1 - 2,100 PSI Craftsman

Model: 1430-1 - 2,100 PSI

Back To Assemblies

Save Part Not Listed?
product name

Pump (B3816)

...
...
1
O-RING, Engine Adapter BS-B2218GS
...
2
CAPSCREW, Socket Head BS-97962GS
...
3
SLEEVE, Grommet Spacer BS-96795GS
...
4
BUSHING, Rubber Mount BS-21429GS
...
5
O-RING, Housing Seal BS-97835GS
...
6
VALVE, Thermal Relief BS-208673GS
...
7
SEAL, Oil Piston BS-93680GS
...
8
SPACER, Pilot BS-97831GS
...
9
HOUSING, Piston BS-B2702GS
...
10
ADPTR, NDL, VS, HONDA BS-B5003GS
...
11
VALVE, 1-5 PSI BS-B5710GS
...
12
CAP, Outlet Port BS-97841GS
...
13
Nylon Roller BS-5040946
...
14
KIT, AXIAL CAM BS-185710GS
...
19
KIT, CHEM INJ, SRV BS-B3829GS
...
25
* KIT, UNLOADER 2300 BS-185711
...
33
KIT, CHECK VALVES BS-185712GS
...
36
KIT, HEAD BRASS EG BS-185531GS
...
39
KIT, PISTON & SPRING BS-185713GS
...
43
KIT, O-RING/SEAL 2300 BS-185714GS

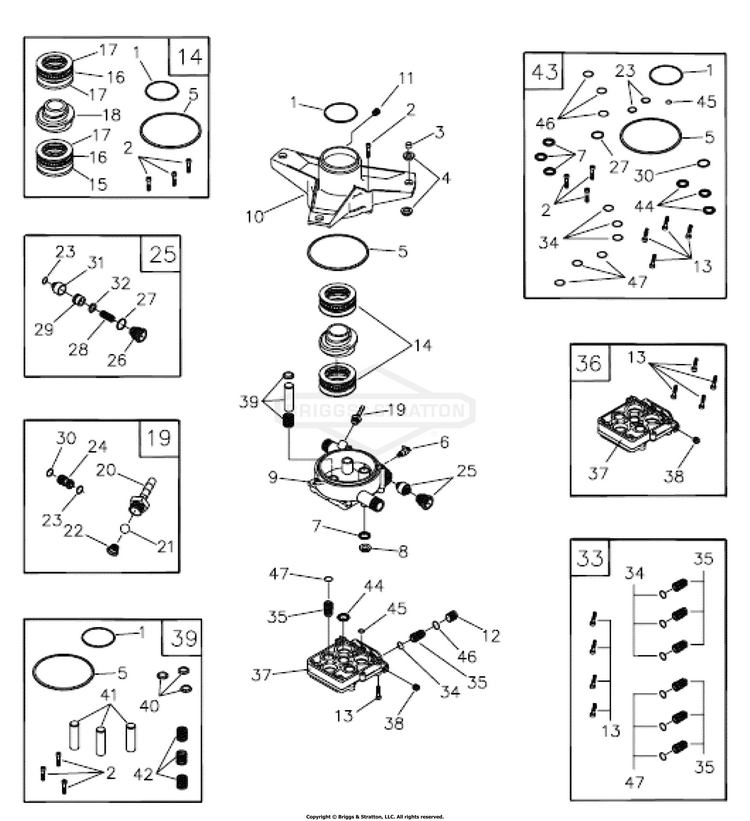

Schematic Image Zoomed
