Briggs & Stratton 1430-1 - 2,100 PSI Craftsman

Model: 1430-1 - 2,100 PSI

Back To Assemblies

Save Part Not Listed?
product name

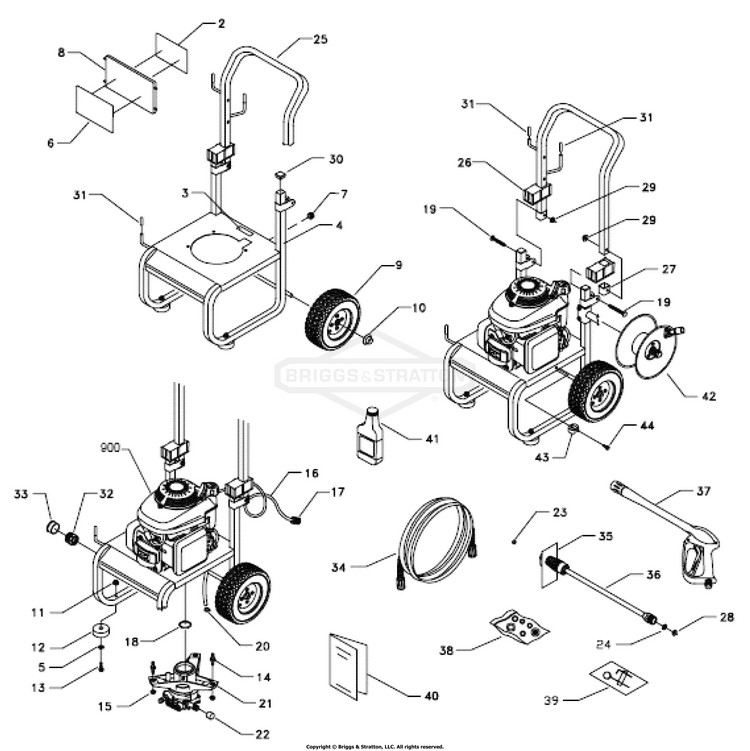

Main Unit (187339)

...
...
2
DECAL, Instructions BS-B1932GS
...
3
DECAL, 1-800 Number BS-96307GS
...
4
BASE, Polo Green Powder Coated BS-EB5654GS
...
5
Washer, .34 x 1 x 10 BS-50190GS
...
6
DECAL, UNIT, PW, 01431, SRS BS-B5669GS
...
7
GROMMET BS-30809GS
...
8
BILLBOARD, Plastic BS-B1631BGS
...
9
WHEEL BS-209636GS
...
10
PUSHNUT, 5/8" BS-75402CGS
...
11
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
12
VIBE MOUNT, with Washer BS-191413GS
...
13
HHCS, M8 - 1.25 x 50 BS-51731
...
14
STUD, Double Ended BS-B1735GS
...
15
NUT, with Washer BS-B1880GS
...
16
HOSE-CHEMICAL BS-705076
...
17
FILTER-CHEM HOSE BS-709496
...
18
O-RING, Engine Adapter BS-B2218GS
...
19
BOLT, Carriage BS-31669GS
...
20
CLAMP, Hose 13/32" BS-48031GGS
...
21
REPLACEMENT PUMP ASSEMBLY BS-209940GS
...
22
CAP, ADPTR, HP BS-97100GS
...
23
NOZZLE, Replacement BS-94804GS
...
24
SCREEN, Gun Inlet BS-B4224GS
...
25
HANDLE BS-EB5653GS
...
26
COVER, Hinge BS-B1779GS
...
27
END CAP, Tube BS-B2347GS
...
28
O-RING, Hi Pressure BS-97837GS
...
29
NUT BS-194005GS
...
30
CAP PLUG, Tubing BS-46476GS
...
31
CAP, Vinyl, Black BS-B2516GS
...
32
TRANSAXLE BS-84010384
...
33
CAP, GRDN HOSE, CNNCTR BS-A1408GS
...
34
HOSE ASSEMBLY BS-84006753
...
35
TAG, Nozzle Instructions BS-97566GS
...
36
WAND, Adjustable Nozzle BS-188792AGS
...
37
GUN BS-704312
...
38
KIT, Maintenance, O-Ring BS-191922GS
...
39
KIT, Nozzle, Cleaning BS-B3708
...
40
MANUAL-OPERATOR BS-B5657GS
...
41
BOTTLE, Oil BS-100005
...
42
REEL, Hose BS-B4992GS
...
43
CLIP, Spring BS-B2427BGS
...
44
SCREW, 12-14 x 7/8 Self Drilling BS-B2153GS
