Briggs & Stratton 1313-0 - 3,500 Watt Lowes

Model: 1313-0 - 3,500 Watt Lowes

Save Part Not Listed?
product name

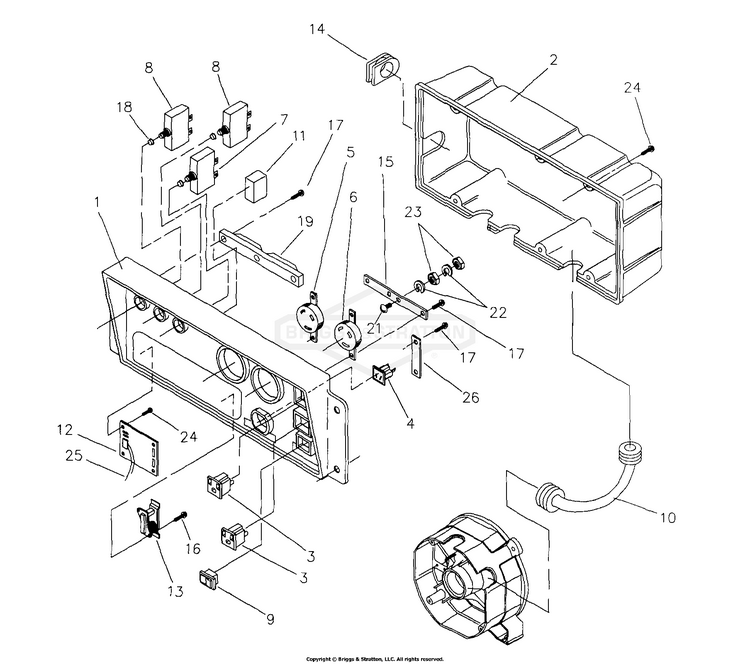

Control Panel

...
...
1
PANEL, Control BS-83976GS
...
2
BOX, Control BS-83975GS
...
3
OUTLET, 120 V AC, 15 A Duplex BS-66818GS
...
4
OUTLET, 12 V DC BS-66821GS
...
5
OUTLET, 120/240 V AC, 20 A Locking BS-68867CGS
...
6
OUTLET-120V TL30A BS-705932
...
7
BREAKER-CIRCUIT 30A BS-706178
...
8
BREAKER, Circuit BS-75207GGS
...
9
SWITCH, Idle Control BS-82538GS
...
10
GROMMET, Rubber Connector BS-84134GS
...
11
BREAKER, Circuit BS-83514GS
...
12
BOARD, System Control BS-83970GS
...
13
TRANSFORMER, Idle Control BS-84028GS
...
14
GROMMET, RUBBER BS-67022GS
...
15
BAR, Bus BS-85584GS
...
16
SCREW BS-84543AGS
...
17
SCREW, Phillips, Head 3.5 x 18 BS-84543CGS
...
18
CAP, Breaker, Circuit BS-84198GS
...
19
BAR, Circuit Breaker Retaining BS-84197GS
...
21
PPHMS, M4-0.7 x 16 BS-75476GS
...
22
WASHER, M4 Lock BS-22264
...
23
NUT, M4-0.7 Hex BS-51715GS
...
24
SCREW BS-84543BGS
...
25
ASSEMBLY, Wire Harness BS-84335GS
...
26
BAR, DC Outlet Retaining BS-82542GS

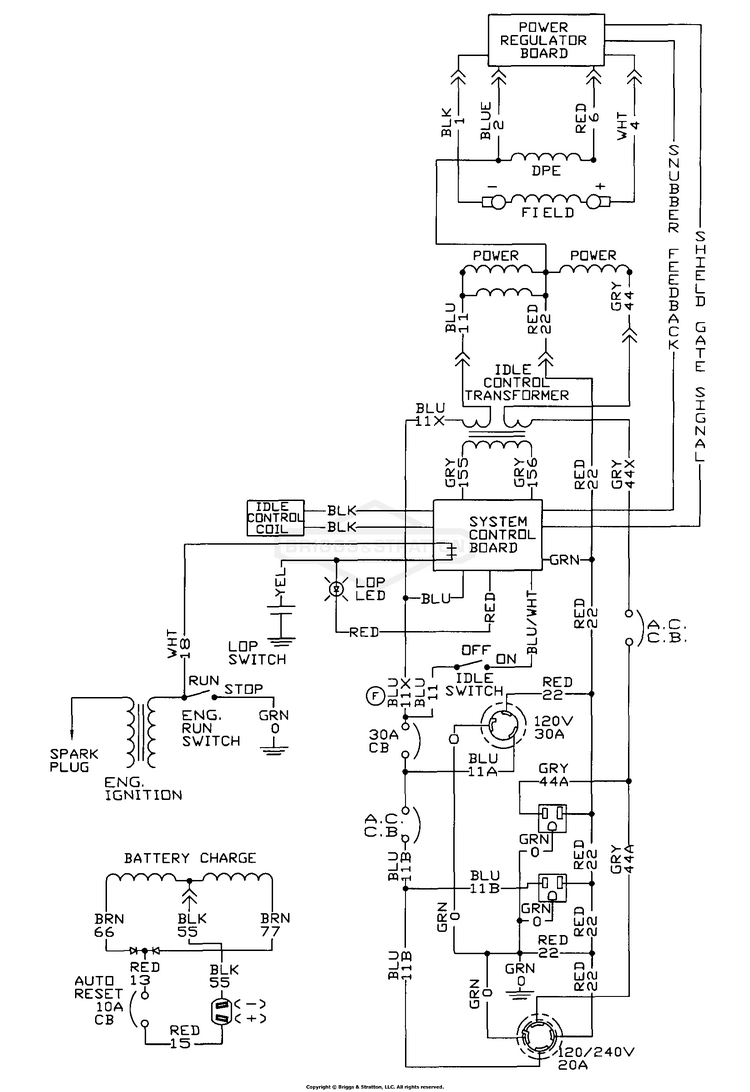

Electrical Schematic

...

No Parts Available for this Schematic

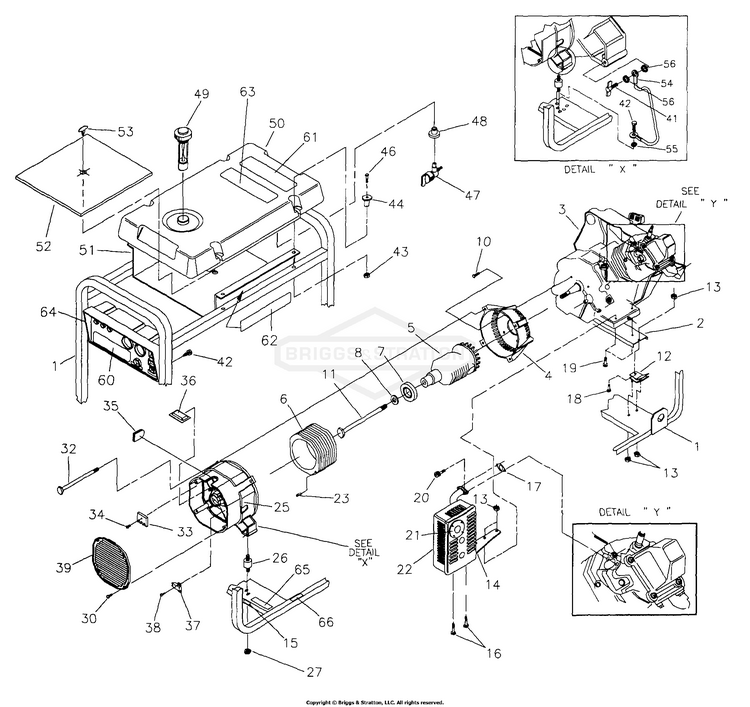

Main Unit

...
...
1
CRADLE, 4200W BS-G93199GS
...
2
SUPPORT, Engine BS-G84021GS
...
3
ENGINE BS-~NSP
...
4
HOUSING, Engine Adapter BS-66365GS
...
5
ASSY, Rotor BS-84141JGS
...
6
ASSY, Stator BS-187105AGS
...
7
BEARING BS-65791GS
...
8
WASHER, M8 Flat BS-96796GS
...
10
HHMS, 5/16-24 x 3/4 LG. SEMS BS-86307GS
...
11
FLOOR PLATE BS-5047480B
...
12
MOUNT, Vibration BS-84508GS
...
13
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
14
BRACKET, Muffler BS-83208GS
...
15
DECAL, Ground BS-B4986GS
...
16
SCREW, M6-1 x 12 w/Lock Washer BS-66476GS
...
17
GASKET, Exhaust BS-89476GS
...
18
SCREW BS-70644GS
...
19
TPHMS, M8 - 1.25 x 35 BS-195398GS
...
20
SCREW, M8 - 1.25 x 20 BS-40976
...
21
SCREEN, Spark Arrest BS-83083GS
...
22
MUFFLER BS-83071GS
...
23
PIN, ROLL 4MM x 10 BS-81917GS
...
25
CARRIER, Rear Bearing BS-66825B
...
26
MOUNT-VIBRATION BS-194153GS
...
27
NUT, Hex Locking Flange M8 BS-67989GS
...
30
TAPTITE, M5-0.8 x 10 LG. BS-74908GS
...
32
HHCS, M6 - 1.0 x 115 SEMS BS-86308GS
...
33
RECTIFIER, BATTERY CHARGE BS-65795GS
...
34
SCREW BS-66849AGS
...
35
GROMMET, RUBBER BS-67022GS
...
36
ASSEMBLY, POWER REGULATOR BS-84132GS
...
37
ASSEMBLY, BRUSH HOLDER BS-66386GS
...
38
HHCS, M5-0.8 X 16 BS-49815GS
...
39
COVER, Bearing Carrier BS-B4871GS
...
41
SCREW, M6-1.0 x 16 LG. WING BS-86494GS
...
42
SCREW BS-313085GS
...
43
NUT, FLANGE LOCK - M6 BS-77395GS
...
44
GROMMET, TANK BS-83465GS
...
46
HHMS, M6-1.0 x 60 (BLACK) BS-78831BGS
...
47
Kit, Valve BS-192980GS
...
48
Kit, Valve BS-192980GS
...
49
CAP, Fuel Gauge BS-B4363GS
...
50
KIT, TANK, FUEL, RETRO BS-195617GS
...
51
SHIELD, Heat BS-B84042GS
...
52
INSULATION BS-84687GS
...
53
CLIP, INSULATION BS-85000GS
...
54
WIRE, Ground BS-195373GS
...
55
WASHER, #10 Ext. Shakeproof BS-23762GS
...
60
DECAL, Control Panel BS-B4356
...
61
DECAL, Danger BS-194799GS
...
62
DECAL, Heat Shield BS-B4357
...
63
DECAL, START INSTRUCTIONS BS-93826GS
...
64
ASSEMBLY, Control Panel BS-B1432
...
65
DECAL, 1-800 Number BS-20566GS
...
66
DECAL, Hot Muffler BS-77816GS
...
Battery Charge Cable Not Illustrated BS-65787
...
MANUAL-OPERATOR Not Illustrated BS-B4354GS
...
BOTTLE, Oil Not Illustrated BS-BB3061GS
...
PLUG-120/240V TL20A Not Included; Optional accessory BS-100522GS
...
PLUG, 125V 30A 3-Prong Not Included; Optional accessory BS-100523GS
...
ASSY,Wrap, Cord Not Included; Optional accessory BS-84883GS
...
COVER, Storage Not Included; Optional accessory BS-B4767GS

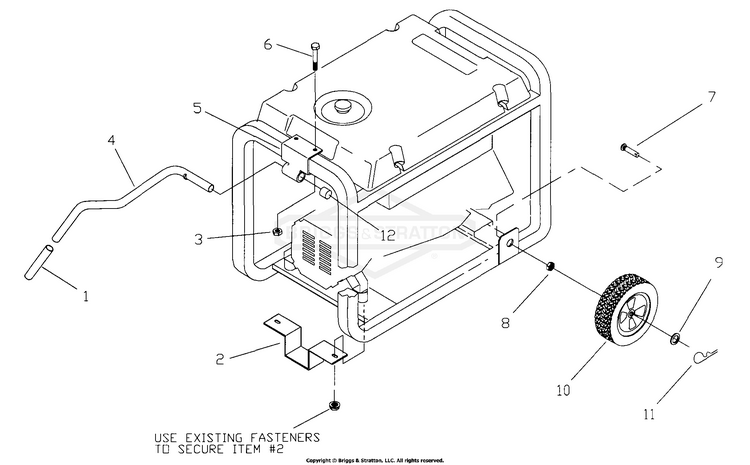

Wheel Kit

...
...
1
Part of Item 4 BS-~NSP
...
2
LEG, Mounting BS-B1764GS
...
3
Part of Item 4 BS-~NSP
...
4
ASSEMBLY, Handle BS-189715GS
...
5
Part of Item 4 BS-~NSP
...
6
Part of Item 4 BS-~NSP
...
7
STUD, AXLE, 12.7 X 97.3, ZP BS-93728CGS
...
8
JAM NUT, Lock 5/8" - 18 BS-94222QGS
...
9
WASHER, Flat BS-49808GS
...
10
WHL, 3.00 X 10.00, S-PNEU, 1/2 BS-B1760GS
...
11
PIN, 3/32 X 1.6 BS-703300
...
12
Part of Item 4 BS-~NSP

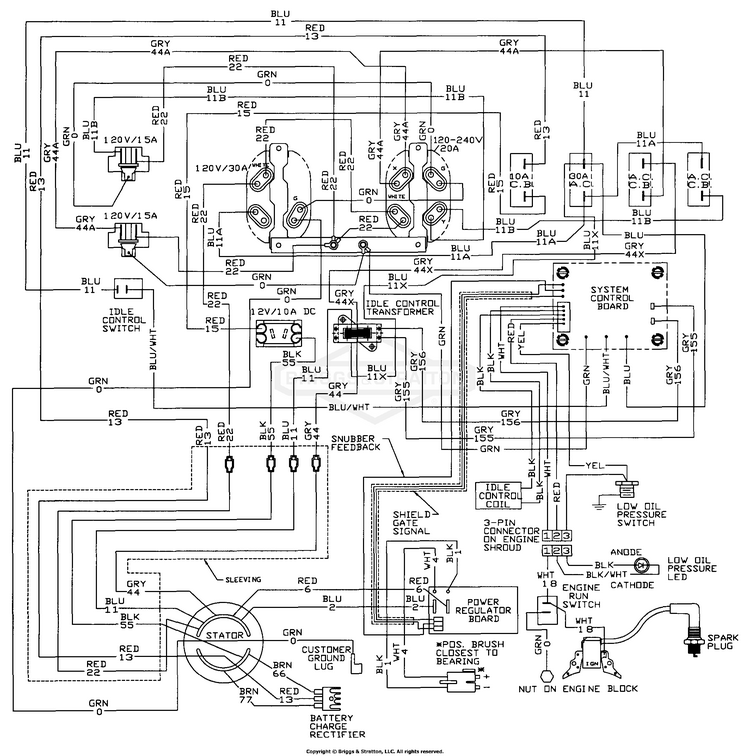

Wiring Diagram

...

No Parts Available for this Schematic
