Briggs & Stratton 1051-0 - 580.762200, 2,200 PSI Craftsman

Model: 1051-0 - 580.762200, 2,200 PSI

Save Part Not Listed?
product name

Popular Parts

Popular Parts

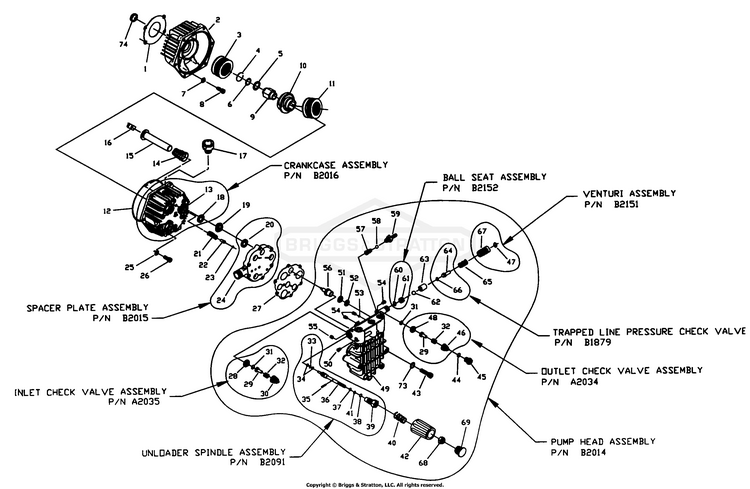

Assemblies

...
...
1
GSKT, ADPTR, ENG BS-93871GS
...
2
ADPTR, ENG, MCHND BS-96430AGS
...
3
ASSY, BRNG, RLLR, THRST, 81110 BS-96542GS
...
4
C-RING, 40.8 ID X 2.16 DIA BS-97675GS
...
5
WSHR, THRUST BS-97570GS
...
6
RETAINER, PUSH ON BS-95524GS
...
7
WASHER, Lock BS-92479GS
...
8
SCREW BS-95531GS
...
9
ADPTR, 3/4 SHAFT, HEX BS-95435GS
...
10
CAM, MED, 6.0, 4.0, MACH BS-97671VGS
...
11
ASSY, THRST, BRNG, NDL BS-97606GS
...
12
O-RING, Crankcase BS-93790GS
...
13
HSNG, PSTN BS-97568AGS
...
14
SPRING, Piston Return BS-96400GS
...
15
ASSY, Ceramic Piston & Cap BS-99427GS
...
16
SHOE, Piston Pivot BS-94944GS
...
17
BREATHER BS-99735GS
...
18
SEAL, Oil Piston BS-93680GS
...
19
SPACER, PILOT BS-93668GS
...
20
SEAL, PSTN, U-CUP BS-93667GS
...
21
SPRING, Thermal By-Pass BS-93652GS
...
22
PISTON, Thermal By-Pass BS-95416GS
...
23
SCREW BS-690312
...
24
SPACER PLATE, Inlet BS-A1320GS
...
25
LOCKWASHER, M6 Ribbed BS-93873
...
26
SCREW BS-40945GS
...
27
GASKET, Head BS-A2069GS
...
28
SEAT, CHK VLV, INLET , SS BS-A2062GS
...
29
POPPET, VLV, CHCK BS-A2060GS
...
30
CAGE, VLV, CHK, INLET BS-97931GS
...
31
O-RING, VLV, CHCK BS-97934GS
...
32
SPRING, VLV, CHK BS-97929GS
...
33
O-RING, 0.364 ID X 0.070, 70 D BS-97843GS
...
34
RING, BACKUP, 9.6X12.65X1.35 BS-A2017GS
...
35
PIN, ROLL, 5/64 X 11/16 BS-A1719GS
...
36
KIT, Unloader Spindle BS-B3479GS
...
37
STUD BS-691120
...
38
O-RING, 14.0 ID X 1.78CS BS-A3829GS
...
39
KIT, Unloader Spindle BS-B3479GS
...
40
SPRING, UNLDR, FLT HD BS-A1716GS
...
41
KIT, Unloader Spindle BS-B3479GS
...
42
KIT, Unloader Spindle BS-B3479GS
...
43
BOLT BS-A2013GS
...
44
O-RING, Cap BS-97840GS
...
45
CAP, Outlet Port BS-97841GS
...
46
CAGE, VLV, CHK, HI PRSSR BS-20002GS
...
47
O-RING, 10.82 X 1.78CS BS-A3805GS
...
48
SEAT, Check Valve Outlet BS-A2217
...
49
Cylinder, Head BS-A1318
...
50
SCREW, SCBTNHDM8-1.25X8 BS-B1758GS
...
51
SEAL, High Pressure BS-96053GS
...
52
RING, Bearing BS-96015GS
...
53
MAGNET, DFLCTR, BALL BS-A1717GS
...
54
SCREW, SCBTNHD M6-1X8 BS-B1757GS
...
55
SCREW, SET, M8-1.25 X 8 BS-A1718GS
...
56
ACTUATOR, Thermal By-Pass BS-93644GS
...
57
SPRING, INJ, CHEM BS-95380GS
...
58
BALL, 5.5 dia. Chemical Injector BS-95379
...
59
FTG, EE/EG CHEM INJ BS-A1575GS
...
60
O-RING, BYPASS EE BS-97855GS
...
61
SEAT BS-B2152GS
...
62
BALL, 9/32, 440C SS BS-A2015GS
...
63
SEAT, SHUTTLE BS-A2503GS
...
64
VALVE-CHECK BS-B1879GS
...
65
SPRING, VLV, CHK BS-89138GS
...
66
Close Nipple BS-5021123
...
67
VENTURI BS-B2151GS
...
68
NUT, M6-1, LOCK, W/ NYL BS-B2236GS
...
69
PLUG, RND, PLSTC BS-B2241GS
...
73
WASHER, Steel Special BS-B2665GS
...
74
PLATE, SPACER, ENG D.1.62 BS-95441GS
...
B2014
PUMP HEAD ASSEMBLY BS-B2014
...
A2034
ASSY, VLV, CHK, OUTLET BS-A2034GS
...
B1879
VALVE-CHECK BS-B1879GS
...
B2151
VENTURI BS-B2151GS
...
B2152
SEAT BS-B2152GS
...
B2016
ASSY, CRNKCS BS-B2016GS
...
B2015
ASSY, PLATE, SPACER, SRV BS-B3509GS
...
A2035
INLET CHECK VALVE ASSEMBLY BS-A2035
...
B2091
KIT, Unloader Spindle BS-B3479GS

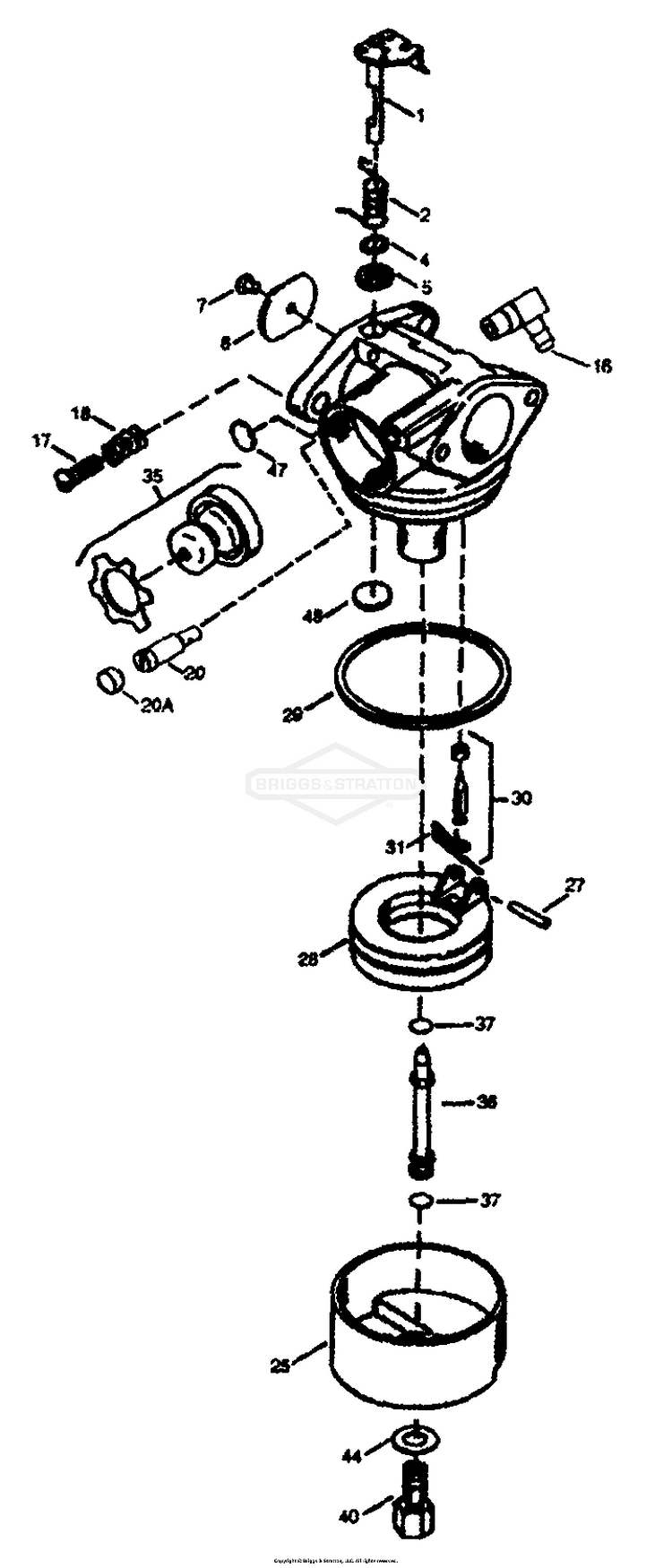

Carburetor

...
...
0
Carburetor (Incl. 184 of Engine Parts List) BS-640147
...
1
Throttle Shaft & Lever Assembly BS-631615
...
2
Throttle Return Spring BS-631767
...
4
Dust Seal Washer BS-631184
...
5
Dust Seal (Throttle) BS-631183
...
6
Throttle Shutter BS-640070
...
7
Shutter Screw BS-650506
...
16
Fuel Fitting BS-631807
...
17
Throttle Crack Screw/Idle Speed Screw BS-651025
...
18
Tension Spring BS-630766
...
20
Idle Restrictor Screw BS-640016
...
20A
Idle Restrictor Screw Cap BS-640053
...
25
Float Bowl BS-631867
...
27
Float Shaft BS-631024
...
28
Float BS-632019
...
29
Float Bowl "O" Ring BS-631028
...
30
Inlet Needle, Seat, k Clip (Incl. 31) BS-631021
...
31
Spring Clip BS-631022
...
35
Primer Bulb/Retainer Ring BS-36045A
...
36
Main Nozzle Tube BS-632745
...
37
Main Nozzle Tube "O" Ring BS-632547
...
40
High Speed Bowl Nut BS-640083
...
44
(C) FITTING 90 DEG W BS-7027110YP
...
47
Welch Plug, Idle Mixture Well BS-630748
...
48
Welch Plug, Atmospheric Vent BS-631027

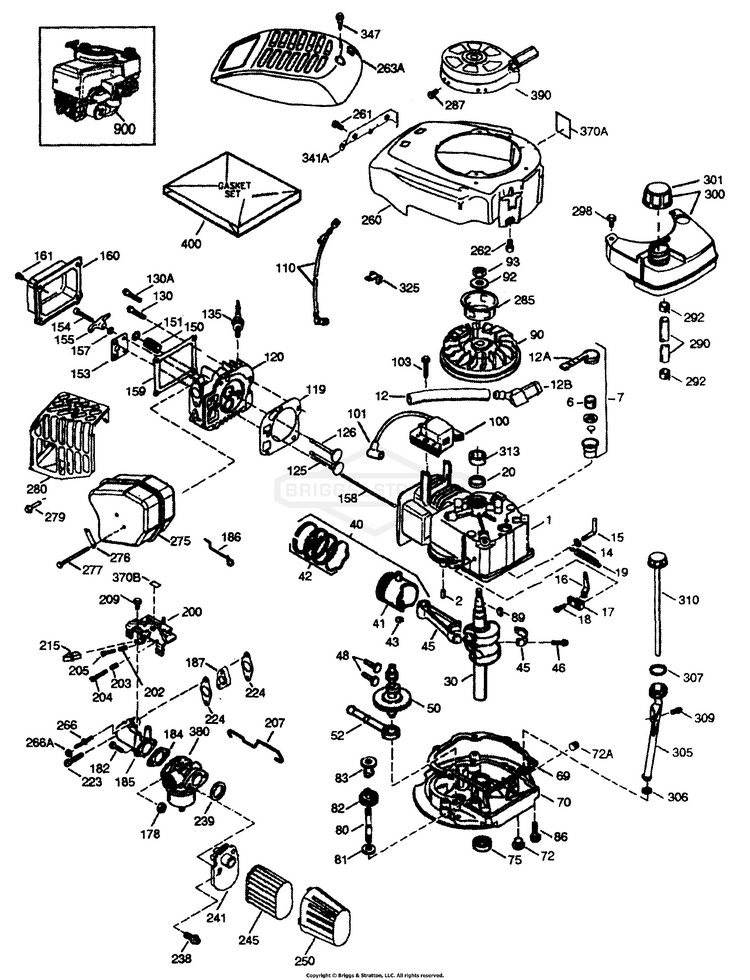

Engine Assembly

...
...
1
Cylinder (Incl. 2 & 20) BS-36835A
...
2
NUT, NYLOK HEX 1/2-20 BS-26727GS
...
6
Breather Element BS-33734
...
7
Breather Ass'y. (Incl. 6 & 12A) BS-36557
...
12
Breather Tube BS-32447
...
12A
Breather Cover & Tube (Incl. 12B) BS-36558
...
12B
Breather Tube Elbow BS-36694
...
14
Washer BS-28277
...
15
Governor Rod (Incl. 14) BS-30589
...
16
Governor Lever BS-34839A
...
17
Governor Lever Clamp BS-31335
...
18
Screw, Torx T-15, 8-32 x 19/64" BS-651018
...
19
Extension Spring BS-36281
...
20
Oil Seal BS-32600
...
30
Crankshaft BS-37208
...
40
Piston, Pin & Ring Set (Std.) BS-35544A
...
40
Piston, Pin & Ring Set (.010" OS) BS-35545A
...
40
Piston, Pin & Ring Set (.020" OS) BS-35546
...
41
Piston & Pin Ass'y. (Std.) BS-35541
...
41
Piston & Pin Ass'y. (.010" OS) (Incl. 43) BS-35542
...
41
Piston & Pin Ass'y. (.020" OS) (Incl. 43) BS-35543
...
42
Ring Set (Std.) BS-35547A
...
42
Ring Set (.010" OS) BS-35548A
...
42
Ring Set (.020" OS) BS-35549
...
43
Piston Pin Retaining Ring BS-20381
...
45
Connecting Rod Ass'y. (Incl. 46) BS-32B75A
...
46
Connecting Rod Bolt BS-32610A
...
48
Valve Lifter BS-35616
...
50
Camshaft (MCR) BS-37011
...
52
Oil Pump Ass'y. BS-29914
...
69
Mounting Flange Gasket BS-37130
...
70
Mounting Flange (Incl. 72 thru 83, 306) BS-37190
...
72
Oil Drain Plug BS-36083
...
72A
Oil Drain Plug BS-28534
...
75
BW .579X1.188X.091 BS-7028460YP
...
80
Governor Shaft BS-30574A
...
81
Washer BS-30590A
...
82
Governor Gear Ass'y. (Incl. 81) BS-30591
...
83
Governor Spool BS-30588A
...
86
Screw, 1/4-20 x 1-1/4" BS-650488
...
89
Flywheel Key BS-610961
...
90
Flywheel BS-611213
...
92
Belleville Washer BS-650815
...
93
Flywheel Nut BS-650816
...
100
Solid State Ignition BS-34443B
...
101
Spark Plug Cover BS-610118
...
103
Screw, Torx T-15, 10-24 x 15/16" BS-651007
...
110
Ground Wire BS-36230
...
119
Cylinder Head Gasket BS-36738
...
120
Cylinder Head BS-36721
...
125
Exhaust Valve (Std.) (Incl. 151) BS-36471
...
125
Exhaust Valve (1/32" OS) (Incl. 151) BS-36472
...
126
Intake Valve (Std.) (Incl. 151) BS-29314B
...
126
Intake Valve (1/32" OS) (Incl. 151) BS-29315C
...
130
Screw, 5/16-18 x 1-1/2" BS-650912
...
130A
Screw, 5/16-18 x 2-41/64" BS-650999
...
135
Resistor Spark Plug (RN4C) BS-34645
...
150
Valve Spring BS-31672
...
151
Valve Spring Cap BS-31673
...
153
Push Rod Guide BS-36649
...
154
Rocker Arm Stud BS-650913
...
155
Rocker Arm BS-35624A
...
157
Lock Nut BS-650914
...
158
Push Rod BS-36629
...
159
Rocker Arm Cover Gasket BS-35626
...
160
Rocker Arm Housing BS-35718
...
161
Screw, Torx T-30, 1/4-20 x 1/2" BS-30063
...
178
Nut & Lock Washer, 1/4-28 BS-29752
...
182
Screw, 1/4-28 x 1" BS-30088A
...
184
Carburetor Gasket BS-26756
...
185
Intake Pipe BS-36579
...
186
Governor Link BS-34337
...
187
Spacer BS-36580
...
200
Control Bracket (Incl. 202 thru 205) BS-35727
...
202
Compression Spring BS-36482
...
203
Compression Spring BS-31342
...
204
Screw, Torx T-10, 5-40 x 7/16" BS-651029
...
205
Screw, Torx T-10, 6-32 x 41/64" BS-651019
...
207
Throttle Link BS-34336
...
209
Screw, 10-24 x 9/16" BS-30200
...
215
Control Knob BS-32410
...
223
Screw, 1/4-20 x 2-25/32" BS-651044
...
224
Intake Pipe Gasket BS-36581
...
238
Screw, 10-32 x 49/64" BS-650932
...
239
Air Cleaner Gasket BS-34338
...
241
Air Cleaner Collar BS-36919
...
245
Air Cleaner Filter BS-36905
...
250
Air Cleaner Cover BS-36920
...
260
Blower Housing BS-37180
...
261
Screw, Torx T-30, 1/4-20 x 1/2" BS-30063
...
262
Screw, 1/4-20 x 1/2" BS-650831
...
263A
Starter Grill BS-37184
...
266
Stud, 1/4-20 BS-651040
...
266A
Nut & Lockwasher, 1/4-20 BS-650852
...
275
Muffler (Incl. 276 & 277) BS-36950
...
276
Locking Plate BS-36949
...
277
Screw, 1/4-20 x 2-47/64" BS-651039
...
279
Screw, Torx T-25, 10-32 x 5/8" BS-650431
...
280
Heat Shield BS-37210
...
285
Starter Cup BS-3500QA
...
287
Screw, 8-32 x 21/64" BS-650926
...
290
Fuel Line BS-29774
...
292
Fuel Line Clamp BS-26460
...
298
Screw, 10-32 x 35/64" BS-28763
...
300
Fuel Tank (Incl. 292 & 301) BS-36916
...
301
Fuel Cap BS-36246
...
305
Oil Fill Tube BS-35647
...
306
"O"-Ring BS-36996
...
307
"O"-Ring BS-35499
...
309
Screw, 10-32 x 1/2" BS-650562
...
310
Dipstick BS-35648
...
313
Spacer BS-34080
...
325
GREASE, Transmission (24 oz. Required) BS-7061017YP
...
341A
Blower Housing Support Bracket BS-36578
...
347
Screw, 10-32 x 27/32" BS-651038
...
370A
Lubrication Decal BS-36261
...
370B
Control Decal BS-35169
...
380
Carburetor (Incl. 184) BS-640147
...
390
Rewind Starter BS-590739
...
MODULE, Oil Sensor See Note, Ref. #390 BS-590702

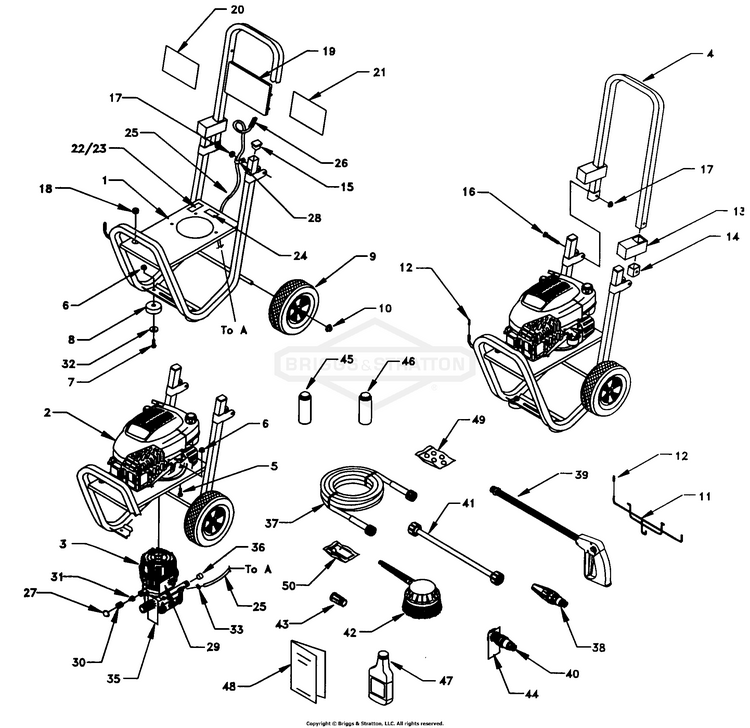

Full Assembly

...
...
1
BASE, VSPW, PWDR CT, PL GRN BS-EB2528GS
...
2
ENGINE, Tecumseh OHV 6.75 HP BS-B2619
...
3
PUMP, Medium Frame BS-A1803C
...
4
HNDL, PWDR CT, POLO GRN BS-EB2534GS
...
5
HHCS, M8 - 1.25 x 35 BS-39414GS
...
6
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
7
SCREW BS-42909GS
...
8
VIBE MOUNT, with Washer BS-191413GS
...
9
TIRE BS-B2142GS
...
10
PUSHNUT BS-194062GS
...
11
HANGER, Hose BS-B2168
...
12
CAP, Vinyl Black BS-B1460GS
...
13
COVER, Hinge BS-B1779GS
...
14
END CAP, Tube BS-B2347GS
...
15
CAP PLUG, Tubing BS-46476GS
...
16
SCREW BS-51767GS
...
17
NUT-M6 FLANGE BS-52857GS
...
18
GROMMET, Base BS-199553GS
...
19
BILLBOARD, Plastic BS-B1631AGS
...
20
DECAL, [email protected], SRS BS-B2623GS
...
21
DECAL, INSTRCTN BS-B2626GS
...
22
DECAL, Data BS-91373
...
23
OVERLAMINATE BS-79552
...
24
DECAL, 1-800 Number BS-96307GS
...
25
HOSE-CHEMICAL BS-705076
...
26
FILTER-CHEM HOSE BS-709496
...
27
CAP, GRDN HOSE, CNNCTR BS-A1408GS
...
28
CLAMP, Hose BS-B1232GS
...
29
TAG, Breather BS-B1288GS
...
30
QUICK DISCONNECT, Female BS-21782
...
31
QUICK DISCONNECT, Male BS-21781
...
32
Washer, .34 x 1 x 10 BS-50190GS
...
33
Shift indicator mounting plate BS-5048031
...
35
TAG, Pressure Adjust BS-97054
...
36
CAP, ADPTR, HP BS-97100GS
...
37
HOSE, 1/4" x 25' BS-B1969
...
38
NZZL, TURBO 1.3 ORANGE BS-B1974GGS
...
39
GUN, 2250PSI, M22, M22, MV BS-B2370GS
...
40
NZZL, HI-LO, 1.05, M22, MV BS-95587EGS
...
41
EXTNSN, M22, M22 BS-97123GS
...
42
ACC, KIT, BRUSH, DUAL BS-6057
...
43
ADPTR, BAYONET AL-8 BS-B1051GS
...
44
TAG, Nozzle Instructions BS-97566GS
...
45
WASH, Vehicle/Boat BS-B1736
...
46
WASH, House/Multi Purpose BS-B1736A
...
47
OIL, Engine SAE 30 BS-96382
...
48
MANUAL-OPERATOR BS-B2620GS
...
49
KIT, O-Ring Maintenance BS-B2730
...
50
KIT, CLNNG, P/W NOZ BS-97009GS

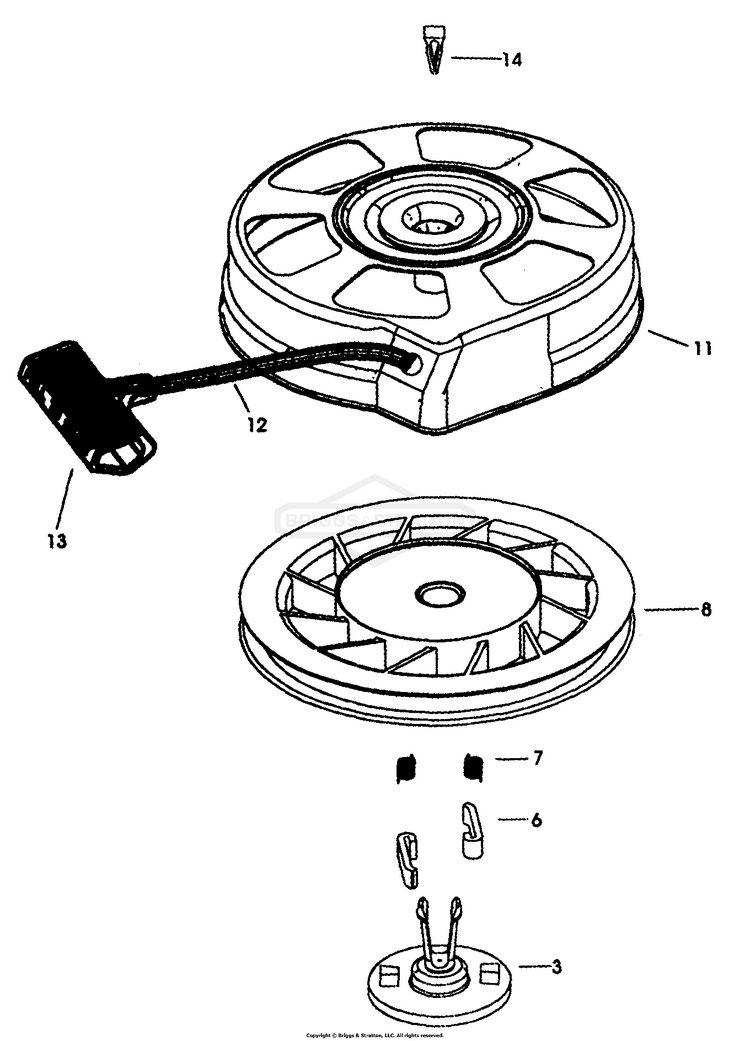

Rewind Starter - Type I

...
...
0
Rewind Starter BS-590739
...
3
Retainer BS-590740
...
6
Starter Dog BS-590616
...
7
Dog Spring BS-590617
...
8
Pulley k Rewind Spring Ass'y BS-590618A
...
11
Starter Housing Ass'y (40 degree grommet) BS-59063B
...
12
Starter Rope (Length 98" x 9/64" dia.) BS-590535
...
13
SCREW BS-590850
...
14
Locking Tab BS-590741

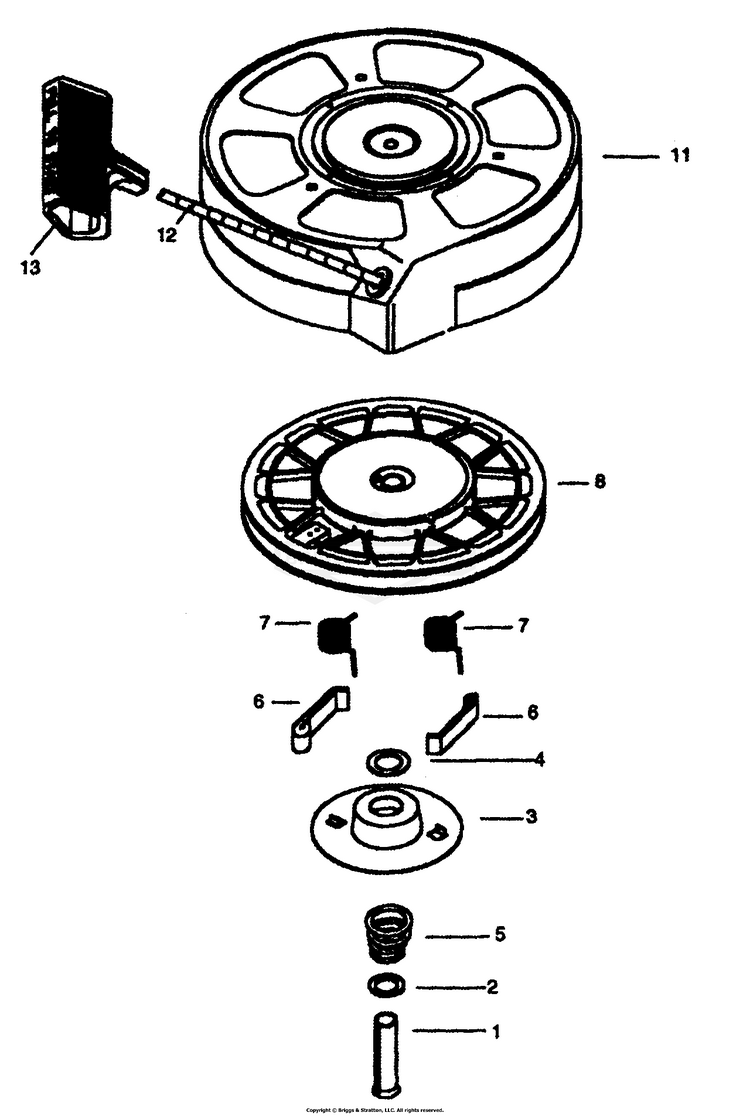

Rewind Starter - Type II

...
...
0
MODULE, Oil Sensor BS-590702
...
1
Spring Pin (Incl. 4) BS-590599A
...
2
Washer BS-590600
...
3
Retainer BS-590696
...
4
FILTER, A/C Cartridge BS-590601
...
5
NUT BS-590697
...
6
TUBE, Breather BS-590698
...
7
SCREW BS-590643
...
8
SCREW BS-590850
...
11
SCREW (40 degree grommet) BS-590703
...
12
Starter Rope (98" X 9/64" dia.) BS-590535
...
13
SCREW BS-590850
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
