Briggs & Stratton 0811-0 - 580.326900, 3,600 Watt Craftsman

Model: 0811-0 - 580.326900, 3,600 Watt

Save Part Not Listed?
product name

Popular Parts

Popular Parts

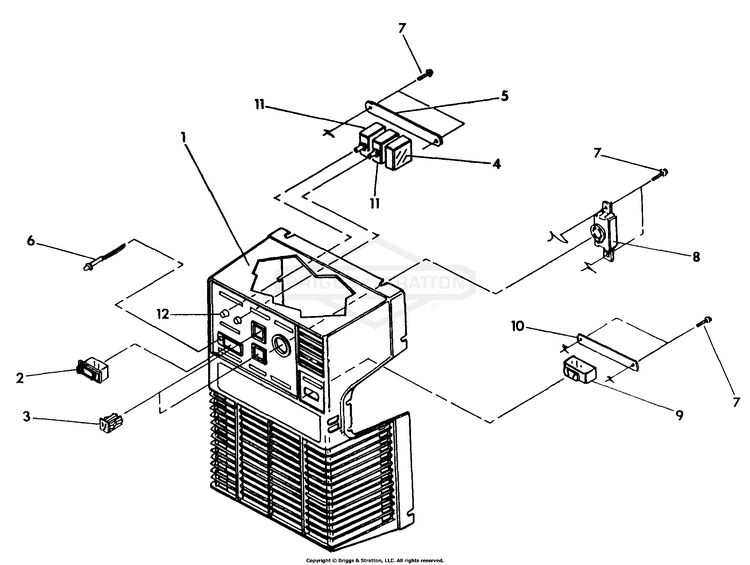

Control Panel

...
...
1
CONTROL PANEL BS-87982A
...
2
SWITCH, ROCKER, OFF/MOM BS-82539GS
...
3
OUTLET, 120 V AC, 15 A Duplex BS-66818GS
...
4
BREAKER, Circuit BS-83514GS
...
5
RETAINING CIRCUIT BREAKER BAR BS-86755
...
6
LOW OIL INDICATOR LIGHT BS-82545
...
7
PLASTITE, #6-19 X .75 BS-84358GS
...
8
OUTLET-120V TL30A BS-705932
...
9
OUTLET, 12 V DC BS-66821GS
...
10
BAR, DC Outlet Retaining BS-82542GS
...
11
BREAKER, Circuit BS-75207DGS
...
12
CAP, Breaker, Circuit BS-84198GS

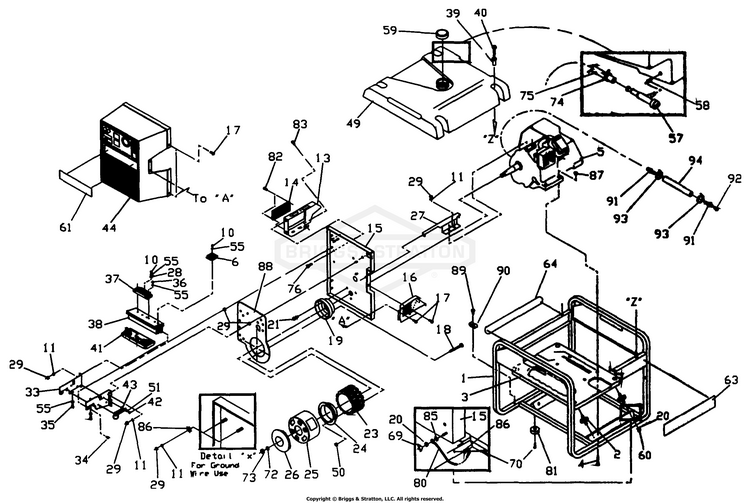

Cradle, Stator, Control Panel, Fuel Tank

...
...
1
CRDL, CCG, SRS BS-A5760GS
...
2
MOUNTS, VIBRATION BS-87091
...
3
ASSY, BASE BS-82548GS
...
4
CAPSCR., HEX HD.-M8-1.25 x 50MM BS-51731
...
5
ENGINE, 7.8 HP. BS-~NSP
...
6
RECTIFIER, BATTERY CHARGE BS-65795GS
...
10
PPHMS, M4-0.7 x 16 BS-75476GS
...
11
CAP BS-5022097SM
...
13
BRACKET, REAR FUEL TANK BS-83114
...
14
DECAL PARK BRAKE BS-7075812YP
...
15
DIVIDER, ENG/PNL, CNTRL BS-82540GS
...
16
ASSEMBLY, MUFFLER AIR DUCT Torque to 132 in. lbs. BS-A4745
...
17
TAPTITE, M4 -12 SEMS BS-88540GS
...
18
CAPSCR., HEX HD.-M6-1.0 x 90MM BS-53410
...
19
ADAPTOR, ENG. HOUSING BS-80935
...
20
WASHER, Lock BS-22129GS
...
21
HHMS, 5/16-24 x 3/4 LG. SEMS Torque to 132 in. lbs. BS-86307GS
...
23
ASSEMBLY, STATOR BS-94009B
...
24
RING, RETAINER BS-80934
...
25
ASSEM., MAGNET HOUSING BS-90013
...
26
FAN, MAGNET HOUSING BS-80933
...
27
BRACKET, FRONT FUEL TANK BS-97643
...
28
GROUND WIRE ASSEMBLY BS-91297001
...
29
NUT, M6 BS-49813GS
...
33
BRCKT, MNTNG, PCB BS-82537GS
...
34
TAPTITE, M5-0.8 X 8 BS-66849BGS
...
35
CAPSCR., HEX HD. M4-0.7 x 10MM BS-51718
...
36
BOLT, Hex Flange, 5/16-18 x 1/2 BS-7091525YP
...
37
MODULE, TRIAC BS-86275
...
38
EXTRUSION, CONTROLLER BS-80939
...
39
GROMMET, TANK BS-83465GS
...
40
HHMS, M6-1.0 x 60 (BLACK) BS-78831BGS
...
41
ASSEM., PCB CONTAINER BS-A3369
...
42
SCREW, M3-0.5 x 10mm BS-43181GS
...
43
RESISTOR, 50W 500 OHM BS-83491
...
44
CONTROL PANEL BS-86817A
...
49
ASSY, TANK, FUEL, TEST, 4 GAL BS-93792GS
...
50
NUT-M6 FLANGE Torque to 84 in. lbs. BS-52857GS
...
51
WASHER, M3 Lock BS-43182GS
...
55
LOCK WASHER, M4 BS-22264
...
57
Kit, Valve BS-192980GS
...
58
Kit, Valve BS-192980GS
...
59
CAP, FUEL BS-84582
...
60
SKID PLATE BS-5045771B
...
61
DECAL, CONTROL PANEL BS-A5273
...
63
DECAL, CRADLE LOGO BS-A5686
...
64
DECAL, CRADLE INSTRUC. BS-A5684
...
69
WING NUT, M6-1.0 BS-87880
...
70
SELF DRILL, 1/4" x 14 x 3/4" LONG BS-88289
...
72
WASHER, M16 CONICAL BS-83312
...
73
NUT, M16-1.5 HEX Torque Nut to 700 in. lbs. BS-81810
...
74
CLAMP, Hose 13/32" BS-48031GGS
...
75
HOSE, FUEL BS-82580C
...
76
TAPTITE, M6-1.0 x 10MM LONG BS-45756
...
80
CRADLE GROUND STRAP BS-15253621
...
81
MOUNT, Rubber Donut BS-87841GS
...
82
RIVET BS-89556
...
83
Screw, M8 1.25 x 15, Taptite BS-83512GS
...
85
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
87
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
88
INSLTR, STATOR LEADS BS-86279GS
...
89
SCREW BS-313085GS
...
90
CLIP, SPRING, 0.37 X 0.62 BS-65852GS
...
91
1/4" NPT x 3/8" BARBED FITTING BS-35461
...
92
1/4" NPT CAP BS-69811
...
93
HOSE CLAMP BS-48031E
...
94
SPINDLE COVER-LH BS-5047290B
...
MANUAL-OPERATOR (Not Shown) BS-A4051GS
...
Spark Arrestor (Not Shown) BS-83038
...
MANUAL, Engine (Not Shown) BS-A8926GS
...
OUTLET, 120 V AC, 15 A Duplex BS-66818GS
...
OUTLET, 12 V DC BS-66821GS
...
OUTLET-120V TL30A BS-705932
...
BREAKER, Circuit BS-75207DGS
...
SWITCH, ROCKER, OFF/MOM BS-82539GS
...
BREAKER, Circuit BS-83514GS
...
CAP, Breaker, Circuit BS-84198GS
...
PLASTIC, #6-19 x .75 BS-84538
...
BAR, C.B. RETAINING BS-86755
...
HEAT ASSEMBLY, GRAY BS-87982A

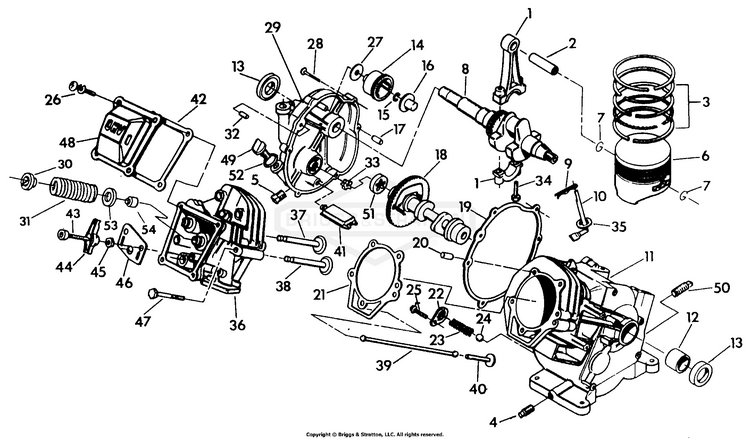

Engine

...
...
1
Connecting Rod w/Cap & Bolt BS-78621
...
2
Piston Pin BS-76389
...
3
Piston Ring Set BS-78660
...
4
1/4" Magnetic Pipe Plug BS-81694
...
5
1/8" NPTF Pipe Plug BS-72683
...
6
Piston BS-76386
...
7
(C) BELT SHIELD WELD BS-7047947YP
...
8
Crankshaft Assem. w/Gear BS-83337
...
9
Governor Arm "R" Pin BS-78658
...
10
Governor Arm BS-76254
...
11
Crankcase Sub-Assembly BS-88276
...
12
Sleeve Bearing BS-76349
...
13
Crankshaft Seal BS-81695
...
14
Governor Gear Assembly BS-76359
...
15
Governor Retainer ("C" Ring) BS-78645
...
16
Governor Spool BS-76365
...
17
Dia. 10 Sleeve Dowel BS-78699A
...
18
Camshaft Assembly BS-83335
...
19
Crankcase Gasket BS-76350
...
20
Dia. 12 Sleeve Dowel BS-78699B
...
21
Cylinder Head Gasket BS-77165B
...
22
Oil Pressure Spring Retainer BS-78691
...
23
Oil Pressure Ring BS-76367
...
24
Pressure Relief Ball BS-76362
...
25
M5-0.80 x 8mm Screw BS-78692
...
26
M6-1.00 x 12mm Screw w/Lock Washer BS-78606
...
27
Thrust Washer BS-76361
...
28
Flanged Hex Head Capscrew BS-78661
...
29
Gear Cover Sub-Assembly BS-88277B
...
30
Valve Spring Retainer BS-77157
...
31
Valve Spring BS-76398
...
32
10 Dia. x 20 Lg. Dowel Pin BS-78633
...
33
Inner Gerotor BS-83152
...
34
Connecting Rod Bolt BS-76381
...
35
Governor Arm Washer BS-78659
...
36
Cylinder Head w/Valve Seats & Guides BS-78623
...
37
Exhaust Valve BS-73121
...
38
CAP DUST BS-7073120YP
...
39
Push Rod BS-76392
...
40
Tappet BS-83235
...
41
Oil Pick-Up Assembly BS-80336
...
42
Rocker Cover Gasket BS-77167
...
43
Pivot Ball Stud BS-77161
...
44
Rocker Arm BS-77160
...
45
Rocker Arm Jam Nut BS-76307
...
46
Push Rod Guide Plate BS-77162
...
47
M8 x 50mm Head Bolt BS-77168
...
48
Rocker Cover Breather Assm. BS-81690
...
49
Oil Fill Plug BS-76329
...
50
BELT,TRACTION DRIVE BS-7072657YP
...
51
6/5 Outer Gerotor BS-83153
...
52
17.8 I.D. x 2.4 Thick O-Ring BS-86254
...
53
Valve Spring Washer BS-84186
...
54
Valve Stem Seal BS-88155

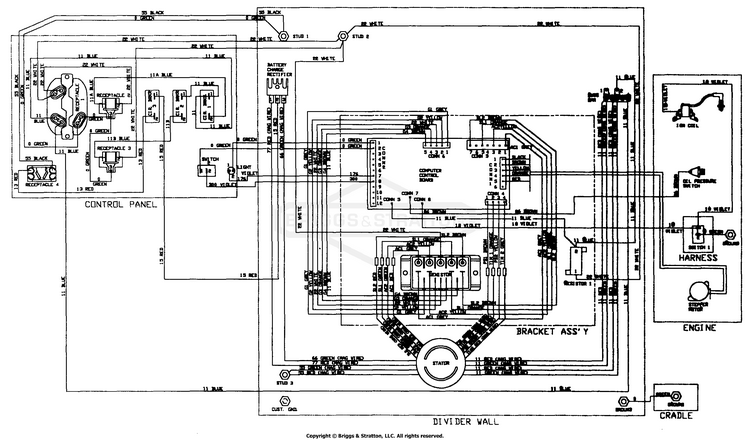

Wiring Diagram

...

No Parts Available for this Schematic

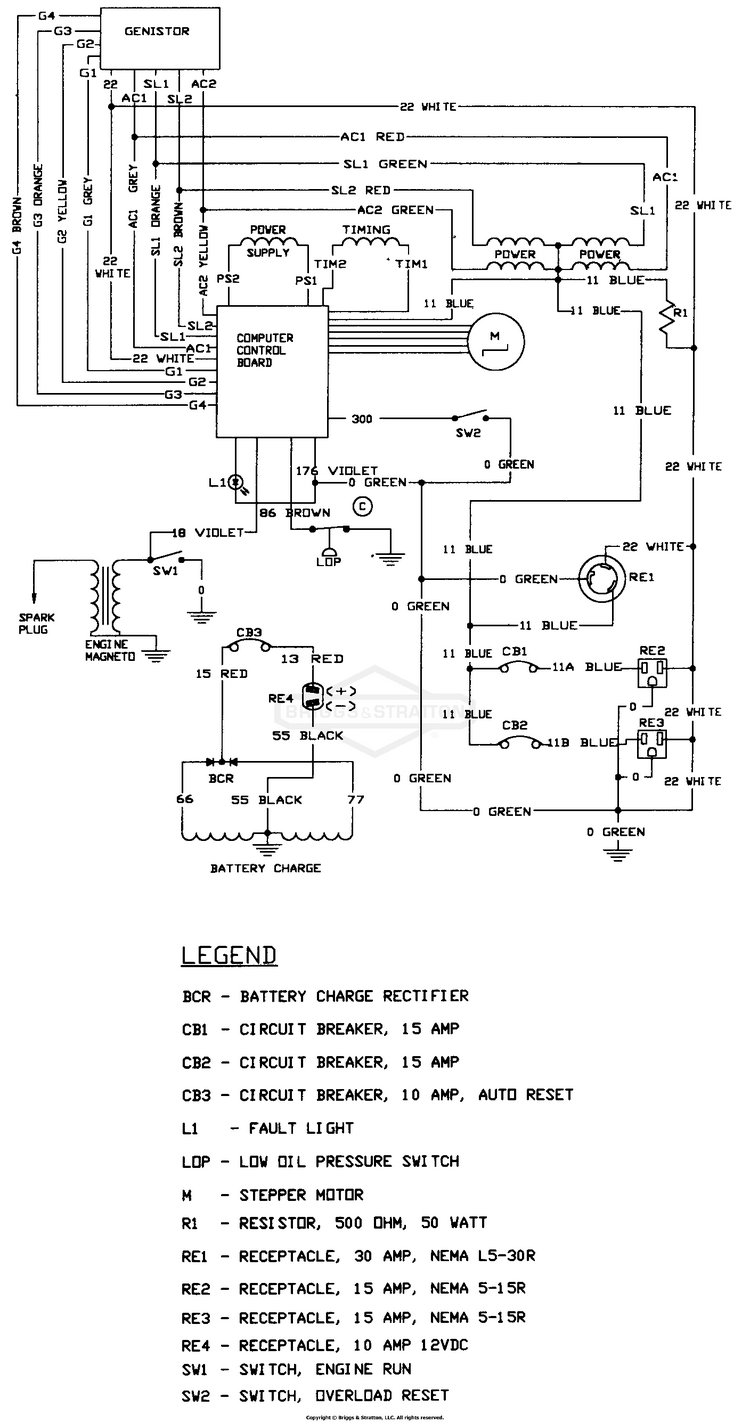

Wiring Schematic

...
