Briggs & Stratton 071038-00 - 200 Amp Automatic Transfer Switch w/ACCM3

Model: 071038-00 - 200A Transfer Switch w/ACCM3

Save
 Don't See Your Part Listed?
product name

Decals Group - ATS Informational

...
...
0290
DECAL, 200A, ATS BS-196523GS

Decals Group - ATS Warning

...
...
0340
DECAL SHEET - WARNINGS (Includes items 0340-0010 thru 0340-0220) BS-770133

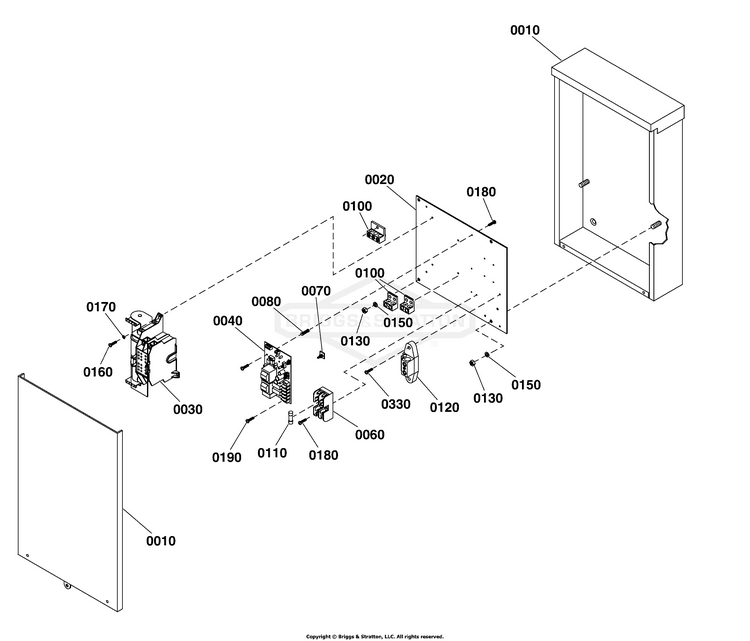

Transfer Switch

...
...
0030
CONTACTOR BS-314866GS
...
0040
BOARD-CIRCUIT BS-771701
...
0060
FUSE HOLDER, 30 Amp 2P BS-192151GS
...
0070
SUPPORT BS-202420GS
...
0080
SPACER BS-205123GS
...
0100
TERMINAL, GROUND BS-84006973
...
0110
FUSE, 10 Amp 600v BS-205110GS
...
0120
TERMINAL, Neutral (Incl. Ref. No. 0330 and bonding screw) BS-192696GS
...
0130
NUT, Hex, 3/8-16 BS-22241GS
...
0160
SCREW, 10-32 X 1/2, PPHMS BS-36701GS
...
0170
WASHER, #10 Ext. Shakeproof BS-23762GS
...
0180
PPHMS, 6-32 X 3/8 BS-36901GS
...
0190
PPHMS, 6-32 X 5/8 BS-36903GS
...
0330
Phillips pan head screw - No. 10-32 x 3/4" BS-36935
...
--
MANUAL, Operator’s (Not Illustrated) BS-195114GS
...
--
KIT, Manual (Not Illustrated) BS-312844GS
...
--
TRANSFORMER (Not Illustrated) BS-208106GS

Wiring Diagram - Transfer Switch

...

No Parts Available for this Schematic

Wiring Schematic - Transfer Switch

...

No Parts Available for this Schematic

...
...
...
...
