Briggs & Stratton 0501-0 - 580.742380, 1,600 PSI Craftsman

Model: 0501-0 - 580.742380, 1,600 PSI

Save
 Part Not Listed?Part Not Listed?
product name

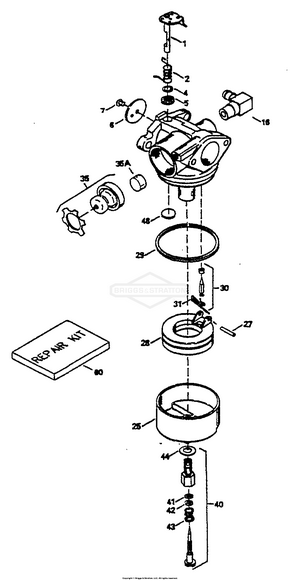

Carburetor

...
...
1
Throttle Shaft/Lever Assembly BS-631615
...
2
Throttle Return Spring BS-631617
...
4
Dust Seal Washer BS-631184
...
5
Dust Seal [throttle] BS-631183
...
6
Throttle Shutter BS-632590
...
7
Shutter Screw BS-650506
...
16
(C) DECK LIFT KIT MI BS-7063187YP
...
25
Float Bowl BS-631867
...
27
Float Shaft Included in Repair Kit. BS-631024
...
28
Float BS-632019
...
29
Float Bowl "O" Ring Included in Repair Kit. BS-631028
...
30
Inlet Needle, Seat & Clip Includes ref. #31; Included in Repair Kit. BS-631021
...
31
Spring Clip BS-631022
...
35
Primer Bulb/Retainer Ring BS-36045
...
35A
Primer Bulb Filter BS-632647
...
40
Main Adjustment Screw Includes ref. #'s 41 & 44; Included in Repair Kit. BS-31839
...
41
High Speed Included in Repair Kit. BS-630740
...
42
High Speed Mixture Screw Washer BS-630739
...
43
High Speed Mixture Screw Tension Spring BS-630738
...
44
(C) FITTING 90 DEG W Included in Repair Kit. BS-7027110YP
...
48
Welch Plug Included in Repair Kit. BS-631027
...
60
Repair Kit Includes ref. #'s 27, 29, 30 & 40. BS-31840

Drive Train

...
...
1
GSKT, ADPTR, ENG BS-93871GS
...
2
Engine Adaptor BS-97583
...
3
BRNG, THRST 51110 BS-93869GS
...
4
RETAINER, PUSH ON BS-95524GS
...
5
ADPTR, 3/4 SHAFT, HEX BS-95435GS
...
6
Axial Cam BS-97671
...
7
BRNG, THRST 51110 BS-93869GS
...
8
O-RING, Crankcase BS-93790GS
...
9
RETAINER, SPRING, PSTN BS-95386GS
...
10
Piston, D15 S.S. BS-95217
...
11
SPRING, Piston Return BS-96400GS
...
12
WASHER, Lock BS-92479GS
...
13
M6 Ribbed Lock Washer BS-93873
...
14
SCREW BS-40945GS
...
15
HSNG, PSTN BS-97568AGS
...
16
SEAL, Oil Piston BS-93680GS
...
17
SPACER, PILOT BS-93668GS
...
18
SEAL, PSTN, U-CUP BS-93667GS
...
19
RING, Bearing BS-96015GS
...
20
Oil Fill/Breather BS-95454
...
21
TOWER, HI-PRESS PORT, SS BS-97027GS
...
22
SEAL, HI PRSSR, UHMW BS-96052GS
...
23
RING, BACKUP, HYTRILE BS-95504GS
...
24
O-RING, 0.67 X 0.88 X 0.10 BS-95503GS
...
25
ASSY, VLV, CHK BS-97128GS
...
26
C-RING, 40.8 ID X 2.16 DIA BS-97675GS
...
27
SCREW BS-95531GS
...
28
SPRING, Thermal By-Pass BS-93652GS
...
29
PISTON, Thermal By-Pass BS-95416GS
...
30
Spacer Plate BS-97122
...
33
Head Gasket BS-93645
...
34
ACTUATOR, Thermal By-Pass BS-93644GS
...
35
Conn, Gdn Hse BS-95320GS
...
36
Cylinder Head - aluminum BS-97120
...
37
ASSY, SEAT/O-RING BS-95382GS
...
38
TERMINAL, Ground BS-691084
...
39
SCREW BS-690346
...
40
ASSY, SPINDLE, UNLDR BS-95373GS
...
41
GUIDE, PSTN, UNLDR BS-95367GS
...
42
O-RING, 14 X 1.8 BS-95372GS
...
43
FTG, CHEM INJ BS-95378GS
...
44
ADPTR, OUT, PRSSR, HI BS-95377GS
...
45
O-RING, 13 X 16 X 1.8 BS-93788GS
...
46
O-RING, 16 X 19 X 1.8 BS-93787GS
...
47
SPRING, RETURN, SHUTL BS-95376GS
...
48
High Pressure Outlet Piston BS-95374
...
49
O-RING, 4.3 X 2.4 BS-95375GS
...
50
SPRING, 1500-2000PSI BS-95365GS
...
51
ADPTR, PRSSR ADJ, LO BS-95364AGS
...
52
Pressure Adjust Handle [red] BS-95381A
...
53
PLUG, 1/8" - 27 BS-96137GS
...
54
SCREW BS-690904
...
55
Pressure Relief Valve Body BS-95216
...
56
RING, BACKUP, 8.3 X 11 BS-95369GS
...
57
Unloader Piston BS-95368
...
58
O-RING, 7.6 X 1.8 BS-95370GS
...
59
SPPRT, SPRING BS-95363GS
...
60
O-RING, 26.6 ID X 2.6 BS-96069GS
...
61
RING, BACKUP, HYTRILE BS-95506GS
...
64
SPPRT, O-RING, PSTN BS-95371GS
...
65
SPRING, INJ, CHEM BS-95380GS
...
68
RING, LOCKING M18 X 1 BS-95366GS
...
69
PLATE, SPACER, ENG D 1.5 BS-95440GS
...
70
WSHR, THRUST BS-97570GS
...
71
SHOE, Piston Pivot BS-94944GS
...
72
"C" Ring Retainer BS-94284
...
73
SCREW BS-690312
...
74
Ball BS-95379
...
75
STUD BS-691120
...
76
RING, BACKUP, 1.2 X 6.7 BS-93657GS
...
77
Unloader Assembly BS-95212A

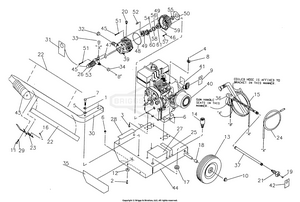

Pressure Washer

...
...
1
WASHER, Lock BS-22129GS
...
2
HHCS, M8 x 20 BS-39253GS
...
3
HHCS, M8 - 1.25 x 35 BS-39414GS
...
4
TAPTITE, M4-0.7 X 8 BS-45764GS
...
5
Washer, .34 x 1 x 10 BS-50190GS
...
6
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
7
M8-1.25 x 40mm Capscrew BS-57821
...
8
CLIP, SPRING, 0.37 X 0.62 BS-65852GS
...
9
TAG, Oil Warning BS-70453GS
...
10
PUSHNUT BS-194062GS
...
11
SCREW BS-313085GS
...
12
MOUNT, Rubber Donut BS-87841GS
...
13
WHEEL BS-197061GS
...
14
Turbo Head BS-91106
...
15
1/4" I.D. x 25' Hose BS-97914
...
16
Vinyl Cap BS-92067
...
17
GROMMET, Base BS-199553GS
...
18
SPACER, PLSTC, 0.53ID X 0.68 BS-92272GS
...
19
NOZZLE, Replacement Replacement BS-94804GS
...
20
Oil Fill Cap and Breather BS-95454
...
21
NZZL, HI-LO, 1.10, M22, MV BS-95587CGS
...
22
Water Warning Decal BS-95905
...
23
SPPRT, GUN/HOSE BS-95908GS
...
24
ASSY, HOSE, CHEM INJ BS-96168GS
...
25
DECAL, 1-800 Number BS-96307GS
...
26
Decal - Pressure Adjustment BS-96312
...
27
DECAL, INSTRCTN, IMPORTANT BS-96412GS
...
28
DECAL, CAUTION, INSTR BS-96415GS
...
29
Flat Washer BS-96633
...
30
HNDL, 00501/2/3, BLK, SRS BS-B96894GS
...
31
Pressure Adjust Tag BS-97054
...
32
CAP, GRDN HOSE, INLET BS-97098GS
...
33
Chemical Injection Cap BS-97099
...
34
CAP, ADPTR, HP BS-97100GS
...
35
DECAL, LOGO, 00501, SRS BS-97111GS
...
36
KIT, GUN, CONNCTR,SRV BS-198209GS
...
37
EXTNSN, M22, M22 BS-97123GS
...
39
Pump Head Assembly BS-97240A
...
40
Craftsman Engine BS-97359
...
41
Decal - Craftsman Engine BS-97367
...
42
TAG, Nozzle Instructions BS-97566GS
...
43
Fingered Handle Grip BS-97612
...
44
PLATE, BASE, SRS UNI BS-97757AGS
...
45
SCREW BS-40945GS
...
46
WASHER, Lock BS-92479GS
...
47
SCREW BS-690904
...
48
O-RING, Crankcase BS-93790GS
...
49
BRNG, THRST 51110 BS-93869GS
...
50
GSKT, ADPTR, ENG BS-93871GS
...
51
M6 Ribbed Lock Washer BS-93873
...
52
SHOE, Piston Pivot BS-94944GS
...
53
Unloader Assembly BS-95212A
...
54
ADPTR, 3/4 SHAFT, HEX BS-95435GS
...
55
PLATE, SPACER, ENG D 1.5 BS-95440GS
...
56
RETAINER, PUSH ON BS-95524GS
...
57
SCREW BS-95531GS
...
58
WSHR, THRUST BS-97570GS
...
59
Mach. Adaptor GPW BS-97583
...
60
Axial Cam, 2 gpm BS-97671
...
61
C-RING, 40.8 ID X 2.16 DIA BS-97675GS
...
--
PUMP BS-317054GS

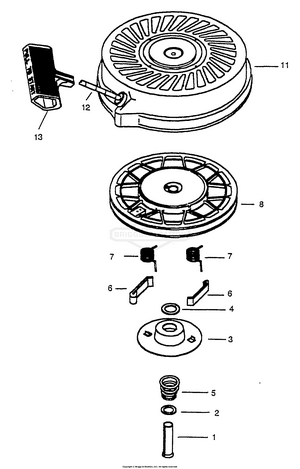

Rewind Starter

...
...
1
Spring Pin Includes ref. # 4. BS-590599A
...
2
Washer BS-590600
...
3
Retainer BS-590696
...
4
FILTER, A/C Cartridge BS-590601
...
5
NUT BS-590697
...
6
TUBE, Breather BS-590698
...
7
SCREW BS-590643
...
8
SCREW BS-590850
...
11
SEAL, O-Ring BS-590695
...
12
Starter Rope [length 98" x 9/64" dia. BS-590535
...
13
SCREW BS-590850
...
...
...
