Briggs & Stratton 038019-00 - PowerBoss 2000A (LA)

Model: 038019-00 - PowerBoss 2000A (LA)

Save Part Not Listed?
product name

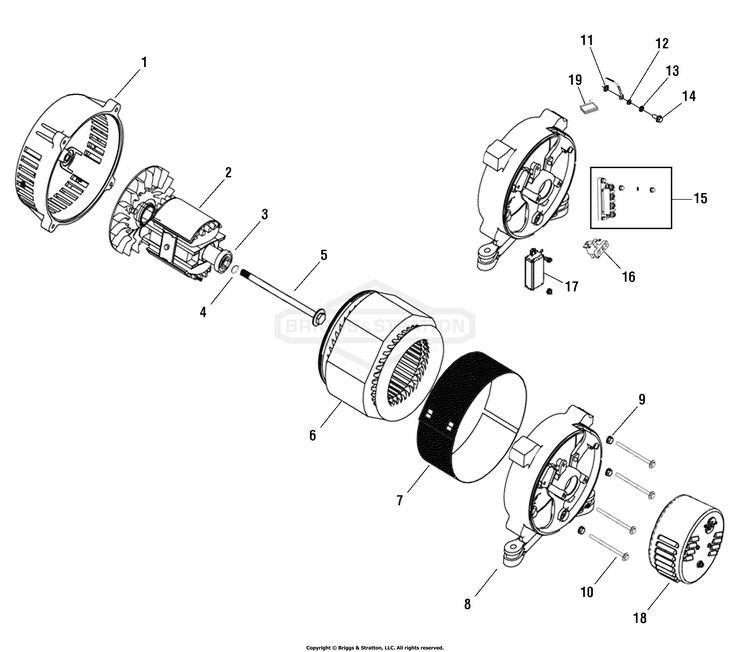

Alternator (104200)

...
...
1
CASTING, Front BS-104202GS
...
2
ROTOR ASSMEBLY BS-104216GS
...
5
BOLT, Flange, M8 x 205mm BS-104204GS
...
6
STATOR ASSEMBLY BS-104217GS
...
7
BAND, Stator BS-104218GS
...
8
CASTING, Rear BS-104203GS
...
10
SCREW, Flange, M6 x 130mm BS-104205GS
...
15
TERMINAL BLOCK ASSEMBLY BS-104219GS
...
16
BRUSH ASSEMBLY BS-104852GS
...
17
AUTOMATIC VOLTAGE REGULATOR BS-104201GS
...
18
COVER, Rear BS-104206GS
...
19
PLUG, Plastic BS-104209GS

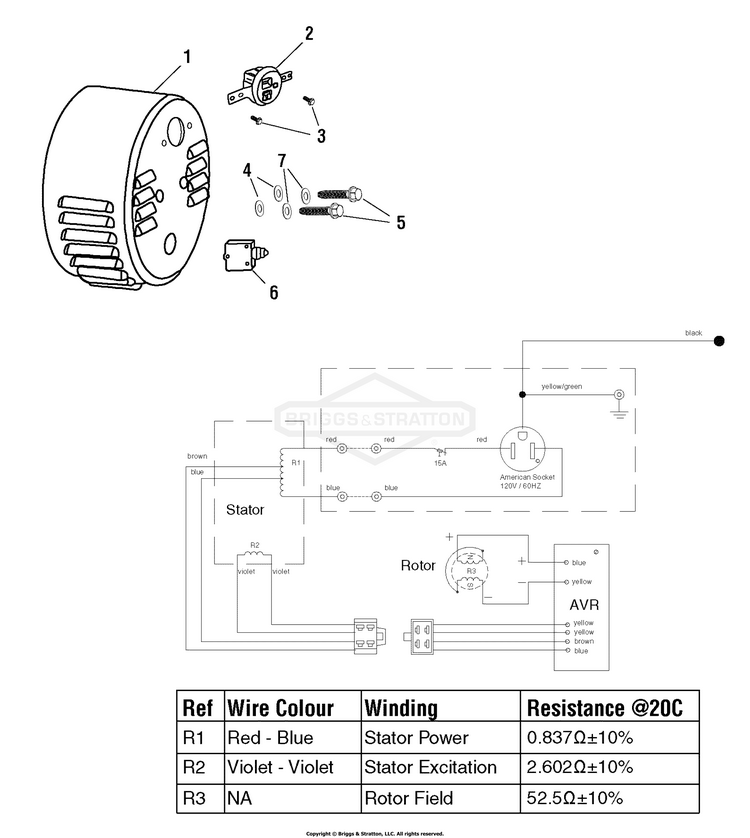

Control Panel (104206)

...
...
1
COVER, Rear BS-104856GS
...
2
SOCKET, American BS-104854GS
...
6
CIRCUIT BREAKER, 15A BS-104855GS

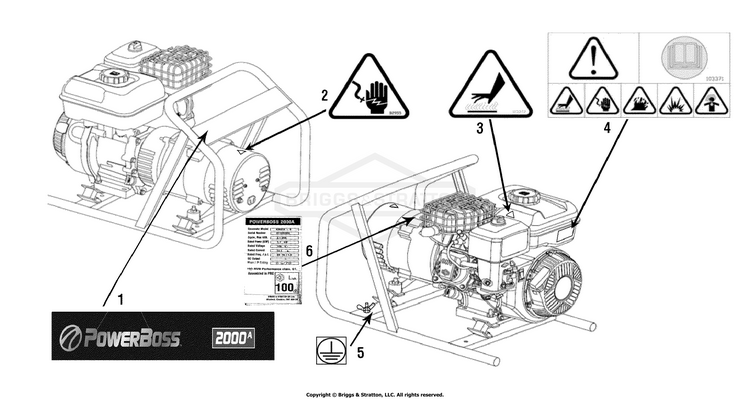

Decals (038019)

...
...
1
DECAL, PB2000A BS-104859GS
...
--
KIT, Decals (Includes Ref. Nos. 2, 3, 4 & 5) BS-103858GS

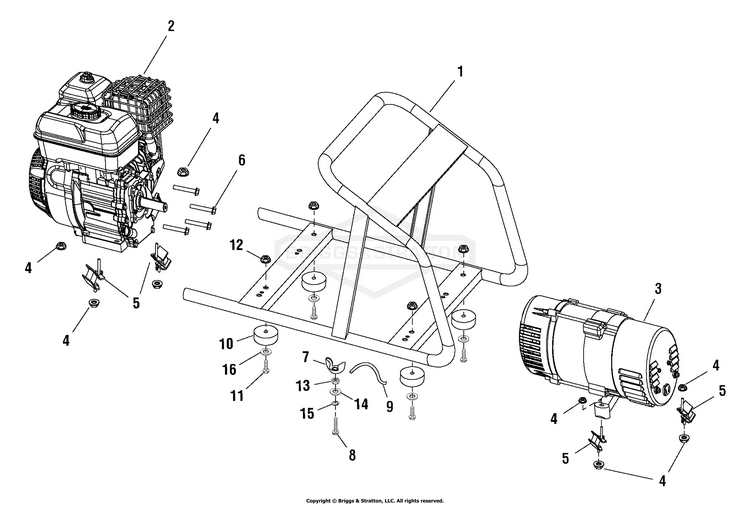

Main Unit (038019)

...
...
1
CRADLE BS-104851GS
...
2
** ENGINE BS-083132-0202-B1
...
3
ALTERNATOR ASSEMBLY BS-104200GS
...
5
MOUNT, Vibration, 44 Hardness BS-104208GS
...
9
WIRE, Ground BS-104214GS
...
10
MOUNT, Vibration BS-104215GS
