Briggs & Stratton 030756-00 - 5,500 Watt PowerBoss 49 State

Model: 030756-00 - 5,500 Watt PowerBoss

Save Part Not Listed?
product name

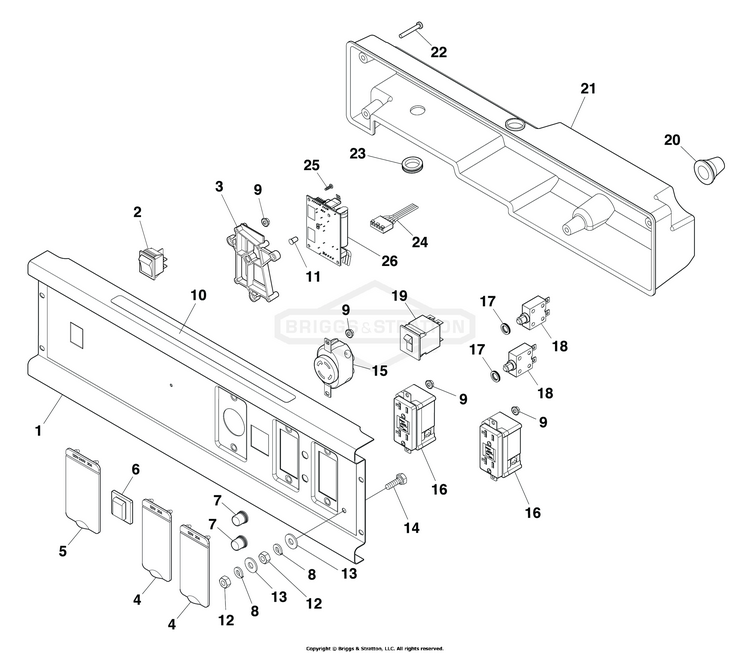

Control Panel

...
...
1
PANEL-CONTROL (Includes Item 10) BS-84003536
...
2
SWITCH BS-704893
...
3
BRACKET-MODULE BS-772213
...
4
COVER-OUTLET BS-319476GS
...
5
COVER-OUTLET BS-319477GS
...
6
BOOT, Breaker Circuit BS-191481GS
...
7
BOOT, Circuit Breaker BS-312636GS
...
8
WASHER-LOCK BS-84003624
...
9
NUT BS-795016
...
10
DECAL BS-84003489
...
11
LIGHT-PIPE BS-772217
...
12
NUT-M6 BS-84003617
...
13
WASHER-FLAT BS-84003618
...
14
BOLT-M6 x 22 BS-84003619
...
15
OUTLET BS-704905
...
16
OUTLET-GFCI BS-709526
...
17
NUT-BREAKER BS-704909
...
18
BREAKER-CIRCUIT 20A BS-704907
...
19
BREAKER-CIRCUIT BS-704910
...
20
GROMMET BS-319530GS
...
21
BOX-CONTROL PANEL BS-84003484
...
22
BOLT BS-84003625
...
23
GROMMET BS-84003620
...
24
WIRE-HARNESS-CO BS-772215
...
25
SCREW BS-84001081
...
26
MODULE-CO BS-84005519

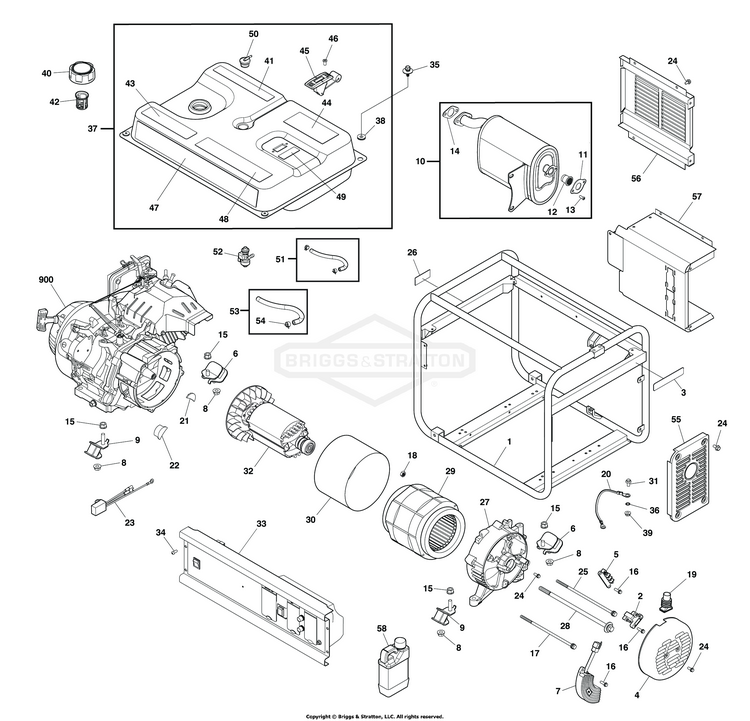

Main Unit

...
...
1
CRADLE (Includes Items 3 & 26 BS-84003515
...
2
BRUSH ASSY BS-704915
...
3
DECAL BS-84002468
...
4
END COVER BS-704838
...
5
TERMINAL BLOCK BS-705783
...
6
MOUNT-VIBRATION BS-704890
...
7
VOLTAGE REGULATOR BS-704913
...
8
NUT, M8 Flange Serrated BS-67989GS
...
9
MOUNT-VIBRATION BS-704891
...
10
ASSY-MUFFLER BS-704842
...
11
PLATE BS-704845
...
12
SPARK ARRESTOR BS-704846
...
14
GASKET-MUFFLER BS-704853
...
15
NUT, Lock BS-52859GS
...
16
BOLT BS-84001685
...
17
BOLT BS-707297
...
18
NUT BS-709931
...
19
BOOT, Rubber BS-207879GS
...
20
WIRE BS-705633
...
21
GUARD-RUBBER BS-705772
...
22
GUARD-RUBBER BS-705771
...
23
MODULE-SNUBBER BS-84003180
...
24
SCREW BS-709935
...
25
BOLT BS-707298
...
26
DECAL BS-84003488
...
27
CARRIER-BEARING BS-704836
...
28
BOLT BS-707296
...
29
STATOR BS-707429
...
30
BAND-STATOR BS-707295
...
31
SCREW BS-590850
...
32
ROTOR BS-707432
...
33
Refer to: Control Panel Group BS-REF-80082673
...
34
SCREW BS-772229
...
35
BOLT BS-84003614
...
36
WASHER, Ext. M6 - 1/4" Shakeproof BS-26850GS
...
37
TANK-FUEL BS-84003516
...
38
MOUNT-VIBRATION BS-704861
...
39
NUT-M6 FLANGE BS-52857GS
...
40
CAP-FUEL BS-704865
...
41
DECAL BS-772237
...
42
FILTER-FUEL BS-704863
...
43
DECAL BS-84001093
...
44
DECAL BS-84001068
...
45
GAUGE-FUEL BS-84007425
...
46
SCREW BS-704866
...
47
DECAL BS-84003490
...
48
DECAL BS-84003476
...
49
DECAL BS-703264
...
50
FILTER-FUEL BS-704863
...
51
LINE, Fuel (Cut To Fit) BS-791745
...
52
KIT, Fuel Valve BS-310574GS
...
53
HOSE, Vapor (cut to fit) (Cut To Fit) BS-315017GS
...
54
CLAMP BS-314955GS
...
55
COVER-FRONT BS-705776
...
56
COVER-SIDE BS-705775
...
57
COVER-BACK BS-705777
...
58
OIL-4 CYCLE30W 48OZ BS-100028
...
900
Engine (Refer to Note:) BS-24G032-0011-G1

Wheel Kit (80009467)

...
...
1
HANDLE ASSY BS-705401
...
6
SUPPORT-LEG BS-705395
...
7
MOUNT-RUBBER BS-705400
...
9
SHAFT BS-705375
...
11
AXLE-BOLT BS-705782
...
13
WHEEL BS-704145
...
--
KIT-HARDWARE BS-705425

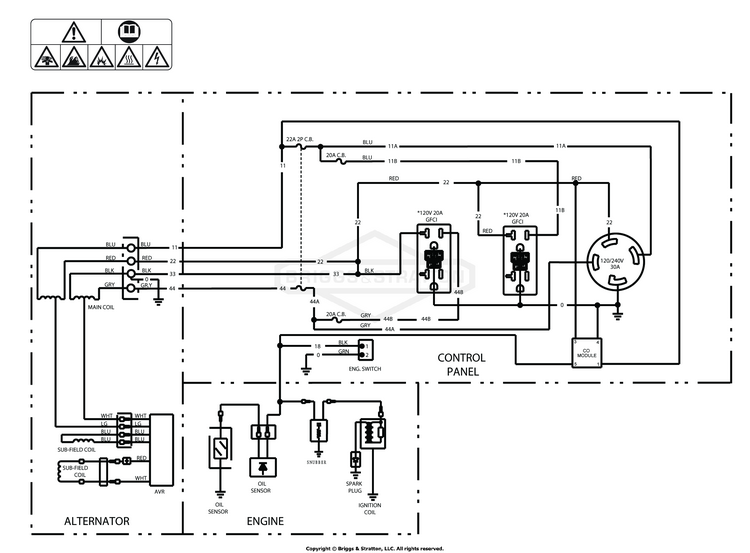

Wiring Diagram

...

No Parts Available for this Schematic

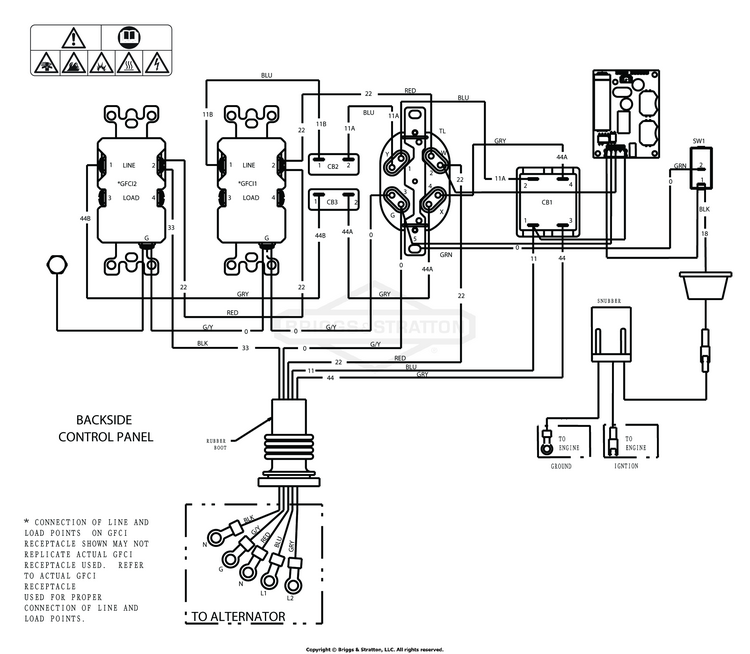

Wiring Schematic

...

No Parts Available for this Schematic
