Briggs & Stratton 030755-00 - 3,500 Watt PowerBoss 49 State

Model: 030755-00 - 3,500 Watt PowerBoss

Save Part Not Listed?
product name

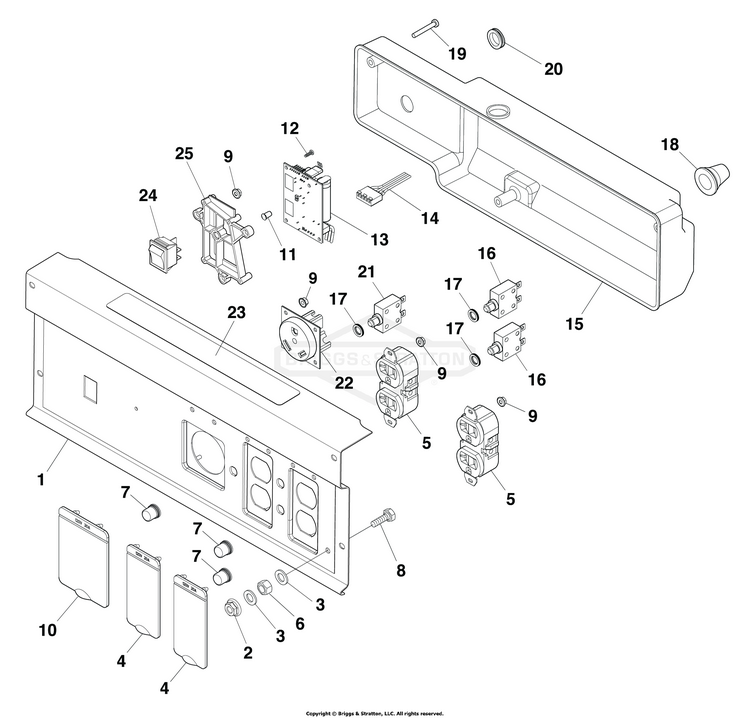

Control Panel

...
...
1
PANEL-CONTROL (Includes Item 23) BS-84003588
...
2
NUT-FLANGE M5 BS-84003616
...
3
WASHER-FLAT BS-84003623
...
4
COVER-OUTLET BS-319476GS
...
5
OUTLET-120V BS-704903
...
6
NUT-M5 BS-84003621
...
7
BOOT, Circuit Breaker BS-312636GS
...
8
BOLT-M5 x 16 BS-84003622
...
9
NUT BS-795016
...
10
COVER-OUTLET BS-84002322
...
11
LIGHT-PIPE BS-772217
...
12
SCREW BS-84001081
...
13
MODULE-CO BS-84005519
...
14
WIRE-HARNESS-CO BS-772215
...
15
BOX-CONTROL PANEL BS-84003585
...
16
BREAKER-CIRCUIT 20A BS-704907
...
17
NUT-BREAKER BS-704909
...
18
GROMMET BS-319530GS
...
19
BOLT BS-84003625
...
20
GROMMET BS-84003620
...
21
CIRCUIT BREAKER BS-704908
...
22
OUTLET BS-704904
...
23
DECAL BS-84003554
...
24
SWITCH BS-704893
...
25
BRACKET-MODULE BS-772213

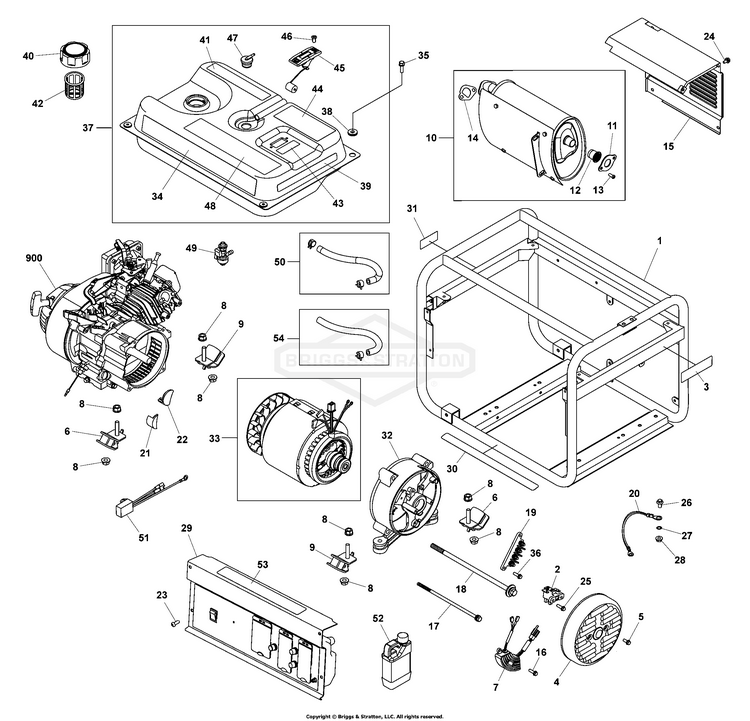

Main Unit

...
...
1
CRADLE (Includes 3, 30 & 31) BS-84003559
...
2
BRUSH ASSY BS-704914
...
3
DECAL BS-84002468
...
4
END COVER BS-704837
...
5
SCREW BS-709935
...
6
MOUNT-VIBRATION BS-704888
...
7
VOLTAGE REGULATOR BS-705692
...
8
NUT, M8 Flange Serrated BS-67989GS
...
9
MOUNT-VIBRATION BS-704889
...
10
ASSY-MUFFLER BS-704841
...
11
PLATE BS-704844
...
12
SPARK ARRESTOR BS-704846
...
14
GASKET-MUFFLER BS-704852
...
15
COVER-MUFFLER BS-705774
...
16
BOLT BS-84001685
...
17
BOLT BS-84003721
...
18
BOLT-ROTOR BS-84003720
...
19
TERMINAL BLOCK BS-705783
...
20
WIRE BS-705633
...
21
GUARD-RUBBER BS-705770
...
22
GUARD-RUBBER BS-705769
...
23
SCREW BS-772229
...
25
BOLT BS-84003722
...
26
SCREW BS-590850
...
27
WASHER, Ext. M6 - 1/4" Shakeproof BS-26850GS
...
28
NUT-M6 FLANGE BS-52857GS
...
29
ASSY-CONTROL PANEL (Includes Item 53) BS-84005963
...
30
DECAL BS-84003489
...
31
DECAL BS-84003488
...
32
CARRIER-BEARING BS-704969
...
33
ALTERNATOR BS-704833
...
34
DECAL BS-84003558
...
35
BOLT BS-84003614
...
36
BOLT BS-84003723
...
37
TANK-FUEL BS-84003560
...
38
MOUNT-VIBRATION BS-704861
...
39
DECAL BS-84003487
...
40
CAP-FUEL BS-704865
...
41
DECAL BS-772237
...
42
FILTER-FUEL BS-704863
...
43
DECAL BS-703264
...
44
DECAL BS-84001068
...
45
GAUGE-FUEL BS-704869
...
46
SCREW BS-704866
...
47
VALVE BS-704916
...
48
DECAL BS-84003553
...
49
KIT, Fuel Valve BS-310574GS
...
50
LINE, Fuel BS-791745
...
51
MODULE-SNUBBER BS-84003180
...
52
OIL-4 CYCLE30W 48OZ BS-100028
...
53
DECAL BS-84003554
...
54
HOSE, Vapor (cut to fit) BS-315017GS
...
900
ENGINE BS-12G032-0010-G1

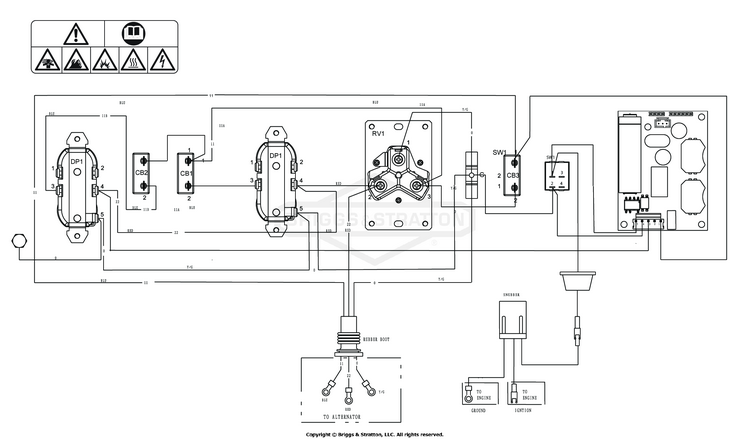

Wiring Diagram

...

No Parts Available for this Schematic

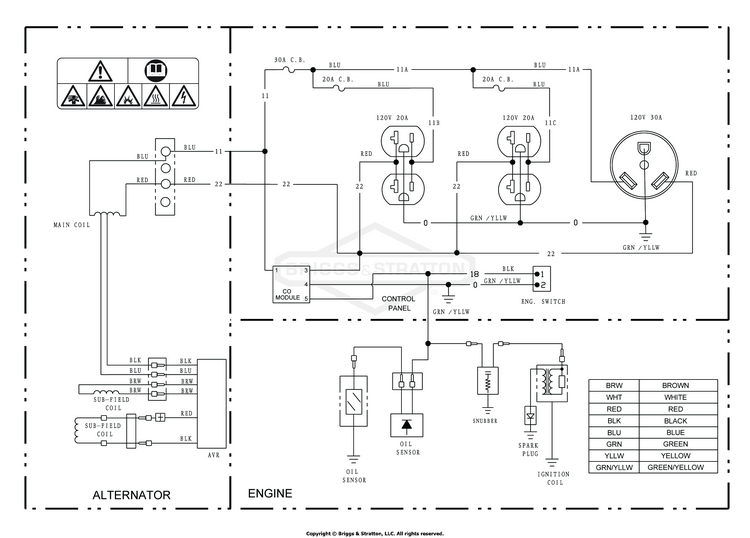

Wiring Schematic

...

No Parts Available for this Schematic
