Briggs & Stratton 030754-00 - PowerBoss 2,500 Watt 49 State

Model: 030754-00 - PowerBoss 2,500 Watt

Back To Assemblies

Save Part Not Listed?
product name

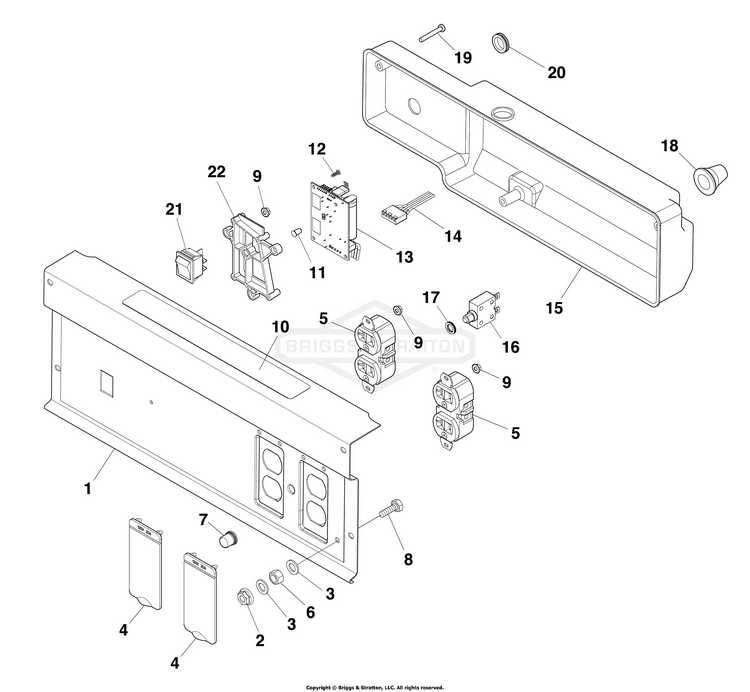

Control Panel

...
...
1
PANEL-CONTROL (Includes Item 10) BS-84003586
...
2
NUT-FLANGE M5 BS-84003616
...
3
WASHER-FLAT BS-84003623
...
4
COVER-OUTLET BS-319476GS
...
5
OUTLET-120V BS-704903
...
6
NUT-M5 BS-84003621
...
7
BOOT, Circuit Breaker BS-312636GS
...
8
BOLT-M5 x 16 BS-84003622
...
9
NUT BS-795016
...
10
DECAL BS-84003554
...
11
LIGHT-PIPE BS-772217
...
12
SCREW BS-84001081
...
13
MODULE-CO BS-84005519
...
14
WIRE-HARNESS-CO BS-772215
...
15
BOX-CONTROL PANEL BS-84003585
...
16
BREAKER-CIRCUIT 20A BS-704907
...
17
NUT-BREAKER BS-704909
...
18
GROMMET BS-319530GS
...
19
BOLT BS-84003625
...
20
GROMMET BS-84003620
...
21
SWITCH BS-704893
...
22
BRACKET-MODULE BS-772213
