Briggs & Stratton 030754-00 - PowerBoss 2,500 Watt 49 State

Model: 030754-00 - PowerBoss 2,500 Watt

Back To Assemblies

Save Part Not Listed?
product name

Main Unit

...
...
1
CRADLE (Includes 3, 30 & 31) BS-84003562
...
2
BRUSH ASSY BS-704914
...
3
DECAL BS-84002468
...
4
END COVER BS-704837
...
5
SCREW BS-709935
...
6
MOUNT-VIBRATION BS-704888
...
7
VOLTAGE REGULATOR BS-705692
...
8
NUT, M8 Flange Serrated BS-67989GS
...
9
MOUNT-VIBRATION BS-704889
...
10
ASSY-MUFFLER BS-704840
...
11
PLATE BS-704844
...
12
SPARK ARRESTOR BS-704846
...
14
GASKET-MUFFLER BS-704852
...
15
COVER-MUFFLER BS-705774
...
16
BOLT BS-84001685
...
17
BOLT BS-84003718
...
18
BOLT-ROTOR BS-84003719
...
19
TERMINAL BLOCK BS-705783
...
20
WIRE BS-705633
...
21
GUARD-RUBBER BS-705770
...
22
GUARD-RUBBER BS-705769
...
23
SCREW BS-772229
...
25
BOLT BS-84003722
...
26
SCREW BS-590850
...
27
WASHER, Ext. M6 - 1/4" Shakeproof BS-26850GS
...
28
NUT-M6 FLANGE BS-52857GS
...
29
ASSY-CONTROL PANEL (Includes Item 53) BS-84005961
...
30
DECAL BS-84003489
...
31
DECAL BS-84003488
...
32
CARRIER-BEARING BS-704969
...
33
ALTERNATOR BS-704833
...
34
DECAL BS-84003557
...
35
BOLT BS-84003614
...
36
BOLT BS-84003723
...
37
TANK-FUEL BS-84003561
...
38
MOUNT-VIBRATION BS-704861
...
39
DECAL BS-84003487
...
40
CAP-FUEL BS-704865
...
41
DECAL BS-772237
...
42
FILTER-FUEL BS-704863
...
43
DECAL BS-703264
...
44
DECAL BS-84001068
...
45
GAUGE-FUEL BS-704869
...
46
SCREW BS-704866
...
47
VALVE BS-704916
...
48
DECAL BS-84003553
...
49
KIT, Fuel Valve BS-310574GS
...
50
LINE, Fuel BS-791745
...
51
MODULE-SNUBBER BS-84003180
...
52
OIL-4 CYCLE30W 48OZ BS-100028
...
53
DECAL BS-84003554
...
54
HOSE, Vapor (cut to fit) BS-315017GS
...
900
ENGINE BS-12G032-0010-G1

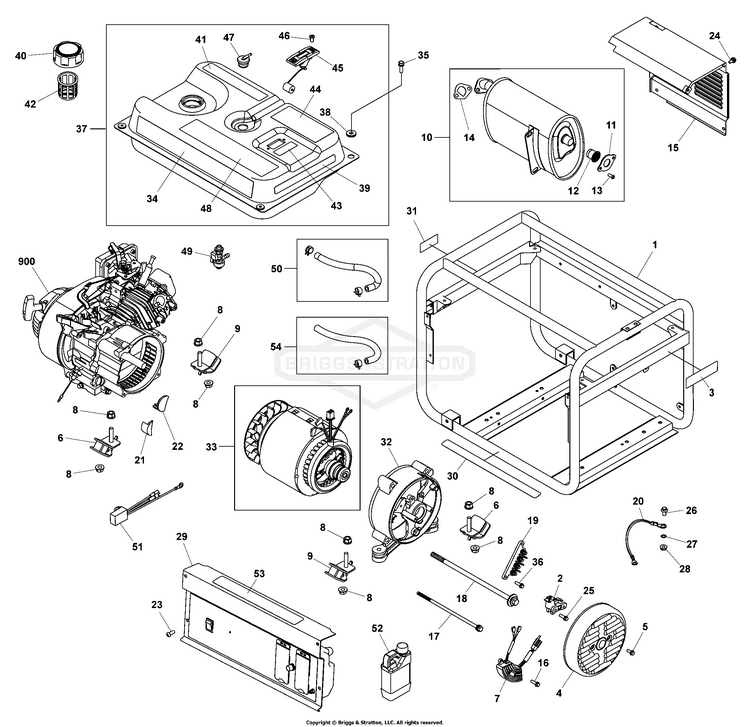

Schematic Image Zoomed
