Briggs & Stratton 030726-00 2,200 Watt 50hz Kincrome (AUS)

Model: 030726-00 2,200 Watt 50hz Kincrome (AUS)

Save Part Not Listed?
product name

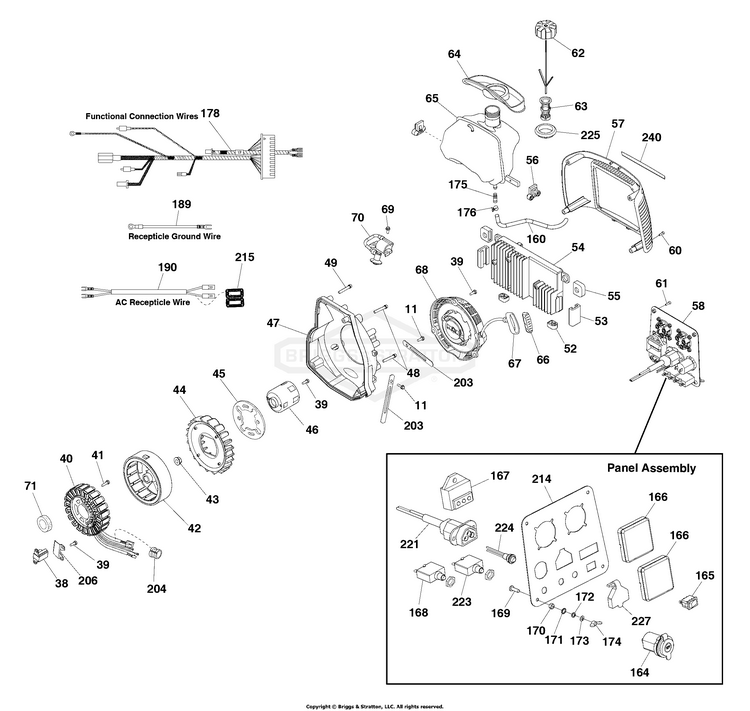

Alternator & Control Panel

...
...
38
TRIGGER, Ingition BS-311399GS
...
39
SCREW BS-311400GS
...
40
STATOR BS-707590
...
41
SCREW BS-311402GS
...
42
FRAME, Grass Bag BS-707951
...
43
NUT BS-311404GS
...
44
FAN BS-314701GS
...
46
CUP, Flywheel BS-311406GS
...
54
INVERTER BS-704127
...
57
COVER, Panel BS-311409GS
...
58
PANEL-CONTROL ASSY BS-704079
...
62
CAP-FUEL BS-317134GS
...
63
FILTER, Filler Neck BS-317441GS
...
64
PAD-FUEL TANK BS-707595
...
65
TANK-FUEL BS-707596
...
66
INSERT, Grip BS-311414GS
...
68
ASSEMBLY, Starter Recoil, 2 KW Inverter BS-706058
...
70
COIL, Ignition BS-317436GS
...
160
HOSE-FUEL BS-704623
...
164
OUTLET, 12VDC BS-314531GS
...
165
SWITCH BS-311442GS
...
166
OUTLET BS-314532GS
...
167
LIGHT, Indicator BS-311443GS
...
168
BREAKER, Circuit BS-311444GS
...
169
SCREW BS-76040GS
...
170
NUT BS-207743GS
...
171
WASHER BS-91719GS
...
172
WASHER BS-207806GS
...
173
WASHER BS-207805GS
...
174
NUT, WING, M5 X 0.8 BS-187424GS
...
175
FILTER-FUEL TANK BS-707168
...
178
HARNESS, Wiring BS-314533GS
...
189
WIRE BS-315824GS
...
190
HARNESS, Wiring BS-315829GS
...
203
* BRACKET BS-707319
...
214
PANEL-CONTROL BS-771968
...
215
BEAD, Ferrite BS-317445GS
...
221
PORT-PARALLEL BS-705488
...
223
CIRCUIT BREAKER, 15A BS-707170
...
224
BUTTON-SELECT BS-319463GS
...
225
GROMMET-FUEL BS-705490
...
227
COVER-PORT BS-705478
...
240
DECAL BS-771935
...
--
CABLE, BATTERY CHARGE (Not Illustrated) BS-187876GS
...
--
DECAL-CNTRL PNL BS-771970
...
--
OIL-4 CYCLE 30W 18OZ. (Not Illustrated) BS-100005
...
--
ADAPTER-USB (Not Illustrated) BS-707850
...
--
FUNNEL (Not Illustrated) BS-706357
...
--
KIT, Tool (Not Illustrated) BS-703574
...
--
JET, Main, High Altitude, 5000 ft. (Optional Accessory) BS-311559GS

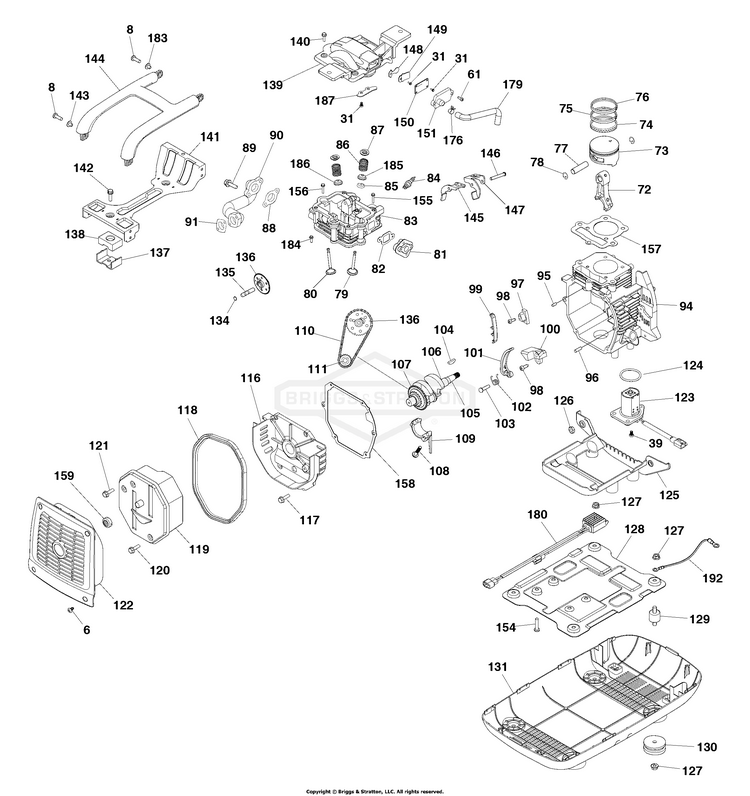

Engine

...
...
6
SCREW BS-311379GS
...
8
BOLT BS-311381GS
...
39
SCREW BS-311400GS
...
81
INSULATOR BS-311417GS
...
82
GASKET, Intake BS-311418GS
...
84
SPARK PLUG BS-311419GS
...
88
GASKET BS-311420GS
...
91
GASKET, Exhaust BS-311421GS
...
122
GUARD-MUFFLER BS-704069
...
123
SENSOR, Oil BS-311423GS
...
124
O-RING, 33.5 x 2.65 BS-314482GS
...
127
NUT BS-707919
...
128
BASE BS-311425GS
...
129
MOUNT, Vibration BS-311426GS
...
130
MOUNT, Vibration BS-311427GS
...
131
COVER BS-311428GS
...
139
COVER, Cylinder BS-314786GS
...
143
BUSHING BS-311431GS
...
144
HANDLE BS-771964
...
148
VALVE BS-314747GS
...
149
BOARD, Valve BS-314748GS
...
158
GASKET, Crankcase BS-311435GS
...
159
ARRESTOR, Spark BS-315584GS
...
179
TUBE, Breather BS-311446GS
...
180
REGULATOR, Voltage BS-311407GS
...
183
BUSHING BS-314478GS
...
192
WIRE, Ground BS-314483GS

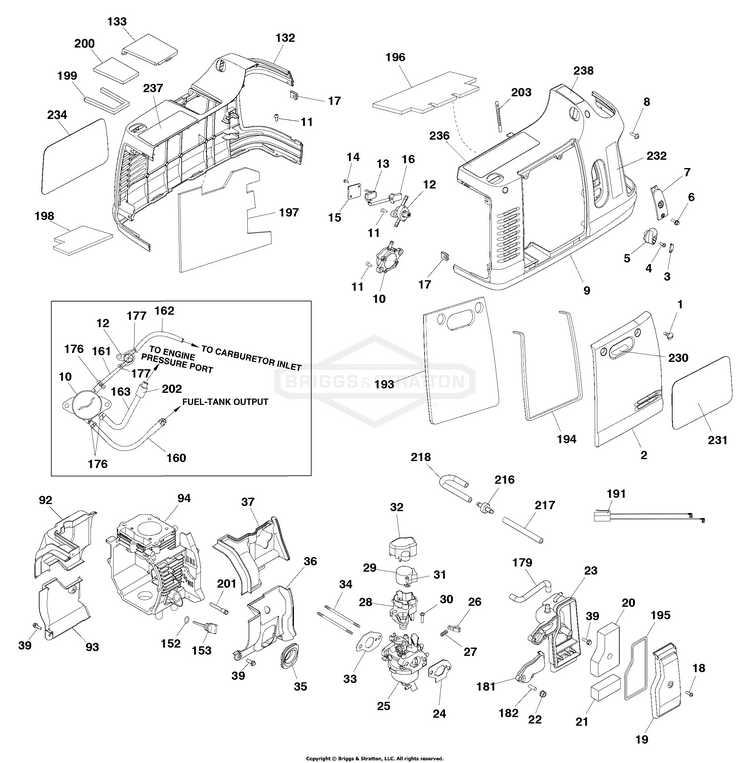

Main Unit

...
...
1
BOLT BS-311375GS
...
2
PANEL-ACCESS (Includes Ref. Nos. 193, 194 & 231) BS-771965
...
3
COVER, Knob BS-311377GS
...
5
KNOB BS-707587
...
6
SCREW BS-311379GS
...
7
PLATE, Trim BS-311380GS
...
8
BOLT BS-311381GS
...
9
COVER-SIDE (Includes Ref. Nos. 196, 232, 236 & 238) BS-771967
...
10
PUMP-FUEL BS-706057
...
12
VALVE, Fuel BS-311384GS
...
13
SWITCH, ON/OFF BS-311385GS
...
18
SCREW BS-311386GS
...
19
COVER, Air Cleaner (Includes Ref. No. 195) BS-311387GS
...
20
FILTER, A/C Foam BS-311388GS
...
21
FILTER, A/C Foam BS-311389GS
...
23
BASE, Air Cleaner BS-317437GS
...
24
GASKET, Air Cleaner BS-311391GS
...
25
CARBURETOR BS-311392GS
...
26
ROD, Throttle BS-311393GS
...
28
BRACKET BS-311394GS
...
29
MOTOR, Stepper BS-311395GS
...
32
COVER BS-311396GS
...
33
GASKET BS-311397GS
...
34
STUD BS-311398GS
...
39
SCREW BS-311400GS
...
132
COVER-SIDE (Includes Ref. Nos. 197, 198 & 234) BS-771966
...
133
COVER-SPARK PLUG (Includes Ref. Nos. 199 & 200) BS-704248
...
152
OIL SEAL BS-705492
...
153
DIPSTICK BS-311434GS
...
160
HOSE-FUEL BS-704623
...
161
HOSE, Fuel BS-317444GS
...
162
HOSE, Fuel BS-317752GS
...
163
HOSE, Vaccuum BS-311440GS
...
179
TUBE, Breather BS-311446GS
...
181
COVER, Air Cleaner BS-312861GS
...
191
WIRE BS-314479
...
203
* BRACKET BS-707319
...
216
CHECK VALVE BS-317108GS
...
217
HOSE BS-317446GS
...
218
HOSE BS-317447GS
...
230
DECAL BS-705967
...
231
DECAL BS-771969
...
232
DECAL BS-707605
...
234
DECAL BS-771936
...
236
DECAL BS-704131
...
237
DECAL BS-704124
...
238
DECAL BS-704076

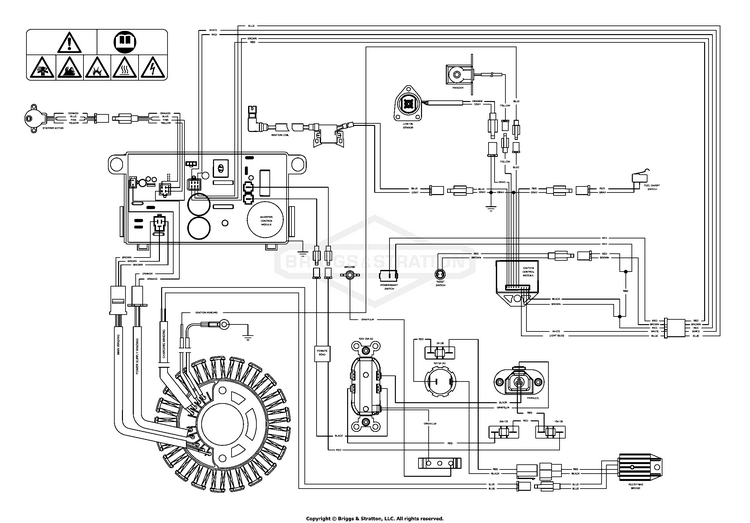

Wiring Diagram (80014393WD)

...

No Parts Available for this Schematic

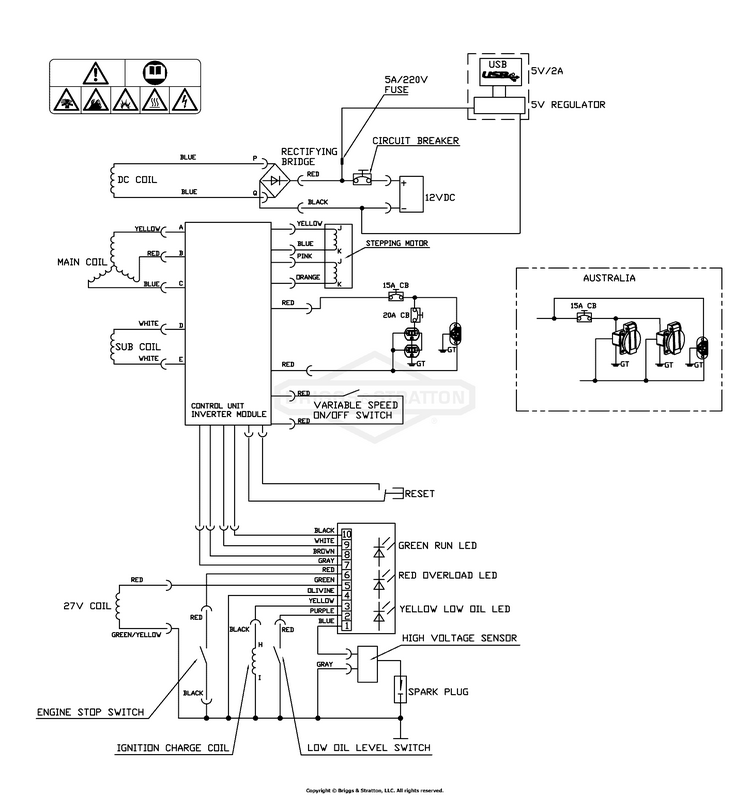

Wiring Schematic (80014393WS)

...

No Parts Available for this Schematic
