Briggs & Stratton 030712-00 - 3,500 Watt Briggs & Stratton

Model: 030712-00 - 3,500 Watt

Save Part Not Listed?
product name

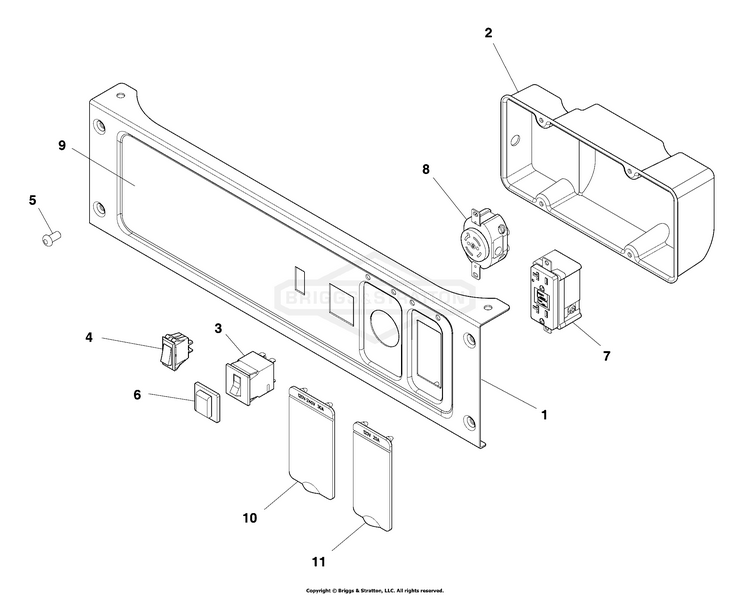

Control Panel (80025037)

...
...
1
PANEL-CONTROL BS-701401
...
2
BOX-CONTROL PANEL BS-701420
...
3
BREAKER-CIRCUIT 15A BS-202027GS
...
4
SWITCH-ON/OFF BS-319525GS
...
5
SCREW BS-703804
...
6
BOOT, Breaker Circuit BS-191481GS
...
7
OUTLET-GFCI BS-709526
...
8
OUTLET, 120/240V Locking, 20A BS-68867GS
...
9
DECAL BS-701399
...
10
COVER-OUTLET BS-701386
...
11
COVER-OUTLET BS-319476GS

Main Unit (80025035)

...
...
1
CRADLE (Includes 5 & 30) BS-701450
...
2
ASSY-PANEL CONTROL BS-701434
...
3
SPACER BS-189137GS
...
4
DECAL BS-701458
...
5
DECAL BS-704331
...
6
DECAL BS-701439
...
7
DECAL BS-704189
...
8
SCREW BS-314440GS
...
9
DECAL BS-706159
...
10
DECAL BS-701453
...
11
TANK-FUEL BS-701455
...
12
DECAL BS-703264
...
13
MOUNT-VIBRATION BS-706149
...
14
GAUGE-FUEL BS-704183
...
15
WIRE BS-706150
...
16
GROMMET, Rubber BS-189134GS
...
17
BRACKET BS-709662
...
18
LINE, Fuel (Cut to Fit) BS-791745
...
19
VALVE, Fuel BS-209417GS
...
20
HEATSHIELD BS-709655
...
21
HEATSHIELD BS-709660
...
22
MUFFLER BS-709665
...
23
SCREW BS-590850
...
28
NUT, M8 - 1.25 BS-45771GS
...
29
GASKET, Muffler Adapter BS-709664
...
30
DECAL BS-701494
...
31
SCREW BS-312909GS
...
32
COVER-REAR BEARING BS-703191
...
33
VOLTAGE REGULATOR BS-709666
...
34
TERMINAL BLOCK BS-703075
...
35
BOLT BS-706918
...
36
BOLT BS-707155
...
37
BRUSH ASSY BS-703113
...
38
LOCKWASTER, SPLIT, 3/8 BS-706162
...
40
CARRIER-BEARING BS-703190
...
41
STATOR BS-701451
...
42
ROTOR BS-709670
...
43
SCREEN, Spark Arrest BS-83083GS
...
44
Washer, Flat 1/2 BS-22304GS
...
45
WASHER, Ext. M6 - 1/4" Shakeproof BS-26850GS
...
46
HHCS, M6-1.0 x 25 BS-189156GS
...
47
NUT, M6 - 1.0 Wing BS-87680GS
...
48
BRACKET-MUFFLER BS-709661
...
49
WIRE BS-706165
...
50
WASHER BS-801237
...
51
BAND-STATOR BS-709657
...
52
CAP-FUEL BS-319587GS
...
53
WASHER BS-312005GS
...
54
HOSE, Vapor (cut to fit) (Cut to Fit) BS-315017GS
...
55
CLAMP BS-314955GS
...
56
SCREW BS-703805
...
900
ENGINE (Refer to Footnote *) BS-13U132-0002-G1
...
--
OIL, 32 OZ, 10W-30 (Part Not Illustrated) BS-199283GS

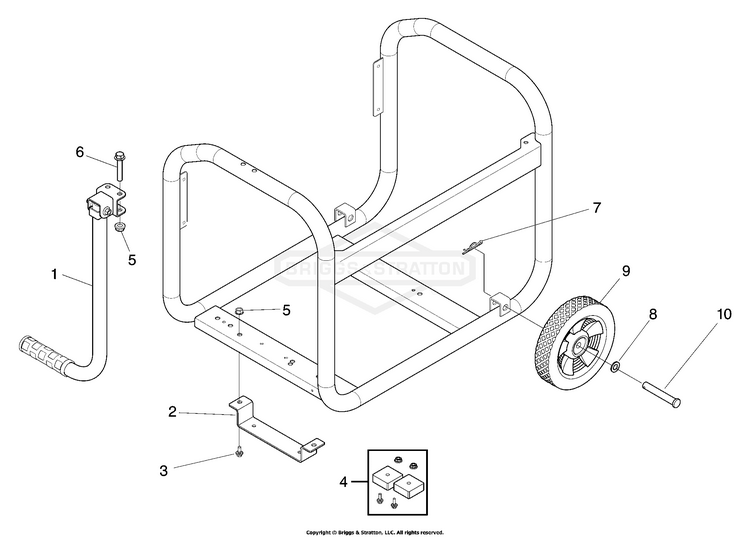

Wheel Kit (80024084)

...
...
1
HANDLE BS-707185
...
2
SUPPORT-LEG BS-707199
...
4
MOUNT-VIBRATION BS-319285GS
...
7
PIN-HAIR BS-316510GS
...
8
WASHER BS-318034GS
...
9
WHEEL BS-318032GS
...
10
AXLE BS-318035GS
...
--
KIT-HARDWARE (Not Illustrated) BS-707180

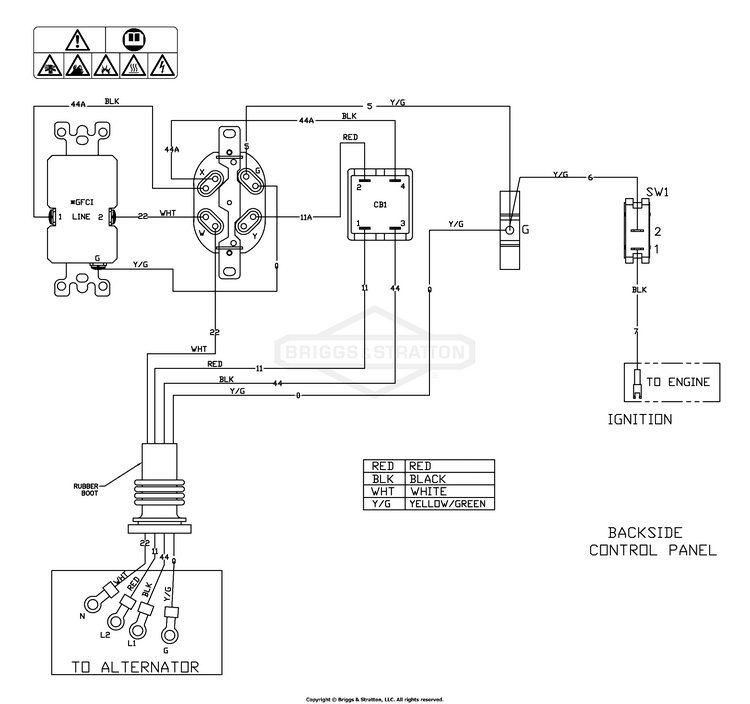

Wiring Diagram (80023467WD)

...

No Parts Available for this Schematic

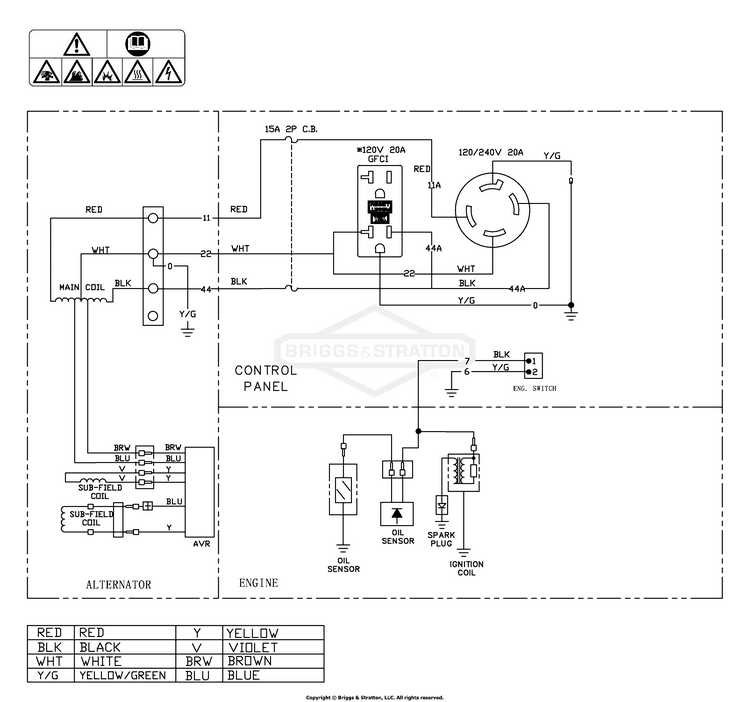

Wiring Schematic (80023467WS)

...

No Parts Available for this Schematic
