Briggs & Stratton 030675-00 - 6,500 Watt B & S Inverter

Model: 030675-00 - 6,500 Watt B & S

Save Part Not Listed?
product name

Popular Parts

Popular Parts

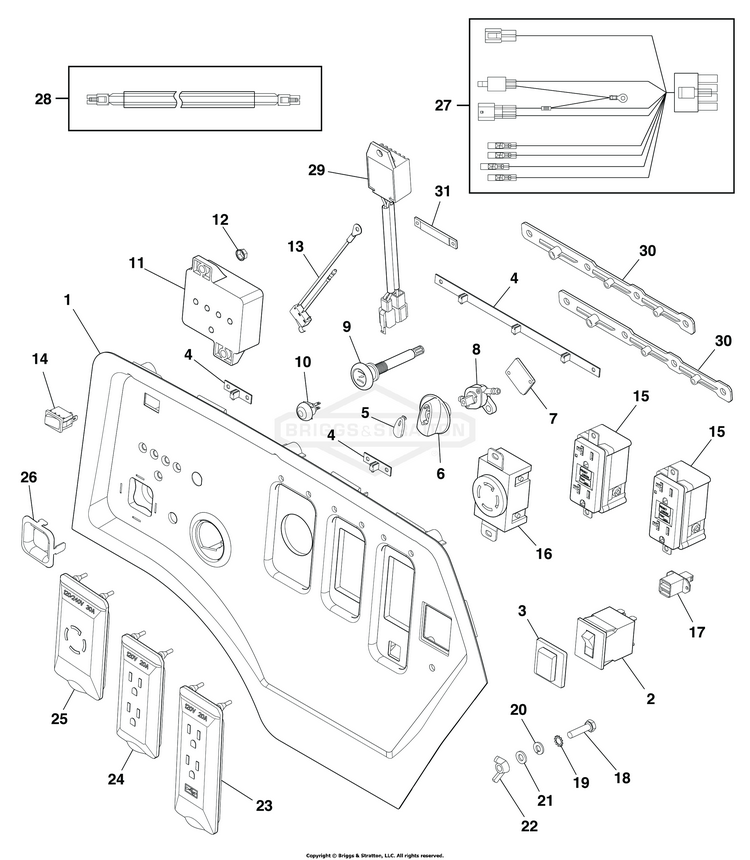

Control Panel (80024631)

...
...
1
PANEL-CONTROL BS-707216
...
2
BREAKER-CIRCUIT 20A BS-202030GS
...
3
BOOT, Breaker Circuit BS-191481GS
...
4
ASSY-LED (Assembly Includes 5 LED's and Wiring) BS-706437
...
5
COVER BS-311377GS
...
6
KNOB BS-707223
...
7
COVER BS-706790
...
8
VALVE-FUEL BS-311384GS
...
9
CHOKE BS-707303
...
10
SWITCH-PUSHBUTTON BS-706558
...
11
MODULE BS-706318
...
12
PUSHNUT BS-771823
...
13
SWITCH-MICRO BS-707309
...
14
SWITCH BS-311442GS
...
15
OUTLET-GFCI BS-709526
...
16
OUTLET BS-312689GS
...
17
PORT-USB BS-706438
...
18
BOLT BS-189156GS
...
19
WASHER, Ext. M6 - 1/4" Shakeproof BS-26850GS
...
20
WASHER-LOCK BS-70005GS
...
21
WASHER-M6 BS-70007GS
...
22
WING NUT BS-87680GS
...
23
COVER-OUTLET BS-706582
...
24
COVER-OUTLET BS-706822
...
25
COVER-OUTLET BS-706897
...
26
COVER-ROPE BS-707225
...
27
WIRE-HARNESS,CPNL BS-707238
...
28
WIRE-HARNESS, DATA BS-707245
...
29
RECTIFIER BS-771828
...
30
PLATE BS-771829
...
31
BRACKET BS-771830

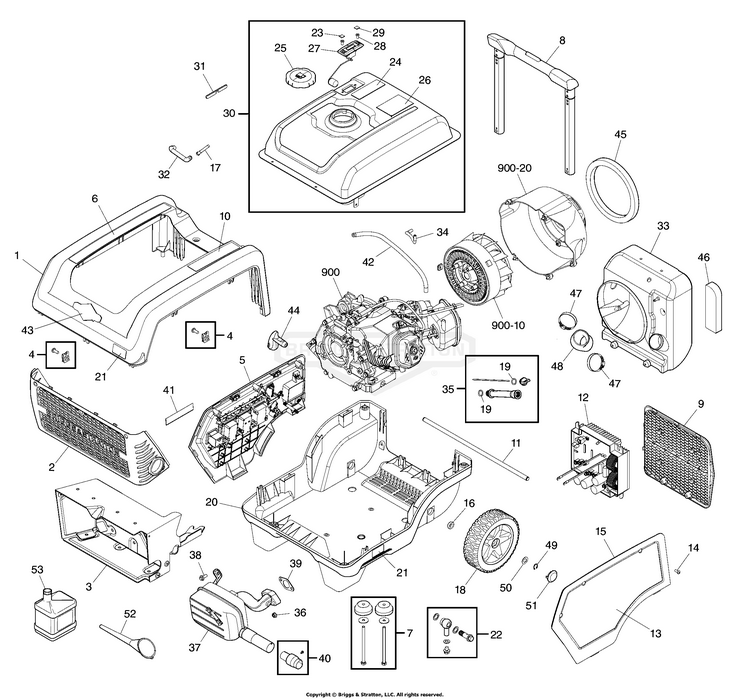

Main Unit (80024630)

...
...
1
HOUSING-TOP (Includes Items 6, 10, 21 & 43) BS-706104
...
2
GRILLE BS-706032
...
3
HEAT SHIELD BS-706053
...
4
KIT-NUT BS-705995
...
6
DECAL BS-706270
...
7
MOUNT-VIBRATION BS-772189
...
8
HANDLE BS-706268
...
9
GRILL-REAR BS-706138
...
10
DECAL BS-706052
...
11
AXLE BS-706282
...
12
MODULE-CONTROL BS-84003329
...
13
DECAL BS-706221
...
14
SCREW BS-772185
...
15
COVER-SIDE (Includes Item 13) BS-706135
...
16
SPACER BS-705994
...
17
FILTER BS-707462
...
18
WHEEL (Includes Item 51) BS-706319
...
19
SEAL, O-Ring BS-84004385
...
20
HOUSING-BOTTOM BS-706105
...
21
DECAL BS-706577
...
22
OIL DRAIN BS-707460
...
23
DECAL BS-313461GS
...
24
DECAL BS-709667
...
25
CAP-FUEL BS-319587GS
...
26
DECAL, Warning, CO BS-202997GS
...
27
BAFFLE, Mulching LH BS-1757975YP
...
28
SCREW BS-314440GS
...
29
DECAL BS-313462GS
...
30
TANK FUEL BS-706316
...
31
SEAL BS-707435
...
32
HOSE-FUEL BS-707436
...
33
HOLDER-INVERTER BS-84007625
...
34
HOSE-VAPOR BS-707456
...
35
ASSY-OIL FILL BS-707461
...
36
NUT BS-590965
...
37
MUFFLER BS-706317
...
38
BOLT BS-707459
...
39
GASKET, Exhaust BS-797770
...
40
ARRESTOR, Spark BS-593207
...
41
DECAL BS-707458
...
42
HOSE-FUEL BS-707457
...
43
DECAL BS-707463
...
44
HANDLE-STARTER BS-707586
...
45
SEAL-FOAM BS-707640
...
46
AIR FILTER BS-596106
...
47
CLAMP BS-771591
...
48
TUBE-AIR INTAKE BS-596700
...
49
E-RING BS-771593
...
50
WASHER BS-771592
...
51
HUBCAP BS-771637
...
52
FUNNEL BS-707650
...
53
OIL-4 CYCLE 30W 18OZ. BS-100005
...
900
** ENGINE (*Includes items 900, 900-10 and 900-20) (Refer to ENGINE Documentation for Alternator Service Information.) BS-19N236-0001-G1

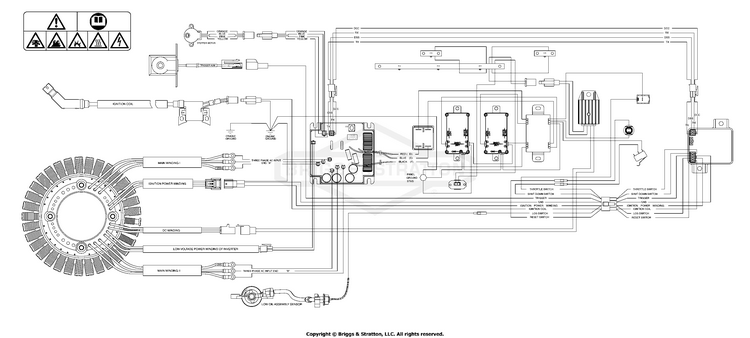

Wiring Diagram (80021014wd)

...

No Parts Available for this Schematic

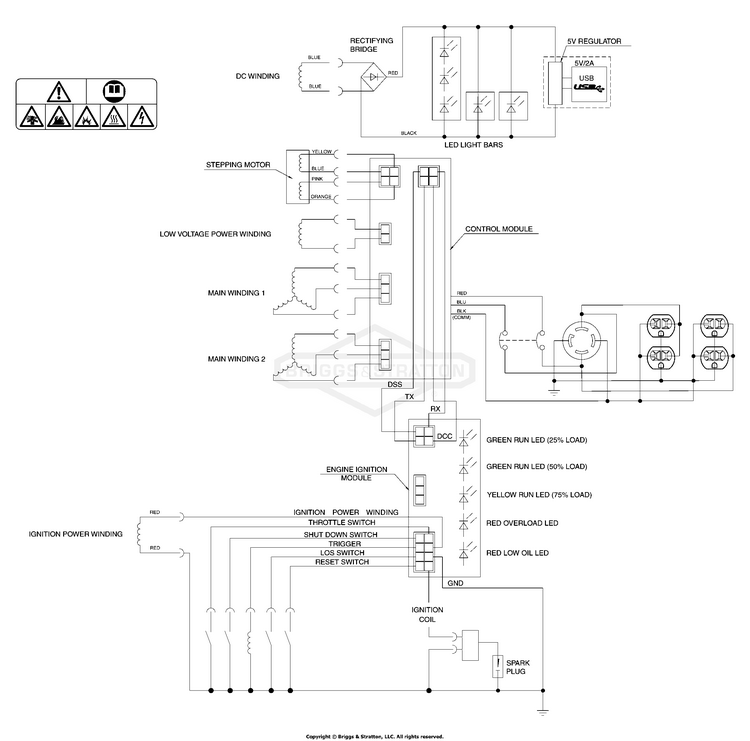

Wiring Schematic (80021014ws)

...

No Parts Available for this Schematic
