Briggs & Stratton 030666-00 - 2,500 Watt PowerBoss

Model: 030666-00 - 2,500 Watt PowerBoss

Save Part Not Listed?
product name

Popular Parts

Popular Parts

Main Unit (80014276)

...
...
1
CRADLE BS-707792
...
2
BRUSH ASSY BS-704914
...
3
DECAL BS-707781
...
4
END COVER BS-704837
...
6
MOUNT-VIBRATION BS-704888
...
7
VOLTAGE REGULATOR BS-704912
...
8
NUT, Flange, M8 BS-67989GS
...
9
MOUNT-VIBRATION BS-704889
...
10
ASSY-MUFFLER BS-704840
...
11
PLATE BS-704844
...
12
SPARK ARRESTOR BS-704846
...
14
GASKET-MUFFLER BS-704852
...
15
COVER-MUFFLER BS-705774
...
18
ALTERNATOR BS-704832
...
19
CARRIER-BEARING BS-704969
...
20
WIRE BS-705633
...
21
GUARD-RUBBER BS-705770
...
22
GUARD-RUBBER BS-705769
...
23
PANEL-CONTROL BS-707812
...
25
SWITCH BS-704893
...
26
BREAKER-CIRCUIT BS-704907
...
27
NUT-BREAKER BS-704909
...
30
OUTLET BS-704903
...
31
DECAL BS-707483
...
32
DECAL BS-704881
...
33
DECAL BS-707484
...
36
DECAL BS-703264
...
37
TANK-FUEL BS-707793
...
38
MOUNT-VIBRATION BS-704861
...
39
WASHER BS-704862
...
40
CAP-FUEL BS-704865
...
41
DECAL BS-704193
...
42
VALVE-FUEL BS-310574GS
...
43
DECAL BS-707485
...
44
DECAL BS-707437
...
45
GAUGE-FUEL BS-704869
...
47
VALVE BS-704916
...
48
LINE, Fuel (Cut to Fit) BS-791745
...
49
FILTER-FUEL BS-704863
...
50
TERMINAL BLOCK BS-705783
...
51
SCREW BS-590850
...
52
WASHER, Ext. M6 - 1/4" Shakeproof BS-26850GS
...
53
NUT-M6 FLANGE BS-52857GS

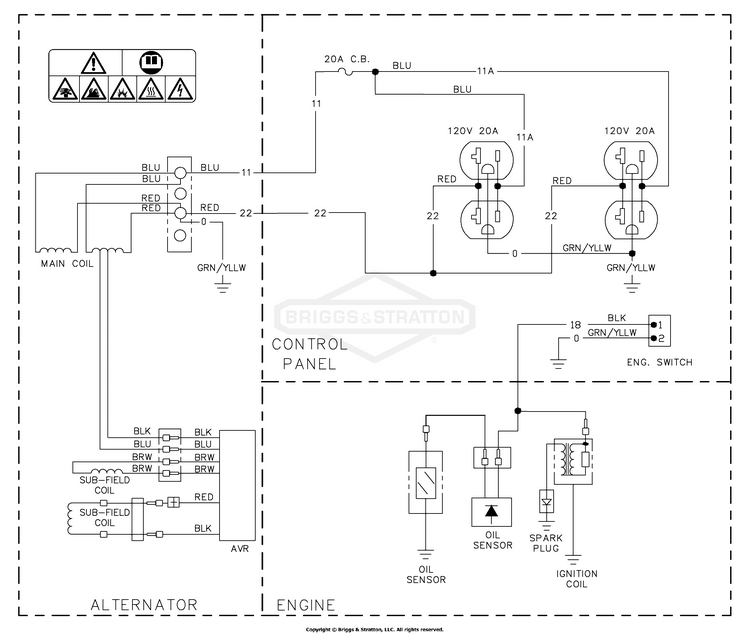

Wiring Schematic (80008488WS)

...

No Parts Available for this Schematic
