Briggs & Stratton 030627-00 - 1,150 Watt PowerBoss

Model: 030627-00 - 1,150 Watt PowerBoss

Save Part Not Listed?
product name

Main Unit (80009458)

...
...
1
CRADLE BS-704882
...
2
DECAL BS-705773
...
3
DECAL BS-319066GS
...
4
END COVER BS-704837
...
6
MOUNT-VIBRATION BS-704886
...
7
DECAL BS-704921
...
9
MOUNT-VIBRATION BS-704887
...
10
ASSY-MUFFLER BS-704839
...
11
PLATE BS-704843
...
12
SPARK ARRESTOR BS-704846
...
14
MUFFLER BS-704847
...
15
GASKET-MUFFLER BS-704851
...
16
TANK-FUEL BS-704854
...
18
LINE, Fuel (Cut to Fit) BS-791745
...
19
CARRIER-BEARING BS-704835
...
20
ALTERNATOR BS-704831
...
21
MOUNT-VIBRATION BS-705437
...
23
PANEL-CONTROL BS-704895
...
25
SWITCH BS-704892
...
26
BREAKER-CIRCUIT BS-704906
...
27
NUT-BREAKER BS-704909
...
28
CAPACITOR BS-704911
...
29
WIRE BS-705633
...
30
OUTLET BS-704903
...
37
DECAL BS-703264
...
38
DECAL BS-705767
...
39
FILTER BS-704972
...
40
CAP-FUEL BS-704864
...
41
DECAL BS-704878
...
42
VALVE-FUEL BS-310574GS
...
43
DECAL BS-704876
...
44
DECAL BS-704874
...
45
GAUGE-FUEL BS-704868
...
47
WASHER BS-704862
...
48
MOUNT-VIBRATION BS-704861

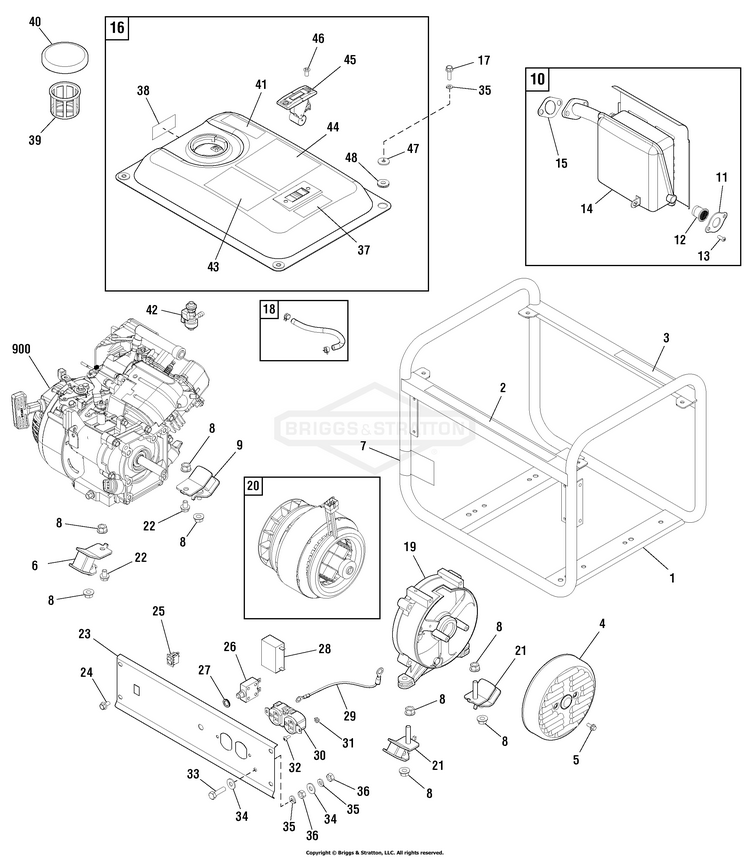

Schematic Image Zoomed
