Briggs & Stratton 030624A-00 - 7,000 Watt Portable Generator

Briggs & Stratton 030624A-00 - 7,000 Watt Portable Generator

Model: 030624A-00 - 7,000 Watt Generator

Save Part Not Listed?

Popular Parts

Popular Parts

Valve, Fuel BS-209417GS

Gauge - Fuel BS-704183

Line - Fuel BS-791745

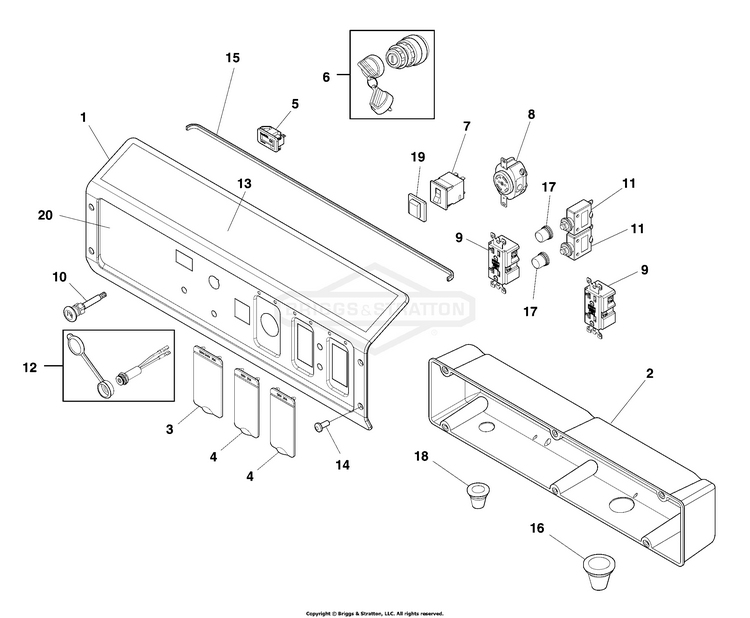

Control Panel (80026667)

1

PANEL_CONTROL BS-707801

2

BOX-CONTROL PANEL BS-319458GS

3

COVER-OUTLET BS-319477GS

4

COVER-OUTLET BS-319476GS

5

METER-HOUR BS-202602GS

6

KEY-SWITCH IGNITION BS-318307GS

--

KEY BS-705436

7

Breaker, Circuit, 30A, 2P BS-202033GS

8

OUTLET, 120/240V Locking, 30A BS-43437GS

9

OUTLET-GFCI BS-709526

10

CABLE_CHOKE BS-707857

11

BREAKER-CIRCUIT 20A BS-209872GS

12

SOCKET-CHARGER BS-704656

--

BOOT-RUBBER JACK BS-312687GS

13

DECAL BS-700296

14

SCREW BS-703804

15

TRIM-EDGE BS-319459GS

16

GROMMET BS-319529GS

17

BOOT, Circuit Breaker BS-312636GS

18

GROMMET BS-319530GS

19

BOOT, Breaker Circuit BS-191481GS

20

DECAL BS-700292

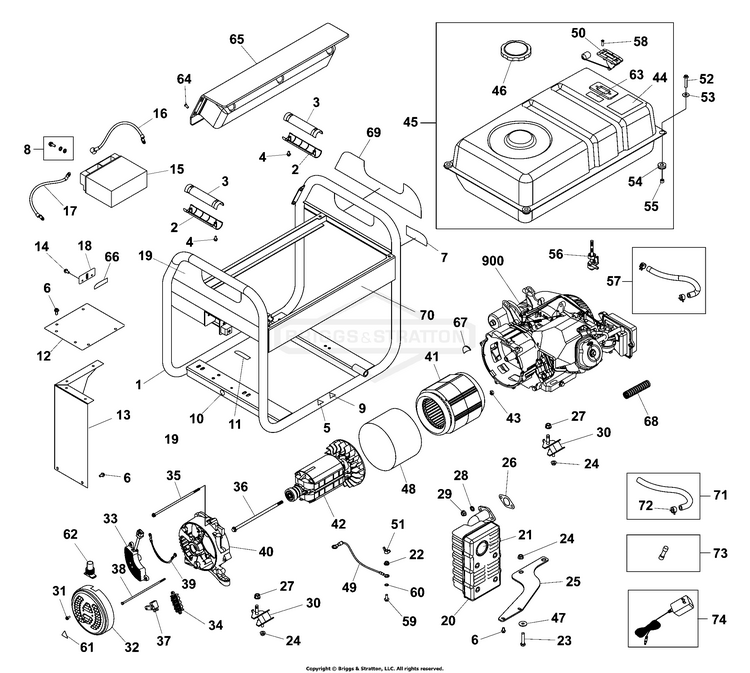

Main Unit (80025033)

1

CRADLE BS-700279

2

GRIP, Handle BS-312008GS

3

GRIP, Handle BS-312009GS

4

PPHMS, M5 - 0.8 x 20 BS-75477GS

5

DECAL BS-315634GS

6

SCREW BS-590850

7

DECAL BS-704330

8

KIT, Hardware, Battery Terminal BS-315546GS

9

DECAL BS-315635GS

10

DECAL BS-704331

11

PAD-RUBBER BS-706535

12

HEATSHIELD BS-312020GS

13

HEATSHIELD BS-312019GS

14

BOLT BS-209775GS

15

BATTERY BS-316345GS

16

CABLE-BATTRY, RED BS-312014GS

17

CABLE-BTTRY, BLACK BS-312026GS

18

PLATE-BATTERY BS-311983GS

19

BS-700287

20

MUFFLER BS-192569GS

21

SCREEN, Spark Arrest BS-83083GS

22

NUT-M6 FLANGE BS-52857GS

23

CAPSCREW, Hex Head, M8-1.25 x 40 BS-57821GS

24

NUT, M8 Flange Serrated BS-67989GS

25

BRACKET, Muffler BS-319457GS

26

GASKET, Exhaust BS-797770

27

NUT, Lock BS-52859GS

28

LOCKWASTER, SPLIT, 3/8 BS-706162

29

NUT, M8 - 1.25 BS-45771GS

30

MOUNT-VIBRATION BS-319451GS

31

SCREW BS-312909GS

32

COVER, Rear Bearing BS-312870GS

33

REGULATOR-VOLTAGE BS-312871GS

34

BLOCK, Junction BS-312921GS

35

BOLT BS-312915GS

36

SCREW BS-312912GS

37

BRUSH ASSEMBLY BS-312904GS

38

BOLT BS-312919GS

39

WIRE BS-706150

40

SUPPORT, Bearing BS-312866GS

41

STATOR BS-707494

42

ROTOR BS-707493

43

NUT BS-312916GS

44

DECAL BS-708083

45

TANK-FUEL BS-700282

46

CAP-FUEL BS-319587GS

47

WSHR, 25.4 X 8.45 X 1.4 BS-B2495GS

48

BAND-STATOR BS-312918GS

49

WIRE BS-706165

50

GAUGE-FUEL BS-704183

51

NUT, M6 - 1.0 Wing BS-87680GS

52

SCREW BS-703805

53

WASHER BS-312005GS

54

GROMMET, Rubber BS-189134GS

55

SPACER BS-189137GS

56

VALVE, Fuel BS-209417GS

57

LINE, Fuel (Cut to Fit) BS-791745

58

SCREW BS-314440GS

59

SCREW BS-590703

60

WASHER, Ext. M6 - 1/4" Shakeproof BS-26850GS

61

DECAL BS-315636GS

62

BOOT, Rubber BS-207879GS

63

DECAL BS-703264

64

SCREW BS-703804

65

CONTROL_PANEL BS-700286

66

PAD-RUBBER BS-706377

67

COVER-RUBBER BS-706376

68

BELLOWS BS-706534

69

DECAL BS-700288

70

DECAL BS-700289

71

HOSE, Vapor (cut to fit) BS-315017GS

72

CLAMP BS-314955GS

73

FUSE BS-316742GS

74

CHARGER-BATTERY BS-84005036

900

ENGINE BS-25T235-0324-G1

--

100028 OIL 48OZ. (EA) (Not Illustrated) BS-100028WEB

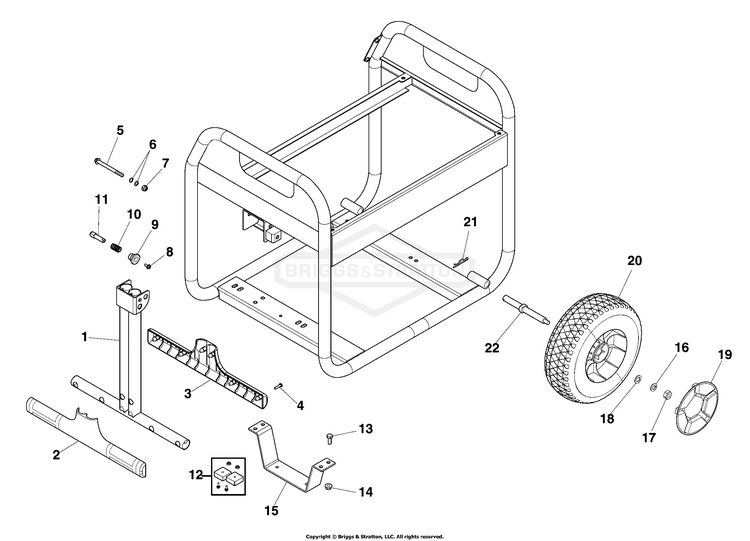

Wheel Kit

1

HANDLE BS-319396GS

2

GRIP-HANDLE BS-311998GS

3

GRIP-HANDLE BS-312000GS

4

PPHMS, M5 - 0.8 x 20 BS-75477GS

5

BOLT BS-318677GS

6

WASHER, Nylon BS-96716GS

7

NUT, Nylok, M8 - 1.25 BS-49820GS

8

BOLT-M5-6 x 16 BS-207825GS

9

KNOB BS-319453GS

10

SPRING BS-319452GS

11

PIN BS-319454GS

12

MOUNT-VIBRATION BS-319285GS

13

NUT, Hex Locking Flange M8 BS-67989GS

14

BOLT BS-84001684

15

SUPPORT-LEG BS-707688

16

WSHR, M10, LOCK BS-46526GS

17

NUT, M10-1.5 BS-45772GS

18

WASHER BS-691113

19

HUBCAP BS-312022GS

20

WHEEL BS-312021GS

21

PIN-HAIR BS-316510GS

22

AXLE BS-312023GS

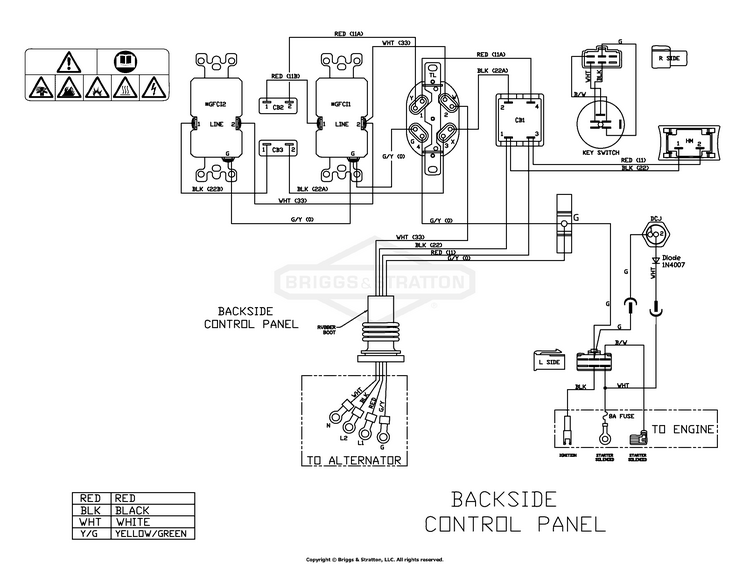

Wiring Diagram (80025038WD)

No Parts Available for this Schematic

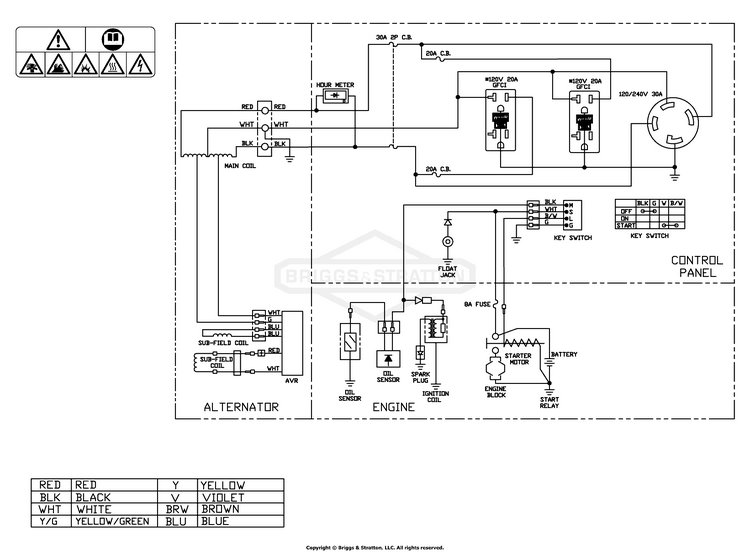

Wiring Schematic (80025038WS)

No Parts Available for this Schematic
