Briggs & Stratton 030595-02 - Watt Troy Bilt - 50 State

Model: 030595-02 - Watt - 50 State

Save Part Not Listed?
product name

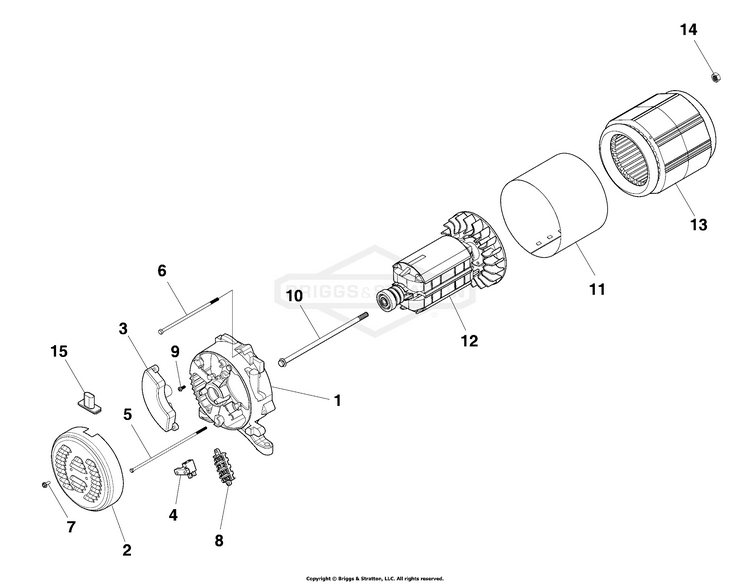

Alternator (80030039)

...
...
1
SUPPORT, Bearing BS-312866GS
...
2
COVER, Rear Bearing BS-312870GS
...
3
REGULATOR-VOLTAGE BS-312871GS
...
4
BRUSH ASSEMBLY BS-312904GS
...
5
BOLT BS-703908
...
6
BOLT BS-703909
...
7
SCREW BS-312909GS
...
8
BLOCK, Junction BS-312921GS
...
9
SCREW BS-312911GS
...
10
BOLT BS-703910
...
11
BAND-STATOR BS-703911
...
12
ROTOR BS-706902
...
13
STATOR BS-706903
...
14
NUT BS-312916GS
...
15
COVER, Alternator, Rubber BS-703013

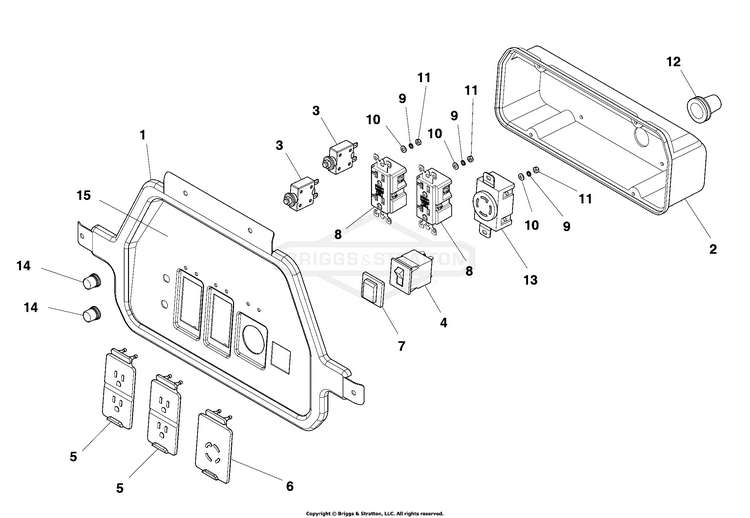

Control Panel (80017724)

...
...
1
PANEL-CONTROL BS-318777GS
...
2
BOX-CONTROL PANEL BS-319330GS
...
3
BREAKER-CIRCUIT 20A BS-209872GS
...
4
BREAKER-CIRCUIT BS-319540GS
...
5
COVER, Outlet BS-313389GS
...
6
COVER-OUTLET BS-703898
...
7
BOOT, Breaker Circuit BS-191481GS
...
8
OUTLET-GFCI BS-709526
...
12
GROMMET BS-312741GS
...
13
OUTLET, 120/240V TL30A BS-312689GS
...
14
BOOT, Circuit Breaker BS-312636GS
...
15
DECAL BS-772238

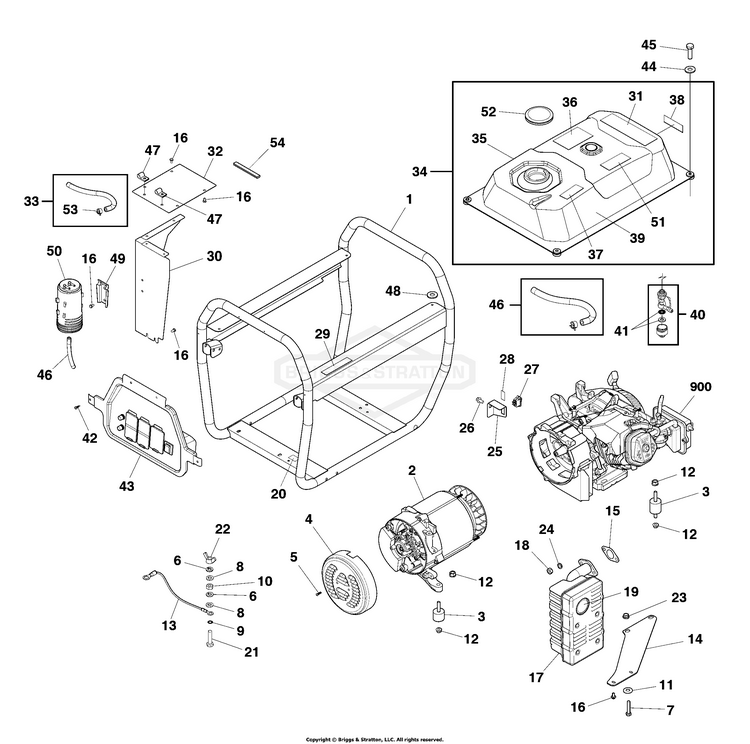

Main Unit (80030038)

...
...
1
CRADLE (Includes Item 20 & 29) (Includes Ref. Nos. 20 & 29) BS-318787GS
...
3
MOUNT, Vibration BS-318779GS
...
4
COVER, Rear Bearing BS-312870GS
...
5
SCREW BS-312909GS
...
9
WASHER, Ext. M6 - 1/4" Shakeproof BS-26850GS
...
11
Washer, Flat 1/2 BS-22304GS
...
12
NUT, M8 Flange Serrated BS-67989GS
...
13
WIRE BS-313481GS
...
14
SUPPORT-MUFFLER BS-312941GS
...
15
GASKET, Exhaust BS-797770
...
17
MUFFLER BS-192569GS
...
19
SCREEN, Spark Arrest BS-83083GS
...
20
DECAL, Ground, Green BS-B4986GS
...
22
NUT, M6 - 1.0 Wing BS-87680GS
...
25
BRACKET BS-706827
...
27
SWITCH, Rocker BS-797340
...
28
DECAL BS-319663GS
...
29
DECAL BS-319066GS
...
30
HEATSHIELD BS-318782GS
...
31
DECAL BS-319064GS
...
32
HEATSHIELD BS-318781GS
...
33
HOSE, Vapor (cut to fit) (Cut to Fit) BS-315017GS
...
34
TANK, FUEL BS-772180
...
35
DECAL BS-319661GS
...
36
DECAL, Warning, CO BS-202997GS
...
37
DECAL BS-319065GS
...
38
Decal, Fuel Shutoff, CCW BS-197797GS
...
39
DECAL BS-319662GS
...
40
KIT, Fuel Valve BS-310574GS
...
41
VALVE, Fuel BS-310574GS
...
42
SCREW BS-313075GS
...
43
PANEL-CONTROL BS-709529
...
44
WASHER BS-312976GS
...
45
SCREW BS-704203
...
46
LINE, Fuel (Cut to Fit) BS-791745
...
47
CLAMP BS-315042GS
...
48
WASHER-FLAT BS-193588GS
...
49
BRACKET BS-318884GS
...
50
CARB CANISTER BS-318889GS
...
51
DECAL BS-705545
...
52
CAP, Fuel BS-319385GS
...
53
CLAMP BS-316173GS
...
54
EDGING BS-315041GS
...
900
ENGINE BS-25P132-0001-G1

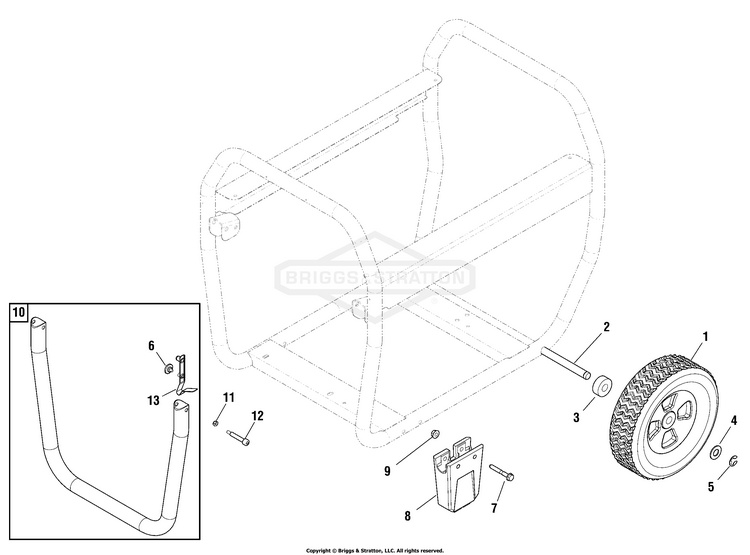

Wheel Kit (80005343)

...
...
1
WHEEL BS-319465GS
...
2
AXLE BS-317610GS
...
3
SPACER BS-319464GS
...
5
E-RING BS-703977
...
6
KNOB BS-318935GS
...
7
SCREW BS-706274
...
8
SUPPORT-LEG BS-312510GS
...
9
NUT BS-67989GS
...
10
HANDLE BS-318932GS
...
11
NUT BS-67885GS
...
12
SCREW BS-703899
...
13
PIN BS-319429GS
...
--
KIT-HARDWARE (Not Illustrated) BS-703900

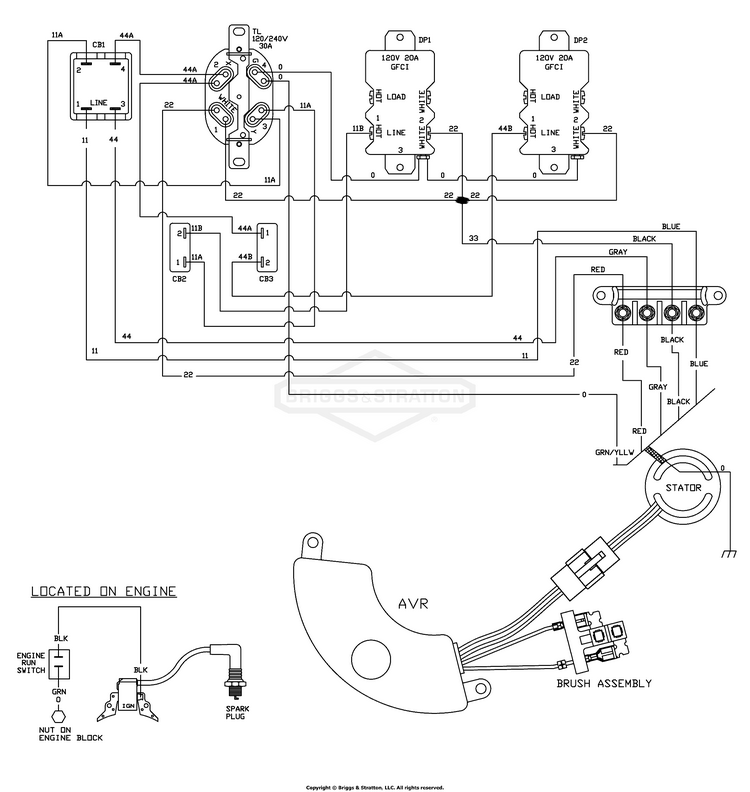

Wiring Diagram (80006139WD)

...

No Parts Available for this Schematic

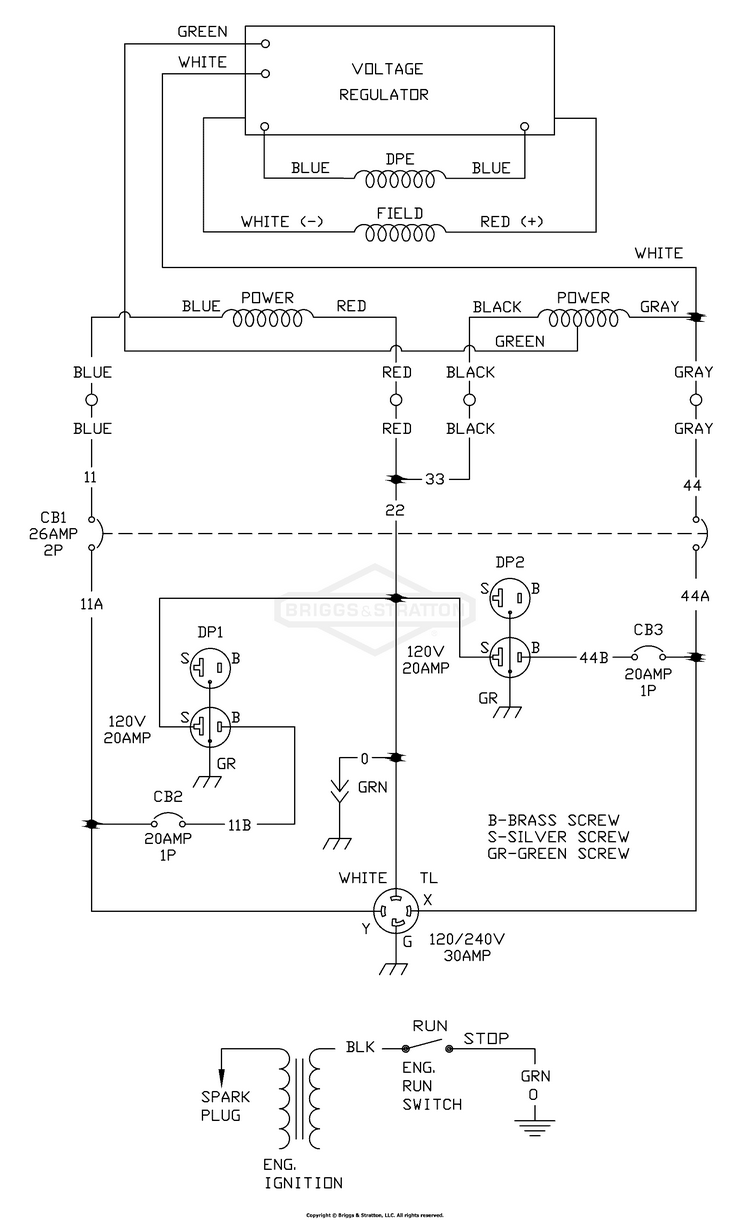

Wiring Schematic (80006139WS)

...

No Parts Available for this Schematic
