Briggs & Stratton 030592J-00 - 6,250 Watt Briggs & Stratton

Model: 030592J-00 - 6,250 Watt

Save Part Not Listed?
product name

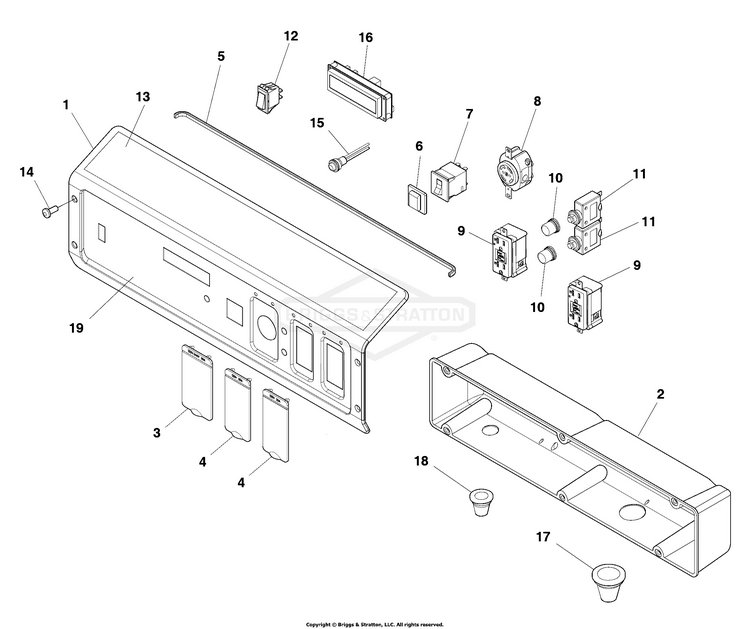

Control Panel (80028006)

...
...
1
PANEL-CONTROL BS-771802
...
2
BOX-CONTROL PANEL BS-319458GS
...
3
COVER-OUTLET BS-319477GS
...
4
COVER-OUTLET BS-319476GS
...
5
TRIM-EDGE BS-319459GS
...
6
BOOT, Breaker Circuit BS-191481GS
...
7
BREAKER-CIRCUIT BS-319540GS
...
8
OUTLET, 120/240V Locking, 30A BS-43437GS
...
9
OUTLET-GFCI BS-709526
...
10
BOOT, Circuit Breaker BS-312636GS
...
11
BREAKER-CIRCUIT 20A BS-209872GS
...
12
SWITCH-ON/OFF BS-319525GS
...
13
DECAL BS-709942
...
14
SCREW BS-703804
...
15
BUTTON-SELECT BS-319463GS
...
16
POWER MONITOR BS-318458GS
...
17
GROMMET BS-319529GS
...
18
GROMMET BS-319530GS
...
19
DECAL BS-771806

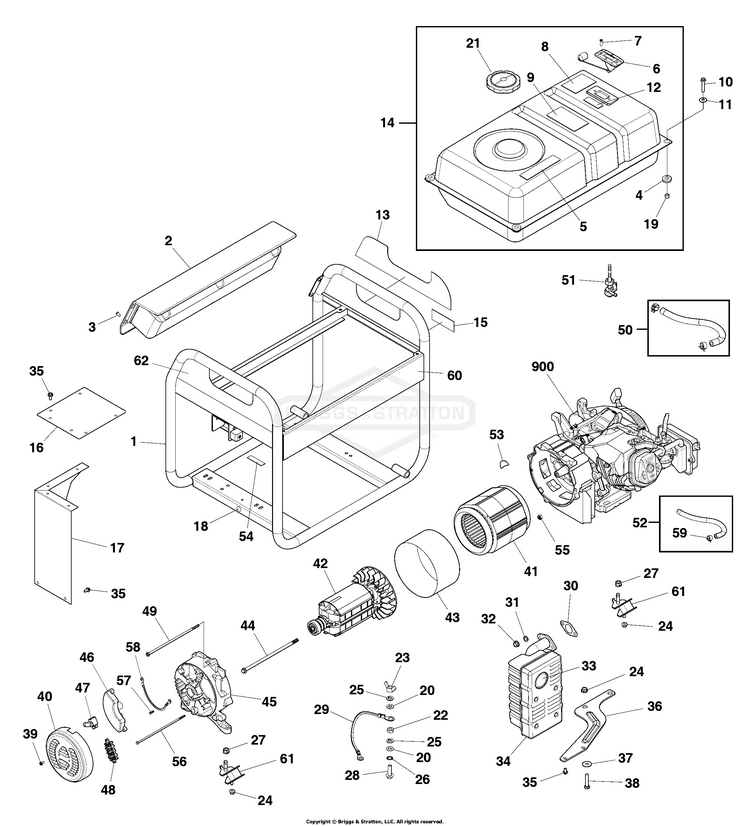

Main Unit (80028005)

...
...
1
CRADLE (Incl. Items 15, 18, 60) BS-771807
...
2
PANEL-CONTROL Assy. BS-771799
...
3
SCREW BS-703804
...
4
GROMMET, Rubber BS-189134GS
...
5
DECAL BS-709667
...
6
GAUGE-FUEL BS-704183
...
7
SCREW BS-314440GS
...
8
DECAL, Warning, CO BS-202997GS
...
9
DECAL BS-709937
...
10
SCREW BS-703805
...
11
WASHER BS-312005GS
...
12
DECAL BS-703264
...
13
DECAL BS-771803
...
14
TANK-FUEL BS-709929
...
15
DECAL BS-704142
...
16
HEATSHIELD BS-319456GS
...
17
HEATSHIELD BS-319455GS
...
18
DECAL BS-704331
...
19
SPACER BS-189137GS
...
21
CAP-FUEL BS-319587GS
...
23
NUT, M6 - 1.0 Wing BS-87680GS
...
29
WIRE BS-706165
...
30
GASKET, Exhaust BS-797770
...
33
SCREEN, Spark Arrest BS-83083GS
...
34
MUFFLER BS-192569GS
...
35
SCREW BS-590850
...
36
BRACKET, Muffler BS-319457GS
...
39
SCREW BS-312909GS
...
40
COVER, Rear Bearing BS-312870GS
...
41
STATOR BS-706903
...
42
ROTOR BS-706902
...
43
BAND-STATOR BS-703911
...
44
BOLT BS-703910
...
45
SUPPORT, Bearing BS-312866GS
...
46
REGULATOR-VOLTAGE BS-312871GS
...
47
BRUSH ASSEMBLY BS-312904GS
...
48
BLOCK, Junction BS-312921GS
...
49
BOLT BS-703909
...
50
LINE, Fuel BS-791745
...
51
VALVE, Fuel BS-209417GS
...
52
HOSE, Vapor (cut to fit) BS-315017GS
...
53
COVER-RUBBER BS-706376
...
54
PAD-RUBBER BS-706535
...
55
NUT BS-312916GS
...
56
BOLT BS-703908
...
57
SCREW BS-312911GS
...
58
WIRE BS-706150
...
59
CLAMP BS-314955GS
...
60
DECAL BS-709933
...
61
MOUNT-VIBRATION BS-319451GS
...
62
DECAL BS-771801
...
900
ENGINE BS-25P132-0006-G1
...
--
CORDSET (Not Illustrated) BS-771800

Wheel Kit (80005137)

...
...
1
HANDLE BS-319396GS
...
2
GRIP-HANDLE BS-319360GS
...
3
GRIP-HANDLE BS-319361GS
...
4
PPHMS, M5 - 0.8 x 20 BS-75477GS
...
5
BOLT BS-318677GS
...
6
WASHER, Nylon BS-96716GS
...
7
NUT, Nylok, M8 - 1.25 BS-49820GS
...
8
BOLT-M5-6 x 16 BS-207825GS
...
9
KNOB BS-319453GS
...
10
SPRING BS-319452GS
...
11
PIN BS-319454GS
...
12
MOUNT-VIBRATION BS-319285GS
...
13
BOLT BS-771804
...
14
NUT, M8 Flange Serrated BS-67989GS
...
15
SUPPORT-LEG BS-319642GS
...
16
AXLE BS-703813
...
17
WHEEL BS-704145
...
18
WASHER, 5/8" SAE BS-5025281SM
...
19
PIN-HAIR BS-316510GS

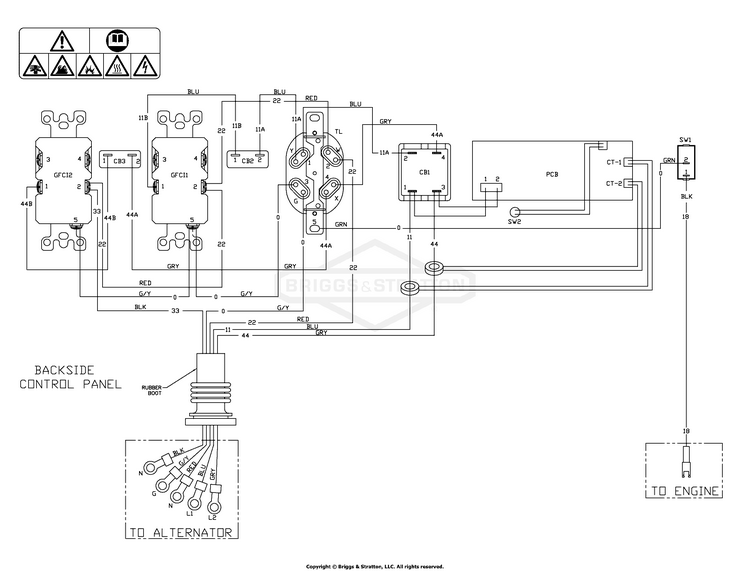

Wiring Diagram (80012553WD)

...

No Parts Available for this Schematic

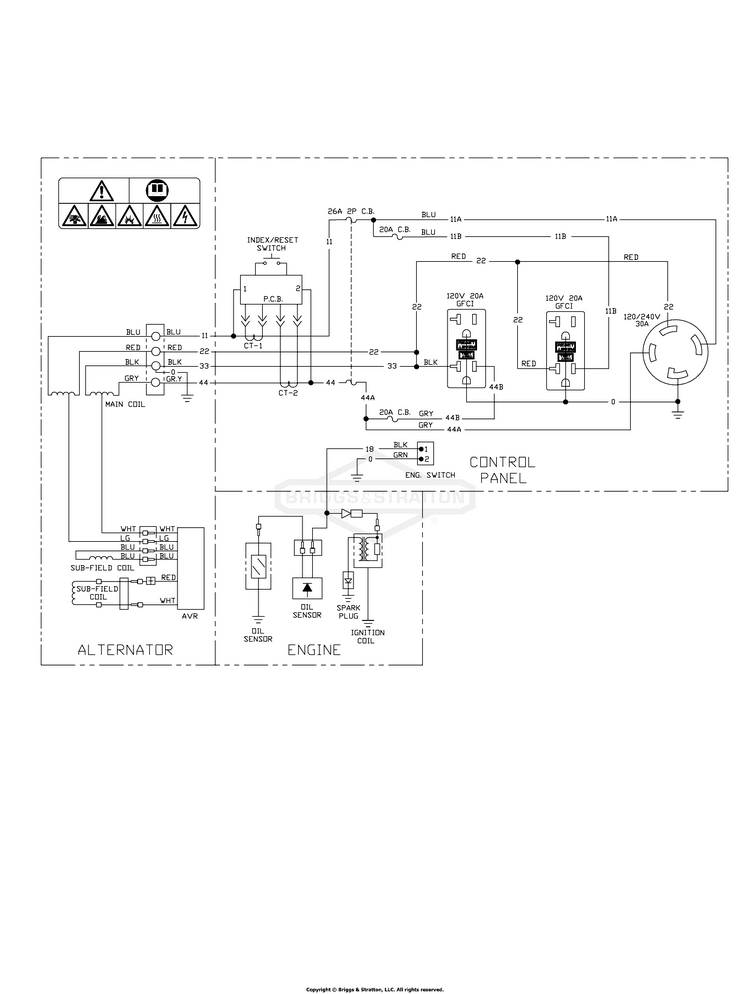

Wiring Schematic (80012553WS)

...

No Parts Available for this Schematic
