Briggs & Stratton 030487-0 - 4500 Watt PowerBoss

Model: 030487-0 - 4500 Watt PowerBoss

Save Part Not Listed?
product name

Popular Parts

Popular Parts

Alternator (206109)

...
...
1
ADAPTER, Alternator BS-209599GS
...
2
ROTOR BS-206526GS
...
3
STATOR BS-206175GS
...
4
RBC, (with O-Ring p/n 189197GS) BS-193336GS
...
5
SCREW BS-86308CGS
...
6
BRUSH ASSEMBLY BS-66386GS
...
7
HHCS, M5-0.8 X 16 BS-49815GS
...
8
REGULATOR, Voltage BS-205858GS
...
9
PIN BS-81917GS
...
10
BEARING BS-65791GS
...
11
COVER, Rear Bearing BS-195422GS
...
12
CAP BS-191190GS
...
13
TAPTITE BS-74908GS

Control Panel (206158)

...
...
9
SCREW BS-206851GS
...
10
BREAKER, Circuit, 20A BS-206473GS
...
11
BREAKER, Circuit, 30A BS-206469GS
...
13
BREAKER, Circuit, 20A BS-206507GS
...
17
BREAKER, Circuit, 22.5A BS-206510GS
...
18
CONNECTOR, 6 Pin BS-201678GS
...
19
TERMINAL BS-193427GS
...
20
MODULE, GFCI Sensing BS-206506GS
...
21
BOARD, Idle Control BS-193362GS
...
22
GROMMET BS-62265GS
...
23
OUTLET, 120V 20A BS-68759GS
...
24
OUTLET, 120V 20A BS-74190GS
...
25
OUTLET-120V TL30A BS-705932
...
27
PLUG, 120 / 240V TL20A BS-68867GS
...
28
SWITCH, On / Off BS-206463GS
...
29
SWITCH, On / Off BS-206462GS
...
31
TRANSFORMER BS-84028GS
...
32
ROD BS-206461GS
...
33
PANEL (Includes Ref. Nos. 39, 40 & 41) BS-206505GS
...
34
PANEL, Back BS-206460GS
...
35
COVER BS-206465GS
...
36
PANEL, Control BS-206471GS
...
37
SEAL BS-206464GS
...
39
DECAL BS-205974GS
...
40
DECAL BS-205975GS
...
41
DECAL BS-205969GS
...
42
GASKET BS-206843GS
...
43
SEAL BS-206844GS

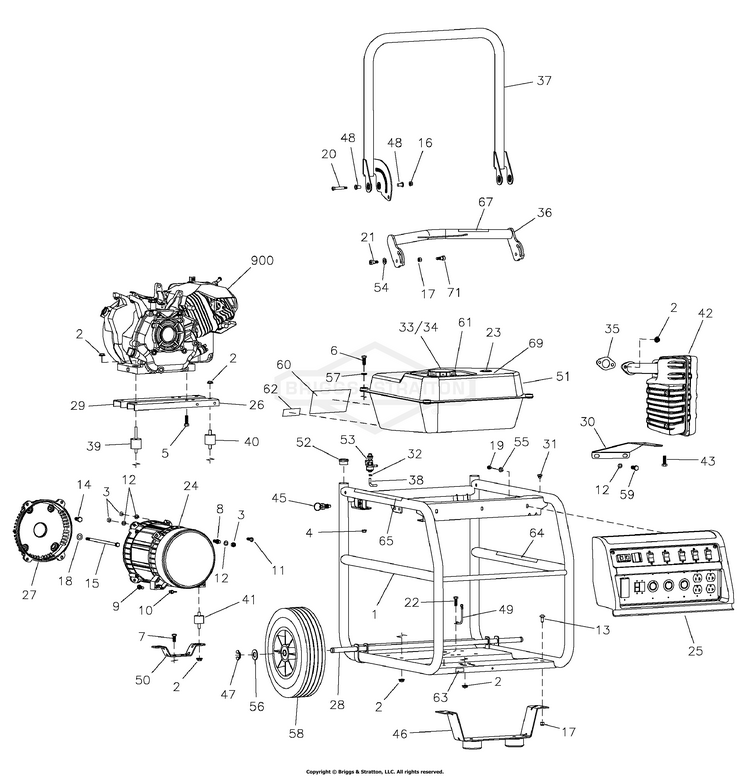

Main Unit

...
...
1
CRADLE (Includes Ref. Nos. 63, 64 & 65) BS-205532AGS
...
2
NUT BS-67989GS
...
4
NUT, Lock, M8-1-1/4 BS-52858GS
...
8
STUD BS-187117GS
...
10
NUT BS-87680GS
...
13
BOLT BS-206121GS
...
14
SCREW BS-190274BGS
...
15
SCREW BS-47480GS
...
16
NUT BS-194005GS
...
17
NUT BS-206140GS
...
18
WASHER BS-96796GS
...
19
SCREW BS-206141GS
...
20
SCREW BS-206157GS
...
21
SCREW BS-206547GS
...
22
SCREW BS-B2153GS
...
23
GAUGE, Fuel BS-205441GS
...
25
PANEL BS-206158GS
...
26
SUPPORT, Engine BS-190723ZGS
...
27
ADAPTER, Engine BS-190220GS
...
28
AXLE BS-191267WGS
...
29
SUPPORT, Engine BS-92531ZGS
...
30
BRACKET BS-92532GS
...
31
CLIP BS-B1797GS
...
32
CLAMP BS-189568GS
...
33
CAP, Fuel BS-189135GS
...
34
STRAINER BS-206892GS
...
35
GASKET BS-710250X
...
36
BAR, Lifting (Includes Ref. No. 67) BS-205549AGS
...
37
HANDLE BS-205545AGS
...
38
LINE, Fuel (Cut to Fit) BS-791745
...
39
MOUNT, Vibration BS-194783GS
...
40
MOUNT, Vibration BS-194789GS
...
41
MOUNT-VIBRATION BS-194153GS
...
42
MUFFLER BS-B4206GS
...
43
SCREW BS-66476GS
...
45
PIN BS-206132GS
...
46
SUPPORT, Leg BS-206317GS
...
47
E-RING BS-703977
...
48
SPACER BS-206134GS
...
49
WIRE BS-195373GS
...
50
SUPPORT, Alternator BS-205544AGS
...
51
TANK, Fuel (Fuel Valve Sold Separately) (Includes #’s 23, 33, 34, 60, 61, 62 & 69) BS-311869GS
...
52
PLUG, Hole BS-189332GS
...
53
VALVE, Fuel BS-310574GS
...
55
WASHER BS-71693GS
...
58
WHEEL BS-206040GS
...
60
DECAL BS-94480GS
...
61
DECAL BS-205971GS
...
62
DECAL BS-205972GS
...
63
DECAL BS-207107GS
...
64
DECAL BS-205970GS
...
65
DECAL BS-206558GS
...
67
DECAL BS-206557GS
...
69
DECAL BS-202997GS
...
71
SCREW BS-206546GS
...
--
MANUAL, Operator's (Not Illustrated) BS-311852GS
...
--
BOTTLE, Oil (Not Illustrated) BS-100005
...
--
ARRESTOR, Spark (Not Illustrated) BS-83083GS
...
--
DECAL, Recoil (Not Illustrated) BS-311856GS
...
--
DECAL, Recoil (Not Illustrated) BS-200658GS
...
--
KIT, Hardware (Not Illustrated) BS-206183GS
