Briggs & Stratton 030480-0 - 1,850 Watt PowerBoss

Model: 030480-0 - 1,850 Watt PowerBoss

Save
 Part Not Listed?Part Not Listed?
product name

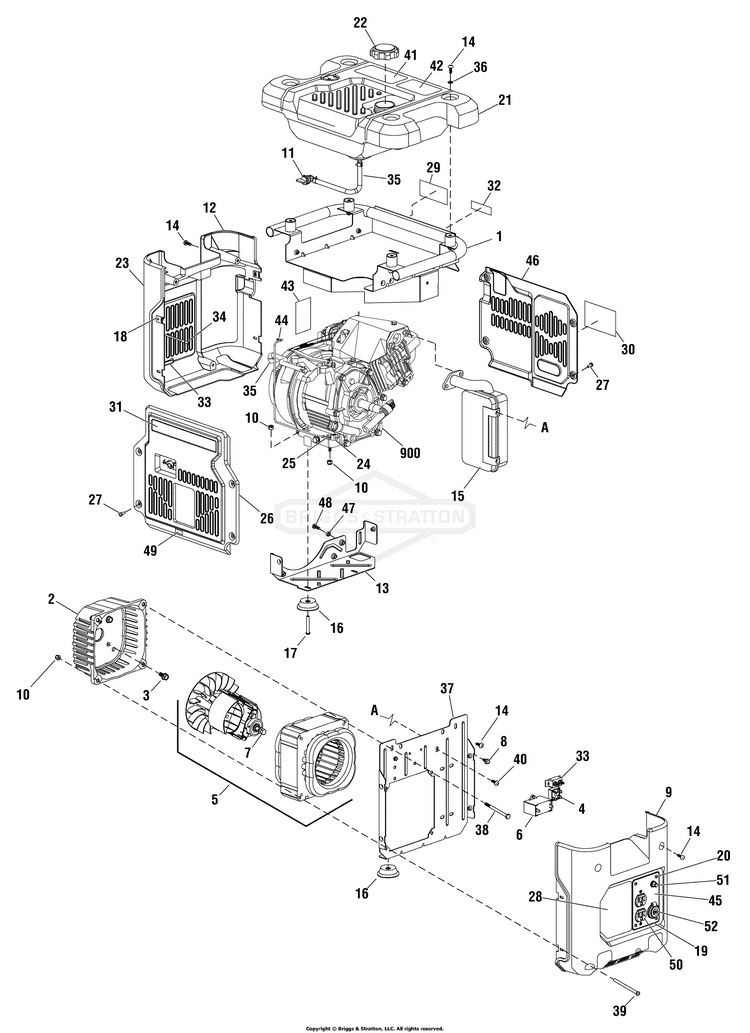

Main Unit (310989)

...
...
1
HANDLE (Includes Ref. Nos. 29 & 32) BS-209778GS
...
2
ADAPTER, Engine BS-209769GS
...
3
BOLT BS-209770GS
...
4
DIODE BS-209796GS
...
5
ALTERNATOR BS-209772GS
...
6
CAPACITOR BS-209773GS
...
7
BOLT BS-209774GS
...
8
BOLT BS-209775GS
...
9
PANEL, End BS-316551GS
...
10
NUT BS-209777GS
...
11
VALVE, Fuel Shut Off BS-698183
...
12
PANEL, End BS-316552GS
...
13
BRACKET BS-209780GS
...
14
SCREW BS-209781GS
...
15
MUFFLER BS-209782GS
...
16
FOOT, Rubber BS-209783GS
...
17
SCREW BS-209784GS
...
18
CLIP, Tinnerman BS-209785GS
...
19
PANEL, Control BS-209786GS
...
20
SCREW BS-209787GS
...
21
TANK, Fuel (Includes Ref. Nos. 41 & 42) BS-209788GS
...
22
CAP, Fuel BS-209789GS
...
23
SWITCH, Rocker BS-209790GS
...
24
LUG, Ground BS-209791GS
...
25
BOLT BS-209792GS
...
26
PANEL, Side (Includes Ref. No. 49) BS-209793GS
...
27
SCREW BS-209794GS
...
28
DECAL BS-310992GS
...
29
DECAL BS-208630GS
...
30
DECAL BS-208631GS
...
31
DECAL BS-310991GS
...
32
DECAL BS-208633GS
...
33
BREAKER, Circuit BS-209771GS
...
34
WIRE BS-209795GS
...
35
LINE, Fuel (Cut to fit) BS-791745
...
36
WASHER BS-209797GS
...
37
BRACKET BS-209798GS
...
38
BOLT BS-209799GS
...
39
SCREW BS-209801GS
...
40
SCREW BS-209802GS
...
41
DECAL BS-208632GS
...
42
DECAL BS-208629GS
...
43
DECAL BS-208626GS
...
44
WIRE BS-209803GS
...
45
DECAL BS-311054GS
...
46
GUARD, Muffler (Includes Ref. No. 30) BS-209800GS
...
47
SPACER BS-209815GS
...
48
SCREW BS-209816GS
...
49
DECAL BS-B4986GS
...
50
OUTLET, 120V 15A BS-63025GS
...
51
BREAKER, Circuit BS-209817GS
...
52
RECEPTACLE, 12V BS-209818GS
...
--
MANUAL, Operator BS-310988GS
...
--
CABLE, Battery Charge BS-187876GS
...
...
...
