Briggs & Stratton 030478-00 - 7,000 Watt Troy-Bilt XP

Model: 030478-00 - 7,000 Watt XP

Save Part Not Listed?
product name

Alternator (80005096)

...
...
1
SUPPORT-BEARING BS-312866GS
...
2
ROTOR BS-312444GS
...
3
STATOR BS-704308
...
4
BAND-STATOR BS-312918GS
...
5
SCREW BS-312922GS
...
6
NUT BS-312916GS
...
7
SCREW BS-312911GS
...
8
SCREW BS-312908GS
...
9
SCREW BS-312909GS
...
10
BOLT BS-312919GS
...
11
BRUSH BS-312904GS
...
12
SCREW BS-312907GS
...
13
AVR BS-312871GS
...
14
BLOCK-JUNCTION BS-312921GS
...
15
COVER BS-312870GS

Control Panel (80005097)

...
...
1
PANEL, Control BS-312504GS
...
2
BOX, Control Panel BS-311172GS
...
3
CAPBLE, Choke BS-312682GS
...
4
ASSY., Jack Coaxial BS-208511GS
...
5
BOOT-RUBBER JACK BS-312687GS
...
9
CORDSET BS-312550GS
...
10
PPHMS, M5 - 0.8 x 20 BS-75477GS
...
11
GROMMET BS-312741GS
...
12
OUTLET, 120/240V TL30A BS-312689GS
...
13
BREAKER, Circuit, 20A BS-202029GS
...
14
Breaker, Circuit, 30A, 2P BS-202033GS
...
16
CLIP BS-311511GS
...
17
SCREW BS-314473GS
...
18
BOOT, Breaker Circuit BS-191481GS
...
19
COVER, Outlet BS-311499GS
...
20
PLATE BS-312686GS
...
21
BOOT BS-312685GS
...
22
SWITCH, ON/OFF BS-312684GS
...
23
SWITCH BS-312683GS
...
24
SCREW, M5-0.8 X 8 BS-197486GS
...
26
SPRING BS-312584GS
...
27
KNOB BS-311512GS
...
28
EXTENDA-A-PANEL BS-706184
...
29
BREAKER-CIRCUIT 20A BS-209872GS
...
30
OUTLET, 120V 20A BS-313387GS
...
31
CORDSET BS-312550GS
...
32
WASHER, M5 BS-51713GS
...
33
COVER-BACK BS-312620GS
...
34
ASSY-LCD/PCB BS-707603

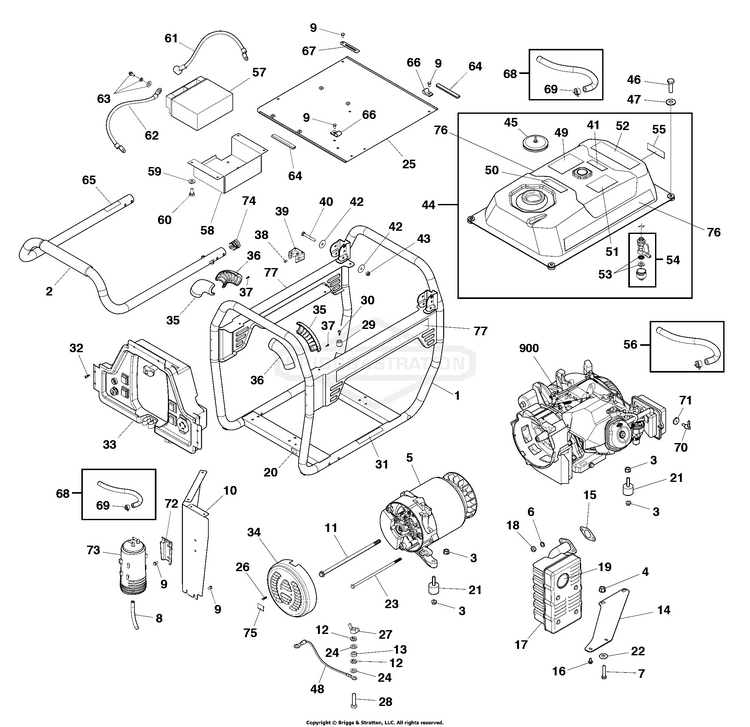

Main Unit (80005095)

...
...
1
CRADLE BS-311202GS
...
2
HANDLE BS-313763GS
...
3
NUT, M8 Flange Serrated BS-67989GS
...
4
NUT, Lock BS-52859GS
...
8
HOSE - 5" BS-5050831X5SM
...
10
HEATSHIELD BS-318886GS
...
11
SCREW BS-312912GS
...
14
SUPPORT-MUFFLER BS-312941GS
...
15
GASKET, Exhaust BS-794818
...
17
MUFFLER BS-192569GS
...
19
SCREEN, Spark Arrest BS-83083GS
...
20
DECAL, Ground, Green BS-B4986GS
...
21
MOUNT, Vibration BS-85651GS
...
22
Washer, Flat 1/2 BS-22304GS
...
23
BOLT BS-312915GS
...
25
HEATSHIELD BS-312731GS
...
26
SCREW BS-312909GS
...
27
NUT, M6 - 1.0 Wing BS-87680GS
...
29
BUMPER BS-313086GS
...
30
SCREW BS-313077GS
...
31
DECAL, Warning Exhaust BS-196830GS
...
32
SCREW BS-313075GS
...
33
PANEL, Control BS-319778GS
...
34
COVER, Rear Bearing BS-312870GS
...
35
GRIP BS-311213GS
...
36
GRIP BS-311214GS
...
37
SCREW BS-313076GS
...
38
SCREW, M5-0.8 X 8 BS-197486GS
...
39
BRACKET BS-312402GS
...
40
BOLT BS-312943GS
...
41
DECAL SHEET, WARNINGS BS-705920
...
42
* WASHER, Nylon, 1.2 x .346 x .03 BS-187104GS
...
43
NUT BS-312945GS
...
44
TANK, Fuel BS-315006GS
...
45
CAP, Fuel Gauge BS-314951GS
...
48
WIRE BS-313481GS
...
49
DECAL BS-312726GS
...
50
DECAL BS-312728GS
...
51
DECAL, Warning, CO BS-202997GS
...
52
DECAL, Danger BS-194799GS
...
53
VALVE, Fuel BS-310574GS
...
54
KIT, Fuel Valve BS-310574GS
...
55
Decal, Fuel Shutoff, CCW BS-197797GS
...
56
LINE, Fuel (Cut to Fit) BS-791745
...
57
BATTERY BS-316345GS
...
58
TRAY, Battery BS-195680GS
...
59
WSHR, M6, SS, LOCK BS-70005GS
...
60
HHCS, M6 - 1.0 x 12 BS-43116GS
...
61
WIRE BS-313479GS
...
62
WIRE BS-313480GS
...
63
KIT, Hardware, Battery Terminal BS-315546GS
...
64
EDGING BS-315041GS
...
65
DECAL BS-313159GS
...
66
CLAMP BS-315042GS
...
67
WIREFORM BS-315018GS
...
68
HOSE, Vapor (cut to fit) (Cut to Fit) BS-315017GS
...
69
CLAMP BS-316173GS
...
70
ELBOW BS-283603GS
...
71
BUSHING BS-283475GS
...
72
BRACKET BS-318884GS
...
73
CARB CANISTER BS-318889GS
...
74
PLUG BS-313594GS
...
75
DECAL BS-208452GS
...
76
DECAL BS-312717GS
...
77
DECAL BS-312459GS
...
900
ENGINE BS-25T235-0016-G1
...
--
FUSE (Not Illustrated) BS-316711GS
...
--
CHARGER, Battery (Not Illustrated) BS-84002790
...
--
CORDSET (Not Illustrated) BS-311548GS
...
--
OIL-4 CYCLE30W 48OZ (Optional Accessory - Not Included) BS-100028

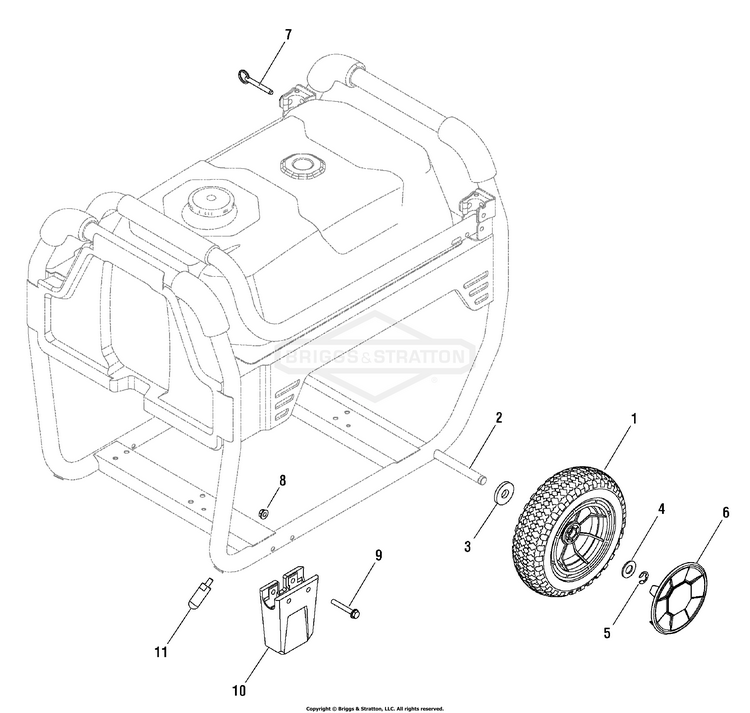

Wheel Kit (312433)

...
...
1
WHEEL BS-209322GS
...
2
AXLE BS-191267AAGS
...
3
WASHER BS-312081GS
...
5
E-RING BS-703977
...
6
HUBCAP BS-312485GS
...
7
PIN BS-B4135GS
...
8
NUT BS-67989GS
...
9
SCREW BS-794829
...
10
SUPPORT-LEG BS-312510GS
...
11
POST BS-311558GS
...
---
KIT-HARDWARE (Not Illustrated) BS-312809GS

Wiring Diagram (313761WD)

...

No Parts Available for this Schematic

Wiring Schematic (313761WS)

...

No Parts Available for this Schematic
