Briggs & Stratton 030419-0 - 6,200 Watt John Deere

Model: 030419-0 - 6,200 Watt John Deere

Save Part Not Listed?
product name

Alternator

...
...
1
ADAPTER, Alternator BS-209599GS
...
2
ROTOR ASSEMBLY BS-191876GS
...
3
STATOR BS-203480GS
...
4
RBC, (with O-Ring p/n 189197GS) BS-193336GS
...
5
CAPSCREW, Hex Head, SEMS, M6 - 1.0 x 140 BS-86308HGS
...
6
BRUSH HOLDER ASSEMBLY BS-66386GS
...
7
HHCS, M5-0.8 X 16 BS-49815GS
...
8
BEARING BS-65791GS
...
9
PIN, Roll, 4mm x 10 BS-81917GS
...
10
BOARD, Circuit, System Control BS-205858GS

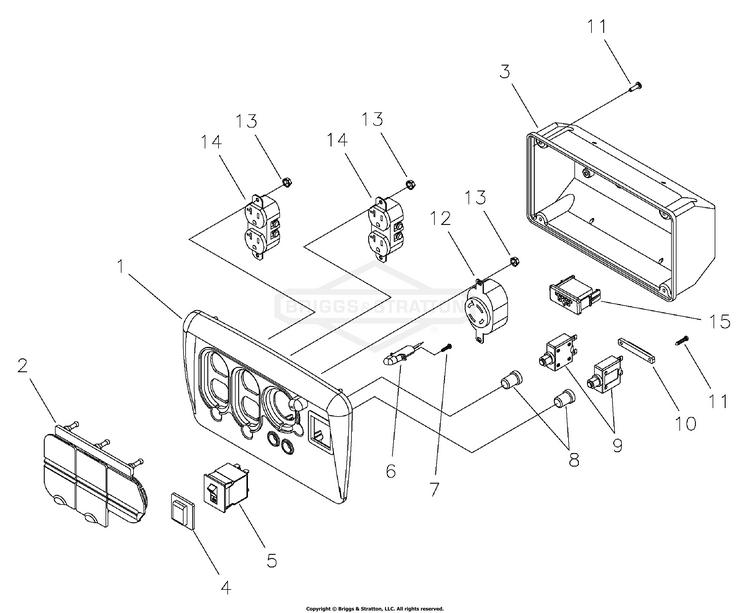

Control Panel

...
...
1
CONTROL PANEL BS-198468GS
...
2
COVER, Outlet BS-197472GS
...
3
BOX, Control Panel BS-201573GS
...
4
BOOT, Breaker Circuit BS-191481GS
...
5
BREAKER, Circuit, 30A BS-202033GS
...
6
LAMP, LED BS-202951GS
...
7
SCREW BS-197958GS
...
8
BOOT, Circuit Breaker BS-84198GS
...
9
BREAKER, Circuit, 20A BS-202394GS
...
10
BAR, Retaining BS-202932GS
...
11
SCREW BS-84543BGS
...
12
OUTLET, 120/240V TL30A BS-43437GS
...
13
PALNUT, 3/16 BS-189164GS
...
14
OUTLET, 120V 20A BS-197731GS
...
15
CONNECTOR, 6 PIN BS-201678GS

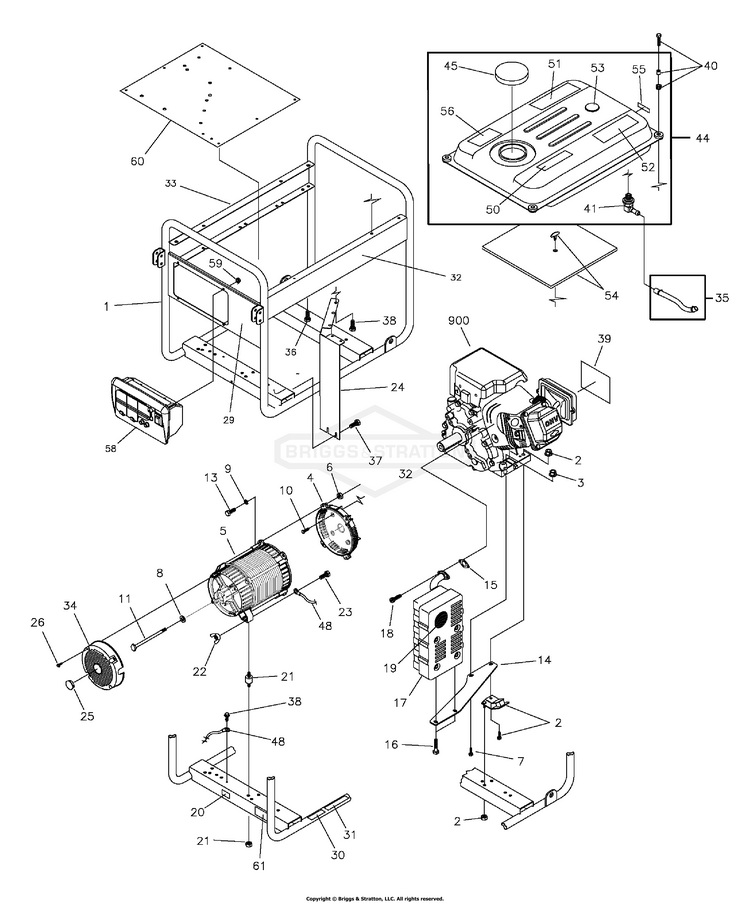

Main Unit

...
...
1
CRADLE BS-W203242GS
...
2
MOUNT, Vibration BS-194150GS
...
3
NUT BS-67989GS
...
4
ADAPTER, Engine BS-190220GS
...
7
SCREW, Pan Head Torx, M8 1.25 x 35 BS-195398GS
...
8
WASHER BS-96796GS
...
10
SCREW BS-190274DGS
...
11
SCREW BS-187365FGS
...
14
BRACKET BS-189009GS
...
15
GASKET, Exhaust BS-695398
...
17
MUFFLER BS-189008GS
...
19
ARRESTOR, Spark BS-83083GS
...
20
DECAL BS-B4986GS
...
21
MOUNT-VIBRATION BS-194153GS
...
22
NUT BS-87680GS
...
24
HEAT SHIELD BS-194390GS
...
25
CAP BS-191190GS
...
26
TAPTITE BS-74908GS
...
29
DECAL BS-203450GS
...
30
DECAL BS-204418GS
...
31
DECAL BS-200310GS
...
32
DECAL BS-203679GS
...
33
DECAL BS-203449GS
...
34
COVER, Rear Bearing BS-195422GS
...
35
LINE, Fuel BS-791745
...
36
SCREW BS-192376GS
...
37
CRIMPTITE BS-56893GS
...
38
SCREW BS-B2153GS
...
39
DECAL BS-203451GS
...
40
KIT, Hardware, Fuel Tank (Qty 4) BS-198221GS
...
41
VALVE, Fuel BS-310574GS
...
44
TANK, Fuel (Includes Ref. Nos. 41, 45, 50, 51, 52, 53, 55 & 56) BS-203600GS
...
45
CAP, Fuel BS-189135GS
...
48
WIRE BS-195373GS
...
50
DECAL BS-188333GS
...
51
DECAL BS-194984GS
...
52
DECAL BS-94480GS
...
53
GUAGE BS-192724GS
...
54
INSULATION BS-194448GS
...
55
DECAL BS-197797GS
...
56
DECAL BS-202997GS
...
58
CONTROL PANEL BS-201576GS
...
59
PALNUT, 3/16 BS-189164GS
...
60
HEAT SHIELD BS-208183GS
...
61
DECAL BS-200311GS
...
--
MANUAL, Operators, English (Not Illustrated) BS-203278GS
...
--
MANUAL, Operators, Spanish (Not Illustrated) BS-203489GS
...
--
MANUAL, Operators, French (Not Illustrated) BS-203490GS
...
--
CORD, Power (Not Illustrated) BS-206775GS
...
--
DECAL (Not Illustrated) BS-208834GS

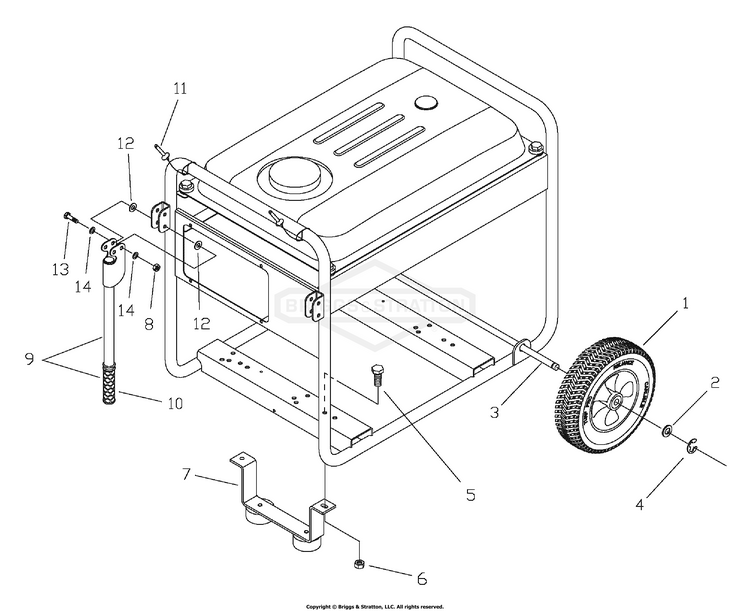

Wheel Kit

...
...
1
WHEEL BS-201563GS
...
3
AXLE BS-191267RGS
...
4
E-RING BS-703977
...
6
NUT, Flange Serrated, M8 BS-67989GS
...
7
SUPPORT, Leg BS-198629GS
...
9
HANDLE BS-B193200GS
...
10
GRIP, Handle BS-198669GS
...
11
PIN BS-B4135GS
...
--
KIT, Hardware, Wheel (Not Illustrated) BS-203180GS

Wiring Diagram

...

No Parts Available for this Schematic

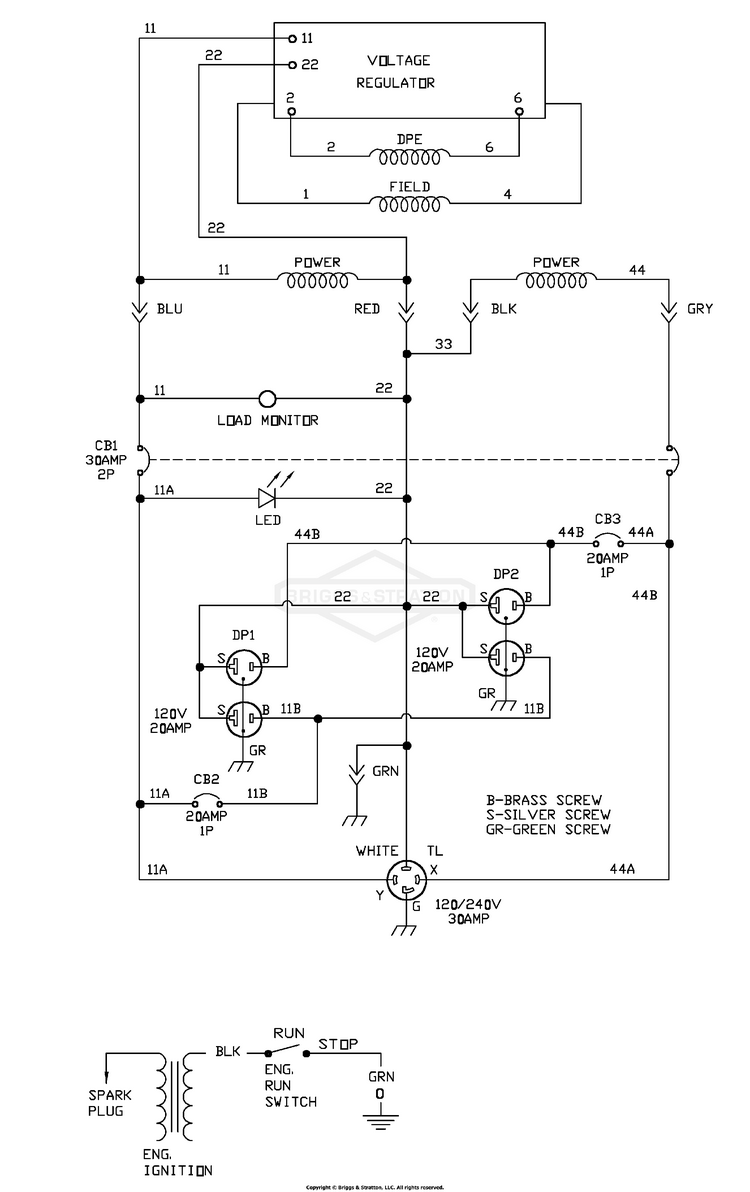

Wiring Schematic

...

No Parts Available for this Schematic
