Briggs & Stratton 030331-0 - 3,550 Watt Troy-Bilt

Model: 030331-0 - 3,550 Watt Troy-Bilt

Save Part Not Listed?
product name

Popular Parts

Popular Parts

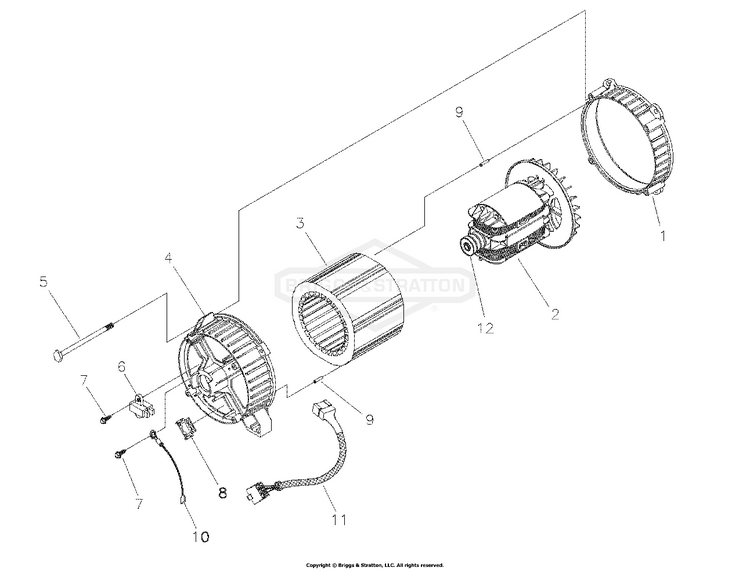

ALTERNATOR

...
...
1
ADAPTER, Alternator BS-209599GS
...
2
ROTOR BS-192164GS
...
3
STATOR BS-199047AGS
...
4
RBC, (with O-Ring p/n 189197GS) BS-193336GS
...
5
HHCS, M6 - 1.0 x 95 SEMS BS-86308JGS
...
6
ASSY, Holder, Rectifier/Brush BS-91825GS
...
7
HHCS, M5-0.8 X 16 BS-49815GS
...
8
RECEPTACLE, 6 pin BS-22694GS
...
9
PIN, Roll, 4mm x 10 BS-81917GS
...
10
WIRE-A, Ground BS-193428AGS
...
11
HARNESS, Wire, Power BS-194274GS
...
12
BEARING BS-65791GS

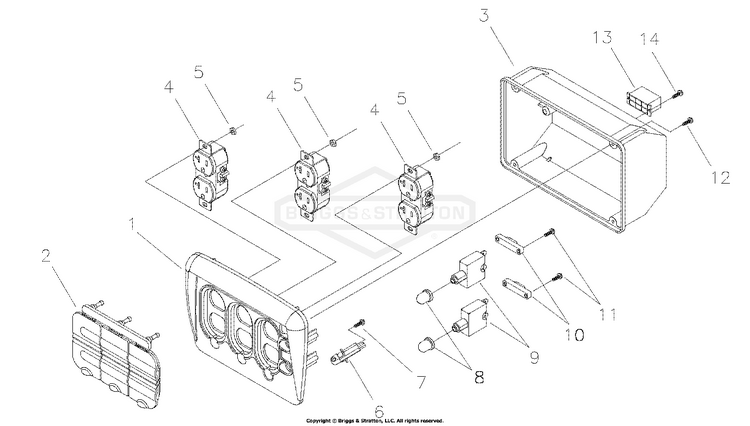

CONTROL PANEL

...
...
1
PANEL, Control BS-196898GS
...
2
COVER, Outlet Flip BS-197004GS
...
3
COVER, Back Panel BS-188890GS
...
4
OUTLET, 120V, 15/20A Dplx BS-197731GS
...
5
NUT, 5/32 Pal BS-189165GS
...
6
LIGHT, Led Panel BS-202951GS
...
7
SCREW, 3 x 6, Tapping BS-197958GS
...
8
CAP, Breaker BS-84198GS
...
9
BREAKER, Circuit, 15A BS-75207DGS
...
10
BAR, Retaining BS-197805GS
...
12
SCREW, 3.5 x 14, Tapping BS-192241GS
...
13
HOUSING, Rcptcl, 6 Pin BS-22694GS
...
14
SCREW, 3 x 18, Tapping BS-82308GS

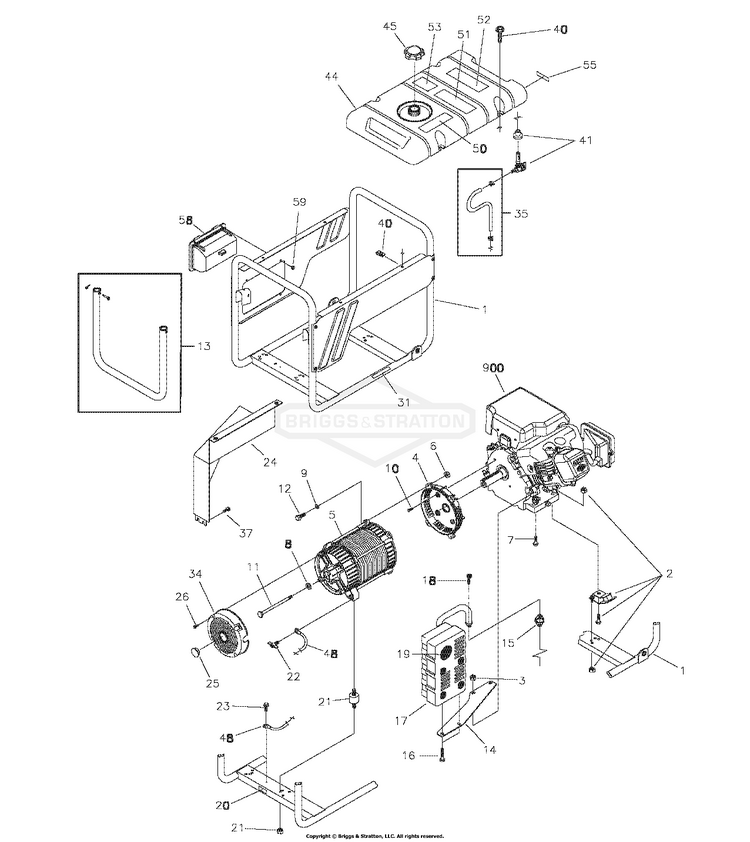

Main Unit

...
...
1
KIT, Cradle (Includes #'s 20 & 31) BS-197670GS
...
2
KIT, Vibration, Mount, 45° BS-194150GS
...
3
NUT, M8 Flange Serrated BS-67989GS
...
4
HOUSING, Engine Adapter BS-186058AGS
...
5
ASSY, Alternator (see page 5) BS-~NSP
...
8
WASHER, 8.4 x 22.2 x 3 BS-96796GS
...
11
HHCS, 5/16-24 x 7 BS-47480GS
...
13
KIT, Handle BS-194330GS
...
14
BRACKET, Muffler BS-191785GS
...
15
GASKET-EXHAUST BS-692237
...
17
MUFFLER BS-188301GS
...
19
SCREEN, Spark Arrest BS-83083GS
...
20
DECAL, Ground, Green BS-B4986GS
...
21
MOUNT-VIBRATION BS-194153GS
...
22
SCREW, Wing M6 - 1.0 x 16 BS-86494GS
...
23
SCREW, 10 - 16 x .68, Self Drill BS-195094GS
...
24
SHIELD, Heat BS-198037GS
...
25
CAP BS-191190GS
...
26
SCREW, M5-0.8 x 10, Taptite BS-74908GS
...
31
DECAL, Exhaust Warning BS-196830GS
...
34
COVER, RBC, Plastic w/Cap BS-195422GS
...
35
KIT, Hose Formed BS-195207GS
...
37
CRIMPTITE, 10-24 x 1/2 BS-56893GS
...
40
KIT, Fuel Tank Hardware w/U-Clips BS-199433GS
...
xx
U-CLIPS, (Optional Accessory) BS-199284GS
...
41
KIT, Valve, Fuel Tank BS-192980GS
...
44
ASSY., Tank, Fuel (Includes #'s 41, 50, 51, 52, 53 & 55) BS-198226GS
...
45
CAP, Fuel Tank BS-846987
...
48
WIRE, Ground BS-195373GS
...
50
DECAL, Gas Fill BS-188333GS
...
51
DECAL, Danger BS-194799GS
...
52
DECAL, Start Instructions BS-189235GS
...
53
DECAL, Warning, CO BS-202997GS
...
55
DECAL, Shut-Off, Fuel BS-197798GS
...
58
ASSY, Control Panel BS-200430GS
...
xx
MANUAL, Operator's Not Illustrated BS-202371GS
...
xx
BOTTLE, Oil Not Illustrated BS-100005
...
xx
CORD, Power Not Illustrated BS-206775GS
...
xx
KIT, Decals Not Illustrated BS-202658GS

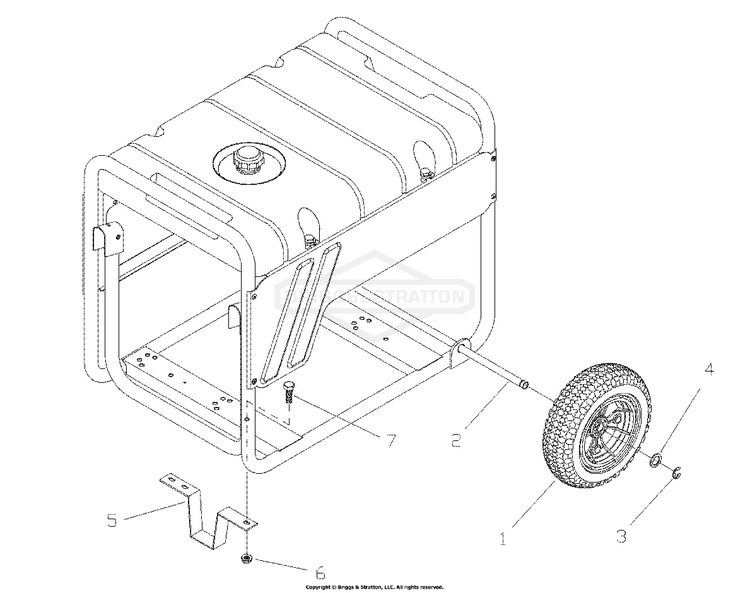

WHEEL KIT

...
...
1
WHEEL BS-209322GS
...
2
AXLE BS-191267NGS
...
3
E-RING BS-703977
...
5
SUPPORT, Wheel Kit BS-B1764GS
...
6
NUT, M8 Flange Serrated BS-67989GS

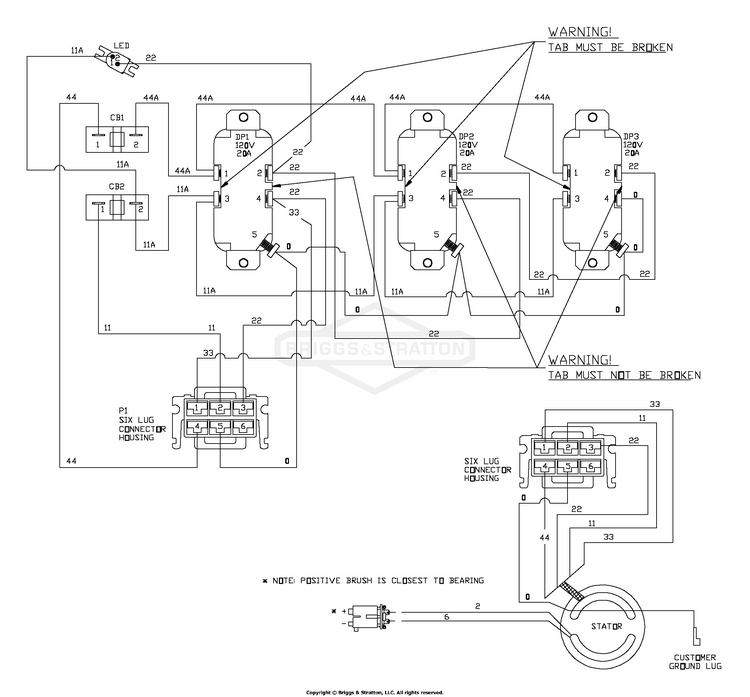

Wiring Diagram

...

No Parts Available for this Schematic

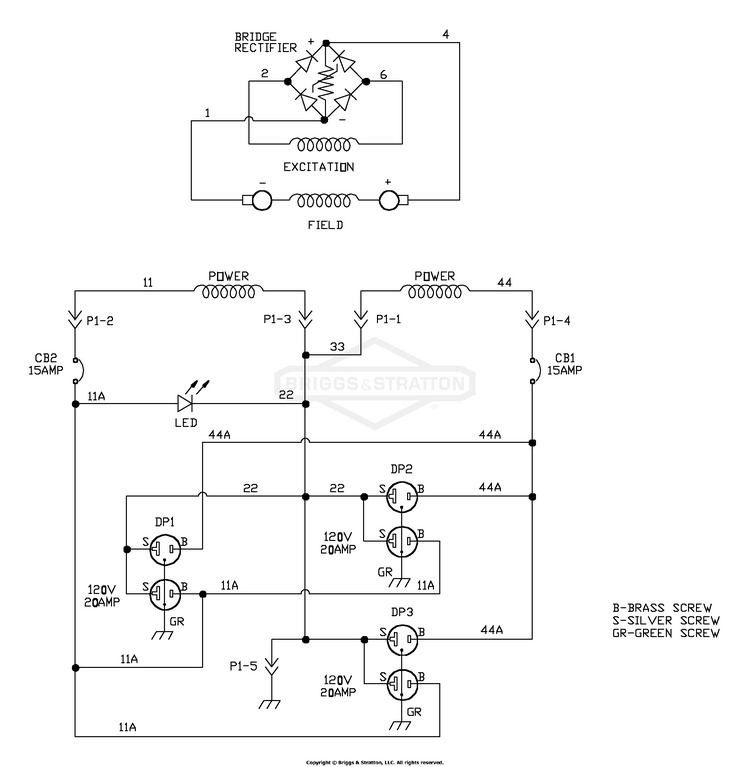

Wiring Schematic

...

No Parts Available for this Schematic
