Briggs & Stratton 030299-1 - 6,300 Watt Craftsman

Model: 030299-1 - 6,300 Watt

Save Part Not Listed?
product name

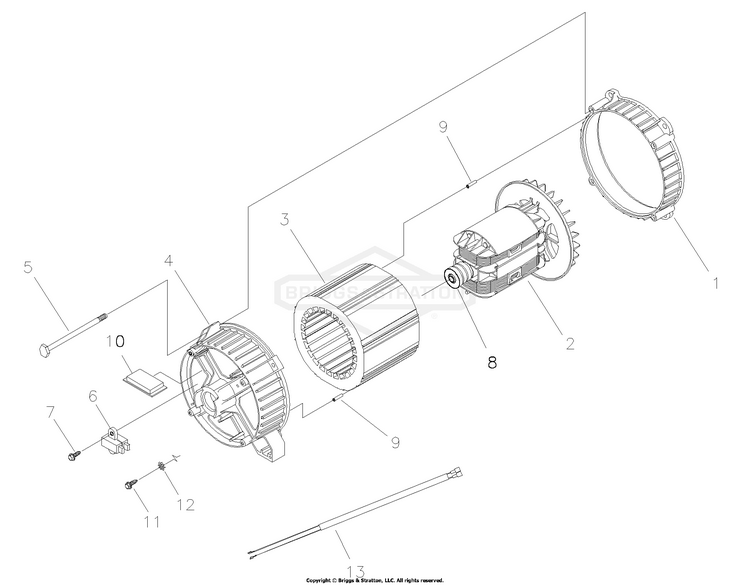

Alternator

...
...
1
ADAPTER, Alternator BS-209599GS
...
2
ASSY, Rotor (Includes Item 8) BS-191876GS
...
3
STATOR BS-200433AGS
...
4
RBC, (with O-Ring p/n 189197GS) BS-193336GS
...
5
HHC!:, M6 - 1.0 x 140!:EMS BS-86308HGS
...
6
ASSY, Holder, Brush BS-66386GS
...
7
HHCS, M5-0.8 X 16 BS-49815GS
...
8
BEARING BS-65791GS
...
9
PIN, Roll, 4mm x 10 BS-81917GS
...
10
BOARD, Circuit, System Control BS-205858GS
...
11
SCREW, M5 - 0.8 x 10, Taptite BS-74908GS
...
12
WASHER, Shakeproof, Ext. #10 BS-23762GS
...
13
HARNESS, Monitor Load BS-199119GS

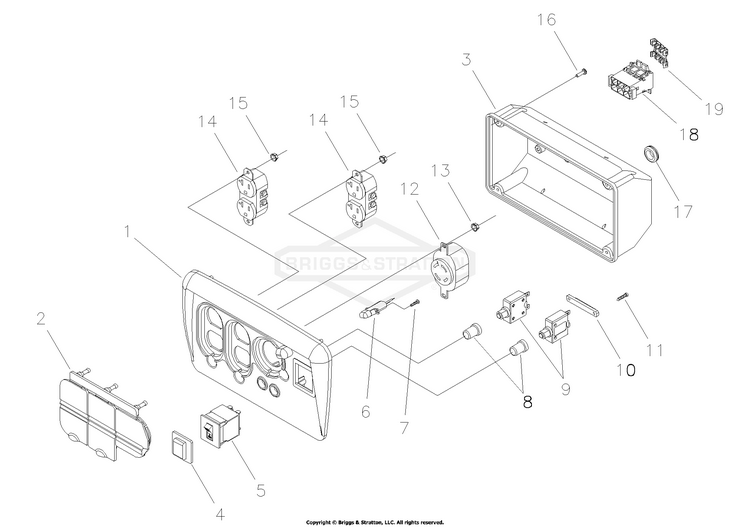

Control Panel

...
...
1
PANEL, Control BS-198468GS
...
2
COVER, Flip Outlets BS-197472GS
...
3
BOX, Control Panel BS-198477GS
...
4
BOOT, Breaker Circuit BS-191481GS
...
5
BREAKER, Circuit, 30A BS-192785GS
...
6
LIGHT, Led Panel BS-198649GS
...
7
SCREW, 3 x 6, Tapping BS-197958GS
...
8
CAP, Breaker, Circuit BS-84198GS
...
9
BREAKER-CIRCUIT 20A BS-209872GS
...
10
BAR, Retaining BS-93857GS
...
11
PPPHS, M3-0.5 x 18 BS-84543CGS
...
12
OUTLET, 120/240V, 30A BS-43437GS
...
13
PALNUT, 3/16 BS-189164GS
...
14
OUTLET, 120V, 15/20A BS-197731GS
...
15
NUT, 5/32 Pal BS-189165GS
...
16
SCREW, 3.5 x 14, Tapping BS-192241GS
...
17
GROMMET BS-38057GS
...
18
PLUG, Dual Row, Housing, 6 Circuit BS-199528GS
...
19
STRIP, Dual Row, TPA, 6 Circuit BS-199532GS
...
xx
TUBING, Fabric, Heat Shrinkable Parts Not Illustrated BS-201171GS

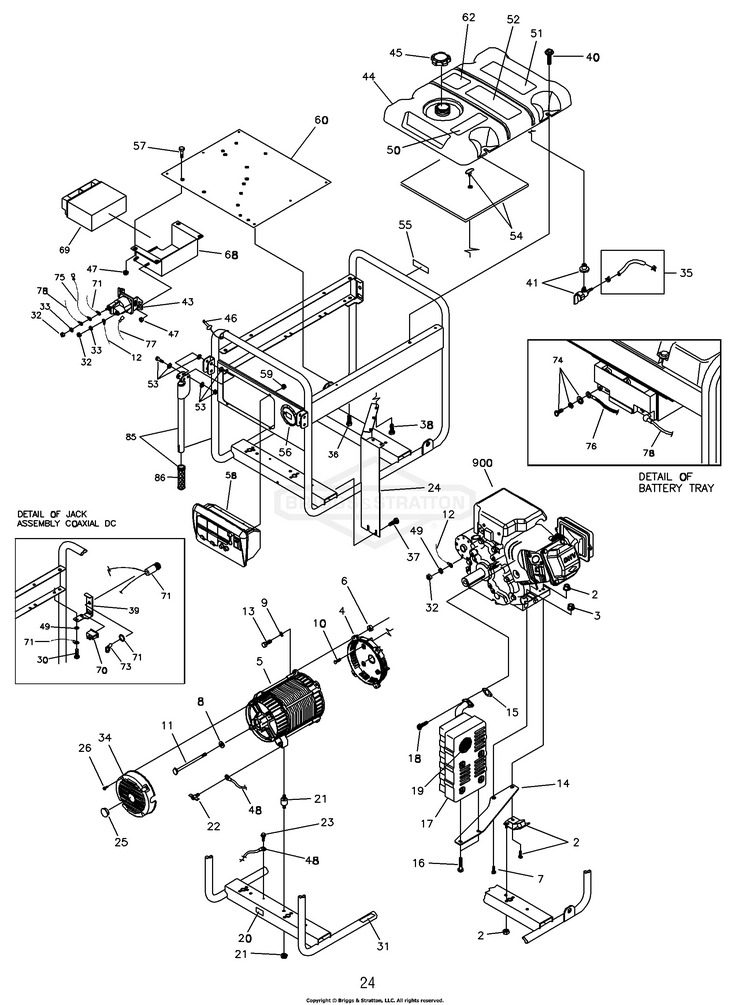

Main Unit

...
...
1
Cradle (Includes Items 20, 31 & 55) BS-B198566GS
...
2
KIT, Vibration Mount, 45° BS-194150GS
...
3
NUT, M8 Flange Serrated BS-67989GS
...
4
ADAPTER, Engine BS-190220GS
...
5
ASSY, Alternator (see page 27) BS-~NSP
...
7
TPHMS, M8 1.25 x 35 BS-195398GS
...
8
WASHER, 8.4 x 22.2 x 3 BS-96796GS
...
10
SBHC, 3/8-16 x 7/8" BS-190274DGS
...
11
HHCS, 5/16 - 24 x 7.44 BS-187365FGS
...
12
ASSY, Wire, #16, Red BS-189302JGS
...
14
BRACKET, Muffler BS-189009GS
...
15
GASKET, Exhaust BS-695398
...
17
MUFFLER BS-189008GS
...
19
SCREEN, Spark Arrest BS-83083GS
...
20
DECAL, Ground BS-B4986GS
...
21
MOUNT-VIBRATION BS-194153GS
...
22
SCREW, Wing M6 - 1.0 x 16 BS-86494GS
...
23
SCREW BS-313085GS
...
24
ASSY, Heat Shield BS-194390GS
...
25
CAP BS-191190GS
...
26
TAPTITE, M5 - 0.8 x 10 BS-74908GS
...
30
SCREW, M6 - 1 x 12 Taptite BS-90388GS
...
31
DECAL, Warning, Exhaust BS-196830GS
...
34
COVER, RBC Plastic with Cap BS-195422GS
...
35
LINE, Fuel BS-791745
...
36
SCREW, 12 - 24 x 1/2 Thread Forming BS-192376GS
...
37
CRIMPTITE, 10-24 x 1/2 BS-56893GS
...
38
SCREW, Self Driller, 12-14 x 7/8 BS-B2153GS
...
39
BRACKET, Switch/Jack BS-198757GS
...
40
BOLT, Shoulder, M6 - 1.0 w/washer BS-199256GS
...
41
VALVE, Fuel BS-192980GS
...
43
SOLENOID, Starter BS-691656
...
44
ASSY, Tank Fuel (Includes Items 41, 50, 51, 52 & 62) BS-194217GS
...
45
FUEL CAP, Fresh Start™ BS-198912GS
...
46
PIN, Handle BS-B4135GS
...
47
NUT, M6 Flange Lock BS-77395GS
...
48
WIRE, Ground BS-195373GS
...
50
DECAL, Instruction Fuel Level BS-188333GS
...
51
DECAL, Danger BS-194799GS
...
52
DECAL, Start Instructions BS-189235GS
...
53
KIT, Folddown Handle Hardware BS-194034GS
...
54
KIT, Insulation w/clip BS-194448GS
...
55
MANUAL, Operator's BS-197646GS
...
56
LOAD MONITOR BS-196908GS
...
58
ASSY, Control Panel (see page 26) BS-200301GS
...
59
PALNUT, 3/16 BS-189164GS
...
60
HEATSHEILD BS-195537GS
...
62
DECAL, Warning, CO BS-202997GS
...
68
ASSY, Battery Tray w/Studs BS-198760GS
...
69
BATTERY BS-193043GS
...
70
SWITCH, Rocker On/Off BS-87799GS
...
71
ASSY, Jack, Coax, DC BS-199152GS
...
73
LUG, 1/4, #22/18 BS-192351GS
...
74
KIT, Hardware Battery BS-193347GS
...
75
ASSY, Wire, #13 Red BS-198871GGS
...
76
ASSY, Wire, #55 Blk BS-185939KGS
...
77
ASSY, Wire, #13B Red BS-198871HGS
...
78
ASSY, Wire, #13 Red BS-189302MGS
...
85
ASSY, Fold Down Handle BS-B193200GS
...
86
GRIP, Handle BS-198669GS
...
900
ENGINE (210415-0138-E1) (see pages 29-32) BS-~NSP
...
xx
MANUAL, Operator’s Parts Not Illustrated BS-201492GS
...
xx
BOTTLE, Oil Parts Not Illustrated BS-BB3061GS
...
xx
CHARGER, Battery Parts Not Illustrated BS-84002790
...
xx
CARTRIDGE, Fresh Fuel Parts Not Illustrated BS-5097D
...
xx
DECAL, Family, CA EVP Parts Not Illustrated BS-202180GS
...
xx
CORD, Power Parts Not Illustrated BS-206775GS
...
xx
KIT, Decal Service Parts Not Illustrated BS-199389GS

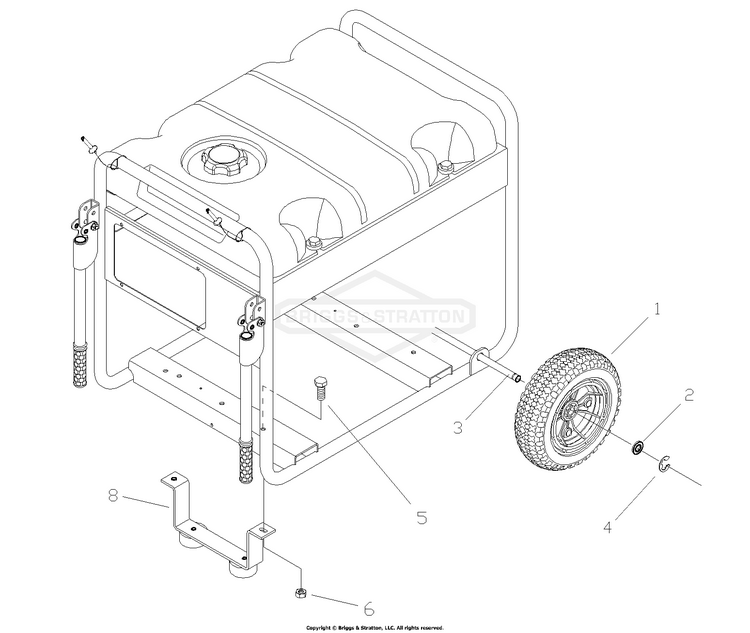

Wheel Kit

...
...
1
WHEEL BS-209322GS
...
3
AXLE BS-191267RGS
...
4
E-RING BS-703977
...
6
NUT, M8, Flange Serrated BS-67989GS
...
8
ASSY, Support w/Mounts BS-198629GS
...
xx
SUBKIT, Hardware Parts Not Illustrated BS-196157GS

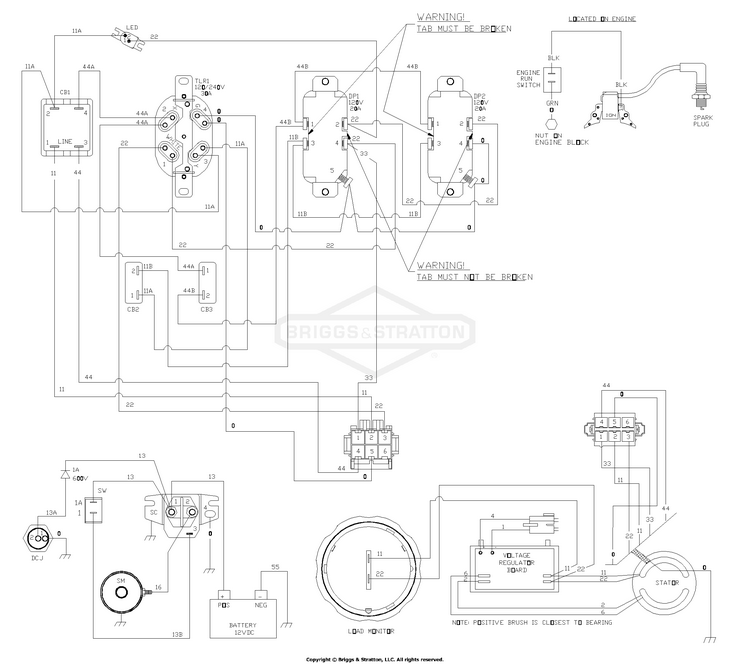

Wiring Diagram

...

No Parts Available for this Schematic

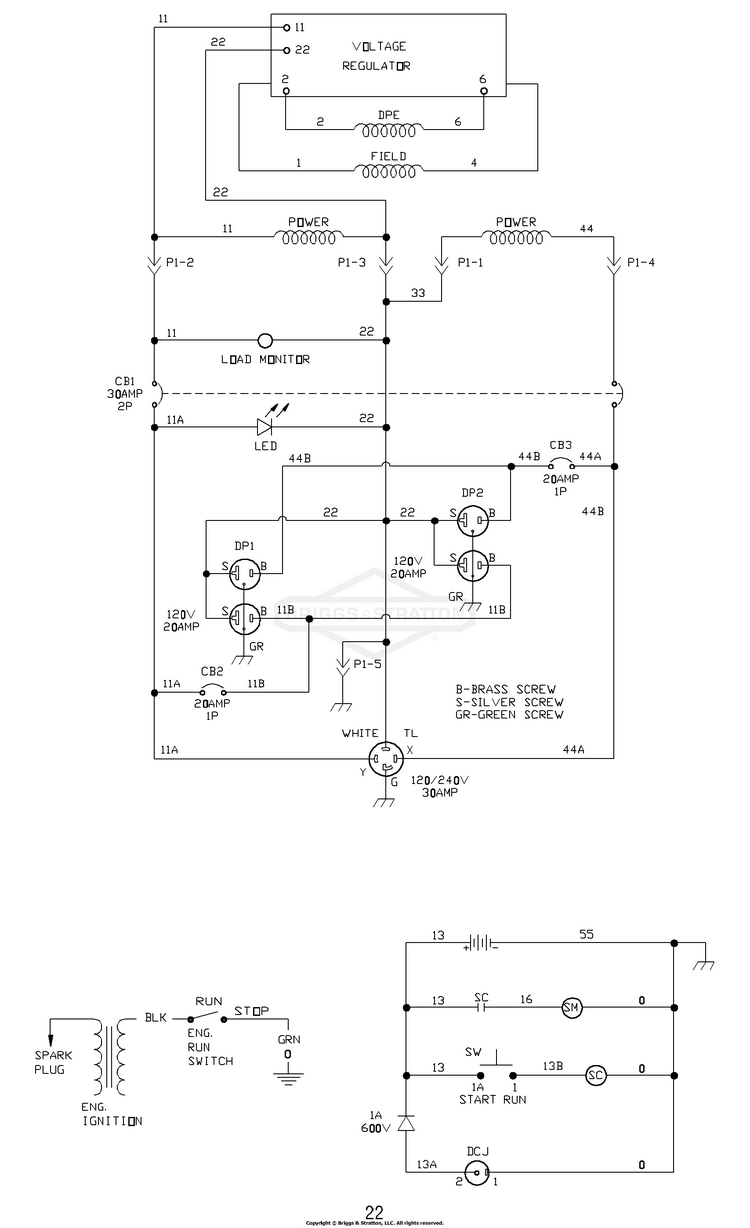

Wiring Schematic

...

No Parts Available for this Schematic
