Briggs & Stratton 030298-0 - 580.325650, 5,600 Watt Craftsman

Model: 030298-0 - 580.325650, 5,600 Watt

Save Part Not Listed?
product name

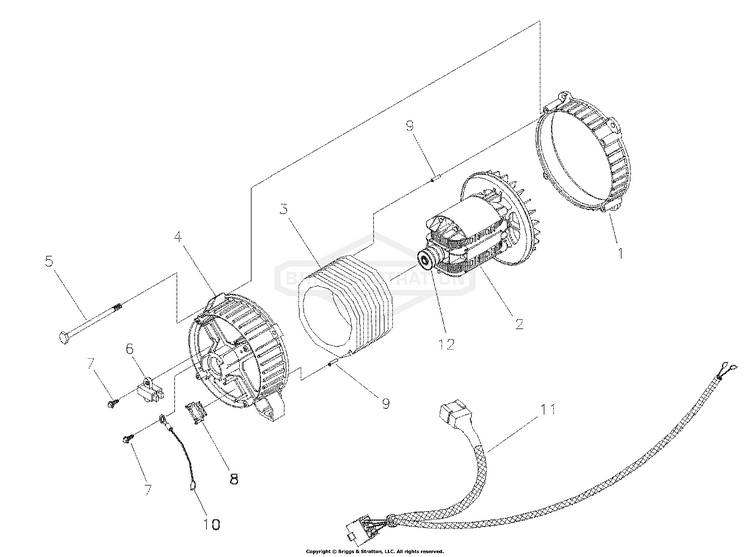

Alternator

...
...
1
ADAPTER, Alternator BS-209599GS
...
2
ROTOR (Includes Item 12) BS-191043GS
...
3
STATOR BS-191042AGS
...
4
RBC, (with O-Ring p/n 189197GS) BS-193336GS
...
5
HHCS, M6 - 1.0 x 130 SEMS BS-86308CGS
...
6
ASSY, Holder, Rectifier/Brush BS-91825GS
...
7
HHCS, M5-0.8 X 16 BS-49815GS
...
8
RECEPTACLE, 6 pin BS-22694GS
...
9
PIN, Roll, 4mm x 10 BS-81917GS
...
10
ASSY, Wire, Ground BS-193428AGS
...
11
HARNESS, Wire, Power BS-198779GS
...
12
BEARING BS-65791GS

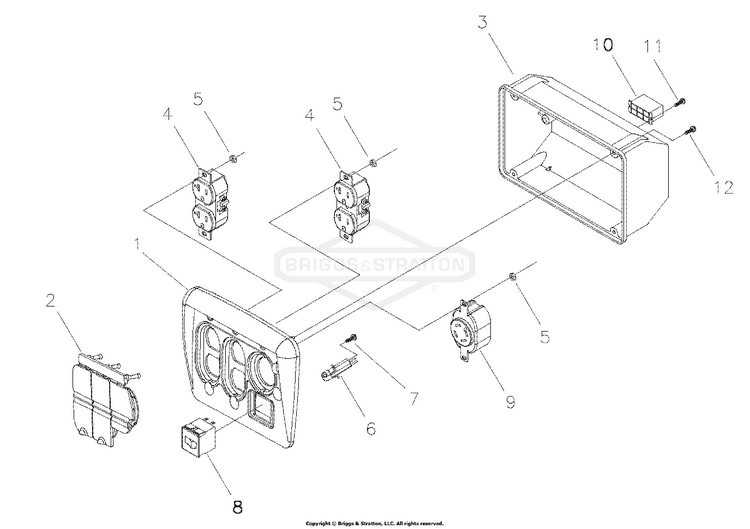

Control Panel

...
...
1
PANEL, Control BS-197471GS
...
2
COVER, Outlet Flip BS-197472GS
...
3
COVER, Back Panel BS-188890GS
...
4
OUTLET, 120V, 15/20A Dplx BS-197731GS
...
5
NUT, 5/32 Pal BS-189165GS
...
6
LIGHT, Led Panel BS-202951GS
...
7
SCREW, 3 x 6, Tapping BS-197958GS
...
8
BREAKER-CIRCUIT 20A BS-202030GS
...
xx
BOOT, Breaker Circuit BS-191481GS
...
9
OUTLET, 120/240V, 30A BS-43437GS
...
10
HOUSING, Rcptcl, 6 Pin BS-22694GS
...
11
SCREW, 3 x 18, Tapping BS-82308GS
...
12
SCREW, 3.5 x 14, Tapping BS-192241GS

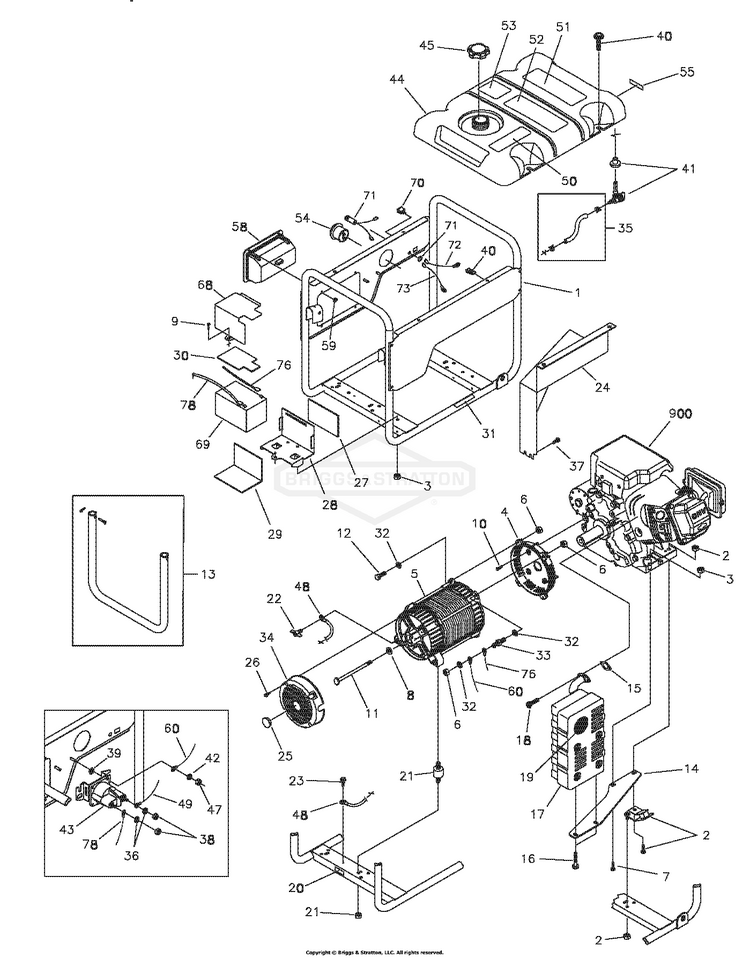

Main Unit

...
...
1
ASSY, Cradle (Includes Items 20 & 31) BS-199230GS
...
2
KIT, Vibration, Mount, 45° BS-194150GS
...
3
NUT, M8 Flange Serrated BS-67989GS
...
4
HOUSING, Engine Adapter BS-190220GS
...
5
ASSY, Alternator (see page 27) BS-~NSP
...
8
WASHER, 8.4 x 22.2 x 3 BS-96796GS
...
9
PPHS, 1/4-20 x .05 Trilobular BS-198611GS
...
10
SBHCS, 3/8 - 16 x 1 BS-190274BGS
...
11
HHCS, 5/16-24 x 7 BS-47480GS
...
13
KIT, Handle BS-198763GS
...
14
BRACKET, Muffler BS-189009GS
...
15
GASKET, Exhaust BS-695398
...
17
MUFFLER BS-189008GS
...
19
SCREEN, Spark Arrest BS-83083GS
...
20
DECAL, Ground, Green BS-B4986GS
...
21
MOUNT-VIBRATION BS-194153GS
...
22
SCREW, Wing M6 - 1.0 x 16 BS-86494GS
...
23
SCREW BS-313085GS
...
24
SHIELD, Heat BS-197424GS
...
25
CAP BS-191190GS
...
26
SCREW, M5-0.8 x 10, Taptite BS-74908GS
...
27
INSULATION BS-199228GS
...
28
KIT, Battery Tray w/Insltn BS-198700GS
...
29
INSULATION BS-199156GS
...
30
INSULATION BS-199157GS
...
31
DECAL, Exhaust Warning BS-196830GS
...
33
STUD, Double BS-187117GS
...
34
COVER, RBC, Plastic w/Cap BS-195422GS
...
35
LINE, Fuel BS-791745
...
37
CRIMPTITE, 10-24 x 1/2 BS-56893GS
...
40
KIT, Fuel Tank Hrdwr w/U-Clips BS-199433GS
...
xx
U-CLIPS, (Optional Accessory) BS-199284GS
...
41
KIT, Valve, Fuel Tank BS-192980GS
...
43
SOLENOID, Starter BS-691656
...
44
ASSY, Tank, Fuel (Includes Items 41, 50, 51, 52, 53 & 55) BS-193668GS
...
45
KIT, Fresh Start™ Fuel Cap, w/Crtrg BS-198912GS
...
48
WIRE, Ground BS-195373GS
...
49
WIRE BS-185931KGS
...
50
DECAL, Gas Fill BS-188333GS
...
51
DECAL, Danger BS-194799GS
...
52
DECAL, Start Instructions BS-189235GS
...
53
DECAL, CO Warning BS-202997GS
...
54
LOAD MONITOR BS-196908GS
...
55
DECAL, Shut-Off, Fuel BS-197798GS
...
58
ASSY, Control Panel (see page 26) BS-197641GS
...
60
WIRE BS-198871EGS
...
68
KIT, Battery Cover w/Insltn BS-199150GS
...
69
BATTERY BS-198711GS
...
70
SWITCH, Rocker BS-87799GS
...
71
ASSY, Jack Coaxial BS-198925GS
...
72
WIRE BS-198871LGS
...
73
WIRE BS-198871KGS
...
76
WIRE, Battery Negative BS-185931LGS
...
78
WIRE, Battery Positive BS-185931JGS
...
xx
MANUAL, Operator's Not Illustrated BS-198712GS
...
xx
BOTTLE, Oil Not Illustrated BS-BB3061GS
...
xx
CARTRIDGE, Fresh Fuel Not Illustrated BS-5097D
...
xx
CORD, Power Not Illustrated BS-206775GS
...
xx
SLEEVING Not Illustrated BS-192378AGS
...
xx
DECAL, Family, CA EVP Not Illustrated BS-202180GS
...
xx
CHARGER, Battery Not Illustrated BS-84002790
...
xx
KIT, Decals, Srv Not Illustrated BS-199231GS

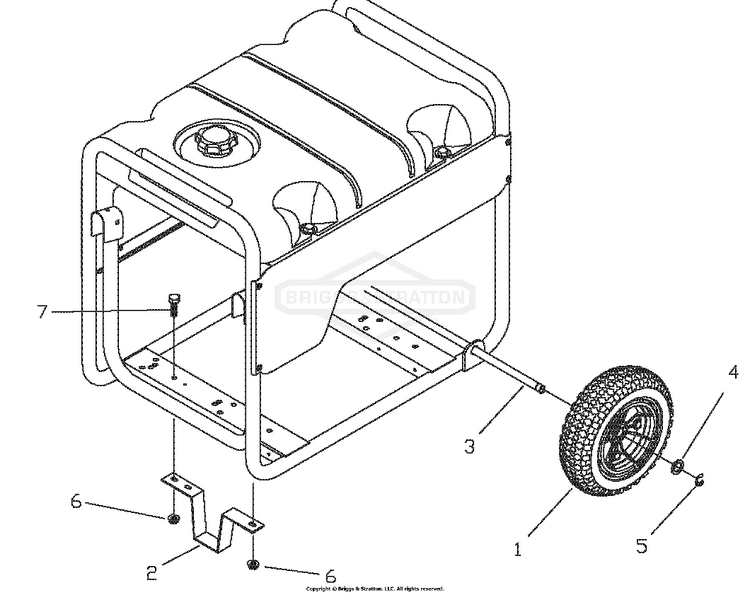

Wheel Kit

...
...
1
WHEEL BS-209322GS
...
2
SUPPORT, Wheel Kit BS-B1764GS
...
3
AXLE BS-191267HGS
...
5
E-RING BS-703977
...
6
NUT, M8 - Flange Serrated BS-67989GS
