product name

Briggs & Stratton 030243-2 - 5,600 Watt Craftsman

Model: 030243-2 - 5,600 Watt

Save Part Not Listed?
product name

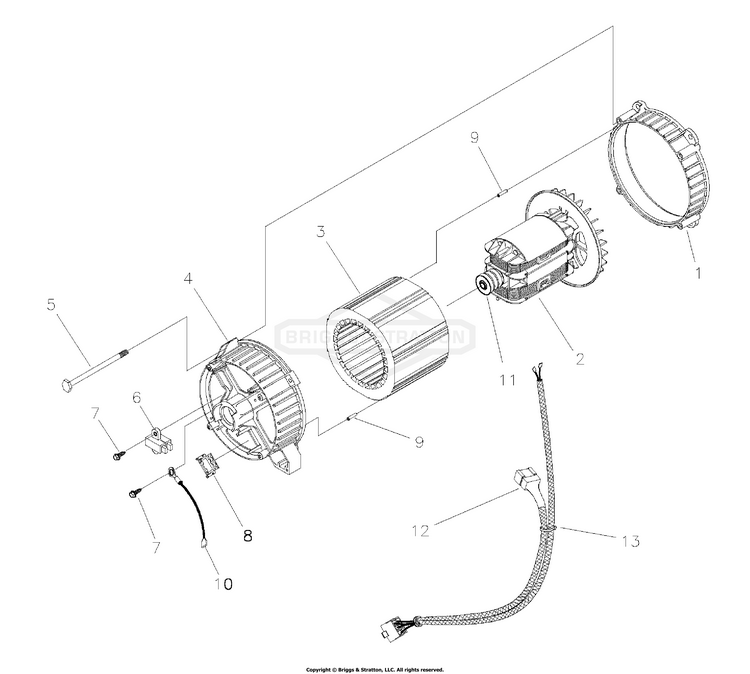

Alternator (200817)

...
...
1
ADAPTER, Alternator Adaptateur, assemblage, alternateur BS-209599GS
...
2
Assy, Rotor (Includes Item 11) Ensemble, rotor inclut l†article 11 BS-190032GS
...
3
Stator Stator BS-190079AGS
...
4
RBC, (with O-Ring p/n 189197GS) (p/n 189197GS) RBC, avec joint torique (n/p 189197GS) BS-193336GS
...
5
HHCS, M6 - 1.0 x 140 SEMS HHCS, M6 - 1.0 x 140 SEMS BS-86308HGS
...
6
Assy, Holder, Rectifier/Brush Ensemble, support, redresseur/brosse BS-91825GS
...
7
HHCS, M5-0.8 X 16 Taptite, M5 - 0.8 x 16 BS-49815GS
...
8
Receptacle, 6 Pin Prise, 6 broches BS-22694GS
...
9
Pin, Roll, 4mm x 10 AXE, rouleau, 4 mm x 10 BS-81917GS
...
10
Assy, Wire, Ground Ensemble, fil, mise a la terre BS-193428AGS
...
11
Bearing Roulement A Billes BS-65791GS
...
12
Harness, Wire, Power Faisceaux, Fil BS-198779GS

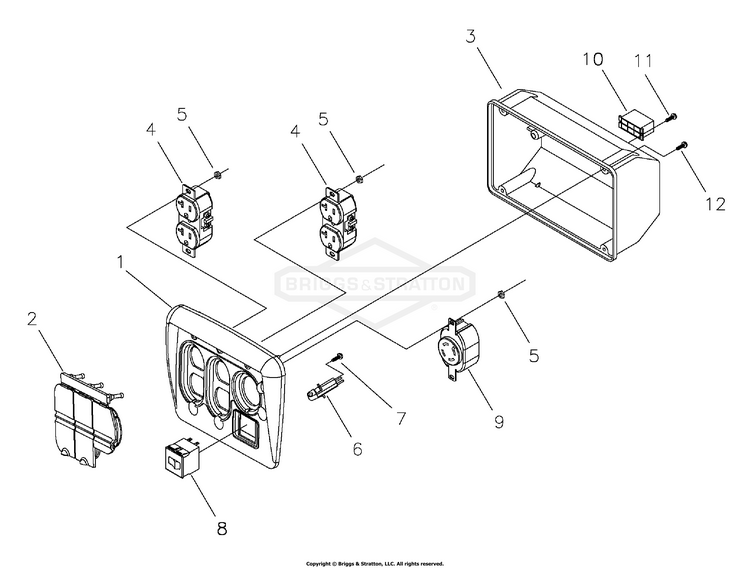

Control Panel (202889)

...
...
1
Panel, Control Tableau, Commande BS-197471GS
...
2
Cover, Outlet Flip Couvercle, Sortie A Rabat BS-197472GS
...
3
Cover, Back Panel Couvercle, Tableau Arriere BS-188890GS
...
4
Outlet, 120V, 15/20A Dplx Prise, 120 V, 15/20 A Double BS-197731GS
...
5
Nut, 5/32 Pal Ecrou, 5/32 Pal BS-189165GS
...
6
LIGHT, Led Panel Module, Del BS-202951GS
...
7
Screw, 3 x 6, Tapping Vis, 3 x 6, Autotaraudeuse BS-197958GS
...
8
BREAKER-CIRCUIT 20A Disjoncteur, 20 A BS-202030GS
...
xx
BOOT, Breaker Circuit Not Shown Gaine, Disjoncteur Non Montre BS-191481GS
...
9
Outlet, 120/240V, 30A Prise, 120/240 V, 30 A BS-43437GS
...
10
Housing, Rcptcl, 6 Pin BATI, Prise, 6 Broches BS-22694GS
...
11
Screw, 3 x 18, Tapping VIS, 3 x 18, Autotaraudeuse BS-82308GS
...
12
Screw, 3.5 x 14, Tapping VIS, 3.5 x 14, Autotaraudeuse BS-192241GS

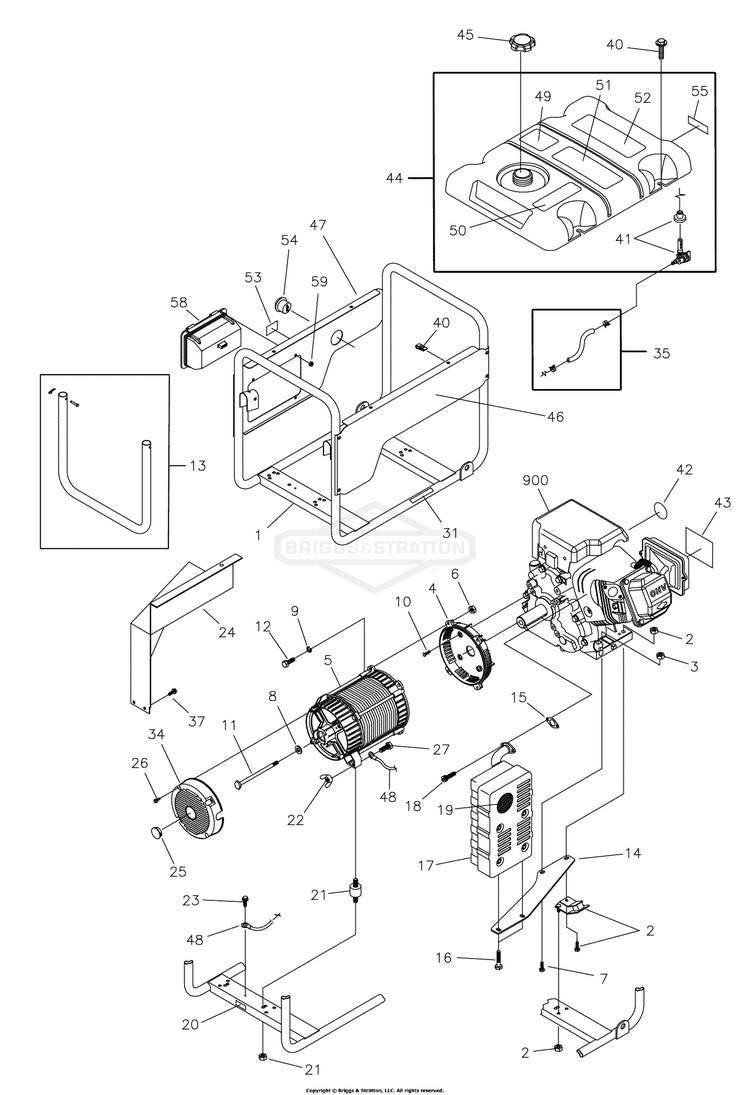

Main Unit (208860)

...
...
1
Assy, Cradle (Includes Items 20, 31 & 53) Ensemble, Berceau Inclut Les Articles 20, 31 & 53 BS-201885GS
...
2
KIT, Vibration, Mount, 45° Ensemble, Montant Antivibratile, 45° BS-194150GS
...
3
Nut, M8 Flange Serrated Ecrou, M8 a Embase Cannelee BS-67989GS
...
4
Housing, Engine Adapter BATI, Adaptateur De Moteur BS-190220GS
...
5
Assy, Alternator Alternator Ensemble, Alt Voir Page 27 BS-~NSP
...
7
TPHMS, M8 - 1.25 x 35 TPHMS, M8 - 1.25 x 35 BS-195398GS
...
8
Washer, M8 Flat Rondelle, M8 Plate BS-96796GS
...
11
HHCS, 5/16-24 x 7.44 HHCS, 5/16-24 x 7.44 BS-187365FGS
...
13
Kit, Handle Ensemble, Poignee BS-198763GS
...
14
Bracket, Muffler Support, Silencieux BS-189009GS
...
15
GASKET, Exhaust Joint D'Etancheite, Echappement BS-695398
...
17
Muffler Silencieux BS-189008GS
...
19
Screen, Spark Arrest Ecran, Pare-etincelles BS-83083GS
...
20
Decal, Ground, Green Decalque, Mise a La Terre, Vert BS-B4986GS
...
21
MOUNT-VIBRATION Ensemble, Montant Antivibratile BS-194153GS
...
22
NUT ECROU BS-87680GS
...
23
Screw, 12 - 14 x 7/8, Self Drill VIS, 12 - 14 x 7/8", autoperceuse BS-B2153GS
...
24
Shield, Heat Ecran, Thermique BS-197424GS
...
25
Cap Tete BS-191190GS
...
26
Screw, M5-0.8 x 10, Taptite VIS, M5-0.8 x 10, Taptite BS-74908GS
...
31
Decal, Exhaust Warning Decalque, avertissement d'echappement BS-200310GS
...
34
Cover,Bearing Carrier with Cap Couvercle, support de rondelle de butee avec bouchon BS-195422GS
...
35
LINE, Fuel cut to fit Ensemble, tuyau de carburant couper selon les besoins BS-791745
...
37
Crimptite, 10-24 x 1/2 Crimptite, 10-24 x 1/2 BS-56893GS
...
40
Kit, Fuel Tank Hrdwr w/U-Clips Ensemble, quincaillerie de reservoir d'essence a/attaches en U BS-199433GS
...
--
U-Clips, Optional Accessory Attaches EN U, accessoire optionnel BS-199284GS
...
41
Kit, Valve, Fuel Tank Ensemble, Soupape, Reservoir d'essence BS-192980GS
...
42
DECAL (DÉCALQUE) BS-200658GS
...
43
DECAL (DÉCALQUE) BS-198509GS
...
44
Assy, Tank, Fuel Includes Items 41, 50, 51, 52 & 55 Ensemble, Reservoir, Essence Inclut Les Articles 41, 50, 51, 52 & 55 BS-200814GS
...
45
Fuel Cap, Fresh Start â„¢ Bouchon De Reservoir, Fresh Startâ„¢ BS-198912GS
...
46
DECAL (DÉCALQUE) BS-198506GS
...
47
DECAL (DÉCALQUE) BS-198507GS
...
48
Wire, Ground Fil, mise a la terre BS-195373GS
...
50
Decal, Gas Fill Decalque, Remplissage d'essence BS-188333GS
...
51
Decal, Warning, French Decalque, Avertissement, francais BS-194984GS
...
52
Decal, Start Instructions, French Decalque, Directives De Demarrage, Francais BS-94480GS
...
53
Decal, Neutral Bonded Decalque, Neutre Raccorde BS-200311GS
...
54
Load Monitor Moniteur De Charge BS-196908GS
...
55
Decal, Shut-Off, Fuel Decalque, Arret De Carburant BS-197798GS
...
58
Assy, Control Panel Control Panel ENSEMBLE, tableau de commande voir page 26 BS-202529GS
...
900
Engine Moteur BS-204312-0171-B1
...
--
Manual, Operator's Manuel, utilisation Parts Not Illustrated Articles non illustres BS-208859GS
...
--
BOTTLE, Oil Bouteille, Huile Parts Not Illustrated Articles non illustres BS-BB3061GS
...
--
Cartridge, Fresh Fuel Cartouche, essence fraiche Parts Not Illustrated Articles non illustres BS-5097D
...
--
CORD, Power Cordon, Storm Parts Not Illustrated Articles non illustres BS-206775GS

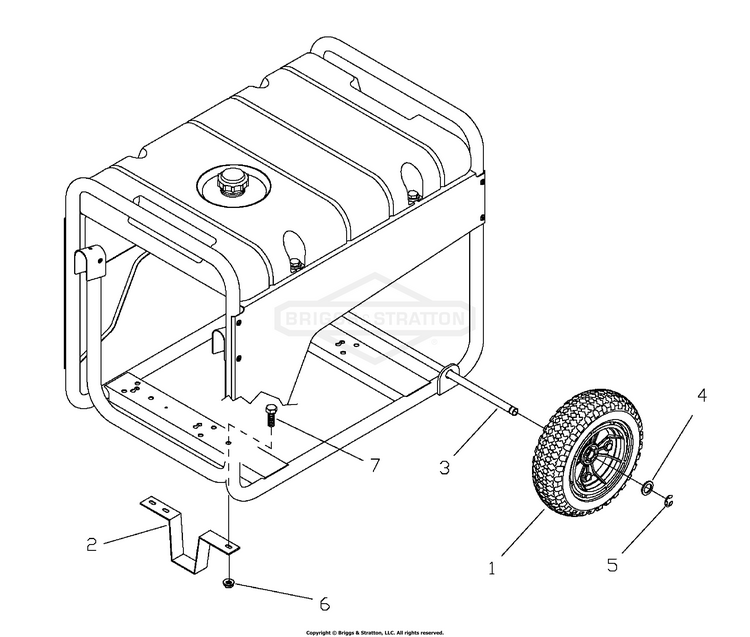

Wheel Kit (197317)

...
...
1
WHEEL Roue BS-209322GS
...
2
SUPPORT, Wheel Kit Support, Assemblage Ds Roues BS-B1764GS
...
3
AXLE Essieu BS-191267HGS
...
5
E-RING Anneau EN E BS-703977
...
6
NUT, M8 - Flange Serrated Ecrou, M8 - A Embase Cannele BS-67989GS
...
--
SUBKIT, Hardware Parts Not Illustrated Subkit, Materiel Articles Non Illustres BS-197594GS

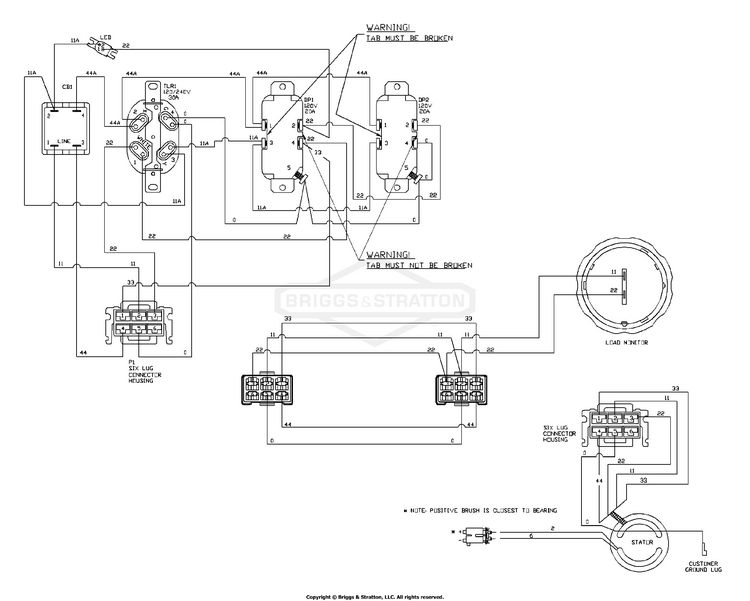

Wiring Diagram (198704)

...

No Parts Available for this Schematic

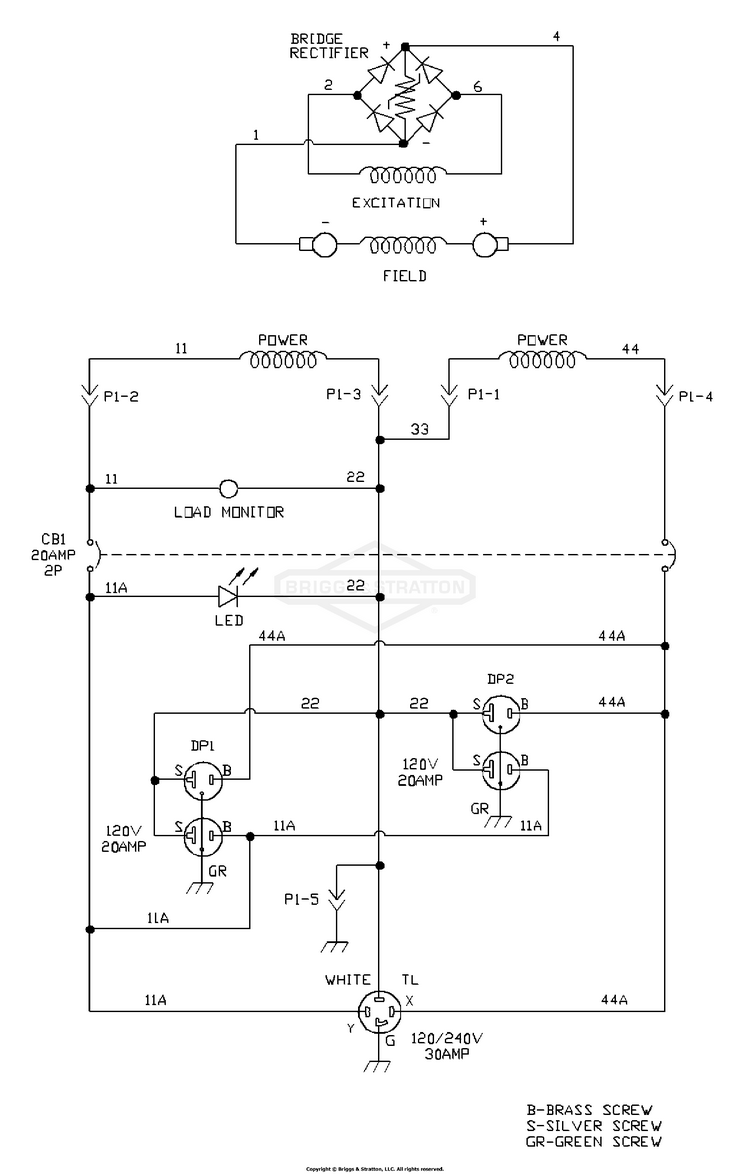

Wiring Schematic (198704)

...

No Parts Available for this Schematic
