Briggs & Stratton 030230-0 - 5,600 Watt PowerBoss

Model: 030230-0 - 5,600 Watt PowerBoss

Back To Assemblies

Save Part Not Listed?
product name

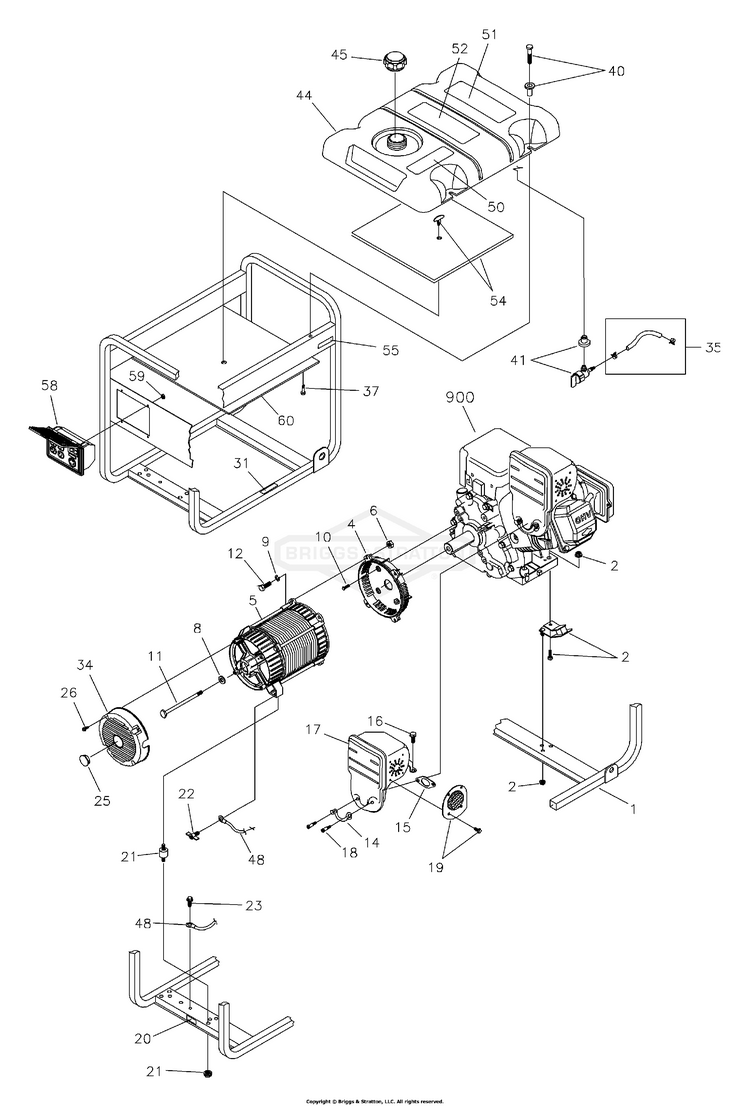

Main Unit (197105)

...
...
1
KIT, Cradle BS-B196941GS
...
2
KIT,Vibration Mount 45° BS-194150GS
...
4
HOUSING, Engine Adapter BS-190220GS
...
5
ASSY,Alternator (see "Alternator") BS-~NSP
...
8
WASHER, M8 Flat BS-96796GS
...
10
SBHCS, 3/8-16 x 1.0 Lg. BS-190274BGS
...
11
HHCS, 5/16-24 x 7 BS-47480GS
...
14
TAB, Locking BS-695400
...
15
GASKET, Muffler BS-794818
...
16
SCREW BS-695312
...
17
MUFFLER BS-794949
...
18
SCREW, Shoulder BS-695399
...
19
ARRESTOR, Spark BS-794945
...
20
DECAL, Ground, Green BS-B4986GS
...
21
MOUNT-VIBRATION BS-194153GS
...
22
SCREW,Wing M6 - 1.0 x 16 BS-86494GS
...
23
SCREW BS-313085GS
...
25
CAP BS-191190GS
...
26
SCREW, M5-0.8 x 10,Taptite BS-74908GS
...
31
DECAL, Hot Muffler BS-196830GS
...
34
COVER, Bearing Carrier w/ Cap BS-195422GS
...
35
LINE, Fuel (cut to fit) BS-791745
...
37
SCREW, 12-14 x 7/8 Self Drilling BS-B2153GS
...
40
KIT, Fuel Tank Hardware BS-194398GS
...
41
KIT,Valve,Tank BS-192980GS
...
44
ASSY,Tank, Fuel (Includes Items 41, 50, 51 & 52) BS-194217GS
...
45
CAP, Fuel BS-90878GS
...
48
WIRE, Ground BS-195373GS
...
50
DECAL, Gas Fill BS-188333GS
...
51
DECAL, Danger BS-194799GS
...
52
DECAL, Start Instructions BS-189235GS
...
54
KIT, Insulation w/Clip BS-194448GS
...
55
DECAL, Fuel Shut-off BS-197798GS
...
58
ASSY, Control Panel (see "Control Panel") BS-190355GS
...
60
SHIELD, Heat BS-193452GS
...
BOTTLE, Oil Not Illustrated BS-BB3061GS
...
MANUAL, Operator's Not Illustrated BS-197106GS
...
MANUAL, Engine Not Illustrated BS-MS5242
...
DECAL, Family, CA EVP Not Illustrated BS-199384GS
...
KIT, Decals, Service Not Illustrated BS-197563GS
...
Front Draw Bar w/Spindles-RH Side Optional Accessories BS-100126
