Briggs & Stratton 030228-0 - 8,000 Watt PowerBoss

Model: 030228-0 - 8,000 Watt PowerBoss

Save Part Not Listed?
product name

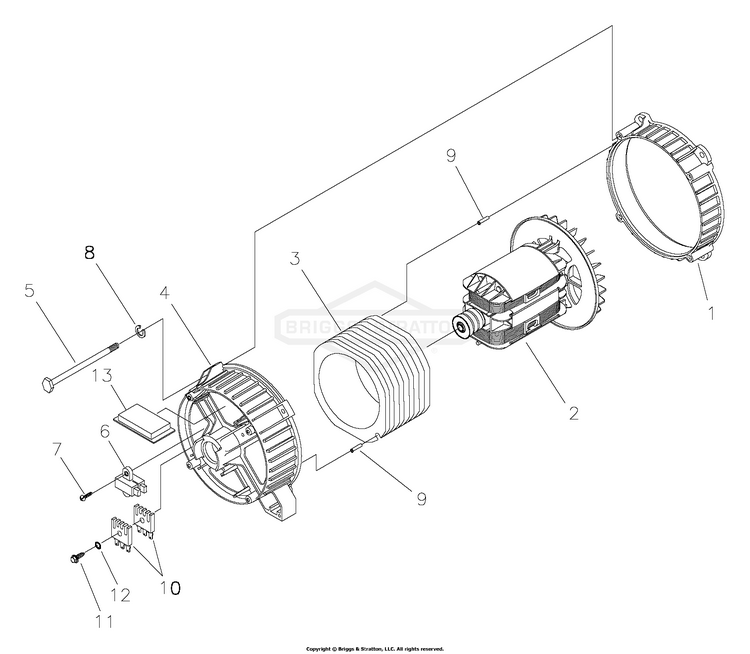

Alternator (196890)

...
...
1
ADAPTER, Alternator BS-209599GS
...
2
ROTOR BS-192938GS
...
3
STATOR BS-192937AGS
...
4
RBC, (with O-Ring p/n 189197GS) BS-193336GS
...
5
BOLT BS-66449LGS
...
6
ASSY, Holder, Rectifier/Brush BS-66386GS
...
7
HHCS, M5-0.8 X 16 BS-49815GS
...
8
WASHER BS-22097GS
...
9
PIN, Roll, 4mm x 10 BS-81917GS
...
10
RECTIFIER, Battery Charge BS-65795GS
...
11
TAPTITE, M5 - 0.8 x 30 BS-66849CGS
...
12
WASHER, Shakeproof, Ext. #10 BS-23762GS
...
13
BOARD, Circuit, System Control BS-205858GS
...
O-RING, 1.375 N I.D. X .093 IN BS-189197GS

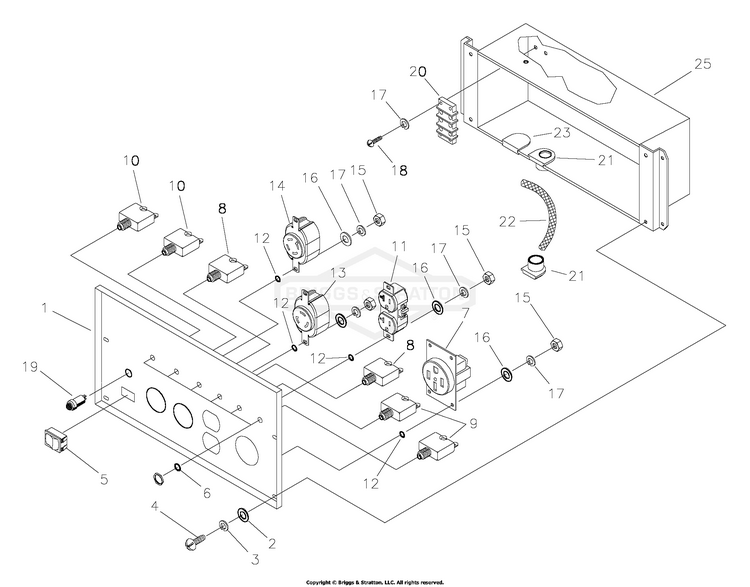

Control Panel (196893)

...
...
1
PANEL, Control BS-BB4461AGS
...
5
SWITCH BS-78653GS
...
7
RECEPTACLE BS-B4262GS
...
8
BREAKER-CIRCUIT 20A BS-209872GS
...
9
BREAKER, Circuit, 35A BS-75207NGS
...
10
BREAKER-CIRCUIT 30A BS-706178
...
11
OUTLET, 20A, 120V BS-68759GS
...
13
OUTLET-120V TL30A BS-705932
...
14
OUTLET, 30A, 120V/240V Locking BS-43437GS
...
19
JACK-COAXIAL BS-312004GS
...
20
BLOCK,Terminal, 50A BS-92953GS
...
21
GROMMET, Rubber BS-188632GS
...
22
CONDUIT, Flex, .50 ID BS-77043BGS
...
23
ASSY,Wire Harness BS-84135GS
...
25
BOX, Control Panel BS-B189104GS

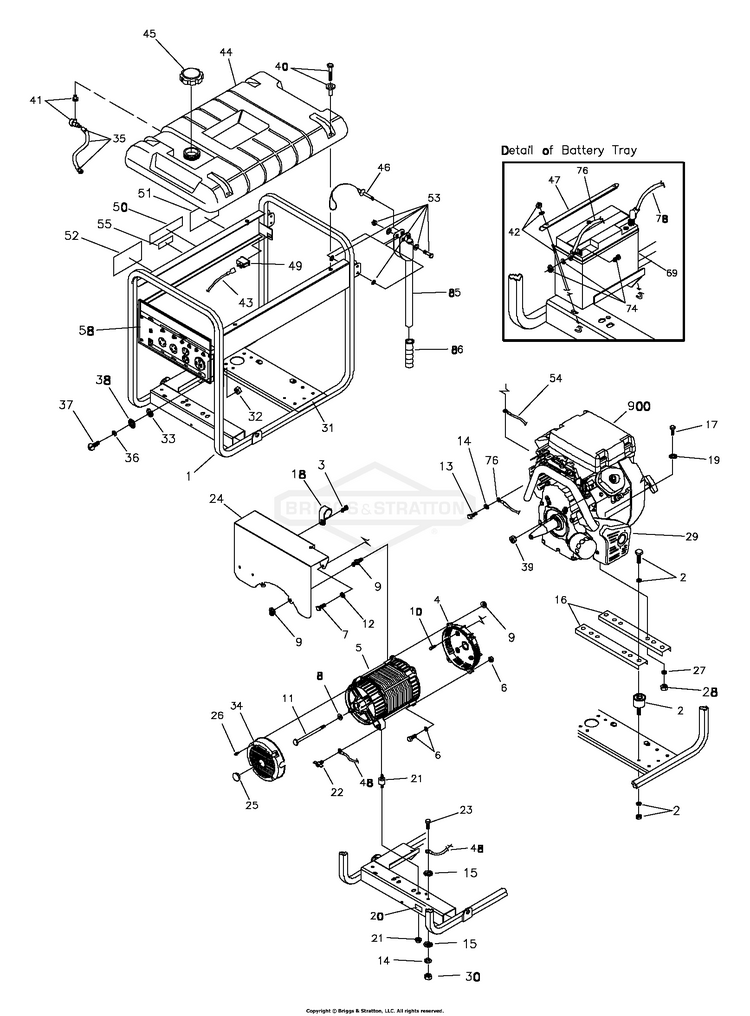

Main Unit (196676)

...
...
1
CRADLE BS-B196668GS
...
2
KIT, Engine Support Hardware BS-194209GS
...
3
CRIMPTITE, 10-24 x 1/2 BS-56893GS
...
4
ADAPTER, Engine BS-190220GS
...
5
ASSY,Alternator (see "Alternator") BS-~NSP
...
6
KIT,Adapter Mounting Hardware BS-194151GS
...
8
WASHER BS-96796GS
...
9
KIT,Alt to Heat Shield Hardware BS-194208GS
...
10
SBHC, 3/8-16 x 7/8" BS-190274DGS
...
11
HHCS, 5/16 - 24 x 9-7/8 BS-25254GS
...
16
SUPPORT, Engine BS-B77304GS
...
18
CLAMP, Hose BS-55934TGS
...
20
DECAL, Ground BS-B4986GS
...
21
KIT,Vibration Mount BS-196400GS
...
22
SCREW,Wing M6 - 1.0 x 16 BS-86494GS
...
24
ASSY, Heat Shield BS-196672GS
...
25
CAP BS-191190GS
...
26
TAPTITE, M5 - 0.8 x 10 BS-74908GS
...
29
KIT, Muffler BS-186989GS
...
31
DECAL, Caution Hot Muffler BS-196830GS
...
32
NUT, M5 - 0.8 Lock BS-52856GS
...
34
COVER, RBC Plastic (Includes Item 25) BS-195422GS
...
35
LINE, Fuel BS-791745
...
39
NUT, M8 Flange Serrated BS-67989GS
...
40
KIT, Fuel Tank Hardware BS-195076GS
...
41
VALVE, Fuel BS-192980GS
...
42
KIT, Hardware J-Bolt BS-193986GS
...
43
HARNESS, Switch, Start/Run BS-197273GS
...
44
ASSY,Tank Fuel (Includes Items 41, 50, 51 & 52) BS-B1997GS
...
45
CAP,Tank Fuel BS-B4325GS
...
46
PIN, Handle Release BS-B4135GS
...
47
BRACKET, Battery Hold Down BS-B96925GS
...
48
WIRE, Ground BS-186790EGS
...
49
SWITCH, Set Exercise BS-87799GS
...
50
DECAL, Instruction Fuel Level BS-188333GS
...
51
DECAL, Danger BS-197445GS
...
52
DECAL, Start Instructions BS-196698GS
...
53
KIT, Folddown Handle Hardware BS-194034GS
...
54
HARNESS, Battery Charge BS-197274GS
...
55
DECAL, Fuel Shutoff BS-191435GS
...
58
ASSY, Control Panel (see "Control Panel") BS-196892GS
...
69
BATTERY BS-193043GS
...
74
KIT, Hardware Battery BS-193347GS
...
76
ASSY,Wire, #55 Blk BS-185939PGS
...
78
ASSY,Wire, #13 Red BS-189302PGS
...
85
ASSY, Fold Down Handle (Includes Item 86) BS-B193200GS
...
86
GRIP BS-198669GS
...
MANUAL, Owners Not Illustrated BS-196675GS
...
MANUAL, Engine Not Illustrated BS-MS6497
...
BOTTLE, Oil Not Illustrated BS-BB3061GS
...
CHARGER, Battery Not Illustrated BS-84002790
...
KIT, Decal Service Not Illustrated BS-198121GS
...
SCREW Not Illustrated BS-690661
...
ARRESTOR, Spark Not Illustrated BS-794945

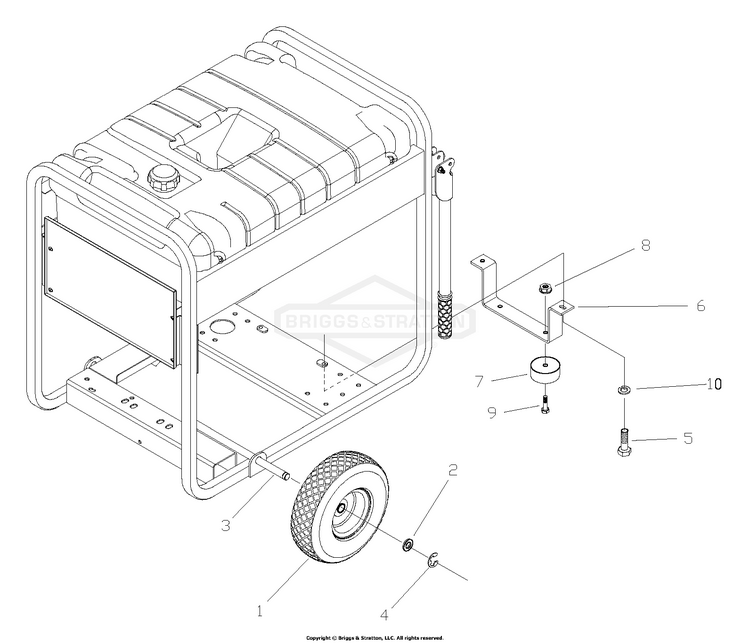

Wheel Kit (196677)

...
...
1
WHEEL BS-209636GS
...
3
AXLE, 5/8" BS-191267JGS
...
4
E-RING BS-703977
...
6
SUPPORT,Wheel Kit BS-B196674GS
...
7
MOUNT,Vibration BS-191413GS
...
8
NUT, 1/4 - 20 Flange Nylok BS-194005GS

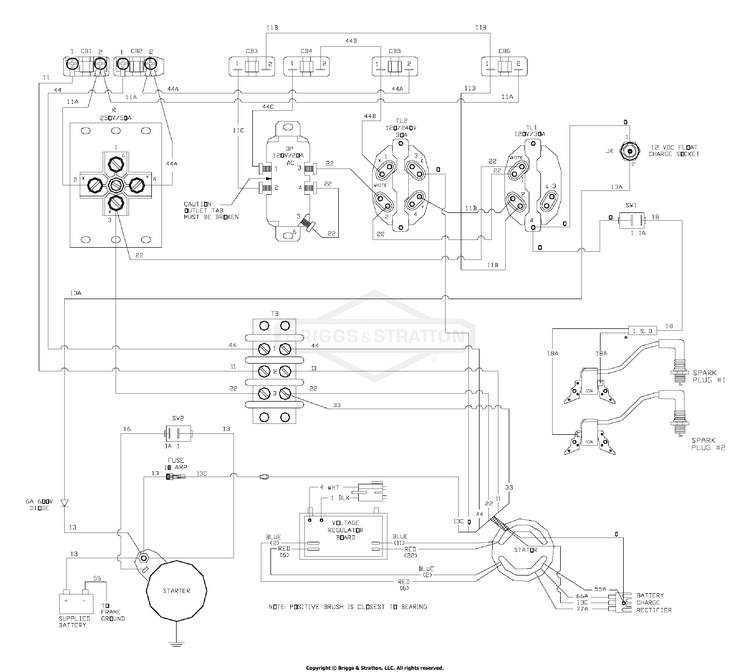

Wiring Diagram (196680)

...

No Parts Available for this Schematic

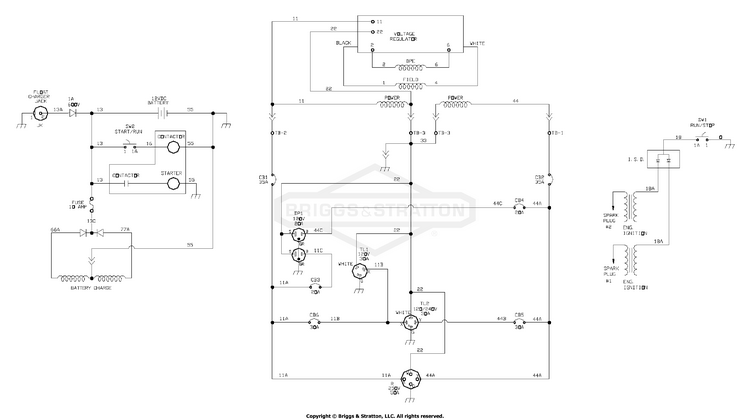

Wiring Schematic (196680)

...

No Parts Available for this Schematic
